We are pleased to inform you about the enhanced control capabilities offered through the Clarity software family.
Clarity - Shimadzu Edition
Clarity - Shimadzu Edition expands instrument control options of Clarity Chromatography Software with Shimadzu Nexera HPLC and Nexis GC systems.
In addition to all supported instruments in Clarity, this edition brings exclusive control of Shimadzu Nexera HPLC and Nexis GC systems.
The control of Shimadzu Nexis GC-2030 GC and Shimadzu Nexera HPLC is available only through a special Clarity OEM version called Clarity - Shimadzu Edition (p/n C50-28) which is available only in Europe.

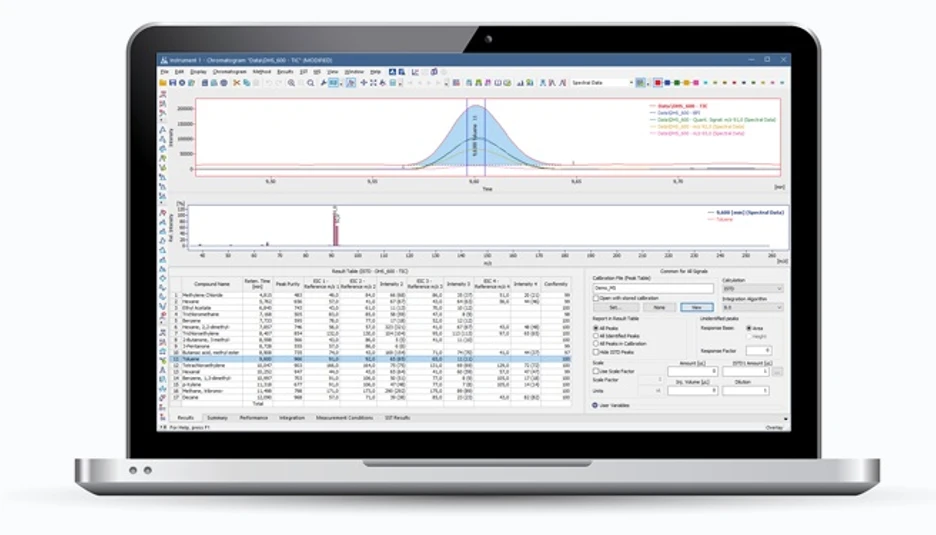

DataApex: Clarity - Shimadzu Edition
All Clarity features in the Shimadzu edition
You will get all the optional features available in Clarity with your Shimadzu edition, such as integrated control of selected instruments (GCs, LCs, pumps, detectors, autosamplers, etc.). Extensions provide functions for specific separation techniques or calculations such as PDA, GPC analysis, Mass spectrometry, or SST. User interface choice of languages includes English, French, German, Russian, Spanish, and Chinese. Our highly rated technicians and developers provide timely, extensive support.
Control module for Shimadzu Nexis GC-2030 system
The Shimadzu Nexis GC-2030 Control module allows direct control of this GC (Gas chromatograph) using Agilent ICF (Instrument Control Framework). Direct control means that the GC can be completely controlled from the Clarity - Shimadzu Edition Chromatography Station enabling integrated GC control thus ensuring complete automation for laboratories. The instrument method controlling the analysis conditions will be saved in measured chromatograms. Along with the above-mentioned CG, the control module also allows controlling autosamplers operated through the GC. The control is performed via LAN. The minimum required firmware of the GC is version 1.09.
Specification
Shimadzu Nexis GC-2030
- Controlled instruments: Nexis GC-2030 gas chromatograph, AOC-20 family autosamplers
- Supported detectors: FID, TCD, FTD, FPD, ECD, BID
- Communication interface: LAN
- Purchasing: GC Control - (p/n A23), GC Shimadzu Control (p/n A23-001) - needs to be purchased once for each connected system, AS Control - (p/n A26) - when autosampler is present
- Related products: Clarity - Shimadzu Edition (p/n C50-28) Only available in Europe
- Cable: Cross LAN (p/n SK08)
Control module for Shimadzu Nexera HPLC systems
Direct control of Shimadzu Nexera HPLC components using the Agilent ICF (Instrument Control Framework) tools developed by the Agilent company. The Clarity Chromatography Station - Shimadzu Edition allows for direct control of selected Shimadzu Nexera components (mostly from the Nexera LC-40 line), enabling Clarity to provide integrated instrument control and to ensure complete automation for laboratories. The control module includes parameters for the HPLC pumps, column ovens, detectors (including PDA), autosamplers, etc. A dedicated PDA Extension enables the evaluation of data from PDA systems.
The control module limits the usage of multiple Nexera HPLC systems in the same Clarity - only a single system is guaranteed to function reliably.
DataApex: Shimadzu Nexis GC-2030 Control
Specification
Shimadzu Nexera Control
- Controlled devices: The Shimadzu Nexera HPLC control module is compatible with selected components of Shimadzu Nexera HPLC systems supported by the Agilent ICF. Exact list of controlled components is shown in the list below.
- Communication interface: LAN
- Data acquisition interface: Digital Data Acquisition Purchasing: LC Control (p/n A24), LC Shimadzu Control (p/n A24-001) - needs to be purchased once for each connected system, AS Control (p/n A26) - optional, PDA Extension (p/n A29) - optional
- Special: Based on controller serial number and unique LC Shimadzu Control license number, specific Connect Key is needed for the LC to communicate, for more details see the manual.
- Related products: Clarity - Shimadzu Edition (p/n C50-28)
- Cable: Cross LAN (p/n SK08)
List of controlled subdevices of the Shimadzu Nexera control module. Please note that the portfolio of components widens with further releases of newer control module versions.
- Controllers: CBM-40, CBM-40 Lite, SCL-40
- Pumps: LC-40B X3, LC-40B XR, LC-40D, LC-40D X3, LC-40D XR, LC-40D XS
- Detectors: CDD-10Avp, RF-20A, RF-20AXS, RID-20A, SPD-40, SPD-40V
- PDA Detectors: SPD-M30A, SPD-M40
- Autosamplers: SIL-40, SIL-40 XR, SIL-40C, SIL-40C X3, SIL-40C XR, SIL-40C XS
- Column Ovens: CTO-30A, CTO-40C, CTO-40S
- Other: Mobile Phase Monitor MPM-40

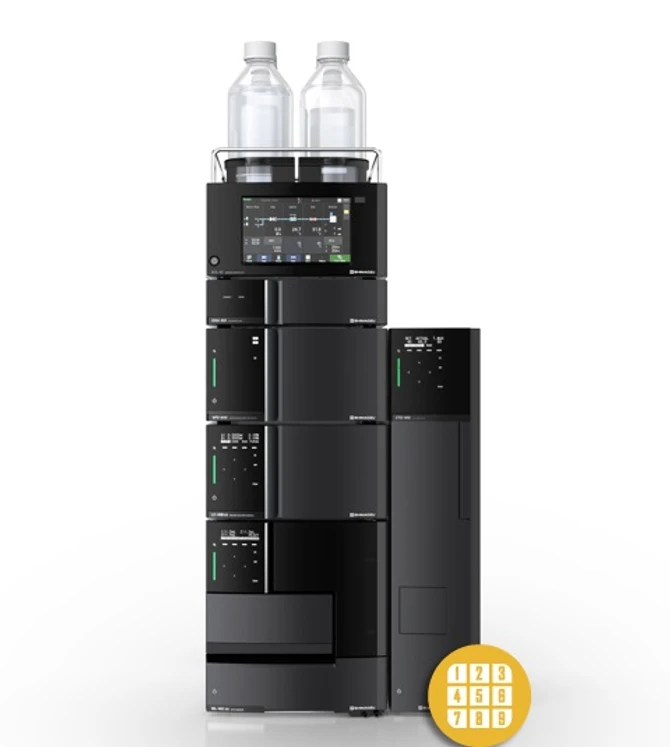

DataApex: Shimadzu Nexera Control
List of all supported instruments
Preview functions of Clarity - Shimadzu Edition. You can try any controlled instrument in simulated demo mode without connecting to a real device. Discover all configuration options and run simulated data acquisition. A stored demo data set allows you to try the capabilities of data processing.
