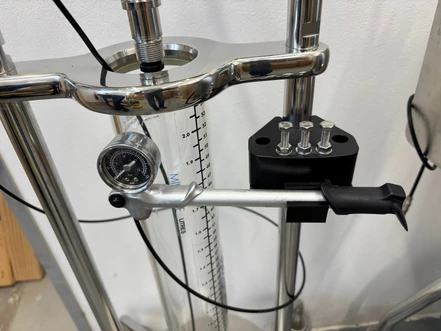

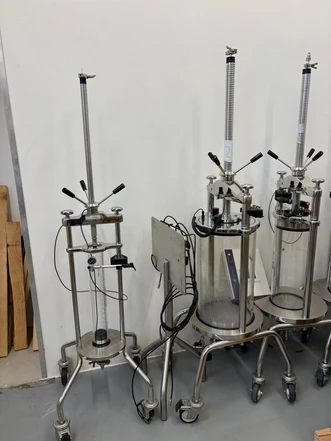

Millipore Quikscale® Chromatography Purification Column, 2,1 L (Tested)

Millipore QuikScale® Chromatography Columns are high-performance biochromatography columns designed for scalable biomolecule purification from pilot-scale development to full manufacturing processes. Featuring robust construction, high flow capacity, and optimized flow distribution, these columns deliver fast, reproducible, and efficient chromatographic separations across a wide range of chromatography media.

Key Features

• Biochromatography purification column for scalable processes
• Suitable for protein purification applications
• High flow rates up to 1000 cm/h
• Robust construction for long-term operation
• Optimized flow distribution for uniform bed utilization
• Fast and simple column packing and unpacking
• Tool-free handling and maintenance
• Compatible with a wide range of chromatography media
• CIP-compatible design for simplified cleaning
• Reduced dead volume and carry-over risk
• Modular configuration with broad accessory support

Technical Specifications

• Product: Millipore QuikScale® Chromatography Column
• Bed Volume: 0.04–2.08 L
• Maximum Working Volume: 2.1 L
• Bed Height: 10–540 mm
• Column Diameter: 7.0 cm
• Cross-sectional Area: 38.5 cm²
• Column Height: 550 mm
• Length: 55.1 cm
• Maximum Inlet Pressure: 6.9 bar (100 psi)
• Maximum Differential Pressure: 7 bar (100 psid)
• Operating Temperature: 2–30 °C
• Fitting: 3/4" sanitary clamp
• Materials:
  • 316 stainless steel flow cell
  • 316L stainless steel external surfaces
  • Borosilicate glass column tube
  • Polypropylene components
  • EPDM rubber seal
  • Stainless steel bed support (1.4539)
