Shimadzu RF-20A fluorescence detector (New)

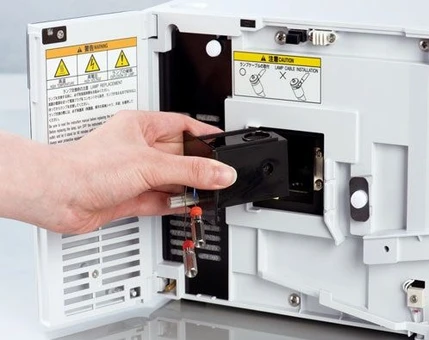

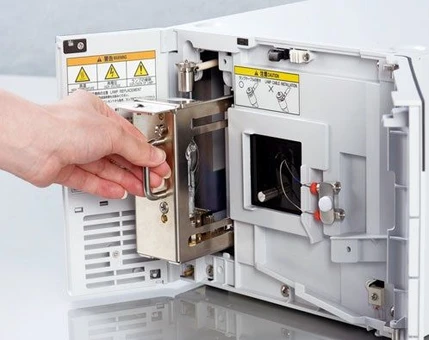

The RF-20A offers the highest level of sensitivity in its class, achieving a water Raman S/N ratio of at least 1200. In addition to excellent performance, it features easy maintenance from the front of the instrument and a long life lamp.

Technical Specification

• Light source: Xenon lamp

• Wavelength range: 200 to 650 nm

• Spectral bandwidth: 20 nm

• Wavelength accuracy: 2 nm

• Wavelength reproducibility: 0.2 nm

• S/N Water Raman peak: min. S/N 1200 min

• **Cell (capacity,pressure resistance, material):**12 µL; 2 MPa; SUS316L, PTFE, quartz

• Simultaneous Monitoring of Wavelengths

  • Measured wavelength: Any two wavelengths between 200 and 650 nm (Four wavelengths can be set from LabSolutions.)

  • Sampling period: 0.5 s per wavelength

• Operational ambient temperature range: 4 to 35 °C

• Dimensions / weight: W260 × D420 × H210 mm, 16 kg
