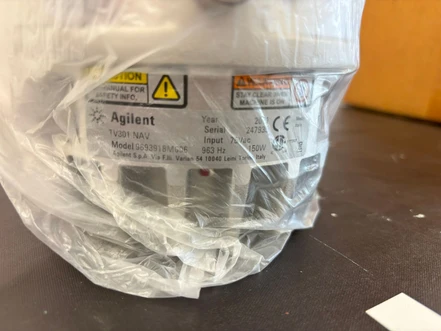

Agilent TURBO-V301 Navigator Turbo Pump with Controller (New)

The Agilent TURBO-V301 Navigator is a high-performance turbomolecular pump system engineered for demanding high-vacuum applications in scientific research and industry. Designed with Varian’s innovative MacroTorr® drag stages and a compact monolithic rotor, the V301 delivers exceptional pumping speed, compression ratio, and foreline tolerance — all in a compact, lightweight form factor.

This pump is equipped with the versatile Navigator Controller, which enables seamless integration into laboratory and industrial setups. It supports remote diagnostics and control through a user-friendly Windows™ interface, allowing real-time monitoring, diagnostics, and plug-and-play operation.

Optimized for clean, oil-free vacuum generation, the TURBO-V301 is ideal for analytical instrumentation such as GC/MS and LC/MS systems, electron and ion microscopy, semiconductor manufacturing, and a wide range of ultra-high vacuum (UHV) and high-throughput environments.

Key Features

• Pumping Speed: 250–280 L/s for nitrogen
• High Compression Ratio: 7 × 10⁸ (N₂), 10⁵ (He), 10⁴ (H₂)
• Clean Operation: Oil-free, maintenance-free ceramic bearings with proprietary dry lubrication
• Foreline Tolerance: Operates at foreline pressures up to 18 mbar with dry scroll or mechanical pumps
• Controller Integration: Navigator controller supports 24 VDC or 120/220 VAC, with plug-and-play functionality and software connectivity
• Cooling Options: Natural air convection, with optional forced air or water cooling
• Mounting Flexibility: Operates in any orientation (vertical, horizontal, upside down)

Typical Applications

• Mass spectrometry (GC/MS, LC/MS, TOF, ICP-MS)
• Electron and ion microscopy (SEM, TEM, FIB)
• Surface science and metrology
• Semiconductor process tools
• High energy physics and fusion research
• Vacuum load locks and analytical instrumentation

Technical Specifications

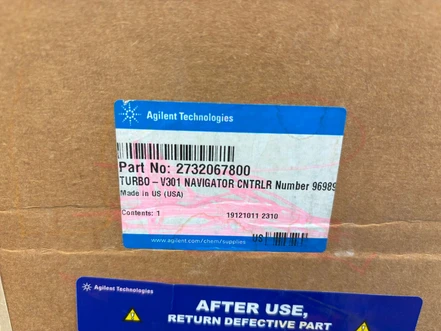

• Part Number: 2732067800
• Model: Turbo-V 301 Navigator
• Pumping Speed:
  • N₂: 250–280 L/s
  • He: 220–230 L/s
  • H₂: 200–210 L/s
• Compression Ratio:
  • N₂: 7 × 10⁸
  • He: 1 × 10⁵
  • H₂: 1 × 10⁴
• Ultimate Pressure:
  • With mechanical pump: < 5 × 10⁻¹⁰ mbar
  • With dry pump: < 5 × 10⁻⁹ mbar
• Rotational Speed: 56,000 rpm
• Startup Time: < 3 minutes
• Inlet Flange Options: ISO 100 / ISO 160 or CF 6" / CF 8"
• Foreline Flange: KF16 (optional KF25)
• Cooling: Natural convection standard, optional air/water cooling
• Operating Position: Any
• Bakeout Temperature:
  • CF flange: 120 °C
  • ISO flange: 80 °C
• Vibration Level: < 0.01 µm displacement at inlet
• Weight:
  • Pump + Navigator controller (ISO): 4.5 kg
  • Pump + Navigator controller (CF): 8 kg
