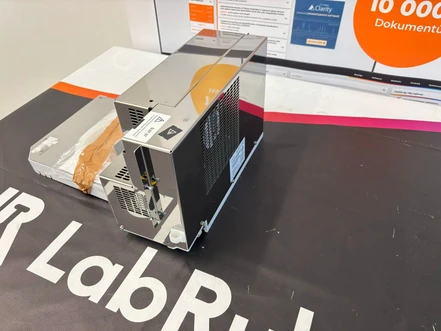

Agilent Infinity II Sample Thermostat G7167-60201 (Testované)

Efficient temperature control is essential for reproducible chromatography, particularly with temperature-sensitive samples. The Agilent Infinity II Sample Thermostat (G7167-60201) is designed for seamless integration with Agilent 1260 and 1290 Infinity II Multisamplers. It ensures sample integrity by maintaining precise, uniform conditions for vials and microplates prior to injection, supporting consistent LC performance across workflows.

Key Features

• Active cooling & heating from +4 °C to +40 °C via micro-compressor technology.
• Uniform thermal stability across all sample positions through controlled air circulation.
• Condensation management with integrated drain directing condensate to a waste bottle.
• Compact integration directly into Agilent 1260/1290 Infinity II Multisampler housing.
• Environmentally friendly design using R600a (isobutane) refrigerant.
• No external power needed – draws power from the host autosampler.
• Low maintenance with minimal user intervention, only requiring regular condensate bottle emptying.

Technical Specifications

Model: G7167-60201
Product Name: Agilent Infinity II Sample Thermostat

Cooling and Heating

• Temperature Range: +4 °C to +40 °C
• Temperature Control: Micro-compressor system with active air circulation
• Temperature Stability: Uniform conditions across all trays

Performance and Safety

• Condensation Management: Integrated waste drain system
• Air Flow: Even distribution through base plate

Installation & Integration

• Compatible With: Agilent 1260/1290 Infinity II Multisamplers (G7167A/B)
• Placement: Installs into Multisampler housing; compact and stackable
• Power Supply: From host autosampler, no external source required

Environmental Considerations

• Refrigerant: R600a (isobutane)
• Room Requirements: ≥ 4 m³ per module (1 m³ per 8 g R600a)
• Ventilation: ≥ 25 m³/h per m² floor area
• Safety: Avoid open flames, ensure ventilation

Maintenance

• Minimal intervention required
• Regular emptying of condensate bottle
