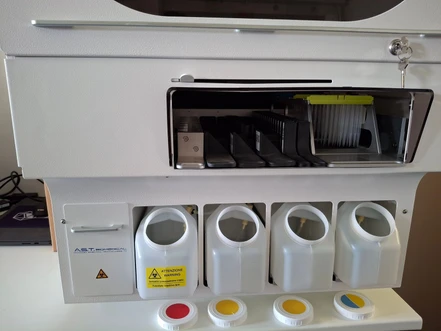

IASO Lite - Fully Automated Random-Access ELISA / Optional CLIA Analyzer (Refurbished)

The IASO Lite by A.S.T. Biomedical is a next-generation, fully automated microplate analyzer designed for random-access and continuous loading of ELISA and optional CLIA assays. Engineered for diagnostic laboratories requiring flexibility and efficiency, IASO Lite supports up to three microplates per run with fully independent scheduling, allowing simultaneous processing of multiple assays and reagent types.

With on-board incubation, shaking, washing, predilution, and dual reading (absorbance and optional chemiluminescence), the IASO Lite minimizes manual intervention while maintaining analytical accuracy and reproducibility. Its disposable tip system (10–1000 µL) eliminates carryover, while interchangeable racks allow up to 128 samples to be processed in one session. Compact, quiet, and energy-efficient, the IASO Lite is ideal for both clinical and research environments.

Key Features

• Fully automated ELISA / optional CLIA platform with random access
• Continuous loading and independent scheduling for up to 3 plates
• Disposable tips (320) to prevent contamination
• On-board incubation (37 °C ±1 °C), shaking, washing, and predilution
• Dual reading: absorbance up to 4.0 O.D. and optional chemiluminescence
• Flexible throughput: up to 12 assays per plate, 128 samples on board
• Smart fluid management: dual wash and waste tanks (2.5 L each) with load-cell monitoring
• Compact and efficient: 24 Vdc operation, low energy use (~350 VA)
• Connectivity: LIS/RS-232, Wi-Fi remote support, optional barcode and RFID
• Ideal for: Clinical labs, immunology, serology, research, and biotech applications

Technical Specifications

• Capacity: Up to 3 microplates; up to 12 assays/plate
• Samples: Up to 128 (8 racks × 16 positions)
• Pipetting System: Dual motorized air syringes, 10–1000 µL, pressure/clot detection, disposable tips
• Incubators: 3 units (37–40 °C ±1 °C) with orbital shakers (50–1100 rpm, CW/CCW)
• Wash System: 16-pin manifold (8 aspirate + 8 dispense)
• Fluids: 2 × 2.5 L wash tanks, 1 × 2.5 L H₂O, 2 × 2.5 L waste tanks (load-cell sensing)
• Readers:
  • ELISA photometer: 8-frequency LEDs, up to 4.0 O.D.
  • Wavelengths: Select 4 filters (405, 450, 570, 630, 650, 690 nm)
  • CLIA (optional): Photomultiplier for chemiluminescent plates
• Power: 24 Vdc, 350 VA consumption
• Connectivity: RS-232 (ASTM/LIS), Wi-Fi remote access, barcode/RFID options
• Dimensions / Weight: 680 × 790 × 885 mm / ~60 kg
• Tube Compatibility: Up to 16 × 100 mm

Date of purchase: December 2023

Software must be reinstalled
