SIELC Alltesta Mini HPLC Autosampler (Special offer - New)

The Alltesta™ Mini Autosampler is a cost-effective and reliable solution for automated sample handling across various analytical and liquid handling applications, including HPLC. With its proprietary alpha/beta mechanical design, this compact autosampler provides direct and comprehensive control of its features, enabling quick and seamless integration. Users can customize the mini autosampler to their specific needs by selecting valve configurations, tray designs, and syringe volumes and pressures. Additionally, the built-in shaking feature facilitates sample mixing before injection and/or straightforward sample extraction within the vial.

Designed with original equipment manufacturer (OEM) customization in mind, this compact autosampler offers flexibility in shape, color, and communication interfaces to ensure seamless integration with any system. Comprehensive software integration support is included. Additional options include metal-free sampling and capabilities for reagent addition and mixing.

Fraction Collection Capability: A simple software modification can transform this small autosampler into a fraction collector.

Reactor Probe Sampler Capability: With a straightforward software adjustment, this compact autosampler can function as a reactor probe sampler.

This miniature autosampler is also compatible as a component of our Alltesta™ Gradient Automated Analyzer and Alltesta™ Cromite Analyzer.

The price of the Alltesta™ Mini Autosampler depends on the specific configuration selected.

Specifications:

• Dimensions (WHL): 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in
• Weight: 3 kg / 6.6 lb
• Power: 24 V
• Capacity: 48 vials or 96-well plate
• Pressure: 5000 psi
• Needle Wash: Inside and outside
• Syringe Capacity: 120µL high-pressure / 4000µL low-pressure stainless / 4000µL low-pressure ceramic
• Valve Options: 6×2, 7×6, and 10×9 (more details available upon request).
• Volume Accuracy: 0.1µL
• Communication: RS232 Virtual COM port via USB

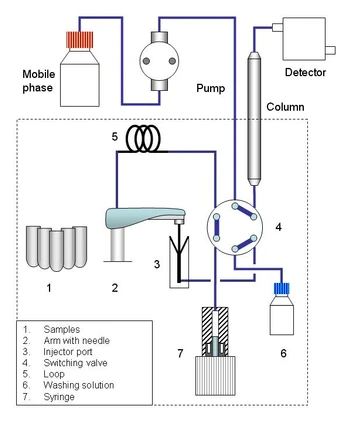

SIELC: Alltesta™ Mini Autosampler - A simple schematic of the Alltesta™ Autosampler operation.

Software:

The Alltesta™ Autosampler can be controlled in the following ways:

1. Directly via serial commands (Alltesta™ protocol available upon request, contact [email protected]).
2. Using our demo software, which provides full access to the device's functionality (compatible with Windows 10, 32/64-bit, 5MB; Windows 7, 32/64-bit, 126MB).
3. Remotely via cloud software (as part of the Alltesta™ Analyzer or Alltesta™ Mini Analyzer).

Serial communication drivers are available upon request.
