SIELC Alltesta Mini HPLC Autosampler

The Alltesta™ Mini Autosampler is an affordable and dependable solution for automated sample handling in various analytical and liquid handling applications, including HPLC. With its proprietary alpha/beta mechanical design, this compact autosampler offers direct and comprehensive control of its features, making integration quick and easy. Users can tailor the mini autosampler to their needs with customizable valve configurations, tray designs, and syringe volumes and pressures. Additionally, a built-in shaking feature enables sample mixing before injection and/or simple sample extraction within the vial.

This compact autosampler comes designed with original equipment manufacturer (OEM) customization in mind. Custom shape, color, and communication interfaces can be adapted to integrate with any system. Comprehensive software integration support is provided. Other options include metal-free sampling and reagent addition and mixing capabilities.

• FRACTION COLLECTION CAPABILITY: A simple software modification can quickly convert this small autosampler into a fraction collector.

• REACTOR PROBE SAMPLER CAPABILITY: A simple software modification can quickly convert this small autosampler into a reactor probe sampler.

This miniature autosampler can also be used as a component of our Alltesta™ Gradient Automated Analyzer and Alltesta™ Cromite Analyzer.

The price of the Alltesta™ Mini Autosampler varies depending on the specific configuration requested.

Specifications

• Dimensions (WHL): 160 x 145 x 195 mm / 6.3 x 5.71 x 7.68 in
• Weight: 3 kg / 6.6 lb
• Power: 24 V

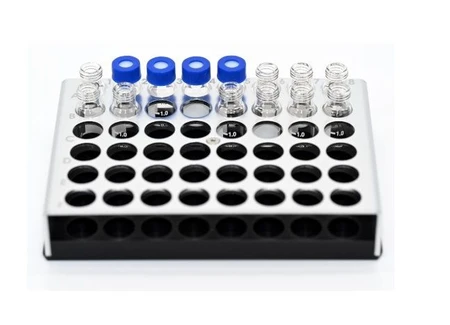

• Capacity: 48 vials or 96-well plate
• Pressure: 5000 psi
• Needle Wash: Inside and outside
• Syringe Capacity: 120µL high-pressure / 4000µL low-pressure stainless / 4000µL low-pressure ceramic
• Valve options: 6×2, 7×6 and 10×9 (more details here).
• Volume Accuracy: 0.1µL
• Communication: RS232 Virtual COM port via USB

SIELC: Alltesta™ Mini Autosampler - A very simple schematic operation of the Alltesta™ Autosampler.

Software

The Alltesta™ Autosampler can be controlled:

• directly via serial commands (Alltesta™ protocol available upon request, please contact us at [email protected]),

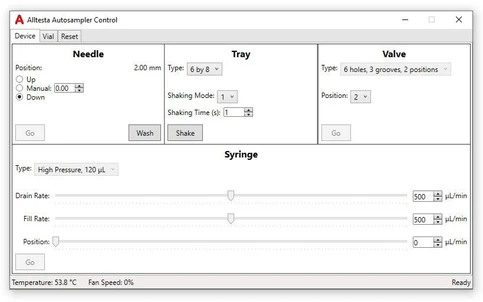

• directly via our demo software, allowing to learn the whole functionality of the unit (Windows 10, 32/64bit, 5Mb; Windows 7, 32/64bit, 126Mb).
• remotely through our cloud software (as a part of Alltesta™ Analyzer or Alltesta™ Mini Analyzer),

Serial communication drivers are available here.
