Watrex Streamline™ P1 HPLC Pump, PEEK

Streamline P1 pump, PEEK fully meets the demanding requirements for HPLC pumps and can be combined seamlessly with HPLC detectors and instruments from other manufacturers.

Price 4 935 € ex VAT

In the analytical version of the pump, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable in 1 ul increments with a maximum working pressure of 42 MPa (6,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. The pump’s extremely smooth flow profile is ensured by an efficient pulse damper and optimized cam shape.

A unique feature is the active piston and seal rinse, which prevents crystallization of buffers. A touch screen display on the front panel allows intuitive control of the pump.

The display shows the flow rate, the current pressure and the pump is equipped with pressure limits. A PRIME function is also directly available for flushing at increased flow rates.

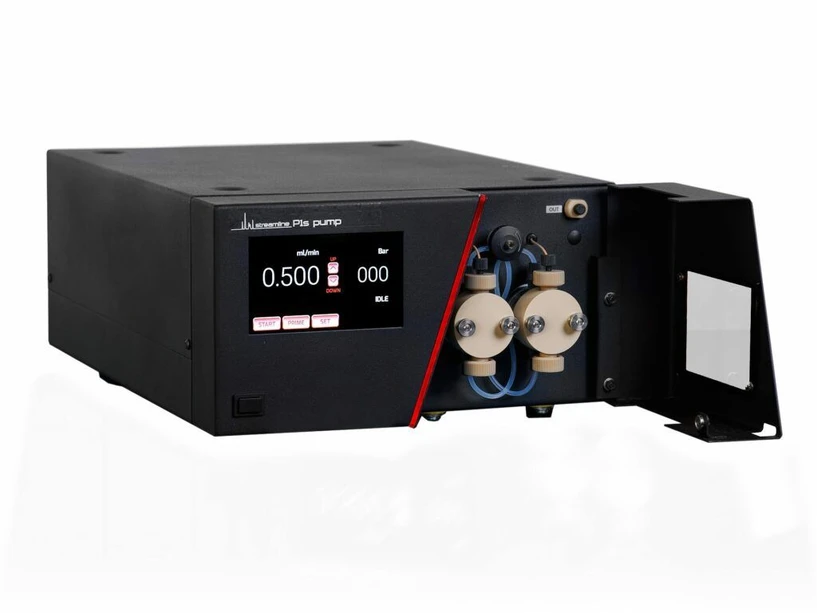

Watrex: Streamline™ P1 Pump, PEEK.

TECHNICAL SPECIFICATION

• Flow Rates: 0.001 to 10.000 mL/min
• Pressure: 0 to 6,000 psi (42 MPa)
• Flow precision: > 0.2% RSD
• Flow accuracy: ± 1 % @ 1mL/min and 7 MPa,
• Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 7 MPa
• Pulsation: ± 0.5 % @ 1mL/min and 7 MPa
• Remote inputs: USB
