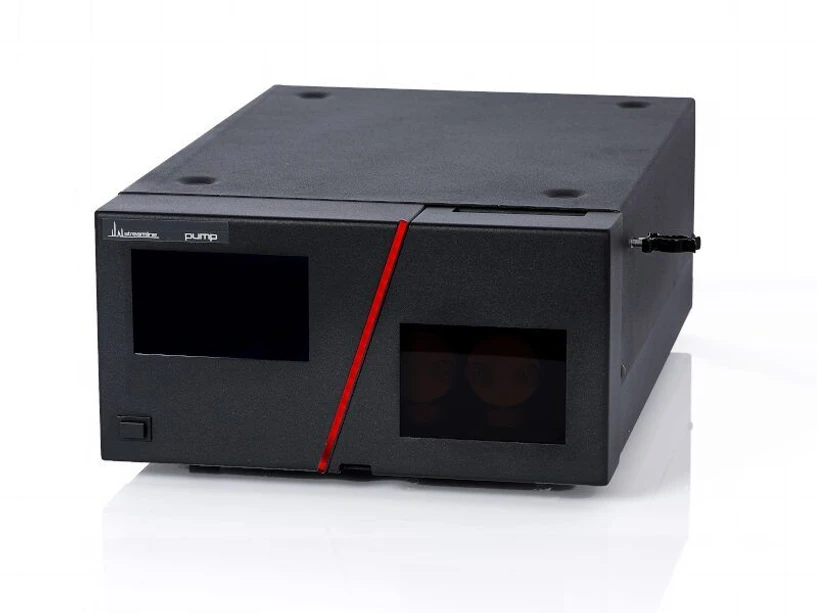

Watrex Streamline™ Binary High Pressure Gradient system, PEEK

Binary high pressure gradient Streamline system in PEEK version, consisting of two P1m+P1s pumps with programmable mixing of two mobile phase components at high pressure with 0.1% accuracy (between 10% and 90% mixing ratios).

Price 9 333 € ex VAT

An integrated two-channel degasser is a recommended part locvated on the top in the solvent cabinet. In the analytical version, the flow rate range from 0.001 ml/min to 10 ml/min is adjustable to 0.001 ml/min accuracy with a maximum working pressure of 35 MPa (5,000 psi). Flow rate adjustment accuracy is ±1% and flow rate variation is better than ±0.1%. A unique feature is an active piston and seal rinse that prevents crystallization of buffers.

A touch screen display on the front panel allows intuitive control of the pump. The display shows the flow rate. A PRIME function is also directly available for flushing at increased flow rates. A cabinet is included for placing bottles with mobile phases. Control and programming of the gradient is done from the Clarity data station.

Watrex: Streamline™ Binary High Pressure Gradient system, PEEK

PUMP FEATURES

• Each pump has a single stepper motor driven, dual head positive displacement pump (pump heads 180° out of phase)
• PEEK pump heads and fluid path
• Incorporates a diaphragm-type pulse damper, which reduces pulsation in the system by as much as 90% and includes an isolated pressure transducer (i.e., the transducer adds no dead volume).
• Ruby/Sapphire Check Valves (1/16” ball)
• Front panel flow adjustment in 0.001 mL/min increments
• Upper and Lower Pressure Limits: Automatically turns the pump OFF if the system pressure exceeds the maximum pressure limit, or drops below minimum pressure limit
• Microprocessor advanced control with advanced pre-compression algorithm and user calibration feature
• Back panel USB communications port for complete control and status monitoring; Clarity Driver available
• Automatic piston wash (self-flush)

TECHNICAL SPECIFICATION

• Flow Rates: 0.001 ml/min – 10 ml/min with step 0.001 ml/min
• Pressure: 35 MPa/5000 psi
• Pulsation: ± 1% @ from 7 MPa to 42 MPa
• Pressure Accuracy: ± 2% of full-scale, with IPA
• Flow Accuracy: better than ± 1% @ 10mL/min
• Flow Precision: better then 0.1% RSD or 0.2 min SD, whichever is greater, across the full flow range, 20 MPa, with degassed methanol
• Remote control: USB
• I/O connector: Start, Stop, Status, Error
