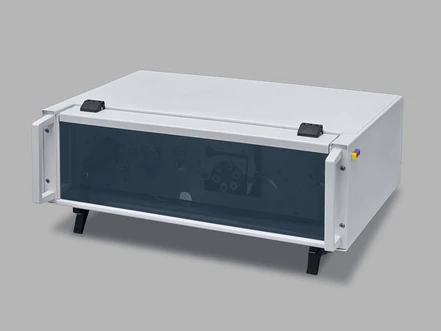

ISTRAN EcaFlow Model 150 GLP automatic laboratory analyser

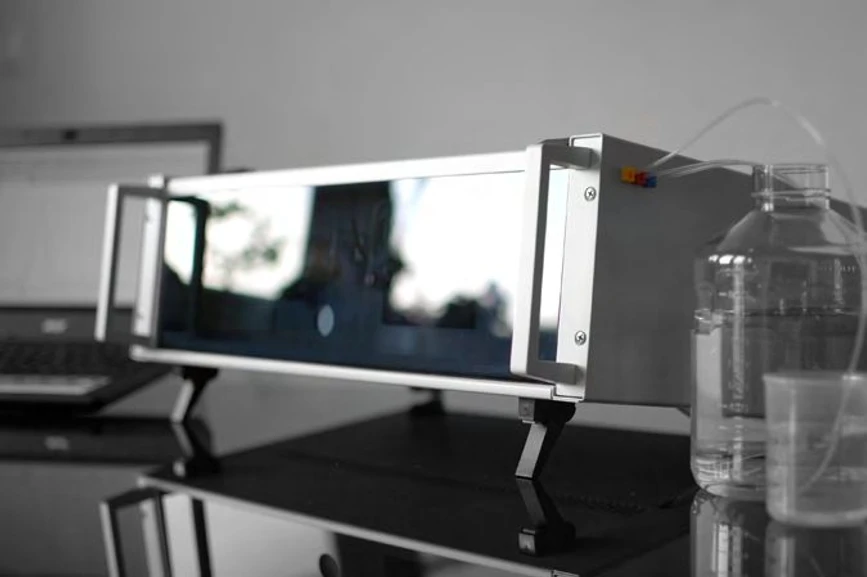

EcaFlow Model 150 GLP is a PC controlled automatic laboratory analyser for the determination of trace and high concentrations of metals, semi-metals and numerous nonmetals in various samples. By making use of the autosampler AS-150 up to 42 samples can be analysed in full automatic mode. The system supports the standardless, calibration curve and standard additions techniques. Over 70 validated applications are available for numerous sample types such as waters, foods, industrial liquids, wastes, etc. EcaFlow is a compact laboratory instrument controlled by a PC.

ISTRAN EcaFlow 150 GLP

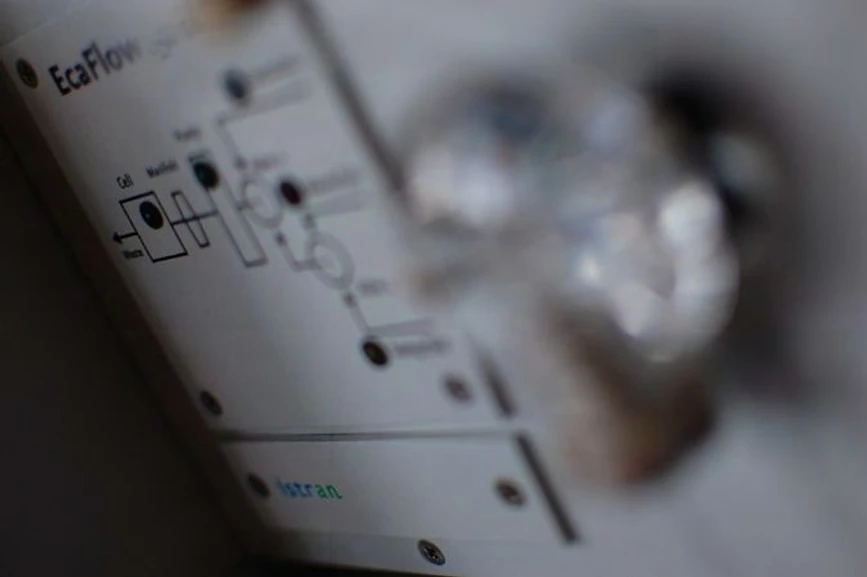

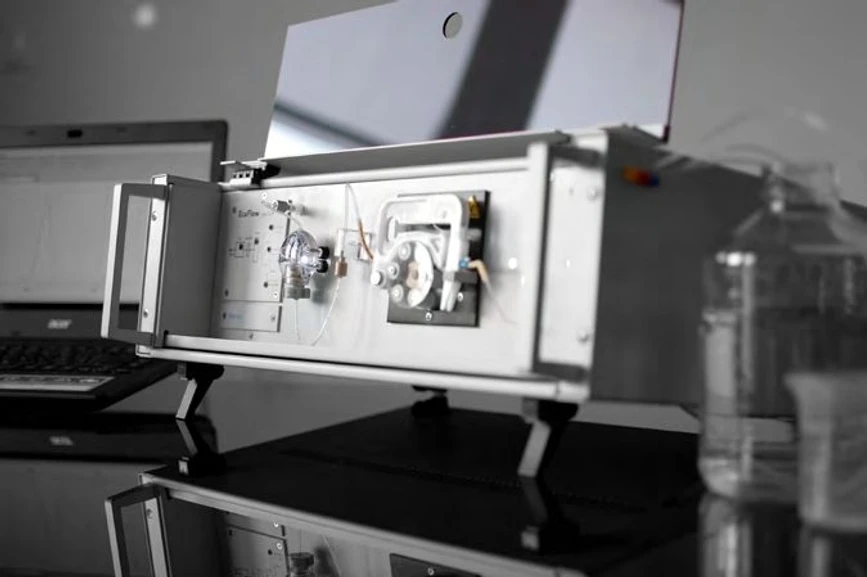

The control unit contains the power support unit, control processor with a channel analyser, fast A/D and D/A converters and a high performance generic potentiostat/galvanostat. The compact flow system is controlled by the control unit and operates full automatically. It contains computer controlled electromagnetic valves for switching either to the sample solution or to an electrolyte solution or to a standard solution for the standard addition. Solutions are driven by a peristaltic pump. The heart of the system is the patented compact electrochemical cell.

The cell uses disposable flow-through working electrodes made of suitable inert material. The counter and reference electrodes are separated from the flowing solutions hydrodynamically, so the reaction products at the counter electrode cannot interfere at the working electrode. The working electrode can be easily changed simply by loosening a screw. The cell is fixed to the panel of the instrument by a special connector which serves as an electrical contact to the electrodes. The connections of the tubes are made of Luer-type fitting, which facilitates fast manipulation when the electrode or cell is changed.

ISTRAN EcaFlow 150 GLP

Technical data

Potentiostat/galvanostat: 12 V / 20 mA
Measuring cell: EcaCell 353c or EcaCell 104 with three electrodes
Flow system: Full computer control with peristaltic pumping
Weight: 7 kg
Dimensions: 500 x 450 x 140 mm
Software: Chronopotentiometry, coulometry, voltammetry
Computer (option): Any PC with Windows XP and higher
Autosampler (option): 42 positions + blank + standard

ISTRAN EcaFlow 150 GLP

Available applications (all included):

1. Flow-through analyser test
2. Simultaneous determination of Cd, Pb and C
3. Determination of Pb
4. Simultaneous determination of Sn and Pb
5. Simultaneous determination of Pb, Cd and Hg
6. Determination of EDTA
7. Simultaneous determination of Zn, Cd, Pb, and Cu
8. Simultaneous determination of Cd, Pb, a Cu in wines
9. Determination of Ag
10. Determination of As(III) and total As in urine
11. Determination of As(III) and total As in fertilisers
12. Determination of Se in waters
13. Determination of Mn
14. Determination of Hg
15. Determination of Fe in waters
16. Determination of Sn
17. Determination of Bi
18. Determination of As in drugs
19. Determination of chlorides in waters
20. Simultaneous determination of Zn, Cd, Pb, and Cu in wines
21. Simultaneous determination of Zn, Cd, Pb, and Cu in spirits
22. Simultaneous determination of Cd, Pb, and Cu in beers
23. Determination of Fe (higher concentrations) in waters
24. Determination of Cd, Pb, and Cu in soil extracts
25. Determination of Sb
26. Simultaneous determination of Zn, Cd, Pb, and Cu in waters
27. Determination of As(III) and total As in waters
28. Determination of Zn, Cd, Pb, and Cu in pectines
29. Determination of iodides in urine
30. Determination of Au in water samples
31. Determination of low Ni contents
32. Determination of iodides in foods and beverages
33. Determination of Cr(VI) and total Cr in waters
34. Determination of nitrates in waters
35. Determination of Ascorbic Acid
36. Determination of chlorites in waters
37. Determination of bromates in waters
38. Boric acid in nickel plating baths
39. Determination of total As in waters
40. Acidimetry determination of strong and weak acids
41. Determination of Fe in concentrated sulphuric acid
42. Determination of Cu in waste waters
43. Alkalimetry determination of strong bases
44. Simultaneous determination of total As and Hg
45. Determination of Zn in galvanic baths
46. Determination of Ni in galvanic baths
47. Chlorides in galvanic baths
48. Cr(III) in passivating galvanic baths
49. Determination of phosphates with microporous electrodes
50. Determination of sub-ppb Hg concentrations
51. Determination of Zn in waste waters
52. Cu in wine samples
53. Determination of Fe in clear and turbid water samples
54. Determination of Au in ores
55. Determination of Sb in the presence of As and Cu
56. Determination of low Se concentrations
57. Sulphites in wines
58. Sulphites in beers
59. Titanium in TiO₂
60. Determination of phosphates in clear as well as turbid water samples
61. Determination of total ammonia in underground and tap waters
62. Determination of total ammonia in waste waters
63. Determination of Cr(VI) in clear as well as turbid water samples
64. Determination of Ni in clear as well as turbid water samples
65. Determination of sulphides (S^2-) in waste waters
66. Simultaneous determination of Zn, Cd, Pb, and Cu in turbid samples
67. Coulometric determination of sulphides in waters
68. Acid content in wines
69. Ethanol in beverages
70. Sulphites (SO₃^-) in foods
71. Chlorides (Cl^-) in foods
72. Chlorites (ClO₂^-) in disinfected water
73. Manganese (Mn) in aquatic samples
74. Bromides (Br^-) in water
75. Cd, Pb and Cu in concentrated zinc sulphate
76. Simultaneous determination of Pb, Cu and Hg in water
