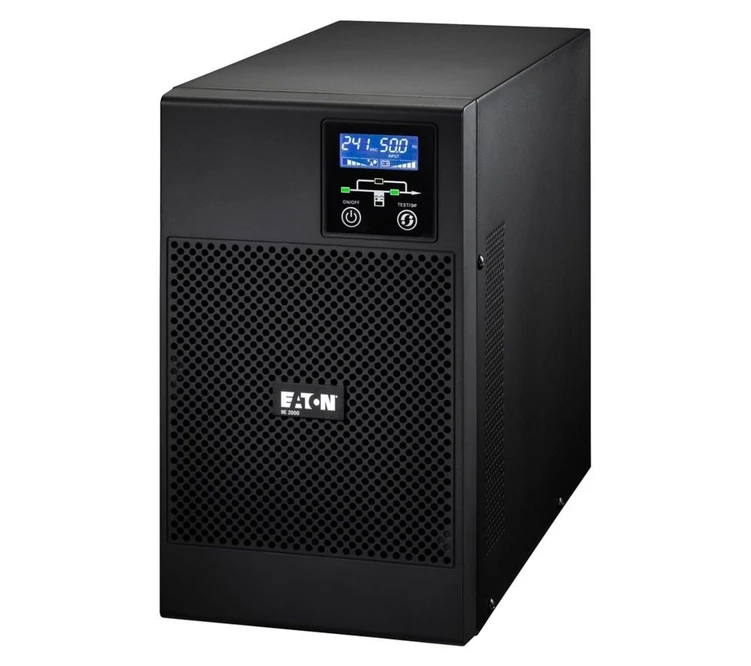

Eaton 9E2000I UPS

The Eaton 9E2000I is a reliable double-conversion (online) UPS designed to provide continuous power protection for critical equipment. With a capacity of 2000 VA / 1600 W, it ensures stable voltage and frequency output, making it ideal for servers, networking devices, and laboratory or analytical instruments.

The compact tower design allows easy integration into various environments, while the intuitive LCD interface provides clear status monitoring and control. High efficiency operation (up to 97.5% in eco mode) helps reduce energy consumption and operating costs.

Eaton 9E2000I UPS

Key features

• True online double-conversion topology for maximum protection
• 2000 VA / 1600 W output power
• Wide input voltage range reduces battery usage

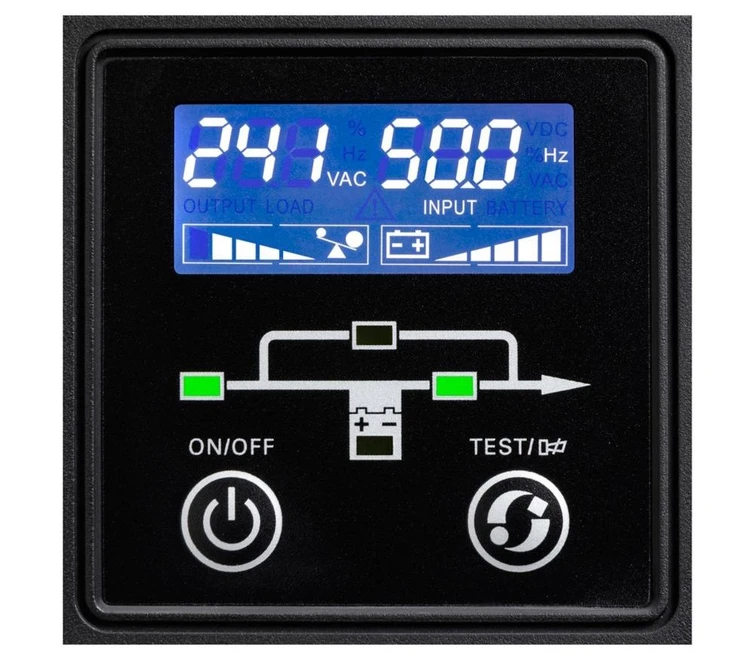

• LCD display for real-time monitoring (load, battery, alarms)
• Automatic voltage regulation and frequency stabilization
• Cold start capability (startup without mains power)
• Compatible with external battery packs for extended runtime
• Communication ports (USB, RS232) for system integration
• Compact tower form factor
• High efficiency up to 97.5% (eco mode)
• Automatic battery testing and deep discharge protection

Eaton 9E2000I UPS

Technical specifications

• Power rating: 2000 VA / 1600 W
• Topology: Online (double conversion)

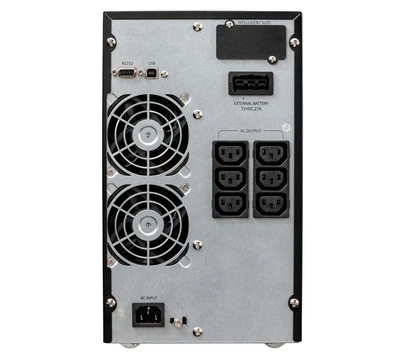

• Input connection: IEC C14
• Output connections: 6 × IEC C13
• Form factor: Tower
• Battery type: Sealed lead-acid (internal)
• Display: LCD
• Communication: USB, RS232
• Input voltage range: 176–300 V (without battery use)
• Input frequency range: 40–70 Hz
• Output voltage: 230 V (configurable 220/230/240 V)
• Output waveform: Pure sine wave
• Runtime: up to ~16 minutes at 50% load (typical)
• Battery configuration: 6 × 12 V / 7 Ah
• Software compatibility: Eaton Intelligent Power Manager, Intelligent Power Protector
• Applications: Servers, IT infrastructure, analytical instruments, laboratory systems
