Eaton 9E3000I UPS

The Eaton 9E3000I is a reliable double-conversion (online) UPS designed to provide continuous power protection for critical equipment.
With a power rating of 3000 VA / 2400 W, it ensures stable voltage and frequency output, making it ideal for servers, networking infrastructure, and laboratory or analytical instruments.

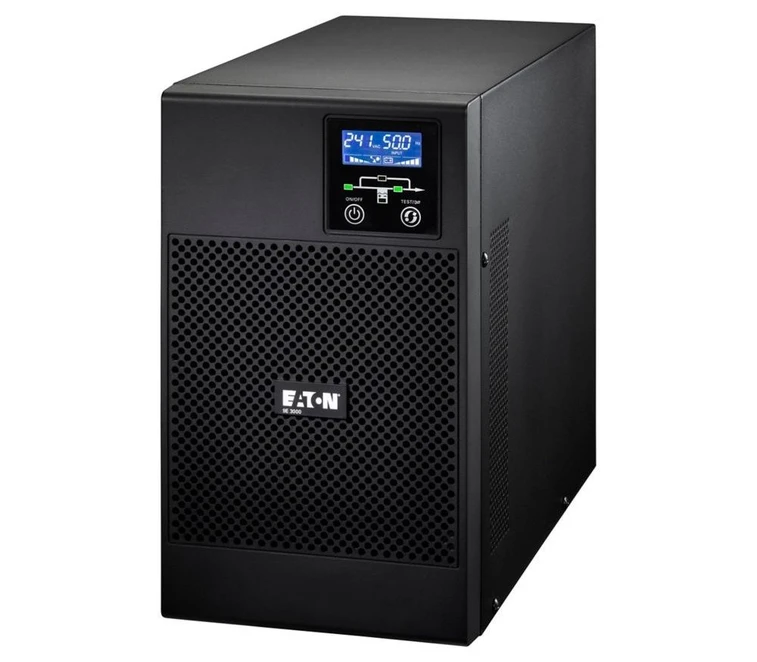

The compact tower design allows easy integration into various environments, while the intuitive LCD display provides clear real-time system monitoring.

Eaton 9E3000I UPS

Key features

• True online double-conversion topology for maximum protection
• 3000 VA / 2400 W output power
• Pure sine wave output
• Wide input voltage range (176–300 V)

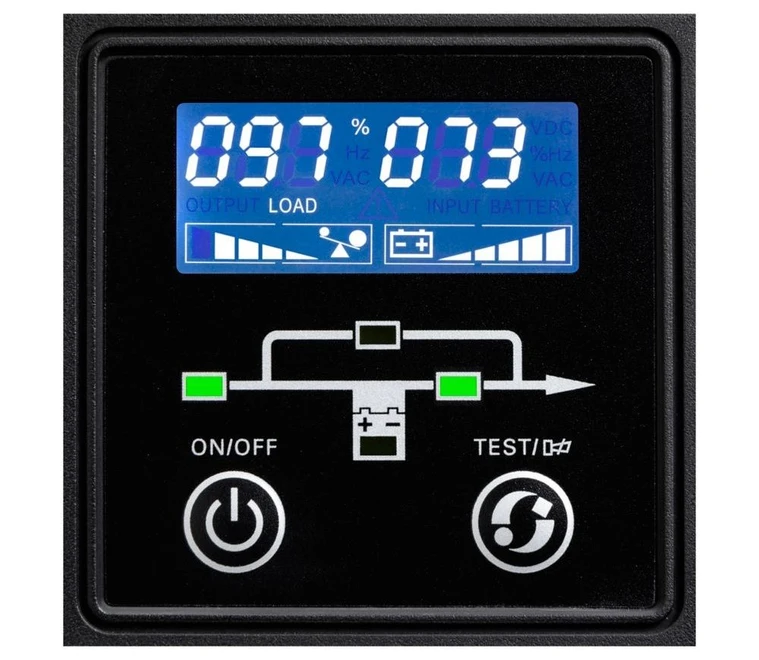

• LCD display for real-time monitoring (load, battery, alarms)
• Voltage and frequency stabilization
• Cold start capability (startup without mains power)
• Compatible with external battery packs
• USB, RS232 and communication card slot
• Compatible with Eaton Intelligent Power Manager and Intelligent Power Protector software
• Compact tower design

Eaton 9E3000I UPS

Technical specifications

• Power rating: 3000 VA / 2400 W
• Topology: Online (double conversion)
• Input: IEC C20

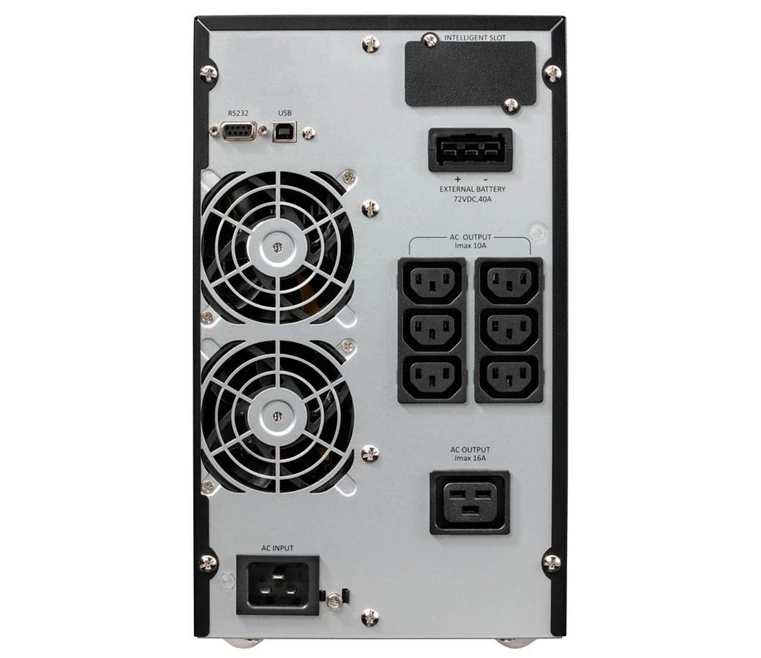

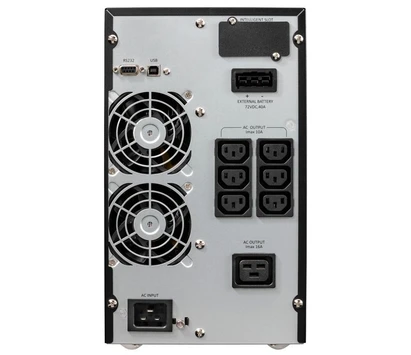

• Outputs: 6 × IEC C13, 1 × IEC C19
• Phase: Single-phase input / output
• Dimensions (W × H × D): 39.9 × 33 × 19 cm
• Weight: 24.2 kg
• Display: LCD
• Communication:
  • USB port (HID compatible)
  • Serial port (RS232)
  • Communication card slot
• Software: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector
• Battery:
  • Maintenance-free sealed lead-acid (VRLA), 6 × 12 V / 9 Ah
  • Automatic battery test
  • Deep discharge protection
• Efficiency: up to 98% (eco mode)
• Noise level: <37 dB (at 1 m)
• Operating temperature: 0 to 40 °C
• Color: Black
