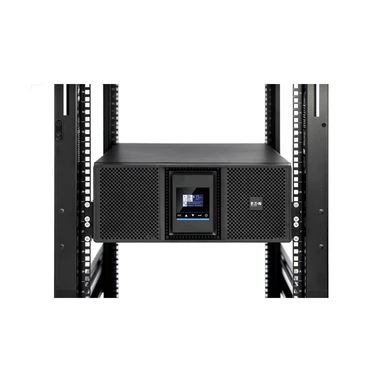

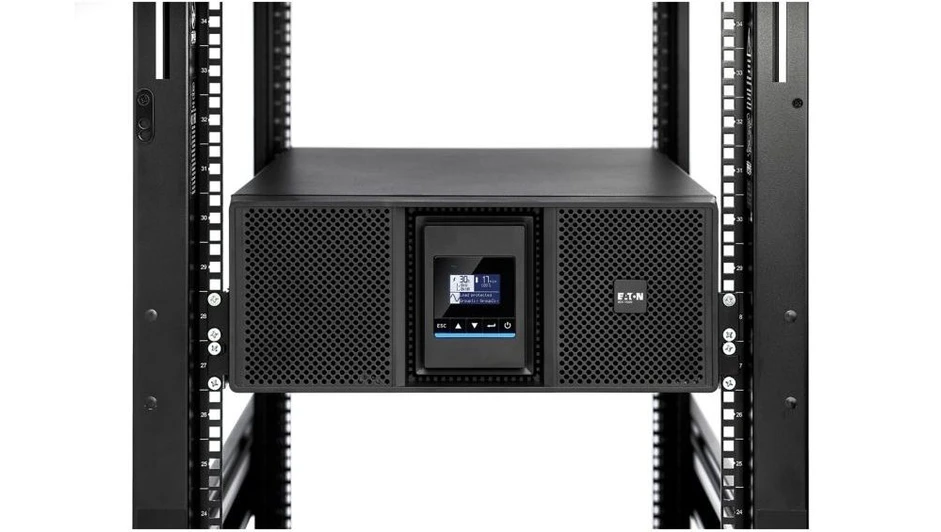

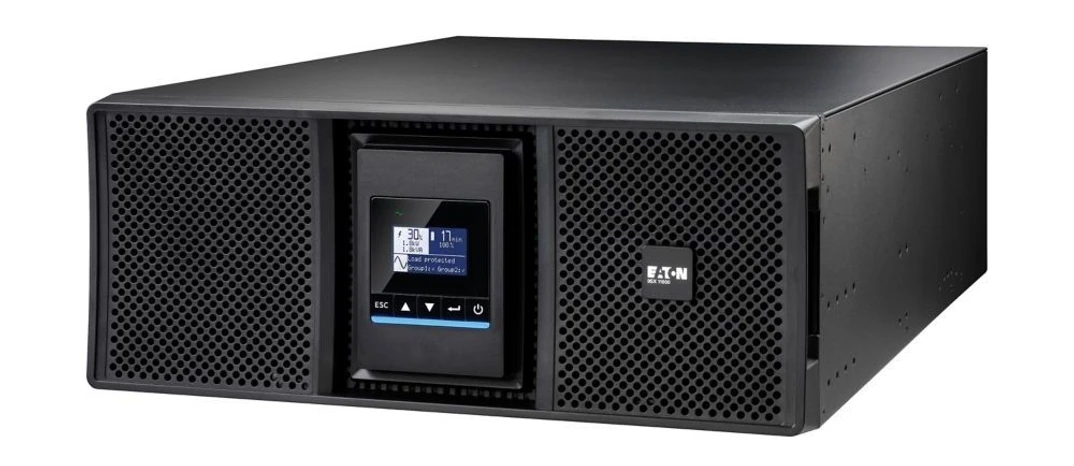

Eaton 9SX 11000i G2 UPS

The Eaton 9SX 11000i G2 is an online double-conversion UPS designed to protect critical equipment in IT, industrial, and laboratory environments. It delivers 11000 VA / 11000 W with a unity power factor (PF 1.0), ensuring maximum usable power.

The online topology ensures continuous voltage and frequency regulation, protecting connected equipment from power disturbances. The UPS features an internal bypass that maintains power continuity in case of overload or fault.

Advanced battery management (ABM) extends battery life, and the system supports external battery modules for extended runtime. Communication interfaces include USB, RS232, and dry contacts, with support for Eaton Brightlayer software.

Eaton 9SX 11000i G2 UPS

Key features

• Online double-conversion topology
• 11000 VA / 11000 W output
• Output power factor 1.0
• Sine wave output
• Internal bypass
• Multilingual graphical LCD display
• Advanced ABM battery management
• Automatic battery test
• Deep discharge protection
• Automatic recognition of external battery modules
• Extended runtime capability via EBM
• USB, RS232, and dry-contact communication
• Eaton Brightlayer software compatibility

Eaton 9SX 11000i G2 UPS

Technical specifications

General

• Product name: Eaton 9SX Gen2 UPS
• Catalog number: 9SX11KIG2
• Model code: Eaton 9SX 11000i G2
• EAN: 3553340710698
• Construction type: free standing model
• Color: black
• Efficiency: up to 97%
• Internal bypass: yes
• Certifications:
  • IEC/EN 62040-1
  • IEC/EN 62040-2
  • IEC/EN 62040-3
  • ENERGY STAR
  • CE, cULus, UKCA, RCM, KC, BSMI
• Package contents:
  • UPS
  • (3) cable glands
  • (2) IEC-IEC output cables (1.2 m)
  • USB cable (1.8 m)
  • cable locking systems
  • supports for tower mounting
  • safety instructions
  • quickstart guide

Electrical input

• Input voltage: 176–276 V (100–276 V with derating)
• Input frequency: 40–70 Hz
• Nominal frequency: 50/60 Hz
• Input power factor: >0.99

Electrical output

• Power: 11000 VA / 11000 W
• Output voltage: 230 V (200/208/220/230/240 V)
• Power factor: 1.0
• Waveform: sine wave
• Output voltage distortion (linear load): max. 1%
• Topology: online / double conversion

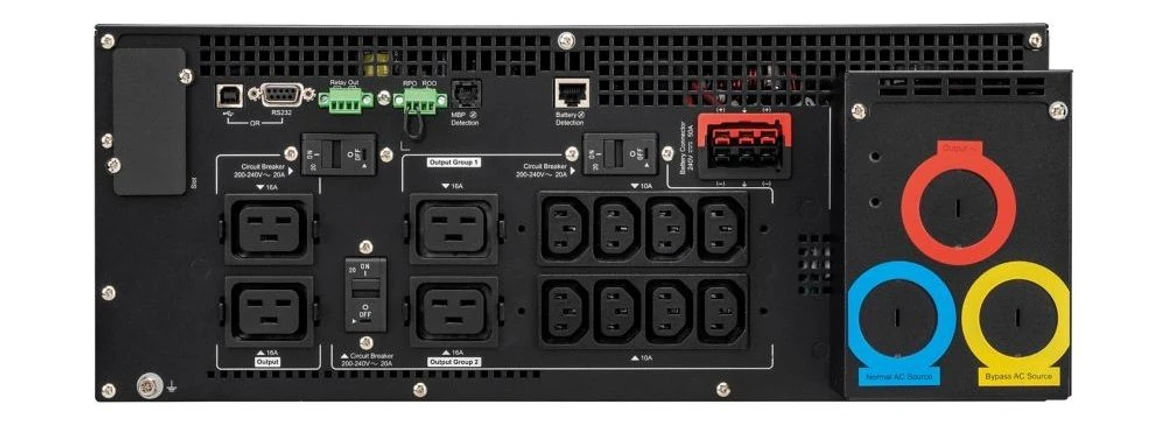

• Receptacles: (8) C13, (4) C19, Hardwired

Battery

• Type: sealed lead-acid (VRLA)
• Quantity: 20 × 12 V / 7 Ah
• Management:
  • ABM+ (Predictive battery life) & temperature compensated charging method
  • automatic battery test
  • deep discharge protection
  • automatic recognition of external battery units
• Extended battery capability: yes
• Battery replacement: hot-swappable
• Runtime graph: runtime graph

Communication

• USB: yes (HID compliant)
• RS232: yes
• RPO (remote power off): yes
• ROO (remote on/off): yes
• Dry contacts: yes (2 contacts)
• Expansion slot: 1×
• Software: Eaton Brightlayer

Physical parameters

• Dimensions (D × H × W): 684 × 130 × 440 mm
• Weight: 43.1 kg

Operating conditions

• Noise level: <37 dB
• Temperature: 0–40 °C
• Relative humidity: 0–95% non-condensing
• Altitude: up to 3000 m
