Thermo Scientific Vanquish Sample Hub

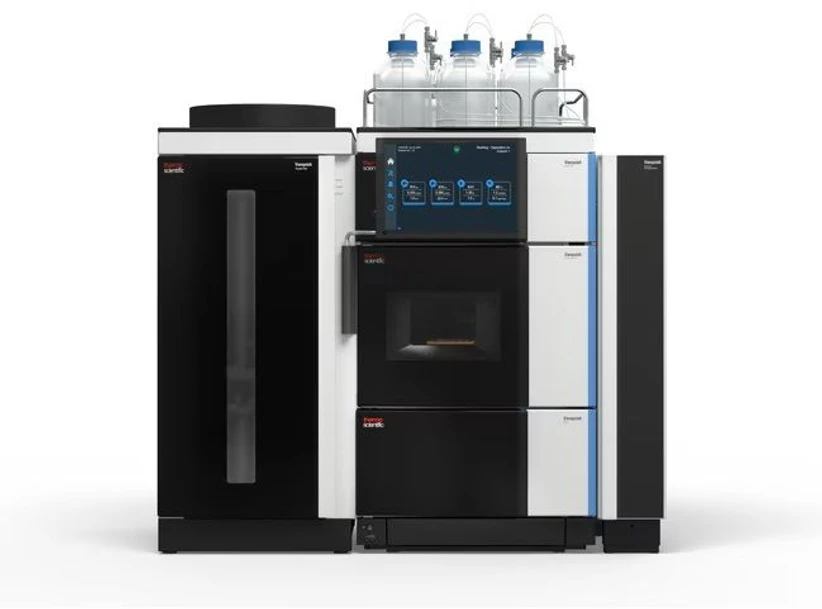

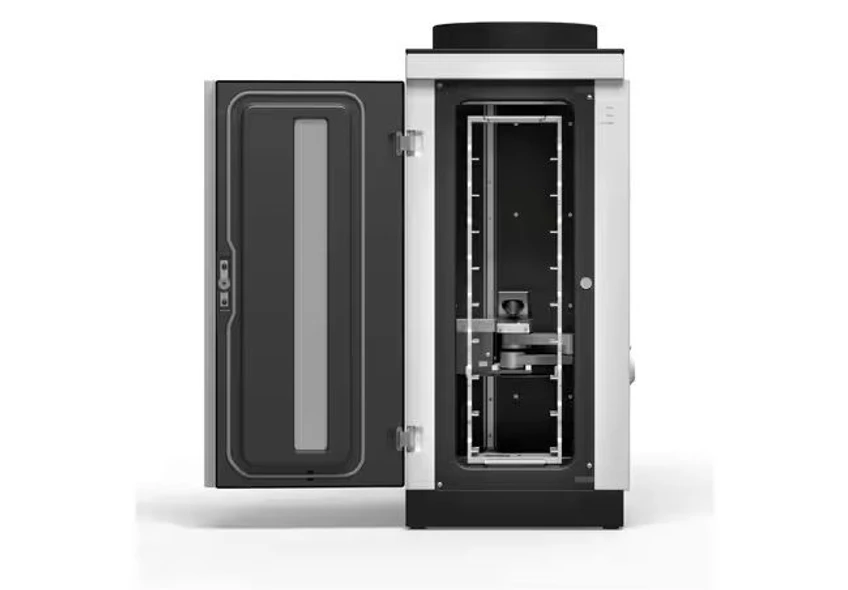

The Thermo Scientific™ Vanquish™ Sample Hub integrates seamlessly with the Vanquish™ UHPLC platform, providing fully automated robotic sample handling for high-throughput laboratories. Supporting up to 8,832 samples (23 well plates), it enables extended unattended operation by automatically transferring samples to the UHPLC system.

Controlled environmental conditions help preserve sample integrity, while the integrated barcode reader continuously tracks racks and well plates whenever the door is closed, allowing new samples to be added without interrupting ongoing analyses.

Thermo Scientific Vanquish Sample Hub

Key Features

• Supports up to 8,832 samples for long-term unattended operation
• Monitor and manage an inventory of up to 9 sample racks, deep well plates, or 20 shallow well plates (15mm height) in SBS format
• Protects sample quality through controlled environmental conditions and innovative air-stream cooling
• Integrated barcode reader enables automated inventory management, rack and plate verification, and empty shelf detection
• Allows samples to be added while analyses are running without stopping the UHPLC system
• Fully integrated with Thermo Scientific™ Dionex™ Chromeleon™ Chromatography Data System (CDS) for familiar instrument control

Thermo Scientific Vanquish Sample Hub

Specifications

• GLP Features: All System Parameters Logged in The Chromeleon Chromatography Data System Audit Trail
• Includes: Barcode reading: Empty shelf level detection, Rack/well plate verification, Inventory management
• Overall Depth (English): 24.4 in.
• Overall Depth (Metric): 620 mm
• Overall Height (English): 31.7 in.
• Overall Height (Metric): 804 mm
• Overall Width (English): 13.3 in.
• Overall Width (Metric): 339 mm
• PC Connection: USB 2.0
• Safety Features:
  • Sample rack/well plate detection sensor on shovel
  • Barcode reader to detect sample rack/well plate type and shelf ID
  • Automatic stop when door is opened (interlock door switch)
  • Automatic opening of door after power failure
  • 3 LEDs for status monitoring
  • Active evaporation system for condensation
• Temperature Range:
  • 4°C to 40°C (≥22 K Below Ambient (at <80% RH)
  • Accuracy -2°C to +2°C (at 25°C, 50% RH)
  • Stability ±0.5°C (at 25°C, 50% RH))
• Voltage: 100/240 V
• Weight (Metric): <38.5 kg
• Type: Vanquish Sample Hub Without Shelf and Racks
