The Thermo Scientific™ Gallery™ Plus Discrete Analyzer is a high-capacity benchtop discrete analyzer designed for automated photometric (colorimetric and enzymatic) analysis. An optional Electrochemical Measurement Module (ECM) extends the system to perform pH and electrical conductivity measurements. Combining high throughput with advanced automation, the analyzer delivers fast, accurate, and reproducible results for demanding routine laboratory applications.
Utilizing discrete cell technology, the Gallery™ Plus enables parallel processing of multiple analyses while minimizing operator intervention. The integrated sample and reagent disks accommodate up to 108 samples and 42 reagents, supporting a throughput of up to 350 tests per hour. Automated sample handling, dilution, repeat analysis, and barcode-based sample identification help streamline laboratory workflows, improve reproducibility, and increase productivity.
The Gallery™ Plus Discrete Analyzer is designed for high-throughput laboratories performing food and beverage analysis, environmental testing, and industrial quality control.

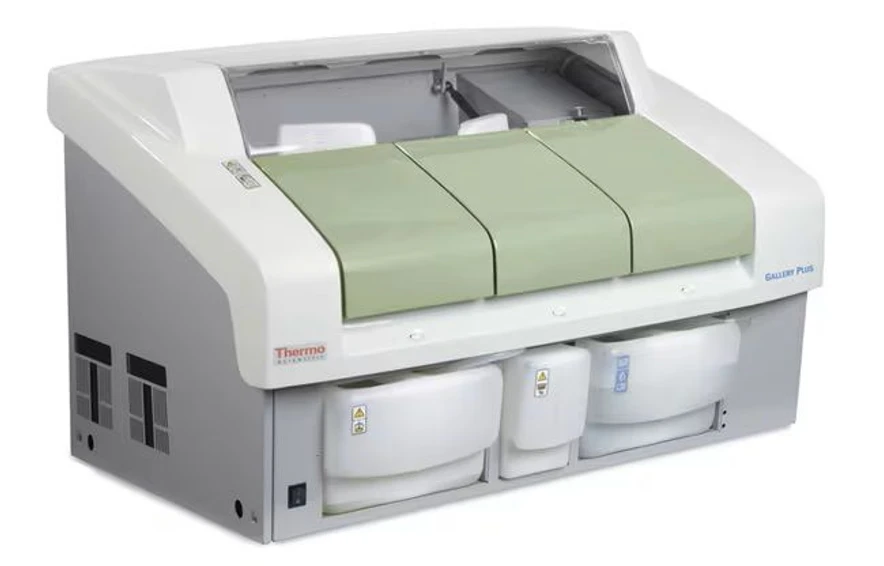

Thermo Scientific Gallery Plus Discrete Analyzer
Key Features
High-Capacity Automated Operation
- Fully automated analytical workflow with minimal operator intervention
- Photometric analysis with optional electrochemical measurements (ECM)
- Automatic sample dilution and repeat analysis
- Up to two hours of walk-away operation
- Throughput of up to 350 tests per hour
Reliable Analytical Performance
- Wide working concentration range with excellent reproducibility
- Detection of very low analyte concentrations (ppb level)
- Multiple blanking options to reduce sample matrix effects
- User-defined analytical methods for application-specific testing
- Wavelength range from 340 to 880 nm
Efficient and Cost-Effective Operation
- Ready-to-use system reagents reduce preparation time
- Low-volume disposable cuvettes minimize reagent consumption and waste
- Disposable cuvettes eliminate carry-over and cross-contamination
- No external water supply required
- Optional ECM module for pH and electrical conductivity measurements
Easy-to-Use Design
- Compatible with a wide variety of sample cups and primary tubes
- Automatic barcode-based sample identification
- No glassware washing required
- Automatic startup and shutdown procedures
- Intuitive graphical user interface
- Compact benchtop design despite high sample capacity

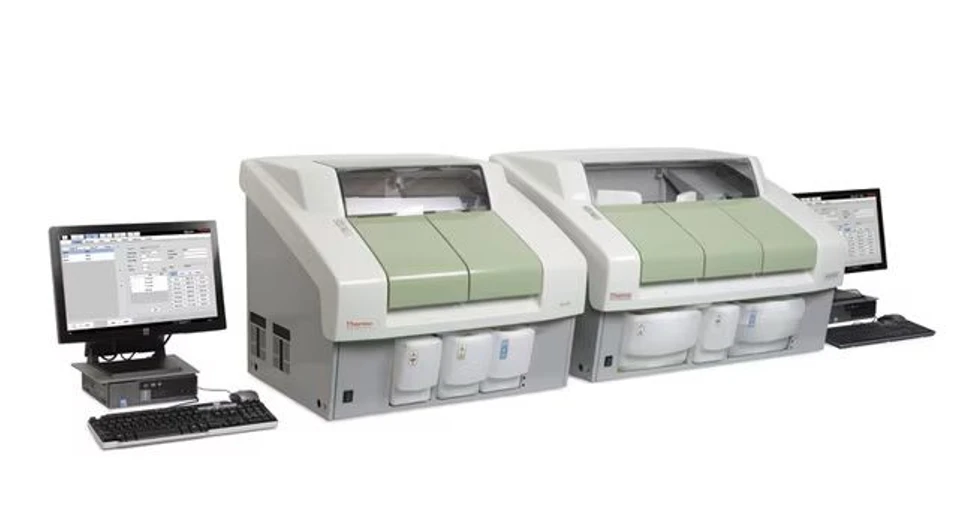

Thermo Scientific Gallery Discrete Analyzer and Gallery Plus Discrete Analyzer
Applications
- Food and beverage analysis
- Environmental testing
- Industrial quality control
- Routine high-throughput laboratory analysis

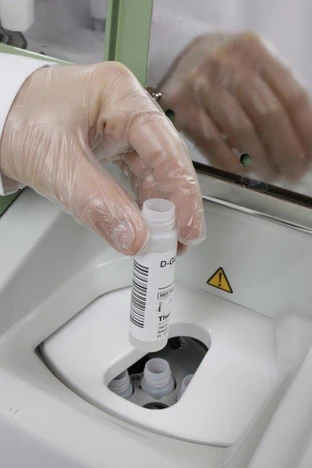

Thermo Scientific Gallery Plus Discrete Analyzer
Specifications
- Calibration: Factor, Bias, Linear, Logit-Log, Spline, Polynomial and Point-to-Point
- Cuvettes: Discrete Disposable Cuvettes. Capacity 360 Measurement Cells.
- Depth: 70 cm
- Description: Gallery Plus Discrete Analyzer with/without ECM Unit
- Distilled Water Consumption: Deionized Water Consumption 2.5 L/hr.
- Frequency: 50/60 Hz +/-5%
- Height: 62/130 cm (Cover Closed/Cover Open)
- Measurement Method: Photometric
- Operating System: Automated Photometric (Colorimetric and Enzymatic) Analysis
- Quality Control Details:
- Real-Time QC Program with Multiple and Variable Rules
- Control Frequency User-Definable
- Out-of-Specification Control Results Flagged
- Reagents:
- 9- or 18-Position Sample Racks, Max 108 Positions (= 6 Racks) on-Board
- Reagent Capacity 42 Positions on-Board
- Sample Dilution:
- Automatic Sample Pre-Dilution
- Automatic Sample Dilution of Over-Range Tests with Automatic re-Run
- Addition of Manual Pre-Dilution Value for Result Calculation
- Throughput: Up to 350 Tests/hr.
- Voltage: 100/240 V +/-10%
- Weight: 110 kg
- Width: 94 cm
- Sample Type:
- Food and Beverage Sample
- Environmental Sample
- Type: Photometric Analyzer
