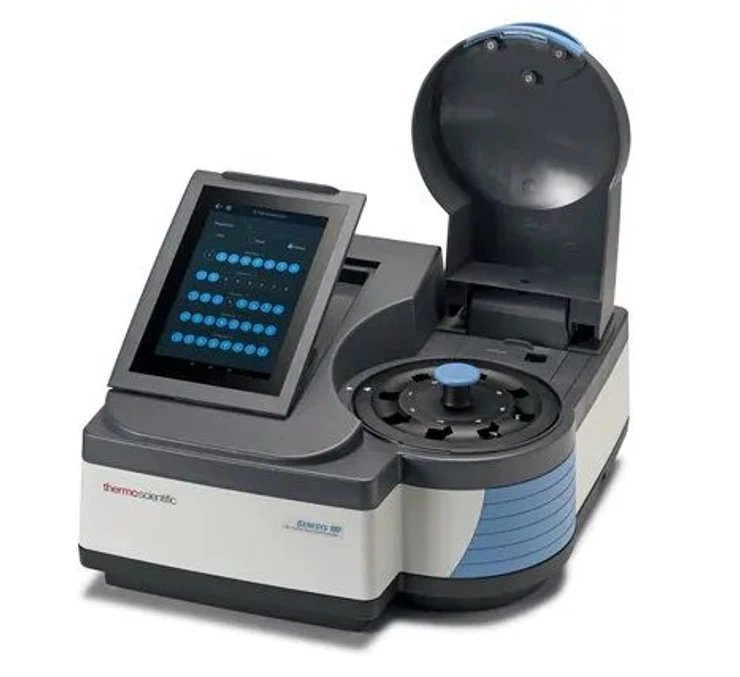

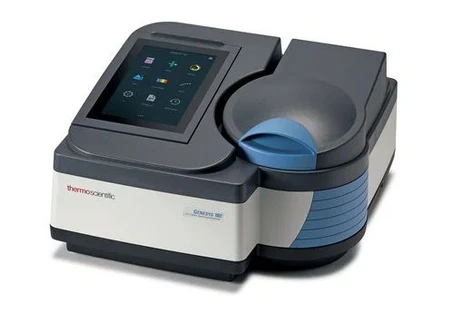

Thermo Scientific™ GENESYS™ 180 UV-Vis Spectrophotometer

GENESYS - developed for users, designed for results

Built on the foundation of 60 years of spectroscopy experience, the next generation Thermo Scientific™ GENESYS™ family of Vis/UV-Vis spectrophotometers provides exceptional performance with a contemporary design.

• Start taking measurements immediately with the simple-to-use, high-resolution, color-display start menu
• Exchange samples with ease with large, accessible sample compartment
• Save your data fast any way you want it with multiple data-export options

There is a GENESYS spectrophotometer you can count on to provide accurate, reproducible results for your application requirements.

GENESYS 180 UV-Vis Spectrophotometer

For laboratories requiring double beam with a reference cell position.

High-throughput ready

• Double-beam optics
• Ideal solution when a reference beam is required, such as for kinetics
• 8-cell changer standard
• Make measurements outside the sample compartment without cuvettes using fiber optic coupler and probe

Designed for laboratories requiring double beam operation with a reference cell position.

Thermo Scientific™ GENESYS™ 180 UV-Vis Spectrophotometer

Walk-up convenience

Simple-to-use, touchscreen user interface features the methods and applications most important to you.

Thermo Scientific Genesys spectrophotometers

Flexible computer control

Optional VISIONlite software offers complete control from a Microsoft ® Windows ® computer providing applications for:

• Scanning
• Quantitative analysis
• Kinetics
• Fixed wavelength measurements

GENESYS 180 UV-Vis Spectrophotometer Specifications

• Baseline Flatness: ±0.002 A
• Compartments:
  • 8-position cell changer (standard)
  • Also accommodates (optional):
    • 4-position cell changer (long path cells)
    • Peltier thermostatted cell holder (20–60 °C)
    • Sipper accessory
    • Fiber optic probe coupler
• Connections:
  • Single USB-A
  • Duplex USB-A
  • Export data to network or PC via USB, Ethernet, or Wi-Fi USB adaptor, available
  • Print via USB, Ethernet or Wi-Fi USB adaptor available
• Dimensions (L x W x H): 35.5 x 38.5 x 19.5 cm
• Drift: (At 500 nm after 1 hour warmup) <0.0005 A/hr.
• Electrical Requirements: External AC to DC converter. Voltage and Frequency (Hz) selected automatically, 100/240 V, 50/60 Hz
• Keypad: Touchscreen
• Lamp Life: > 5 years typical, 3 years guaranteed
• Noise: (RMS at 500 nm 60 consecutive measurements)
  • ≤0.00020A at 0A at 260 and 500 nm
  • ≤0.00030A at 1A at 260 and 500 nm
  • ≤0.00040A at 2A at 260 and 500 nm
• Optical Design: Double Beam
• Photometric Accuracy: ±0.002A at 0.5A, ±0.004A at 1.0A, ±0.008 A at 2.0 A
• Photometric Display: -3A to +5A
• Photometric Range: –2A to +3.5A
• Photometric Repeatability: ±0.001 A at 1 A measured at 1.0 A at 546 nm
• Printer Included: Snap-on printer available
• Scan Speed: Slow, medium and fast – up to 1600 nm/min.
• Stray Light: < 1.0%T 198 nm (KCl) , <0.05%T at 220 nm (NaI), <0.03%T at 340 nm (NaNO₂)
• Warranty: 2 yrs std + 1 yr ext upon reg
• Wavelength Accuracy: ±0.5 nm
• Wavelength Data Interval: 0.1 nm, 0.2 nm, 0.5 nm, 1 nm, 2 nm, 5 nm
• Wavelength Repeatability: < ±0.2 nm
• Weight (Metric): 7.5 kg
• Detector Type: Dual Silicon Photodiodes
• Display: 7 in. High Definition Color Touchscreen, Tiltable, 800 x 1280 pixels
• Spectral Bandwidth: 2 nm
• Type: UV-Vis Spectrophotometer
• Wavelength Range: 190 to 1100 nm
• Unit Size: Each
