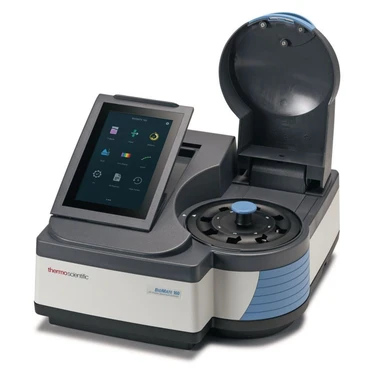

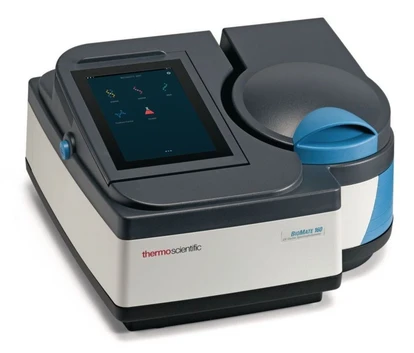

Thermo Scientific BioMate 160 UV-Vis Spectrophotometer

Perform quantitative measurements in life science laboratories with the automated and network-capable Thermo Scientific™ BioMate™ 160 UV-Visible Spectrophotometer. The BioMate 160 Spectrophotometer offers pre-programmed assay methods for nucleic acid and protein concentration as well as cell culture measurements. Optimized for usability and performance, this platform features a high-resolution color touchscreen, optional Wi-Fi networking, and a rugged design.

The BioMate UV-Vis Spectrophotometer provides automation for high-throughput options and room-light resistance, allowing lid-open operation for improved speed and convenience. Software includes pre-programmed life science methods such as Nucleic Acid A260; Protein A280 and A205; Protein Colorimetric assays and OD600.

A full line of accessories, including automated cell changers and cell holders, sipper, and fiber optic probes are designed to simplify sampling and accommodate high throughput measurements and temperature control.

Features:

• 7-inch high-resolution touchscreen user interface
• Pre-programmed life science methods
• Networking capable (Wi-Fi adaptor available)
• Room light resistance for 'open-lid' operation
• Sipper accessory
• Removable, washable sample compartment liner with magnetic placement and hold-down
• Accommodates cells up to 100 mm pathlength
• (Optional) 8-position cell changer with switchable turret
• (Optional) 4-position cell changer (long path cells)
• (Optional) Peltier-thermostatted single cell holder (20 °C - 60 °C)

Designed for:

• Advanced teaching labs
• R&D departments
• Applications requiring high throughput or temperature control

Specifications

Instrument Type: UV-Visible Spectrophotometer
Optical Design: Dual beam
Wavelength Range: 190–1100 nm
Spectral Bandwidth: 2 nm
Photometric Range: –2 A to +3.5 A
Photometric Accuracy: ±0.002 A at 0.5 A, ±0.004 A at 1.0 A, ±0.008 A at 2.0 A
Photometric Repeatability: ±0.001 A at 1 A (546 nm)
Photometric Display: –3 A to +5 A
Noise (RMS at 500 nm):

• ≤0.00020 A at 0 A
• ≤0.00030 A at 1 A
• ≤0.00040 A at 2 A
  Drift: <0.0005 A/hr at 500 nm after 1-hour warmup
  Baseline Flatness: ±0.002 A
  Stray Light:
• <1.0%T at 198 nm (KCl)
• <0.05%T at 220 nm (NaI)
• <0.03%T at 340 nm (NaNO₂)

Wavelength Performance

• Accuracy: ±0.5 nm
• Repeatability: ±0.2 nm
• Data Interval Options: 0.2, 0.5, 1, 2, 5 nm
• Scan Speed: Slow, medium, fast (up to 1600 nm/min)

Display & User Interface

• Touchscreen: 7 in. high-definition color, tiltable (800 × 1280 px)
• Keypad: Touchscreen interface

Connectivity & Data Handling

• Connections: Single USB-A, Duplex USB-A
• Data Export: USB, Ethernet, Wi-Fi adaptor (optional)
• Printer Support: Snap-on printer (optional), USB/Ethernet/Wi-Fi printing available

Sample Compartment Compatibility (Optional Accessories)

• 8-position or 4-position cell changers
• Long path cell changer
• Peltier thermostatted cell holder (20–60 °C)
• Sipper accessory
• Fiber optic probe coupler

General Specifications

• Lamp Life: >5 years typical, 3 years guaranteed
• Detector Type: Dual silicon photodiodes
• Dimensions (L × W × H): 35.5 × 38.5 × 19.5 cm
• Weight: 7.5 kg
• Power Requirements: 100–240 V, 50/60 Hz (auto-selecting via external AC–DC converter)
• Certifications: Certificate of Analysis (COA), Certificate of Conformance (COC)
• Warranty: 2 years standard + 1-year extension upon registration
• Unit Size: Each
