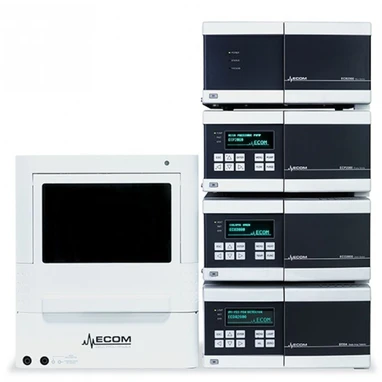

ECOM ECS07 Gradient Analytical System

Highly effective HPLC system with a UV-VIS detector, a column oven, an analytical pump, a gradient box, and an autosampler with/without cooling and heating, 60 MPa (8702 psi).

The detector with eight channels in the range of 200-800 nm and a very low noise level also offers high-speed scanning up to 100 Hz. The units are communicated through RS232 or Ethernet (LAN). An additional PC A/D converter card is not required for this system. The system contains an autosampler and Clarity software. All units are supported in Clarity software from installation.

A wireless mouse and keyboard set (P/N: EPC-0028), a PC (P/N: EPC-0026), and a computer monitor (P/N: EPC-0027) can be purchased with the system.

Main parts

ECDA2800 UV-VIS PDA DETECTOR

Analytical Diode Array Detector measures at eight wavelengths simultaneously or performs a full scan with a speed of up to 100 Hz. 3D support in Clarity SW. Noise level ±5 x 10-6 AU. Four analog outputs. Two special mathematical channels are available. AD 05 analytical cell is included.

ECO2080L COLUMN OVEN WITH HEATING AND COOLING

This column oven allows precise temperature stabilization in the range of 0-80°C. A big compartment room can accommodate up to 3 columns with lengths up to 30 cm. Peltier technology offers the possibility of heating and cooling independently from room temperature.

ECP2010H ANALYTICAL HPLC PUMP

This isocratic pump works with Gradient Box ECB2004B as a quaternary gradient pump. The flow rate range is 0.001-10.00 ml/min and the pressure limit is 60 MPa. Unit software includes a new learning algorithm for pulsation suppression and many testing and diagnostic functions.

ECB2004B GRADIENT BOX WITH DEGASSER

The box is suited for handling liquids in ECOM gradient systems. It accommodates a container for solvent bottles, a built-in high-efficiency vacuum degasser, and a four-way gradient valve. Up to four solvent lines may be degassed simultaneously by one unit. A four-way gradient valve is controlled from the pump ECP2010.

AUTOSAMPLER AS96

A reliable and precise autosampler for a wide range of applications in HPLC and LC-MS in variants with or without a cooling and heating module. State-of-the-art injection technology with fast injection and wash cycles. Max. pressure 60 MPa.

CLARITY CHROMATOGRAPHY SOFTWARE

This system is fully controlled by Clarity Chromatography software, which is also a part of delivery. Clarity software complies with CFR21GLP requirements.

SYSTEM CONTAINS

Pcs / Description (P/N)

• 1x / ECDA2800 Analytical UV-VIS PDA Detector (ANW0000X)
• 1x / ECB2004B Gradient box with degasser (ABA0000X)
• 1x / ECP2010H Analytical HPLC pump (ACF0000X)
• 1x / ECO2080L Column oven with heating and cooling (AOA00004)
• 1x / Autosampler AS96 for 2x48 vials, 60 MPa, with or without heating and cooling module (ASA96000/ASA96010)
• 1x / Clarity – Station for 1 instrument (AP000C50)
• 1x / Clarity module for HPLC control (AP000A24)
• 1x / Clarity SW module for AS controlvAP000A26)
• 1x / Module for PDA data Clarity SW (AP000A29)
• 1x / Accessories for analyt. system series 2000 (ASA00180)
• 1x / Accessories for autosampler (ASA96180)

Note: Column and computer not included. PC system has to be equipped for handling 3 serial RS232 or 1 Ethernet port at least. Please, check also Clarity software requirements..

Configuration options

• ASA0700X - Gradient analytical system - incl. autosampler without cooling and heating, up to 60 MPa.
• ASA07C0X - Gradient analytical system – incl. autosampler with cooling and heating, up to 60 MPa.
