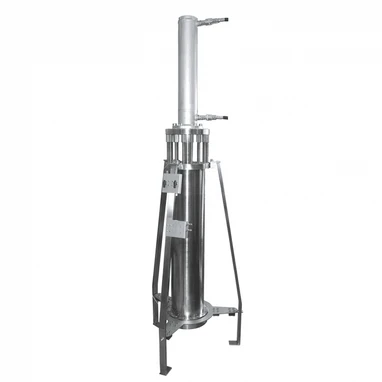

ECOM Separchrom PC02-MPLC (Medium-pressure) Columns for Prep Chromatography

ECOM Separchrom PC02 medium-pressure stainless steel columns are intended for separation where high pressure is not necessary, but good efficiency can still be expected. They are made of stainless steel tubes.

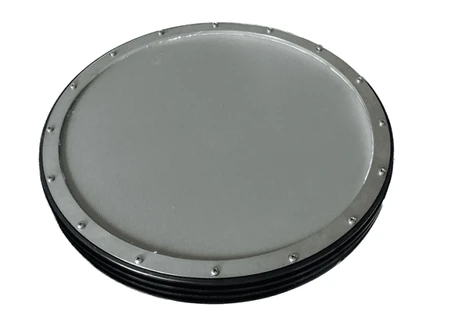

Part of the column is an input piston made of ultra-high molecular weight polyethylene and it is equipped with stainless steel support and stainless steel mesh frit. Flow distributor with groves is incorporated into the piston to guarantee piston flow with nearly zero pressure drop. The design guarantees simple accessibility of frits for cleaning.

Columns can be packed by dynamic slurry method, or by sedimentation, or with sorbent in the dry state, both with silica and polymer sorbents. For soft polymer sorbents, ECOM Separchrom PC02 oil systems can be equipped with a special software application to compensate for the swelling and unswelling of sorbents in different mobile phases (the column piston is moved in very small steps up and down during use).

Materials

Medium pressure prep chromatography column ECOM SEPARCHROM PC 02 is made of AISI 316L stainless steel, UHMWE moving pistons are equipped with integral sealing wings. Frits (stainless steel mesh 5 µm pore size, 5 mm thickness) can be fixed with a stainless steel ring. The stand made of stainless steel profiles is included.

COLUMN CONFIGURATION EXAMPLES

Columns are custom-made, do not hesitate to ask for any other sizes within the possible ranges

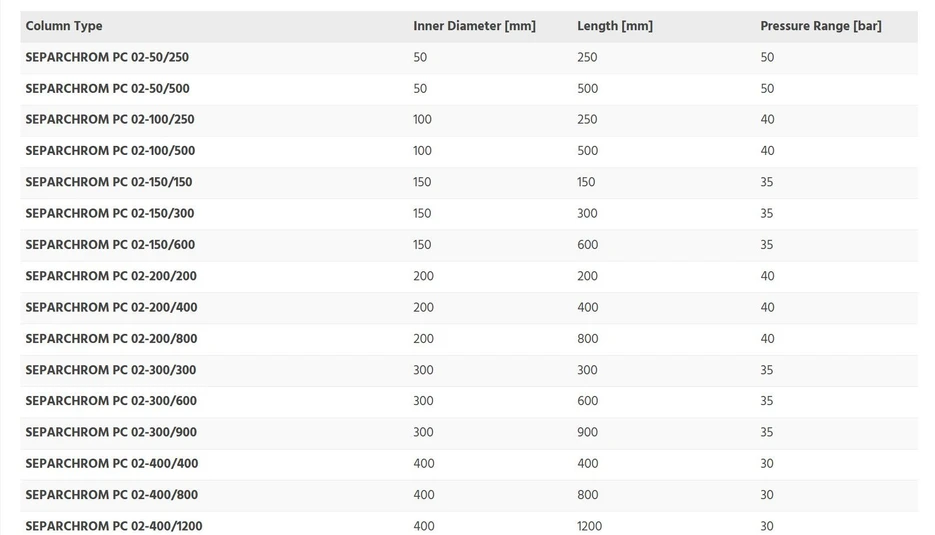

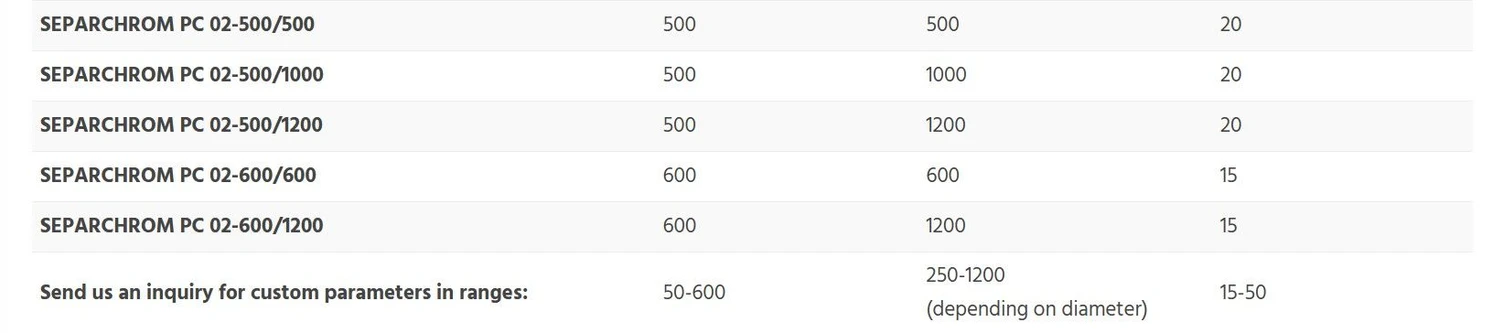

ECOM: Separchrom PC02-HPLC Column - available configurations - part 1ECOM: Separchrom PC02-HPLC Column - available configurations - part 2
