Phenomenex Biozen SEC-3 LC columns

High inertness and particle consistency of both Biozen™ SEC columns drives greater reproducibility from injection-to-injection. Combine this with the bioinert BioTi hardware and good aggregate recovery is no longer something that you’re missing out on.

Biozen SEC columns provide:

• High efficiency on both HPLC and UHPLC
• Extreme inertness and robustness
• Finely tuned high and low MS separation windows

Phenomenex: Biozen SEC-3

• Separation Mode: Gel Filtration Chromatography (GFC)
• Particle Size: 1.8
• Recommended Use: High molecular weight (HMW) separation range of 10 k – 700 kDa

Phenomenex Biozen Biologics LC Columns

With a new titanium BioTi™ biocompatible hardware to minimize priming, four particle platforms for optimal versatility and nine particle chemistries to maximize selectivity and sensitivity, Biozen UHPLC/HPLC columns for protein analysis are seamlessly designed to bring peace of mind to your analysis of biologics through:

• Charge Variant Analysis
• Aggregate Analysis
• Peptide Mapping
• Intact Mass Analysis
• Intact and Subunit Analysis
• Glycan Analysis
• Peptide Quantitation
• Drug Antibody Ratio (DAR)
• Oligonucleotide Characterization

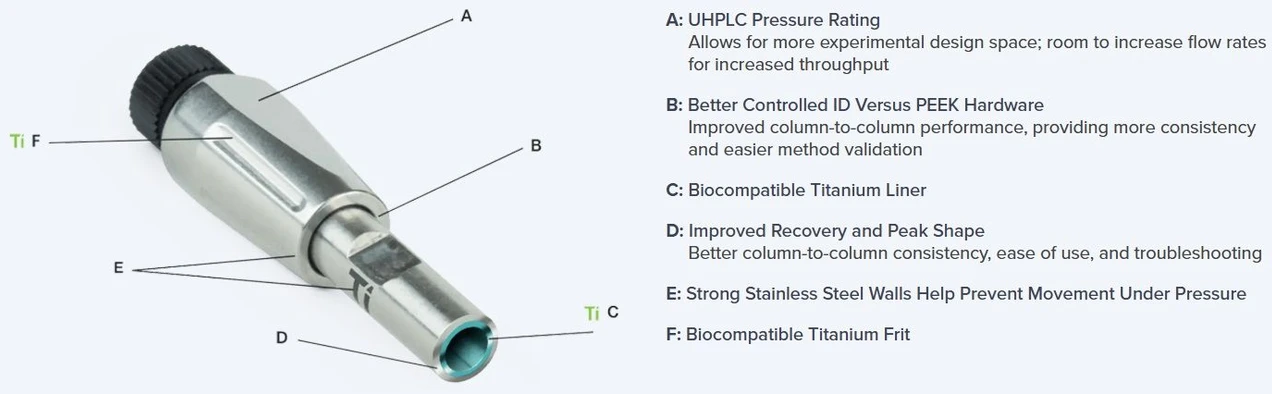

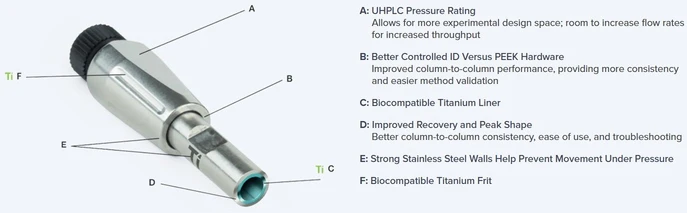

Biocompatible Flow Path with BioTi™ Hardware

Keep your mind at ease knowing that we’ve minimized the need for priming with a new titanium infused biocompatible hardware and frit that doesn’t interfere with protein or peptide integrity!

Phenomenex: BioTi Hardware

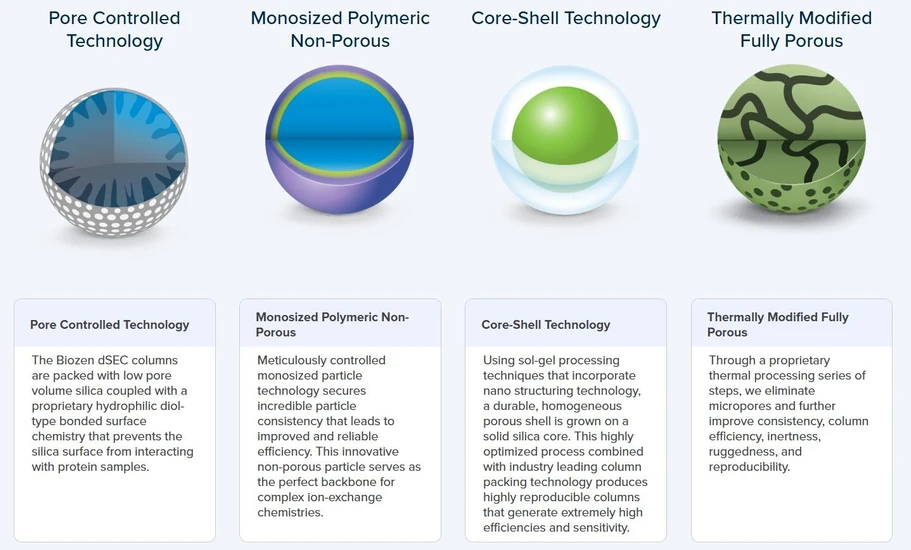

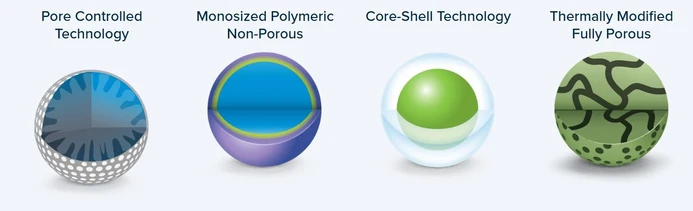

4 Advanced Particle Platforms

All four of the Biozen particle platforms were individually designed and built by Phenomenex to take advantage of integral levels of performance, ruggedness, and reproducibility for protein characterization applications. Individually, each platform differs in the proprietary processing techniques used to control particle size and morphology.

Phenomenex: Advanced Particle Platforms
