AppliChrom® GPC columns for separations in HFIP
Properties:
- Broad pore technology for GPC for analytes with challenging solution behavior
- Separation range beween: 0.1–50 000 kDa
- Range of individual porosities that can be used individually or in combination
- Temperature stable between: 35–145 °C
- Long column lifetime - result of the combination of optimized particle and packing technology
- Low column bleed for low detector noise
- Excellent reproducibility and resolution due to the advanced packing procedure
- Calibration standard: PMMA or PEO
- Recommended eluents: Hexafluoroisopropanol (HFIP), 0.1 % KTFa as modifier
Applications
Crystalline highperformance polymers like:
- polyamides (PA), polyethylen terepthalate (PET), polybutylen terepthalate (PBT), polylactic acid (PLA), polyamid 6 (PA6), polycaprolactam, paraformaldehyde, polyoxymethylene (POM), polyacetal, several polyoxazolines
GPC & SEC Columns
GPC & SEC systems offer solutions for various applications and laboratories
Gel permeation chromatography (GPC) and size exclusion chromatography (SEC) separate analytes by size using special columns with a porous matrix. The basic separation principle is based on the fact that smaller molecules penetrate these pores more strongly and therefore move more slowly through the matrix than larger molecules. GPC/SEC is often used as gentle and powerful purification technique or for quality control in research and development. Typical target molecules are polymers, dissolved in organic solvents for GPC, and macro biomolecules like proteins, antibodies or polysaccharides, dissolved in aqueous eluents for SEC.
Separation is facilitated by selecting optimal particle and pore sizes. Therefore we offer a wide range of pore sizes (35, 100, 150, 250, 350, 500, 1000, 1500, 10E5, 10E6, 10E7 Å) and several particle sizes (5, 7, 10, 12, 20 µm) as a choice to customize for every application task.

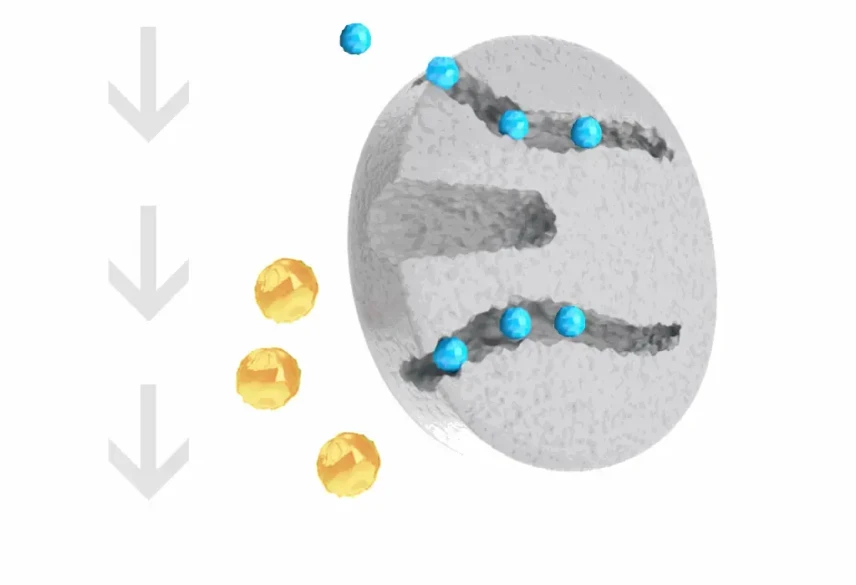

KNAUER: Size Exclusion - principle
KNAUER AppliChrom® ABOA columns for aqueous SEC, organic GPC, and special applications
- AppliChrom® ABOA StyDiViBe Series GPC-columns for GPC analysis of organic molecules using THF, toluene, chloroform.
- AppliChrom ABOA SuperOH-P Series for aqueous GPC/SEC-analysis of mainly neutral and anionic polymers like heparins, polysaccharides, PEO,
PEG,.... - AppliChrom® ABOA DMSO-Phil-P Series for DMSO GPC/SEC analysis (humic substances, UF/MUF-glue, p-NIPA, many polycondensates, protein from pea or leguminosae,...)
- AppliChrom® ABOA DMAc-Phil-P Series for GPC/ SEC analysis in DMAc, DMF, NMP. Good for many medium polar substances, polyoxazolines, lignin,...
- AppliChrom® ABOA Cat-Phil-P Series for aqueous GPC/SEC-analysis of special aminic and polycationic polymers like p-DADMAc, PEI/ polyethylenimin, chitosan, copolymers with polyaminofunctions, but also useful for polyanions or neutral polymers like heparin or PEO/PEG, dextran or pullulan.
- Seperation Ranges: 100–50 000 000 Da

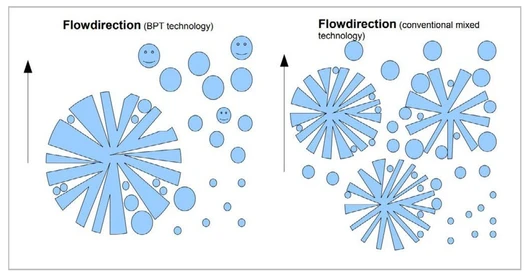

You decide between classical GPC/SEC columns with conventional mixed pore technology or AppliChrom® BPT technology:
Separate oligomers and polymers with the new GPC media line from AppliChrom® BPT synthesis technology for large range, high resolution separations with increased accuracy in calibration (patent pending).

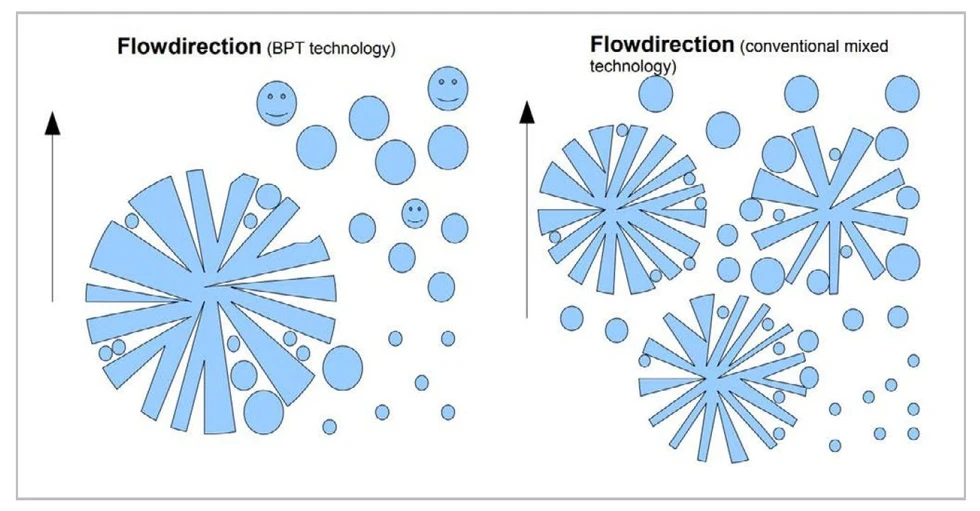

KNAUER: AppliChrom® ABOA columns.
