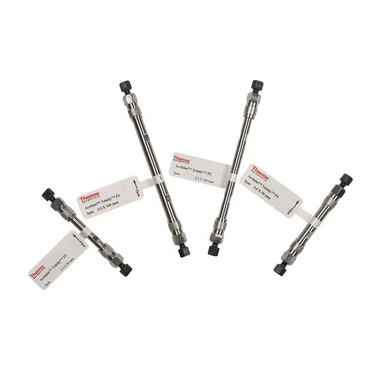

Thermo Scientific Acclaim Trinity P2 HPLC Columns

Separate pharmaceutical counterions, including monovalent and divalent cations or anions, with Thermo Scientific™ Acclaim™ Trinity P2 LC Columns. The innovative, mixed-mode column technology provides hydrophilic interaction, HILIC, anion-exchange, and cation-exchange functionalities for flexible method development. Use the Acclaim Trinity P2 LC column to complement the Acclaim Trinity P1 LC column, which simultaneously separates pharmaceutical drug substances and their counterions, to provide a total solution for pharmaceutical counterion analysis by HPLC.

The Acclaim Trinity P2 stationary phase, based on Nanopolymer Silica Hybrid (NSH) technology, consists of high-purity porous, spherical silica particles, coated with charged nanopolymer particles. The unique surface chemistry includes an inner-pore area of the silica bead modified with a covalently bonded organic layer that provides cation-exchange retention. The outer-pore surface is modified with anion-exchange nano-polymer beads. This chemistry ensures spatial separation of the anion-exchange and cation-exchange regions.

High Selectivity for Counterion Analysis

• Low column bleed; compatible with mass spectrometry (MS) and charged aerosol detection (CAD)
• Hydrolytically stable
• High efficiency
• Available in 3.0μm particle size and 2.1 and 3.0mm diameters, in 50 and 100mm lengths

Specifications

• Max. Pressure: 6000 psi (415 bar)
• Packing Material: Spherical, Fully Porous Silica
• Stationary phase: Spherical, Nanopolymer Hybrid Silica
• Surface Area: 100 m²/g
• Temperature: 45°C
• Phase: HILIC and Ion Exchange
• Pore Size: 300 Å
• pH: 2.5 to 7

About the Acclaim Family of HPLC Columns

Achieve the high standards set by modern HPLC and LC/MS methods with the Acclaim family of reversed-phase columns. These silica-based columns with advanced column bonding and endcapping technologies provide complementary selectivity, high column efficiencies, and ultra-high resolution for a wide variety of applications.

• Broad spectrum of stationary phases, including conventional C8 and C18 phases, polar embedded phases, and specialty phases including wide-pore, are available to meet your specific application needs
• Performance tested to ensure high quality and reliability for pharmaceutical, biopharmaceutical, environmental, food, and other industrial chromatographic separations
