Watrex Streamline binary gradient HPLC system

Streamline™ binary gradient HPLC system consists of two P1 pumps, static mixer, CT1 column thermostat, PDA1 diode-array detector, AS1 auto-sampler, and Clarity PDA datastation.

FEATURES

• Optimized pump mechanics with parallel piston design offers excellent flow rate accuracy and gradient composition at all solvents ratios
• Variable volume injection range 0.1 - 999.9 μl, high precision and reproducibility, and low carryover AS1 autosapler
• Excellent signal-to-noise ratio of the PDA2 detector
• Data acquisition, processing and instrument control is by Clarity Chromatography Station*

COMPONENT SPECIFICATION

• Gradient solvent delivery system consisting of two P1 HPLC pumps

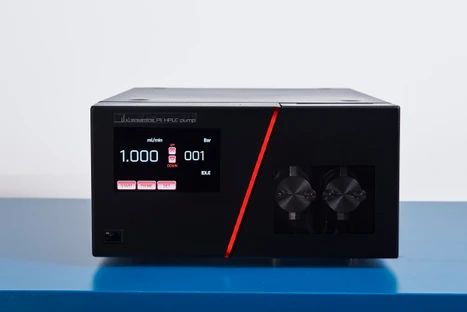

COMPONENT P1 HPLC pumps

• Flow Rates: 0,01 ml/min – 9,99 ml/min with step 0.01 ml/min (analytical)
• Flow Rates: 0,10 ml/min – 40,0 ml/min (preparative)
• Pressure: 42 MPa/6000 psi (analytical, stainless steel)
• Pressure: 35 Mpa/5000 psi (analytical, PEEK)
• Pressure: 10 Mpa/1500 psi (preparative)
• Flow precision: ± 0,2% RSD @ 1mL/min. and 1,000 psi (analytical)
• Flow accuracy: ± 1% @ 1mL/min. and 1,000 psi (analytical)
• Pressure accuracy: ± 2% of full-scale, with 80:20 H2O/IPA @ 1000psi
• Pulsation: better than ± 0.5% @ 1mL/min. and 1,000 psi (analytical)
• Remote control: USB
• Remote control: Start, Stop, Status, Error

COMPONENT - PDA1 detector

• Wetted Materials: Stainless Steel/ PEEK*, teflon, Glass (*depending on configuration)
• Light Source: Deuterium Lamp, Tungsten Lamp
• Wavelength Range: 190 – 720 nm
• Number of Diodes: 256
• Baseline Noise: ± 1 x 10-5 AU (@240 nm, 2 sec. risetime)
• Baseline Drift: less than 3 x 10-4 AU/h
• Wavelength Accuracy: 0.5 nm
• Mean Pixel Pitch: 2.2 nm
• Resolution: 7 nm
• Linearity: higher than 2.0 AU
• Data Rate: 1 Hz – 100 Hz

COMPONENT - CT1 Column thermostat

• Temperature range: 10 °C above ambient temperature to 100 °C
• Temperature accuracy: max. 0,5 % of actual temperature
• Temperature stability: RSD < 0,4 %
• Settability: 0,1 °C
• Internal dimensions: 320 x 50 x 30 mm (L x W x H)
• Compartment material: PTFE coated metal
• Compartment connection: USB
• Control: build-in color touch panel, datasystem

COMPONENT - AS1 autosampler: X-Y-Z-Operation; motor driven syringe, Capacity: 60 vials, Sample Loop: standard, 20μl, Reproducibility: Fix Volume: < 0.5%, Variable Volume: <1.0%, Carry-over: <0.01% , Programmable wash.

COMPONENT - Clarity™ Chromatography Station: PDA data acquisition and evaluation, gradient, and autosampler control with pre-set methods for experimental settings. PC Win 10 Professional with LCD monitor .

Ordering information:

PN/Component:

• SSG101-001 Streamline™ binary HPLC system (Includes P1m+P1s pumps, PDA1 detector, CT1 thermostat, AS1 autosampler, solvent rack, Clarity PC station)

Optional configurations:

• SPDA99-201 Remove PDA1 diode-array detector from system
• ST99-001 Remove CT1 column thermostat from system
• SAS99-001 Remove AS1 autosampler from system
• SUV90-001 Add UV1 Variable UV/Vis detector to system
• SFC90-001 Add FC1 Fraction collector to system
• SCT90-002 Add CT1i column thermostat with manual injector from system
