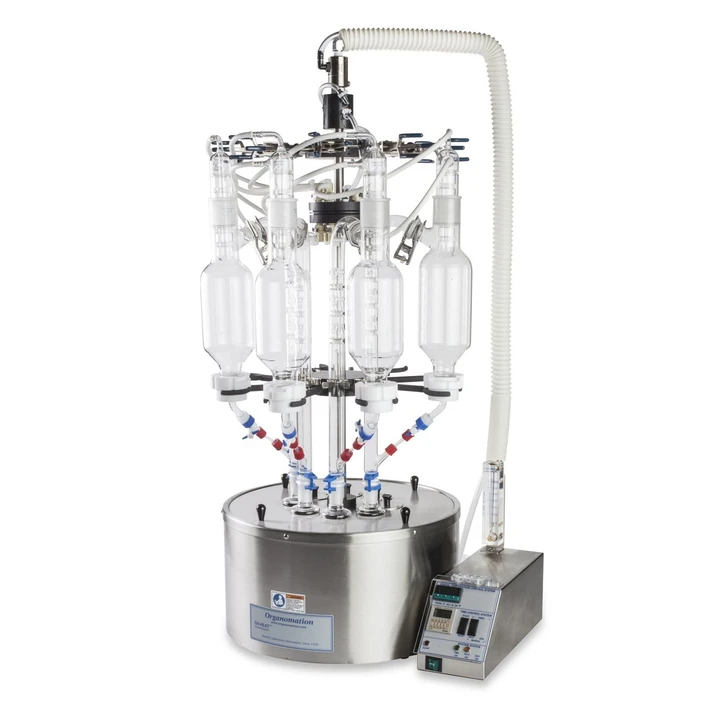

Organomation ROT-X-TRACT-LC Extraction System

The ROT-X-TRACT-LC system is designed to support up to eight (8) Corning Accelerated One-Step extraction apparatuses, providing an efficient solution for high-throughput liquid-liquid extraction workflows. The Corning Accelerated One-Step extractor integrates extraction and concentration into a single continuous process, helping laboratories streamline sample preparation while reducing manual handling steps.

To maintain compatibility with standard laboratory fume hoods, the system utilizes a modified Friedrichs condenser with a reduced overall height. Allihn condensers are also available upon customer request.

The hydrophobic membrane enables continuous circulation of the organic solvent through the 1 L sample bottle until extraction is complete. By integrating a stopcock assembly and a 3-ball Snyder column, the Corning One-Step extractor is capable of both analyte extraction and final solvent evaporation within the same operating cycle.

The system also includes an electronic side control module that allows users to program bath temperatures and timed operating cycles in accordance with specific analytical methodologies.

• Multiple Simultaneous Extractions: Extract and concentrate up to eight samples at once
• Easy Sample Access: The instrument rotates allowing all samples to be accessed from the front
• Fewer Connections: One water supply line in, one drain line out
• Precise: Digital control option allows for exact temperature regulation

Organomation ROT-X-TRACT-LC Extraction System

Standard features

• Stainless steel construction
• Stepped bath rim and cover disk seals steam chamber
• Each condenser water line attached to centrally located water manifold
• Side control box
• Water flow meter
• Laboratory grade materials stand up to organic solvents

Glassware features

• Stop cock to switch to sample concentration after extraction is complete
• 1 L sample bottle
• J-shaped Snyder column
• Hydrophobic Corning membranes (sold separately)
• In-line KD flask for optimum heat transfer
• Vacuum insulated concentrator tube

Options (Add to main Cat# when purchasing)

• All associated glassware
• Positive pressure type Z purged bath (Option Code -Z), Cat# 13318-Z
• 240V wiring and plug (Option Code -2), Cat# 13318-2

Specifications

• Instrument Catalog Number: 11318
• Instrument Name: Corning Accelerate One-Step Extractor
• Max No. of Samples: 8
• Bench Space: 24 x 19 x 42 in
• w x d x h: 61 x 48 x 107 cm
• Attached Control Box for Power & Timer: Standard
• Glassware 1000ml: GS3380
• Extractor Type & Size: Corning One-Step 1000 ml
• Solvent Flask Type & Size: In-Line KD 100 ml
• Concentrator Tube: Insulated Tip
• Type & Size: 10 ml 19/22
• Snyder Column Type: J Tube
• Condenser Type: Cold Finger 45/50
• Solvent Collection Flood Extractor: Standard
• Hydrophobic Membrane: Standard
• Water Bath Catalog Number: B3101
• Bath Model Number: 16169
• Bath Inside Dimensions: 16.0 x 8.5 in
• Diameter x Depth: 40.6 x 21.6 cm
• Bath Outside Dimensions: 24 x 19 x 10 in
• w x d x h: 61 x 48 x 25 cm
• Water Flow Meter: 0-3.0 lpm
• Heaters Total Watts: 1600 w
• Bath Temperature Range: 30 - 100 C
• Bath Temperature Accuracy: +/- 2 C

Accessories

• P1332: O-rings for S-EVAP/RXT water manifold
• GA3446C-20: Membranes Corning for Accelerated One-Step extractor, pkg of 20
• All associated glassware
• Bath cover disks
