The Thermo Scientific™ Gallery™ Discrete Analyzer is a compact benchtop system designed for automated photometric (colorimetric and enzymatic) analysis. With the optional Electrochemical Measurement Module (ECM), the system also supports pH and electrical conductivity measurements. Combining high throughput with reliable performance, it delivers fast, accurate, and reproducible results while minimizing operator involvement.
Based on discrete analysis technology, the system can perform multiple analyses simultaneously within a single run. An integrated sample and reagent disk accommodates up to 90 samples and 30 reagents, delivering a throughput of up to 200 tests per hour. Automated sample handling, dilution, repeat measurements, and barcode identification simplify routine laboratory workflows and improve overall productivity.
The Gallery™ Discrete Analyzer is suitable for a wide range of applications, including food and beverage testing, environmental analysis, and industrial quality control.

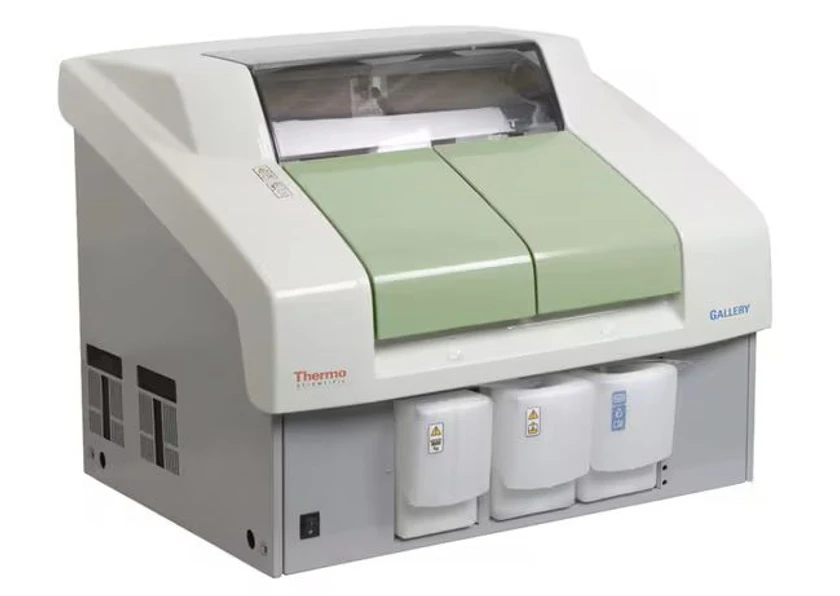

Thermo Scientific Gallery Discrete Analyzer
Key Features
Fully Automated Operation
- Performs all analytical steps automatically with minimal operator intervention
- Simultaneous photometric and electrochemical analysis
- Automatic sample dilution and repeat measurements
- Up to two hours of walk-away operation
- Throughput of up to 200 tests per hour
Reliable Analytical Performance
- Wide concentration range with excellent reproducibility
- Detection of very low analyte concentrations (ppb level)
- Multiple blanking options to minimize sample matrix effects
- User-defined methods for application-specific testing
- Wavelength range from 340 to 880 nm
Efficient and Cost-Effective Operation
- Ready-to-use system reagents reduce preparation time

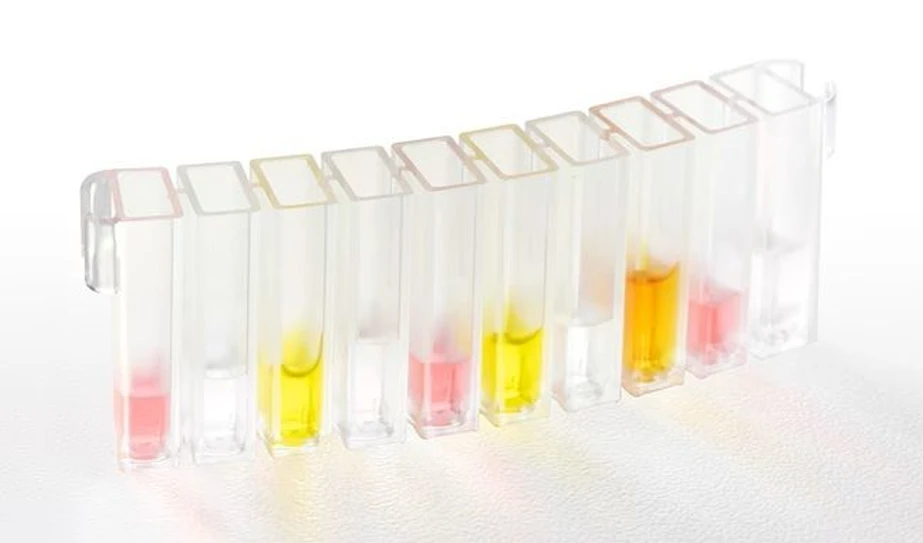

- Low-volume disposable cuvettes minimize reagent consumption
- Disposable cuvettes eliminate carry-over and cross-contamination
- No external water supply required
- Optional ECM module for pH and conductivity measurements
Thermo Scientific Gallery Discrete Analyzer
Easy-to-Use Design
- Supports a wide range of sample cups and primary tubes

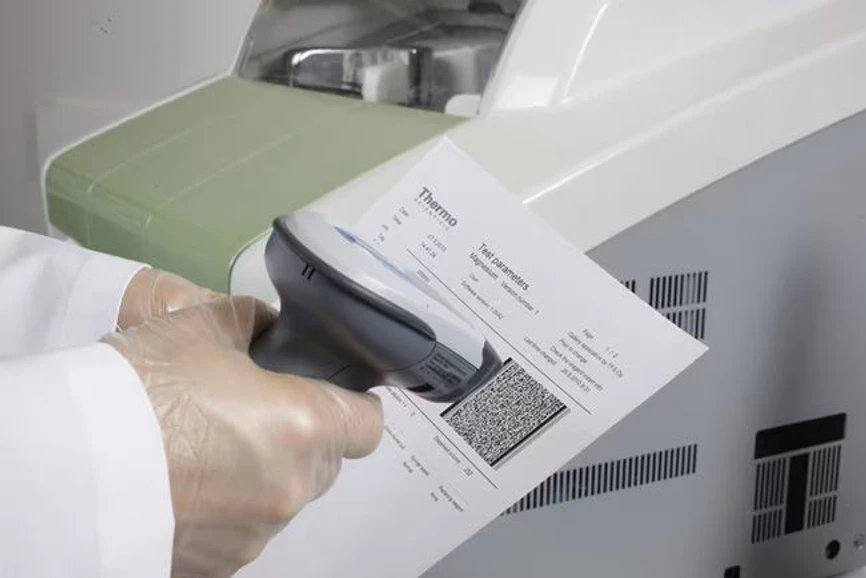

- Automatic barcode-based sample identification
- No glassware washing required
- Automatic startup and shutdown procedures

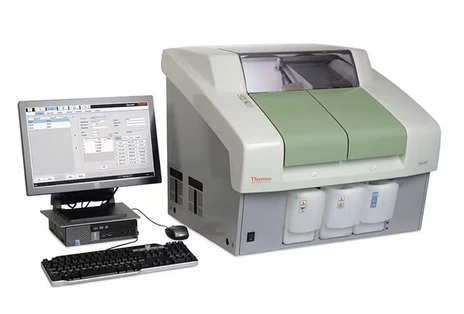

- Intuitive graphical user interface
- Compact benchtop footprint
Thermo Scientific Gallery Discrete Analyzer
Applications
- Food and beverage analysis
- Environmental testing
- Industrial quality control
- Routine laboratory analysis
Thermo Scientific Gallery Discrete Analyzer
Specifications
- Analytical Method: Colorimetric, Enzymatic and Electrochemical With Automated Photometric Analyzer
- Calibration: Factor, Bias, Linear, Logit-Log, Spline, Polynomial and Point-to-Point
- Capacity: Mix of 9 to or 18 to Position Sample Racks

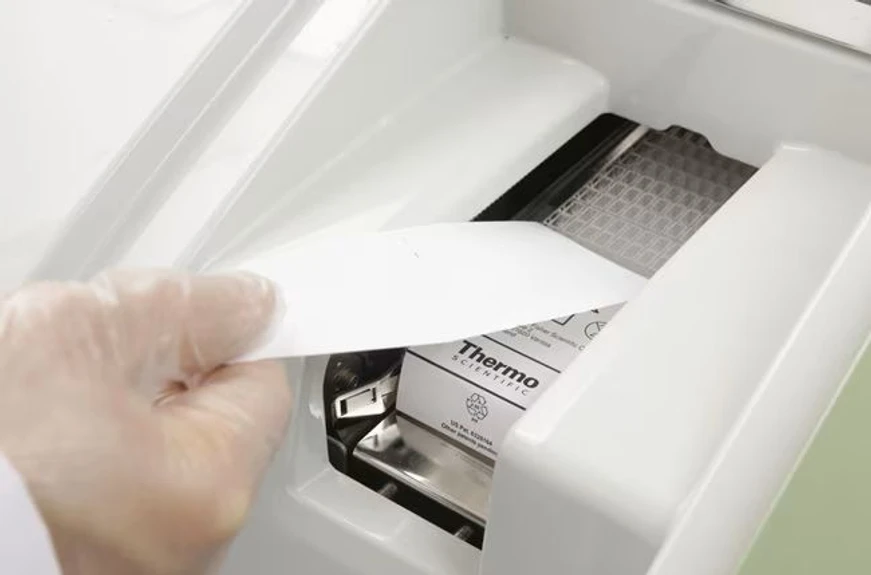

- Cuvettes: Discrete Disposable Cuvettes. On Board Capacity 360 Measurement Cells.
- Depth: 70 cm
- Distilled Water Consumption: Deionized Water Consumption 1.5 L/hr.
- Frequency: 50/60 Hz +/-5%
- Height: 62/130 cm (Cover Closed/Cover Open)
- Measurement Method: Photometric and Electrochemical (ECM)
- Operating System:
- Automated Photometric (Colorimetric and Enzymatic)
- Analysis with The Optional Electrochemical (ECM)
- Measurement of pH and Electrical Conductivity
- Quality Control Details:
- Real-Time QC Program with Multiple and Variable Rules
- Control Frequency User-Definable
- Out-of-Specification Control Results Flagged
- Reagents: 6-Position Reagent Racks, Max 6 Racks on-Board
- Sample Dilution:
- Automatic Sample Pre-Dilution
- Automatic Sample Dilution of Over-Range Tests with Automatic re-Run
- Addition of Manual Pre-Dilution Value for Result Calculation
- Throughput: 200 Tests/hr.
- Voltage: 100/240 V +/-10%
- Weight: 85 kg
- Width: 75 cm
- Type: Discrete Analyzer
