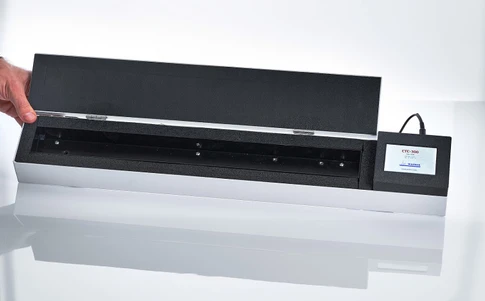

Watrex DeltaChrom CTC 330 Column Oven

Column thermostat CTC-330 for HPLC with a temperature range from 10°C above ambient temperature to 120°C. Internal dimensions: 490 x 60 x 40 mm (L x W x D). Temperature accuracy 0.5%, temperature stability 0.2 °C. Communication with a computer via the built-in USB interface. CDS Clarity driver is standard part of datasystem installation.

FEATURES

• Excellent temperature stability
• Heating up to 120°C
• Thermal fuse against overheating
• USB interface
• Color touch panel control

TECHNICAL SPECIFICATION

• Temperature range: 10 °C above ambient temperature up to 120 °C
• Temperature accuracy: max. 0,5% of actual temperature
• Tempearture stability: < +/-0,1 °C over full operating range
• Settability: 0,1 °C
• Internal dimensions: 490 x 60 x 40 mm (L x W x H)
• Compartment material: black anodized aluminium
• Computer connection: μUSB
• Control: build-in color touch panel
• Power requirements: 19-20V DC/3A

Ordering information:

PN/Component:

• CTC330-001 CTC-330 Column Oven
