KNAUER Eurospher II 100 CN Prep HPLC Columns for NP & RP (USP L10)

Cyano or CN for Normal Phase and Reversed Phase (USP L10)

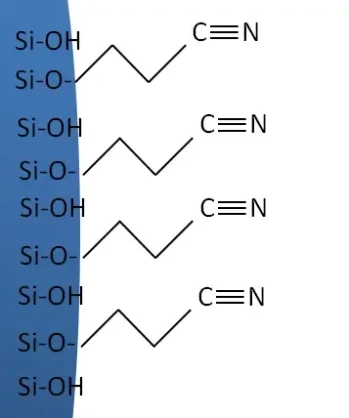

CN is one of the most versatile stationary phases that can be used in reversed phase mode as well as in normal phase mode. The cyano modification supports the π-π interaction as well as polar and hydrophobic interactions with low polarity solvents. These phases are preferred for compounds with double bonds and aromatic groups. Cyano bonded phases show unique selectivity for polar compounds and are more suitable than bare silica for normal phase (NP) gradient separations. The cyano functional group is a strong dipole that can interact with other dipoles or induce dipoles on solutes. These phases also exhibit moderate hydrophobicity due to the alkyl linker.

Due to the quick equilibration time of the CN bonded phase, it is the best choice for gradient elution in normal phase mode. CN phases can be used as a less polar alternative to Si phases.

The material is typically preferred for:

• Compounds with double bonds
• Cyclic antidepressants

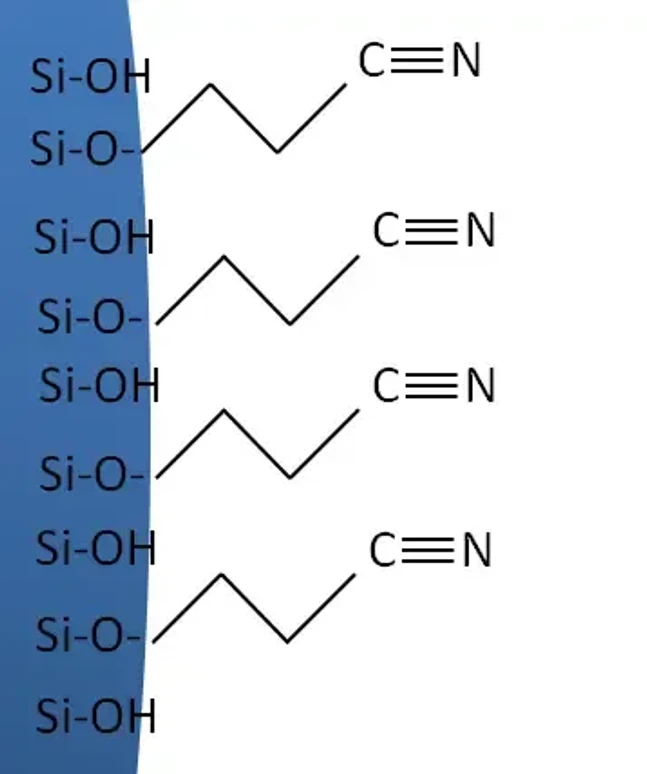

KNAUER: CN

Stationary phase Eurospher II 100 CN is provided in these column types: analytical, semi-preparative and preparative.

Eurospher II 100 CN Preparative Standard Columns are available with these parameters:

• Column length (mm): 50, 150, 250
• Column ID (mm): 20, 30, 50
• Particle size (µm): 5, 10, 15

Eurospher II 100 CN Preparative dAX Columns with dynamic axial compression are available with these parameters:

• Column length (mm): 50, 150, 250
• Column ID (mm): 25, 30, 50
• Particle size (µm): 5, 10, 15

KNAUER Preparative HPLC Columns

The right choice for all dimensions from semi-prep to batch chromatography to SMB.

• Modifications: Reversed Phase, HILIC, Normale Phase
• Max. Pressure: 400–600 bar
• Column Inner Diameter (ID): 16–50 mm in our shop, more on request
• Column Brands: Eurospher, Eurospher II
• Safe Investment: Robustness and durability based on superior technology
• Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.
• Customizable: Standard flanged hardware & dAX hardware with static or dynamic axial compression available

KNAUER: KNAUER Preparative HPLC Columns

Preparative HPLC column hardware

Preparative HPLC columns can be offered with two different hardware types:

• Versatile standard flanged hardware for nearly any application task in batch chromatography
• dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes
