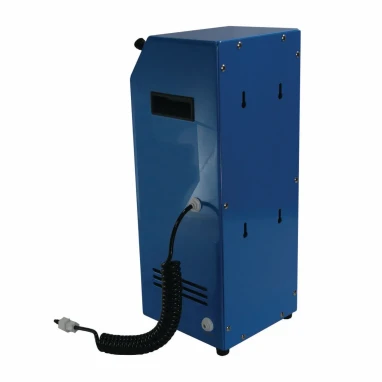

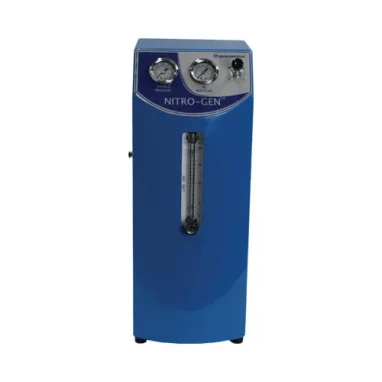

Organomation NITRO-GEN Nitrogen Generator

The NITRO-GEN generator was developed with Organomation’s nitrogen evaporators in mind to provide nitrogen generation for sample concentration. The generator is lightweight and easy to set up, requiring only a source of compressed air to run. This unit is an ideal choice for labs with an in-house compressed air source.

The generator uses a hollow-fiber membrane to convert compressed air to a stream of 95-99% pure nitrogen gas. The hollow-fiber membrane consists of a series of narrow, semipermeable tubes in a porous membrane. As compressed air travels through the fibers, oxygen and water vapor permeate the membrane and are vented off, leaving a steam of high purity nitrogen gas. At up to 99% purity, the resulting nitrogen gas stream can be used in a variety of sample preparation applications.

NITRO-GEN

The NITRO-GEN produces up to 20 L/min of nitrogen gas and is recommended for evaporation of up to 48 sample positions.

Standard features

• Adjustable outlet pressure regulator, 0-100 psi
• Dual Stage clean air filtration system
• Requires an oil-less compressed air source

Advantages

• Quick Start-Up Time - Nitrogen is produced instantly, no heat up time
• Saves Energy - No electrical power needed
• Engineered Design - Life expectancy is more than 10 years
• Low Maintenance - Serviceable clean air filter
• Compact and Lightweight - Small footprint conserves valuable bench space
• Reduced CO2 Emissions - No heaters, less energy required

Specification

Key Features:

• Flow Rate: Up to 20 L/min
• Technology: Hollow-fiber membrane
• Output Pressure: Adjustable 0 – 100 PSI
• Electrical Requirements: None (no power required)
• Noise Level: < 40 dBA (virtually silent when connected to an instrument)

Inlet Air Requirements:

• Maximum Inlet Pressure: 150 PSI (10.3 bar)
• Particulate Filtration: ≤ 0.01 µm
• Oil Vapor Content: < 0.01 mg/m³ (< 0.01 ppm)
• Relative Humidity: < 100% (non-condensing)
• Air Quality: Clean, contaminant-free air

Environmental Conditions:

• Operating Temperature: 36–122 °F (2–50 °C)
• Ambient Pressure: Atmospheric

Dimensions & Weight:

• Size (W × D × H): 9.5 × 8 × 19.5 in (241 × 203 × 495 mm)
• Weight: 13.25 lbs (6 kg)

Warranty: 1 year
