The Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences (IOCB Prague) is a leading scientific institution in the Czech Republic, recognized internationally. Its primary mission is basic research in the fields of chemical biology and medicinal chemistry, organic and material oriented chemistry, chemistry of natural compounds, biochemistry and molecular biology, physical chemistry, theoretical chemistry, and analytical chemistry.

Institute of Organic Chemistry and Biochemistry of the Czech Academy of Sciences

Organomation, founded in 1959, designs and manufactures high-quality nitrogen evaporators and extraction systems. Known for innovation and durability, their lab instruments are used globally for efficient sample preparation with strong customer support.

Organomation

Palacký University Olomouc (UP) is an internationally respected and scientifically and academically highly productive university in Central Europe. Founded 22 December 1573, it is the second-oldest university in the Czech Republic and the oldest one in Moravia. For 450 years it has contributed to the intellectual wealth of society and to its scientific, cultural, and social development.

Palacký University Olomouc

Organomation RapidVap Vertex Dry Evaporator

The RapidVap Vertex dry evaporator accelerates solvent evaporation for up to 50 samples using dry block heating, gentle nitrogen blowdown, and an intuitive touchscreen interface.

The RapidVap Vertex Dry Evaporator accelerates sample evaporation by combining efficient dry heat with gentle nitrogen blowdown, allowing laboratories to process up to 50 samples simultaneously.Its intuitive touchpad interface makes it easy to set and control both temperature and run time, and users can save up to ten custom programs to ensure consistent, repeatable workflows. Because it relies on a dry block heater rather than a traditional water bath, the system requires minimal upkeep—no distilled water, additives, or concerns about waterborne contamination.The RapidVap Vertex is well-suited for a wide range of sample prep needs, including pharmaceutical and drug development, clinical laboratories, environmental analysis, agricultural chemistry, and forensic testing.&nbsp;<ul><li>LCD Display: Touchscreen programming shows parameters for block, sample, and time</li><li>Nitrogen Control: Each switch controls nitrogen flow to each row of five nozzles</li><li>Temperature Sensor: Monitors block or sample temperature</li><li>Dry heat - no water bath: Less maintenance, no rust, no condensation, and no potential source of cross contamination</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Organomation_Rapid_Vap_Vertex_Dry_Evaporator_2_c112725d7a.jpg" alt="Organomation RapidVap Vertex Dry Evaporator" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Organomation_Rapid_Vap_Vertex_Dry_Evaporator_2_c112725d7a.jpg 245w," sizes="100vw" width="1375" height="768">In partnership with Labconco.<h3>STANDARD FEATURES</h3><ul><li>LCD display with touchscreen programming</li><li>Nitrogen control to each row of nozzles</li><li>Pressure regulator for 0 to 45 psi</li><li>Dry heat for less maintenance and no rust compared to water baths</li><li>Microprocessor-controlled heater up to 100 °C</li><li>Temperature sensor monitors block or sample temperature</li><li>Angled samples to increase surface area for faster evaporation</li></ul><h3>REQUIREMENTS (not included)</h3><ul><li>Aluminum block (Specific cat # depends on your tube size)</li><li>Sample tubes</li><li>Nitrogen source with a flow rate of 6.5 CFM/185 LPM minimum</li></ul><h3>SPECIFICATIONS</h3><ul><li>Instrument Catalog Number: LC-7320020</li><li>Bath Type: Dry aluminum blocks</li><li>Number of Sample Positions: Up to 50</li><li>Dimensions (w x d x h): 20.4 x 13.0 x 12.5 in</li><li>Weight: Net: 35 lbs. (16 kg)</li><li>Weight: Gross: 45 lbs. (20 kg)</li><li>Sample Layout: 5 rows of 10 samples</li><li>Lid Material: Glass</li><li>Pressure Regulator: 0–45 psi</li><li>Temperature Range: 30–100 °C</li><li>Warranty: 1 year</li><li>Electrical Requirements: 115V, 60 Hz</li></ul><h5>Nitrogen Requirements</h5><ul><li>Flow Rate: 6.5 CFM / 185 LPM minimum</li><li>Pressure: &lt;50 psi</li></ul><h3>ACCESSORIES</h3><ul><li>Aluminum blocks</li></ul>

Organomation 6 Position N-EVAP Nitrogen Evaporator

Compact nitrogen evaporator for up to 6 samples with precise flow control, heated bath options, and wide sample compatibility.

The Organomation 6 Position N-EVAP is a compact and cost-effective sample concentrator designed for simultaneous evaporation of up to 6 samples. Based on the proven N-EVAP technology developed in the 1970s, it ensures reliable and reproducible solvent evaporation using nitrogen gas within a heated bath.The system supports a wide range of sample sizes – 10–30 mm OD as standard, and up to 30–56 mm OD with an optional holder. The circular rotating design allows easy front access to all samples.<h4>Key Features</h4><ul><li>Evaporation of up to 6 samples simultaneously</li><li>Adjustable nitrogen flow: 0–10 L/min</li><li>Individually adjustable needle valves for precise control</li><li>Circular rotating sample holder for easy access</li><li>Wide sample diameter range: 10–56 mm OD (with optional holder)</li><li>Stainless steel bath construction for durability</li><li>Water or dry bath configurations available</li><li>High temperature limit switch for safety</li><li>Phthalate-free silicone tubing to prevent contamination</li><li>Efficient nitrogen usage with minimal waste</li></ul><h3>Technical Specifications</h3><h4>General</h4><ul><li>Number of positions: 6</li><li>Sample holder layout: Circular</li><li>Gas manifold: Single ring</li><li>Gas flow meter: 0–10 L/min</li><li>Standard sample OD: 10–30 mm</li><li>Optional sample OD: 30–56 mm</li><li>Gas input pressure: 20–30 psig</li><li>With regulator: 30–160 psig</li></ul><h4>Dimensions</h4><ul><li>Water bath: 33 × 28 × 79 cm</li><li>Dry bath: 33 × 28 × 70 cm</li><li>Reduced height: 33 × 28 × 61 cm</li></ul><h4>Needles</h4><ul><li>Length: 4 in (≈10 cm)</li><li>Gauge: 19 ga</li><li>Material: stainless steel + chrome-plated brass hub</li></ul><h4>Heating – Water Bath</h4><ul><li>Temperature range: 30–90 °C</li><li>Power: 550 W</li><li>Controller: mechanical thermostat</li><li>Accuracy: ±2 °C</li></ul><h4>Heating – Dry Bath</h4><ul><li>Temperature range: 40–130 °C</li><li>Power: 500 W</li><li>Medium: aluminum / glass beads</li><li>Accuracy: ±2 °C</li></ul>

Organomation 20 Position Auto N-EVAP Nitrogen Evaporator

The 20 Position Auto N-EVAP enables automated, safe evaporation of up to 20 samples with digital control and pneumatic sample handling.

The Organomation 20 Position Auto N-EVAP is the most advanced nitrogen evaporator developed by Organomation. It combines the classic N-EVAP system with timed automation and optional nitrogen self-generation.The instrument operates in both automatic and manual modes using an integrated pneumatic system. In automatic mode, samples are removed from the heating bath at the end of the cycle, reducing the risk of sample loss or damage.A digital control system provides precise control of gas flow and bath temperature, ensuring safe and reproducible evaporation of up to 20 samples simultaneously.<h4>Key Features</h4><ul><li>Automatic and manual operation modes</li><li>Capacity of up to 20 samples</li><li>Automatic sample removal after cycle completion</li><li>Digital control of temperature and timing</li><li>Nitrogen flow up to 25 L/min</li><li>Built-in pressure reducing regulator</li><li>Dual nitrogen filtration system</li><li>Pneumatic sample lift (gas piston)</li><li>Safety cover and circuit breaker</li><li>Precision needle valve control</li><li>Phthalate-free high-pressure tubing</li><li>Reduced risk of sample loss through automation</li></ul><h4>Available Model</h4><h5>Automatic 20 Position N-EVAP – Water Bath</h5><ul><li>Catalog number: 11220-A</li><li>Bath type: Water</li><li>Number of positions: 20</li><li>Dimensions: 49 × 46 × 92 cm</li><li>Temperature range: 30–100 °C</li><li>Total wattage: 1100 W</li></ul><h5>Standard Features</h5><ul><li>Adjustable flow meter: 0–25 L/min</li><li>Built-in pressure reducing regulator</li><li>Dual nitrogen filters</li><li>Digital temperature controller (LED)</li><li>Electronic timer</li><li>High temperature limit switch</li><li>Safety cover</li><li>Circuit breaker</li><li>High-pressure phthalate-free tubing</li><li>Precision variable valve technology</li><li>Gas piston lift mechanism</li><li>Set of 20 needles (4" × 19 gauge)</li></ul><h4>Options</h4><ul><li>220v wiring harness</li><li>Z-Purge / positive pressure purge case</li><li>Acid resistant coating on instrument and needles</li></ul><h4>Technical Specifications</h4><h4>General</h4><ul><li>Number of positions: 20</li><li>Sample holder layout: Circular</li><li>Gas manifold: Single Ring</li><li>Gas flow rate: 0–25 L/min</li><li>Sample size range: 10–30 mm OD</li><li>Nitrogen input pressure: 30–110 psig</li><li>Acid resistant coating: Optional</li></ul><h4>Needles</h4><ul><li>Size: 102 mm × 19 ga (4")</li><li>Material: stainless steel with plated brass hub</li></ul><h4>Sample Lift Mechanism</h4><ul><li>Type: Gas piston</li><li>Function: automatic lifting/removal of samples</li></ul><h4>Control System</h4><ul><li>Digital temperature control (LED display)</li><li>Electronic timer for gas and heating</li></ul><h4>Heating Specifications</h4><ul><li>Model: 11196</li><li>Medium: Water</li><li>Inside dimensions: 11 × 11 × 5.5 in</li><li>Outside dimensions: 49 × 46 × 18 cm</li><li>Power: 1100 W</li><li>Temperature range: 30–100 °C</li><li>Controller: digital electronic</li><li>Accuracy: ±2 °C</li></ul><h4>Accessories</h4><ul><li>Nitrogen generator (20 L/min)</li><li>Pasteur pipette adapters</li><li>Pressure reducing regulator 0–160 psi</li><li>High temperature silicone fluid</li><li>Various needle sizes and gauges</li></ul><h4>Replacement Parts</h4><ul><li>NA1955 – Nitrogen generator</li><li>NA0603 – Needles 4" × 19 ga</li><li>NA0636 – Pasteur pipette adapter</li></ul>

Organomation 9 Position MULTIVAP Nitrogen Evaporator

The MULTIVAP 9 Position enables rapid evaporation of large-volume samples using a high-temperature dry block and efficient row-based nitrogen control.

The Organomation 9 Position MULTIVAP is a high-temperature dry block nitrogen evaporator designed for large volume sample evaporation.The system features a rectangular 3×3 gas distribution manifold and a dual post lifting assembly, allowing easy adjustment of needles or pipettes. Nitrogen is directed onto the sample surface, enabling rapid solvent evaporation and efficient sample concentration.Each row of three positions can be individually switched on/off, allowing significant nitrogen savings when processing fewer samples.The system operates with a heated aluminum dry block (30–120 °C) or as an ambient (unheated) version.<h4>Key Features</h4><ul><li>Up to 9 samples simultaneously (3×3 layout)</li><li>High-temperature dry block: 30–120 °C</li><li>Ambient (unheated) version available</li><li>Direct nitrogen delivery onto sample surface</li><li>Row-based gas control (3 samples per row)</li><li>Nitrogen flow range: 0–25 L/min</li><li>Built-in pressure regulator</li><li>Digital temperature control and timer</li><li>Dual spring hoist lifting system</li><li>Includes 50 mm OD beakers</li><li>Custom inserts available for different sample sizes</li><li>Compatible with organic solvents</li><li>Optional acid-resistant configuration</li></ul><h4>Available Models</h4><h5>9 Position MULTIVAP – Dry Block</h5><ul><li>Catalog number: 11809</li><li>Heating type: Dry block</li><li>Number of positions: 9</li><li>Dimensions: 41 × 36 × 76 cm</li><li>Temperature range: 30–120 °C</li><li>Power: 900 W</li></ul><h5>9 Position MULTIVAP – No Heating</h5><ul><li>Catalog number: 11809-O</li><li>Heating type: None</li><li>Number of positions: 9</li><li>Dimensions: 33 × 38 × 66 cm</li><li>Temperature: Ambient</li></ul><h4>Standard Features</h4><ul><li>Adjustable flow meter: 0–25 L/min</li><li>Gas distribution manifold (3×3)</li><li>Nitrogen filter</li><li>Built-in pressure reducing regulator</li><li>Electronic timer</li><li>Digital temperature controller (LED)</li><li>Safety control cover plate</li><li>High temperature limit switch</li><li>Dual band hoist spring assembly</li><li>9 beakers (50 mm OD included)</li></ul><h4>Options</h4><ul><li>220v wiring harness</li><li>Z-Purge / positive pressure purge case</li><li>Acid resistant coating</li><li>Pasteur pipette adapters instead of needles</li><li>Manifold and stand only (no heating platform)</li></ul><h3>Technical Specifications</h3><h4>General</h4><ul><li>Number of positions: 9</li><li>Layout: Rectangular (3×3)</li><li>Spacing: 5.87 cm</li><li>Standard vessels: 50 mm OD beakers</li><li>Optional tube range: 16–40 mm OD</li><li>Gas flow: 0–25 L/min</li><li>Flow control: per row (3 samples)</li><li>Gas input pressure: 30–110 psig</li><li>Acid resistant coating: Optional</li></ul><h4>Needles</h4><ul><li>Size: 102 mm × 16 ga</li><li>Material: stainless steel</li><li>Needle guide: optional for tubes</li></ul><h4>Lift Mechanism</h4><ul><li>Type: Dual pulley &amp; band springs</li><li>Function: adjustable needle height</li></ul><h4>Heating Specifications</h4><ul><li>Model: 9156</li><li>Type: Aluminum dry block</li><li>Dimensions: 41 × 36 × 15 cm</li><li>Power: 900 W</li><li>Temperature range: 30–120 °C</li><li>Controller: digital electronic (LED)</li><li>Accuracy: ±2 °C</li></ul><h4>Accessories</h4><ul><li>Nitrogen generator</li><li>Custom inserts&nbsp;</li><li>Pasteur pipette adapters</li><li>Luer plugs</li><li>Various needle sizes and gauges</li></ul>

Organomation 30 Position MULTIVAP Nitrogen Evaporator

The MULTIVAP 30 Position enables high-throughput evaporation of up to 30 samples with a heated dry block, efficient gas control, and custom inserts.

The Organomation 30 Position MULTIVAP is a high-capacity dry block nitrogen evaporator designed for parallel evaporation of up to 30 samples.The system features a rectangular 5×6 gas distribution manifold and a dual post lifting assembly. Nitrogen is directed onto the sample surface, enabling rapid solvent evaporation and efficient concentration.Each row of 5 samples can be independently switched on/off, allowing significant nitrogen savings when processing fewer samples.The system operates with a heated aluminum dry block (30–120 °C) or as an ambient (unheated) version. Custom-made inserts and blocks ensure optimal heat transfer for specific sample sizes.<h4>Key Features</h4><ul><li>Up to 30 samples simultaneously (5×6 layout)</li><li>High-temperature dry block: 30–120 °C</li><li>Ambient (no heating) version available</li><li>Direct nitrogen blowdown onto sample surface</li><li>Row-based gas control (5 samples per row)</li><li>Nitrogen flow: 0–25 L/min</li><li>Built-in pressure regulator</li><li>Digital temperature control and timer</li><li>Dual spring hoist system</li><li>Custom inserts for optimized heat transfer</li><li>Compatible with organic solvents</li><li>Optional acid-resistant version</li></ul><h4>Available Models</h4><h5>30 Position MULTIVAP – Dry Block</h5><ul><li>Catalog number: 11830</li><li>Heating type: Dry block</li><li>Number of positions: 30</li><li>Dimensions: 41 × 36 × 76 cm</li><li>Temperature range: 30–120 °C</li><li>Power: 900 W</li></ul><h5>30 Position MULTIVAP – No Heating</h5><ul><li>Catalog number: 11830-O</li><li>Heating type: None</li><li>Number of positions: 30</li><li>Dimensions: 33 × 38 × 66 cm</li><li>Temperature: Ambient</li></ul><h4>Standard Features</h4><ul><li>Adjustable flow meter: 0–25 L/min</li><li>Gas distribution manifold (5×6)</li><li>Nitrogen filter</li><li>Built-in pressure reducing regulator</li><li>Digital temperature controller (LED)</li><li>Electronic timer</li><li>Safety control cover plate</li><li>High temperature limit switch</li><li>Dual band hoist spring assembly</li></ul><h4>Options</h4><ul><li>220v wiring harness</li><li>Z-Purge / positive pressure purge case</li><li>Acid resistant coating</li><li>Pasteur pipette adapters instead of needles</li><li>Manifold and stand only (no heating platform)</li></ul><h3>Technical Specifications</h3><h4>General</h4><ul><li>Number of positions: 30</li><li>Layout: Rectangular (5×6)</li><li>Spacing: 3.33 cm</li><li>Sample diameter range: 16–30 mm OD</li><li>Gas flow: 0–25 L/min</li><li>Flow control: per row (5 samples)</li><li>Gas input pressure: 30–110 psig</li><li>Acid resistant coating: Optional</li></ul><h4>Needles</h4><ul><li>Size: 102 mm × 19 ga</li><li>Material: stainless steel</li><li>Needle guide: optional</li></ul><h4>Lift Mechanism</h4><ul><li>Type: Dual pulley &amp; band springs</li><li>Function: adjustable needle height</li></ul><h4>Heating Specifications</h4><ul><li>Model: 9156</li><li>Type: Aluminum dry block</li><li>Dimensions: 41 × 36 × 15 cm</li><li>Power: 900 W</li><li>Temperature range: 30–120 °C</li><li>Controller: digital electronic (LED)</li><li>Accuracy: ±2 °C</li></ul><h4>Accessories</h4><ul><li>Nitrogen generator</li><li>Custom inserts</li><li>Pasteur pipette adapters (not compatible with needle guide)</li><li>Luer plugs</li><li>Various needle sizes and gauges</li></ul>

Organomation RapidVap Vacuum Concentrator

RapidVap vacuum concentration systems combine vacuum, controlled heating, and vortex mixing for fast and efficient sample preparation in pharmaceutical, agricultural, and environmental laboratories.

RapidVap Vacuum Evaporation Systems are developed for efficient sample preparation in applications including drug discovery, agricultural chemistry, mycotoxin analysis, and environmental testing. By integrating vacuum, controlled heating, and vortex motion, these systems speed up solvent evaporation while providing a practical alternative to traditional centrifugal evaporation techniques.&nbsp;Developed in partnership with Labconco.<ul><li>Dry Block - Dry heating system prevents potential contamination source</li><li>Increased Surface Area - Vortex motion increases surface area for faster evaporation</li><li>PTFE-Coated Chamber - Aluminum with PTFE coating for broad range of chemical compatibility</li><li>End-Point Detention - Signal completion of run allows samples to be left unattended while drying to desired eng point</li></ul><h3>Standard Features</h3><ul><li>Dry block heating system prevents adding potential contamination source</li><li>Vortex action, heat, and vacuum combine to accelerate evaporation</li><li>Automatic vacuum release in the event of power failure</li><li>PTFE-coated chamber for broad range of chemical compatibility</li><li>Microprocessor-controlled vortex motion increases surface area for faster evaporation</li><li>Signal completion of run allows samples to be left unattended while evaporation to desired end point</li></ul><h3>Requirements (not included)</h3><ul><li>Vacuum pump</li><li>Sample block</li><li>Glassware</li></ul><h3>Specifications</h3><div><section><div><div><div><div><div><div><ul><li>Instrument Catalog Number: LC-7900000</li><li>Number of Sample Positions: Up to 110</li><li>Dimensions (w x d x h): 20.7 x 18.4 x 13.5 in</li><li>Weight:&nbsp;<ul><li>Net: 92 lbs. (42 kg)</li><li>Gross: 100 lbs. (45 kg)</li></ul></li><li>Lid Material: Glass</li><li>Temperature Range: 0-100 °C</li><li>Warranty: 1 year</li><li>Electrical Requirements: 115V, 60 Hz</li><li>Vortex Speed: Up to 1000 RPM</li></ul><h3>Accessories</h3><ul><li>PTFE-coated aluminum blocks</li><li>Flat-bottom tubes</li><li>Eight-place stainless steel racks</li><li>Glass lid with heater</li><li>Diaphragm vacuum pumps</li><li>Liquid trap</li><li>Dry ice vacuum traps</li><li>Trapping valve</li><li>Vacuum tubing kit</li></ul></div></div></div></div></div></div></section></div>

Organomation ROT-X-TRACT-LC Extraction System

ROT-X-TRACT-LC is a high-throughput liquid-liquid extraction system supporting simultaneous processing of up to eight samples using Corning Accelerated One-Step apparatuses.

The ROT-X-TRACT-LC system is designed to support up to eight (8) Corning Accelerated One-Step extraction apparatuses, providing an efficient solution for high-throughput liquid-liquid extraction workflows. The Corning Accelerated One-Step extractor integrates extraction and concentration into a single continuous process, helping laboratories streamline sample preparation while reducing manual handling steps.To maintain compatibility with standard laboratory fume hoods, the system utilizes a modified Friedrichs condenser with a reduced overall height. Allihn condensers are also available upon customer request.The hydrophobic membrane enables continuous circulation of the organic solvent through the 1 L sample bottle until extraction is complete. By integrating a stopcock assembly and a 3-ball Snyder column, the Corning One-Step extractor is capable of both analyte extraction and final solvent evaporation within the same operating cycle.The system also includes an electronic side control module that allows users to program bath temperatures and timed operating cycles in accordance with specific analytical methodologies.<ul><li>Multiple Simultaneous Extractions: Extract and concentrate up to eight samples at once</li><li>Easy Sample Access: The instrument rotates allowing all samples to be accessed from the front</li><li>Fewer Connections: One water supply line in, one drain line out</li><li>Precise: Digital control option allows for exact temperature regulation</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Organomation_ROT_X_TRACT_LC_Extraction_System_c7cbab77de.jpg" alt="Organomation ROT-X-TRACT-LC Extraction System" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Organomation_ROT_X_TRACT_LC_Extraction_System_c7cbab77de.jpg 156w," sizes="100vw" width="1400" height="1400"><h3>Standard features</h3><ul><li>Stainless steel construction</li><li>Stepped bath rim and cover disk seals steam chamber</li><li>Each condenser water line attached to centrally located water manifold</li><li>Side control box</li><li>Water flow meter</li><li>Laboratory grade materials stand up to organic solvents</li></ul><h3>Glassware features</h3><ul><li>Stop cock to switch to sample concentration after extraction is complete</li><li>1 L sample bottle</li><li>J-shaped Snyder column</li><li>Hydrophobic Corning membranes (sold separately)</li><li>In-line KD flask for optimum heat transfer</li><li>Vacuum insulated concentrator tube</li></ul><h3>Options (Add to main Cat# when purchasing)</h3><ul><li>All associated glassware</li><li>Positive pressure type Z purged bath (Option Code -Z), Cat# 13318-Z</li><li>240V wiring and plug (Option Code -2), Cat# 13318-2</li></ul><h3>Specifications</h3><ul><li>Instrument Catalog Number: 11318</li><li>Instrument Name: Corning Accelerate One-Step Extractor</li><li>Max No. of Samples: 8</li><li>Bench Space: 24 x 19 x 42 in</li><li>w x d x h: 61 x 48 x 107 cm</li><li>Attached Control Box for Power &amp; Timer: Standard</li><li>Glassware 1000ml: GS3380</li><li>Extractor Type &amp; Size: Corning One-Step 1000 ml</li><li>Solvent Flask Type &amp; Size: In-Line KD 100 ml</li><li>Concentrator Tube: Insulated Tip</li><li>Type &amp; Size: 10 ml 19/22</li><li>Snyder Column Type: J Tube</li><li>Condenser Type: Cold Finger 45/50</li><li>Solvent Collection Flood Extractor: Standard</li><li>Hydrophobic Membrane: Standard</li><li>Water Bath Catalog Number: B3101</li><li>Bath Model Number: 16169</li><li>Bath Inside Dimensions: 16.0 x 8.5 in</li><li>Diameter x Depth: 40.6 x 21.6 cm</li><li>Bath Outside Dimensions: 24 x 19 x 10 in</li><li>w x d x h: 61 x 48 x 25 cm</li><li>Water Flow Meter: 0-3.0 lpm</li><li>Heaters Total Watts: 1600 w</li><li>Bath Temperature Range: 30 - 100 C</li><li>Bath Temperature Accuracy: +/- 2 C</li></ul><h3>Accessories</h3><ul><li>P1332: O-rings for S-EVAP/RXT water manifold</li><li>GA3446C-20: Membranes Corning for Accelerated One-Step extractor, pkg of 20</li><li>All associated glassware</li><li>Bath cover disks &nbsp;</li></ul>

Organomation Teflon-Free N-EVAPs for PFAS Research

Teflon-Free N-EVAP is a nitrogen concentrator for PFAS sample preparation and concentration without the risk of PTFE contamination. It offers individual nitrogen flow control and supports up to 24 samples simultaneously.

Teflon-Free N-EVAP nitrogen evaporators are specifically designed for PFAS sample preparation and concentration workflows in analytical and environmental laboratories. Built entirely without PTFE or other fluoropolymers, these systems help minimize the risk of contamination during nitrogen blowdown evaporation while enabling simultaneous processing of multiple samples.Referenced in EPA PFAS methods 533, 537.1, and 1633, the Teflon-Free N-EVAP models are widely used in environmental and research laboratories requiring reliable PFAS sample preparation. The systems support both 15 mL and 50 mL centrifuge tubes and feature individual needle valves for each sample position, allowing independent nitrogen flow control and flexible processing of samples with different evaporation endpoints.Designed for laboratories requiring both contamination control and workflow flexibility, the Teflon-Free N-EVAP provides an efficient solution for PFAS research and analytical applications.<ul><li>Small Footprint: N-EVAP Models 111 and 112 require about one square foot of bench space</li><li>Flexible: An adjustable sample holder design fits a wide variety of sample tubes and vials at once</li><li>Teflon-Free Guarantee: Made with 100% PTFE-free materials to avoid contamination of PFAS samples</li><li>Individualized Control: Optimize evaporation of diverse samples with individual gas flow control at each vial</li></ul><h3>Standard features</h3><ul><li>Nitrogen filter</li><li>Adjustable flow meter</li><li>Phthalate free silicon tubing eliminates contamination concerns</li><li>High temperature limit switch for safety</li><li>Dual band spring hoist assembly</li><li>Precision needle valve tube assembly</li><li>Needles, 4-inch x 19 gauge with chrome plated brass hub and stainless-steel shaft</li></ul><h3>Options (Add to main Cat# when purchasing)</h3><ul><li>220v wiring harness (Option Code# -2)<ul><li>12 position model: Cat# 11155-NT-2</li><li>24 position model: Cat# 11250-NT-2</li></ul></li><li>Reduced height (Option Code# -S)<ul><li>12 position model: Cat# 11155-NT-S</li><li>24 position model: Cat# 11250-NT-S</li></ul></li></ul><h3>Specifications</h3><ul><li>Bath Type: Water</li><li>Instrumental Catalog Number:&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 11155-NT</li><li>Teflon-Free 24p N-EVAP: 11250-NT</li></ul></li><li>Number of Sample Positions:&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 12</li><li>Teflon-Free 24p N-EVAP: 24</li></ul></li><li>Standard Dimensions (w x d x h):<ul><li>Teflon-Free 12p N-EVAP: 13 x 11 x 31 in / 33 x 28 x 79 cm</li><li>Teflon-Free 24p N-EVAP: 16 x 15 x 33 in / 41 x 38 x 61 cm</li></ul></li><li>Reduced Height Dimensions (w x d x h):<ul><li>Teflon-Free 12p N-EVAP: 13 x 11 x 24 in / 33 x 28 x 61 cm</li><li>Teflon-Free 24p N-EVAP: 16 x 15 x 24 in / 41 x 38 x 61 cm</li></ul></li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard): 10-30 mm OD</li><li>Test Tube Range (Optional):&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 5-16 mm OD</li><li>Teflon-Free 24p N-EVAP: 30-70 mm OD</li></ul></li><li>Gas Flow Meter:&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 0-10 L/min</li><li>Teflon-Free 24p N-EVAP: 0-20 L/min</li></ul></li><li>Stainless Steel Needles (Length x Gauge):&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 4.0 in x 19 ga&nbsp;</li><li>Teflon-Free 24p N-EVAP: 102 mm x 19 ga</li></ul></li><li>Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly</li><li>Standard Gas Input Range: 20-30 psig</li><li>Gas Input Range w/Optional Pressure Reducing Regulator: 30-160 psig</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number:<ul><li>Teflon-Free 12p N-EVAP: 5585</li><li>Teflon-Free 24p N-EVAP: 9125</li></ul></li><li>Heating Medium: Water</li><li>Inside Dimensions (Diameter x Depth):<ul><li>Teflon-Free 12p N-EVAP: 8.5 x 4.5 in / 21.6 x 11.4 cm</li><li>Teflon-Free 24p N-EVAP: 12.0 x 4.5 in / 30.5 x 11.4 cm</li></ul></li><li>Outside Dimensions (w x d x h):<ul><li>Teflon-Free 12p N-EVAP: 13 x 11 x 7 in / 33 x 28 x 18 cm</li><li>Teflon-Free 24p N-EVAP: 16 x 15 x 7 in / 41 x 38 x 18 cm</li></ul></li><li>Total Wattage:&nbsp;<ul><li>Teflon-Free 12p N-EVAP: 550 W</li><li>Teflon-Free 24p N-EVAP: 900 W</li></ul></li><li>Bath Temperature Range: 30-90 °C</li><li>Temperature Controller Type: Mechanical Thermostat</li><li>Controller Accuracy: +/- 2 °C</li></ul><h3>Accessories</h3><ul><li>Small vessel sample holder for 12 position N-EVAP model only, for vial outside diameters of 5-16 mm (cat# NA1132)</li><li>Large vessel sample holder for 24 position N-EVAP model only, for vial outside diameters of 30-56 mm (cat# NA1113)</li><li>Teflon-free nitrogen generator (cat# NA1955-NT)</li><li>Pasteur pipette adapters (cat# NA0636)</li><li>Teflon-free pressure reducing regulator 0-160 psi (cat# NA0630-NT)</li><li>Various needle sizes and gauges</li></ul><h3>Replacement parts</h3><ul><li>P0627: Valve Tube Assembly – Post 1997</li><li>P0607: Luer &amp; washer for N-EVAP valve tube</li><li>P0634: Tube Fitting nylon 3 part for N-EVAP valve tube</li></ul>

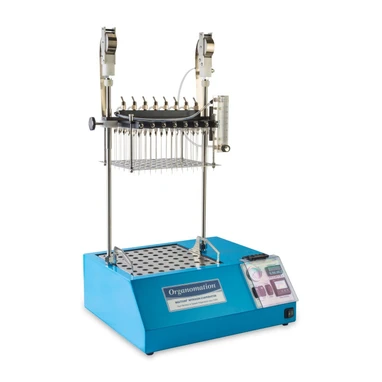

Organomation Teflon-Free MULTIVAPs for PFAS Testing

The Teflon-Free MULTIVAP is a high-capacity evaporator for PFAS workflows, offering up to 100 sample positions, a heated water bath, and PTFE-free construction.

Teflon-free MULTIVAP nitrogen evaporators are designed for high-throughput PFAS sample preparation and concentration. Constructed entirely without PTFE or other fluoropolymers, they help minimize the risk of contamination during evaporation while enabling simultaneous processing of large sample batches.Available in 64- and 100-position configurations, these systems are suitable for laboratories using EPA Methods 533, 537.1, and 1633. A gas distribution manifold provides uniform nitrogen flow to all samples, while row-specific controls allow unused positions to be switched off to reduce nitrogen consumption.The evaporators feature a heated water bath with a temperature range of 30–100 °C and customized sample racks designed for specific tube dimensions, ensuring efficient and reproducible solvent evaporation.For laboratories requiring maximum throughput and consistent PFAS sample preparation, Teflon-free MULTIVAP evaporators provide a reliable and contamination-conscious solution.<ul><li>Capacity: Evaporate batches of up to 64 or 100 samples, with outside diameters of up to 30 mm</li><li>Precise: Digital controls allow exact temperature regulation</li><li>Teflon-Free Guarantee: Made with PTFE-free materials to avoid contamination of PFAS</li><li>Consistent: Uniform evaporation across all samples with no adjustment needed between runs</li></ul><h4>Standard features</h4><ul><li style="line-height:24px;">Adjustable flow meter</li><li style="line-height:24px;">Dual band hoist spring assembly</li><li style="line-height:24px;">High temperature limit switch for safety</li><li style="line-height:24px;">Safety control cover plate</li><li style="line-height:24px;">Digital temperature controller</li><li style="line-height:24px;">Electronic timer</li><li style="line-height:24px;">Nitrogen filter</li><li style="line-height:24px;">Gas distribution manifold</li><li style="line-height:24px;">Built-in pressure reducing regulator</li><li style="line-height:24px;">Needle guide</li></ul><h4>Options (Add to main Cat# when purchasing)</h4><ul><li>220v wiring harness (Option Code# -2)<ul><li style="vertical-align:baseline;">64 position model: Cat# 11364-NT-2</li><li style="vertical-align:baseline;">100 position model: Cat# 11300-NT-2</li></ul></li></ul><h4>Specifications</h4><ul><li>Bath Type: Water</li><li>Instrumental Catalog Number:<ul><li>Teflon-Free 64p MULTIVAP: 11364-NT</li><li>Teflon-Free 100p MULTIVAP: 11300-NT</li></ul></li><li>Number of Sample Positions:<ul><li>Teflon-Free 64p MULTIVAP: 64</li><li>Teflon-Free 100p MULTIVAP: 100</li></ul></li><li>Standard Dimensions (w x d x h): 19 x 17 x 34 in / 48 x 43 x 86 cm</li><li>Sample Holder Layout: Square</li><li>Gas Manifold Layout:<ul><li>Teflon-Free 64p MULTIVAP: 8 x 8 array</li><li>Teflon-Free 100p MULTIVAP: 10 x 10 array</li></ul></li><li>Center to Center Spacing Between Positions:<ul><li>Teflon-Free 64p MULTIVAP: 1.3125 in / 3.33 cm</li><li>Teflon-Free 100p MULTIVAP: 1.0 in / 2.54 cm</li></ul></li><li>Test Tube Diameter:<ul><li>Teflon-Free 64p MULTIVAP: 11–30 mm OD</li><li>Teflon-Free 100p MULTIVAP: 11–22 mm OD</li></ul></li><li>Gas Flow Control On/Off Valve:<ul><li>Teflon-Free 64p MULTIVAP: Every row of 8</li><li>Teflon-Free 100p MULTIVAP: Every row of 10</li></ul></li><li>Gas Flow Meter Range:<ul><li>Teflon-Free 64p MULTIVAP: 0–30 L/min</li><li>Teflon-Free 100p MULTIVAP: 0–50 L/min</li></ul></li><li>Stainless Steel Needles (Length x Gauge): 4.0 in x 19 ga / 102 mm x 19 ga</li><li>Needle Guide: Standard</li><li>Hoist Assembly: Dual Pulley &amp; Band Springs</li><li>Built-in Gas Regulator Input: 30–110 psig</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number: 11196</li><li>Inside Dimensions (Diameter x Depth): 11 x 11 x 5.5 in / 28 x 28 x 14 cm</li><li>Outside Dimensions (w x d x h): 19 x 17 x 7 in / 48 x 43 x 18 cm</li><li>Total Wattage: 1100 W</li><li>Bath Temperature Range:<ul><li>Teflon-Free 64p MULTIVAP: 30–110 °C</li><li>Teflon-Free 100p MULTIVAP: 30–100 °C</li></ul></li><li>Temperature Controller Type: Digital Electronic with LED Display</li><li>Controller Accuracy: +/- 2 °C</li></ul><h4>Accessories</h4><ul><li style="line-height:24px;">Custom sized racks for 64 position model (cat# NA1360)</li><li style="line-height:24px;">Custom sized racks for 100 position model (cat# NA1361)</li><li style="line-height:24px;">Nitrogen generator (cat# NA1935)</li><li style="line-height:24px;">Pasteur pipette adapters (cat# NA0636, cannot be used with needle guide)</li><li style="line-height:24px;">Luer plugs (cat# NA1307)</li><li style="line-height:24px;">Pressure reducing regulator 0-160 psi (cat# NA0630-NT)</li><li style="line-height:24px;">Various needle sizes and gauges</li></ul>

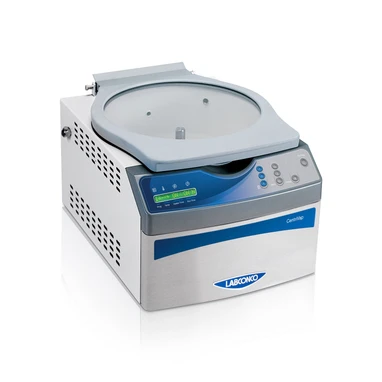

Organomation Standard CentriVap Vacuum Concentrator

CentriVap Benchtop Vacuum Concentrators combine vacuum, centrifugal force, and heat for rapid sample concentration, processing up to 148 samples in a single run.

CentriVap Benchtop Vacuum Concentrators are designed for rapid concentration of small-volume samples. By combining centrifugal force, vacuum, and controlled heating, they provide efficient solvent evaporation for biological, microbiological, biochemical, pharmaceutical, and analytical laboratory workflows.The systems can process up to 148 samples simultaneously, accommodating volumes ranging from a few microliters to 25 mL. An optional microtiter plate rotor supports up to four standard microplates or two deep-well plates, providing additional flexibility for high-throughput applications.&nbsp;Developed in partnership with Labconco.<ul><li>Large Chamber: Holds up to 148 samples for maximum throughput</li><li>Stores 9 User-Set Programs: Temperature, heat time, and run time parameters can be saved</li><li>One Button Start Up: Start the rotor, heater, timers, and vacuum pump simultaneusly</li><li>Preheat Button: Press to turn on heater to preheat chamber prior to loading samples</li></ul><h4>Standard features</h4><ul><li>Centrifugal force, vacuum, and heat to rapidly concentrate samples</li><li>Large chamber to hold up to 148 samples</li><li>Stores 9 user-set programs such as heat or time parameters</li><li>Quick-Start one button start up for rotor, heater, timers, and vacuum pump</li><li>Preheat button to heat chamber prior to loading samples</li></ul><h4>Requirements (not included)</h4><ul><li>Vacuum pump</li><li>CentriVap cold trap</li><li>Rotor</li><li>Sample tubes</li></ul><h4> Optional accessories</h4><ul><li>CentriZap strobe light</li><li>Vacuum controller</li><li>Glass lid</li><li>CantriVap cart</li></ul><h4>Specifications</h4><ul><li>Instrument Catalog Number: LC-7810010</li><li>Number of Sample Positions: Up to 148</li><li>Dimensions (w x d x h): 14.7 x 19.3 x 11.7 in</li><li>Weight:<ul><li>Net: 42 lbs. (19 kg)</li><li>Gross: 48 lbs. (22 kg)</li></ul></li><li>Lid Material: Acrylic</li><li>Temperature Range: 0–100 °C</li><li>Warranty: 1 year</li><li>Electrical Requirements: 115V, 50/60 Hz</li><li>Rotor Speed: Up to 1725 RPM</li></ul><h4>Accessories</h4><ul><li>Metal rotors for tubes</li><li>Microliter plate rotors</li><li>Acid-resistant thermoplastic rotors</li><li>Metal rotors for pear-shaped flasks</li><li>CentriZap standard strobe light</li><li>Standard CentriVap glass lid</li></ul>

Products from Organomation distributed by LabRulez - page 1
