KNAUER High-Quality HPLC Glass Sample Vials

Choosing the Right HPLC Sample Vial: A Small Decision with a Big Impact

Every HPLC analysis begins long before the sample enters the chromatographic system. One of the first steps is selecting a sample vial—a component that is often treated as a simple consumable rather than an analytical variable. In many laboratories, analysts routinely reach for the nearest vial, transfer the sample, seal it, and load it into the autosampler without giving the vial itself much thought.

However, the choice of vial can influence both analytical performance and operating costs. Depending on the instrumentation, detection technique, and sensitivity requirements of the method, selecting the wrong vial may introduce contaminants, affect detection limits, or simply result in unnecessary expenses. Understanding the differences between vial materials and quality grades can help ensure reliable results while avoiding over-specification.

Why Glass Quality Matters

HPLC sample vials are commonly manufactured from either glass or polypropylene. For many chromatographic applications, glass remains the preferred material due to its chemical compatibility and stability. Yet not all glass vials are created equal.

Two characteristics are particularly important when evaluating glass quality:

• The chemical composition of the glass
• The coefficient of expansion (COE)

The coefficient of expansion describes how much a material expands or contracts when exposed to temperature changes. In chromatography, this parameter is also associated with glass quality, including the amount of extractable ions and other potentially interfering substances.

Borosilicate vs. Soda-Lime Glass

From a chemical standpoint, glass vials used in chromatography are typically produced from either borosilicate glass or soda-lime glass.

Borosilicate glass is composed primarily of silica (SiO₂) and boron trioxide (B₂O₃). It is highly resistant to chemical attack and temperature changes, making it the preferred material for demanding analytical applications.

Soda-lime glass contains silica together with sodium oxide and calcium oxide. While it is widely used for general-purpose glass containers, it offers lower chemical resistance and is more prone to releasing contaminants into samples.

Because chromatographic analyses often require maximum sample integrity, borosilicate glass has become the standard choice for HPLC sample vials.

Understanding Glass Grades: 33, 51, and 70

Glass quality is often identified by its coefficient of expansion.

In general, a lower COE indicates higher-quality glass with fewer extractable ions and lower levels of contamination.

The most common categories are:

• Borosilicate 33
• Borosilicate 51
• Soda-lime 70 or higher

These materials are further classified according to pharmacopeial and ASTM standards into various glass types and classes. Although the terminology can vary, the key practical takeaway is simple: lower COE values generally correspond to higher-purity glass and reduced risk of sample contamination.

Both 33-expansion and 51-expansion borosilicate glasses are widely used in chromatography laboratories worldwide.

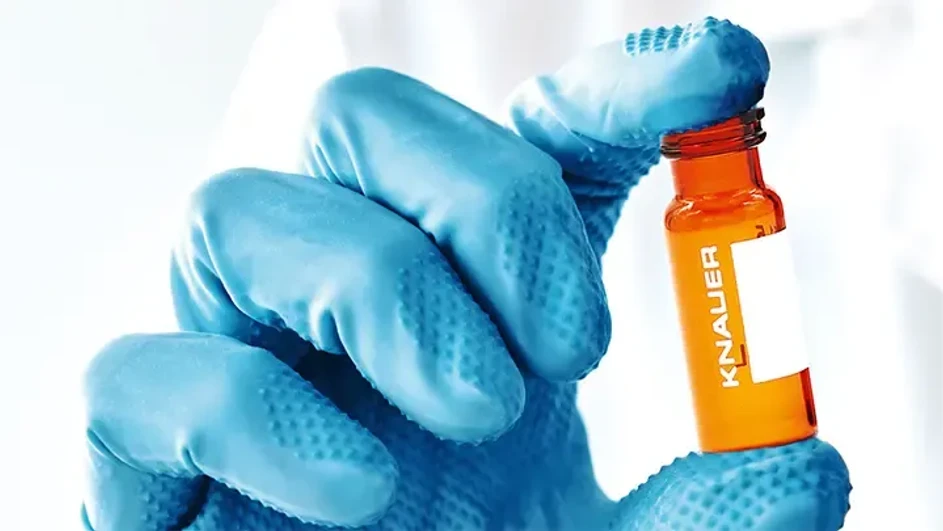

KNAUER: High-Quality HPLC Glass Sample Vials

Clear and Amber Vials Are Not Always Equivalent

An often-overlooked detail concerns vial color.

Clear glass vials are available in both 33 and 51 borosilicate grades. Amber vials, however, are generally manufactured with a coefficient of expansion of 51 or higher.

This distinction can be important when selecting vials for highly sensitive analytical methods.

Matching Vial Quality to the Detection Technique

The ideal vial depends not only on the sample but also on the analytical method being used.

A useful principle to remember is that quality requirements should match the demands of the application.

For example, a laboratory performing routine UV detection may observe no practical difference between standard UV-certified vials and vials specifically certified for mass spectrometry.

Mass spectrometry-certified vials are designed to minimize background contamination and are subjected to extensive testing to ensure that trace-level impurities do not interfere with analyte detection. This becomes particularly important when working with low-abundance compounds.

For many routine applications, standard quality-controlled vials may perform perfectly well. However, as analytical sensitivity increases, the potential impact of vial-derived contaminants becomes much more significant.

Considerations for LC-MS and LC-MS/MS

When using LC-MS, and especially LC-MS/MS, even extremely small amounts of contamination can affect data quality.

Potential consequences include:

• Ghost peaks
• Elevated background signals
• Ion suppression
• Reduced reproducibility

In such cases, standard vials or vials designed primarily for UV applications may not provide sufficiently low contamination levels.

MS-certified vials are specifically intended to address these challenges by minimizing extractables and maintaining the cleanliness required for highly sensitive mass spectrometric analyses.

Practical Recommendations

When selecting glass vials for HPLC applications, borosilicate glass should generally be considered the minimum requirement.

For routine analytical work, including many UV-based methods, 51-expansion borosilicate glass typically offers an excellent balance between quality and cost-effectiveness.

For highly sensitive trace-level analyses, particularly those involving LC-MS/MS, 33-expansion borosilicate glass provides the highest level of purity and minimizes the risk of contamination that could compromise low-level analyte detection.

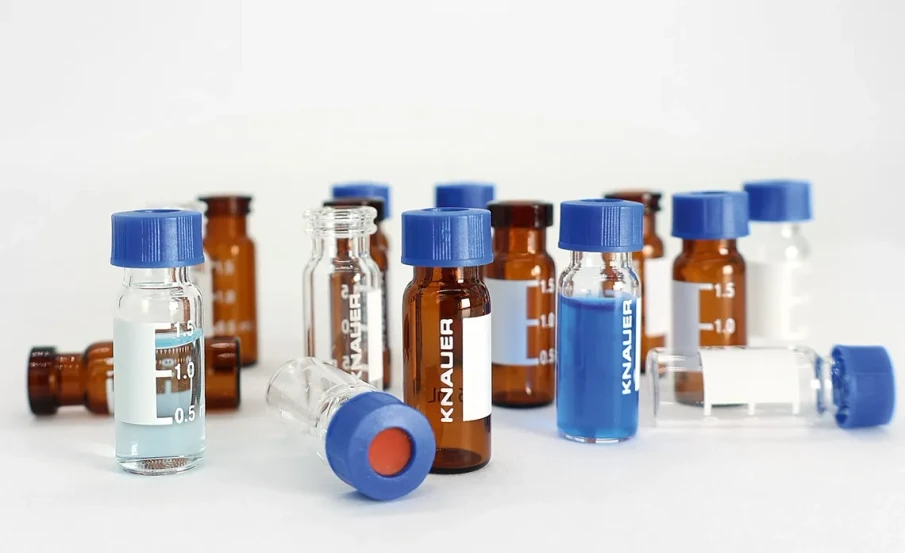

KNAUER: High-Quality HPLC Glass Sample Vials

Final Thoughts

Although sample vials may seem like a minor component of the chromatographic workflow, they can have a measurable impact on analytical performance.

The next time you prepare a sample for HPLC analysis, take a moment to consider whether the vial you are using is appropriate for the method, detector, and sensitivity requirements involved. Selecting the right vial can help ensure reliable results, improve confidence in your data, and prevent unnecessary troubleshooting later in the analytical process.

If you want to optimize your HPLC workflow, check out our brand-new KNAUER originals HPLC sample vials.
