KNAUER HPLC, UHPLC, preparative HPLC and GPC columns

Columns for analytical HPLC, UHPLC, preparative HPLC and GPC

In the field of analytical HPLC columns we can offer a solution for nearly any analytical separation task. KNAUER offers about 6,000 columns for analytical HPLC and UHPLC applications as well as for purification tasks in the preparative scale.

Which column do you need?

(U)HPLC of small molecules

Silica gel based KNAUER columns for HPLC and UHPLC in the most often used separation modes:

• Reversed Phase (RP)
• Normal Phase (NP)
• Hydrophilic Interaction Liquid Chromatography (HILIC)

Knauer: LC RP Columns

Enantioseparation of racemates

Chiral HPLC columns - Available in a wide range of dimensions for analytical, preparative and SMB (simulated moving bed) applications, Eurospher II Chiral columns are the perfect choice for even the most challenging enantioseparation tasks.

As chiral separations are not very well predictable, KNAUER offers a chiral screening service for your Samples.

HPLC of sugars, organic acids and alcohols

Ion exclusion and ligand exchange columns - Based on a sulfonated cross-linked styrenedivinylbenzene copolymer and available in several ionic forms (H, Ca, Pb and Ag). This particular cation exchanger is characterized by an outstanding density of functional groups, making it the ideal choice for your ion exclusion, size exclusion and ligand exchange chromatography.

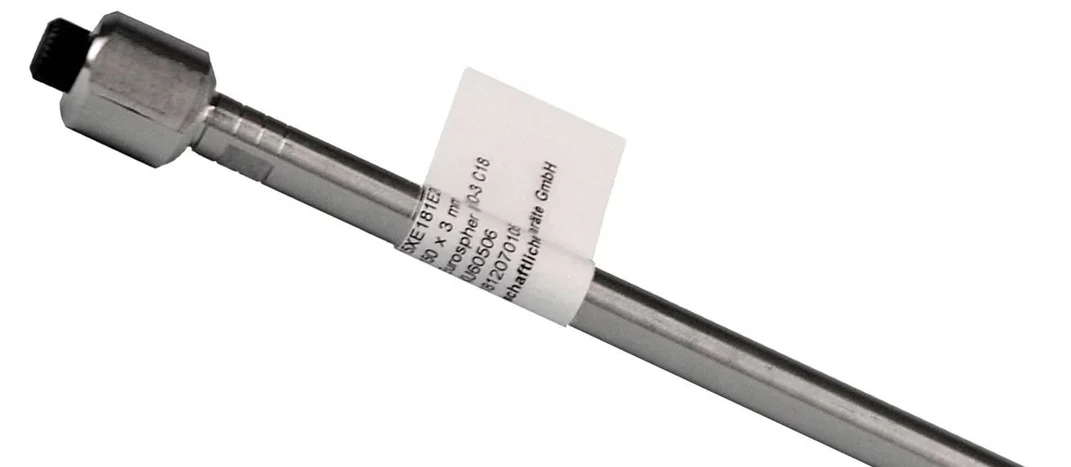

Knauer: LC Columns - 4 with precolumn-short

HPLC of Biomolecules

Analytical wide pore HPLC columns - The use of larger pore silica-based bonded phases leads to improvements in resolution, capacity and recovery of proteins and other biomolecules, due to a reduction in size exclusion mechanism and enhanced molecular diffusion rates. A pore size of 300 Å has become the accepted standard for wide pore silica gels because it has been found to be suitable for a broad range of molecular weight proteins, peptides and oligonucleotides. In general, peptides exceeding approximately 50 amino acids and oligonucleotides greater than 25 residues are preferentially analyzed on 300 Å materials.

GPC/SEC columns

• AppliChrom® GPC/SEC columns for biopolymers and aqueous polymers
• AppliChrom® GPC columns for GPC analysis of organic molecules using THF, toluene, chloroform
• AppliChrom GPC columns for GPC analysis organic (DMAc or DMF)
• Optimized for DMSO-GPC applications
• Special GPC/SEC-columns for aqueous analysis of neutral, anionic and additional cationic polymers

Preparative HPLC Column hardware

Preparative HPLC columns can be offered with two different hardware types:

• Versatile standard flanged hardware for nearly any application task in batch chromatography
• dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes

Analytical HPLC Column hardware

Available analytical HPLC column dimensions - Analytical KNAUER columns with ID 3, 4 and 4.6 mm are available with and without integrated precolumn.

Every KNAUER column is tested separately to guarantee highest quality. We highly recommend using a precolumn to protect the valuable main column and extend the lifetime significantly.

Afraid that a precolumn adds volume to your system and deteriorates your results?

KNAUER columns that are delivered with an integrated precolumn are also tested in this configuration so that the user can be sure about the function and quality. The same quality standards as for columns without integrated precolumn apply. KNAUER guarantees that there is no loss in performance when a precolumn is integrated properly.

Exchanging the precolumn is very easy! Klick the button below to get an instruction.

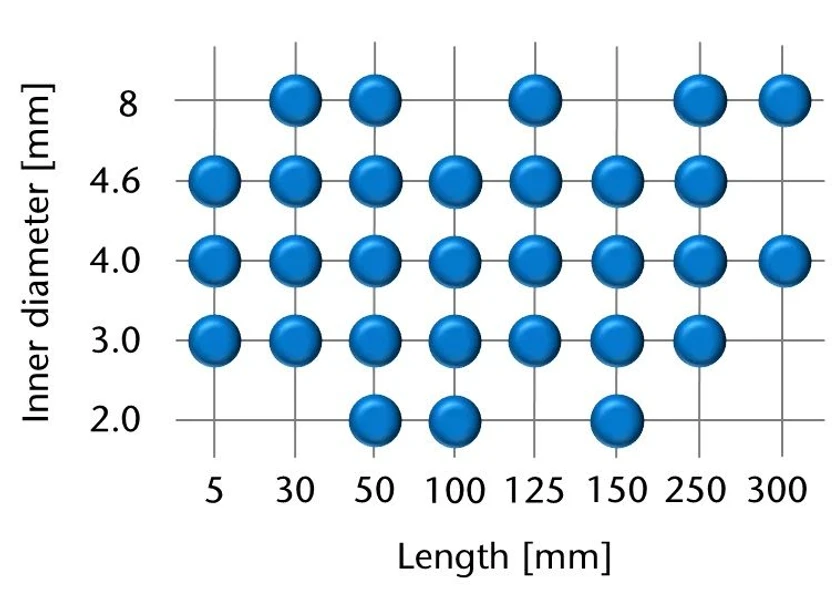

Knauer: LC Columns - available dimensions chart

FPLC columns

Agarose nad dextran-based FPLC columns fo protein prurification

High-quality FPLC columns to reach your purification goal - KNAUER Sepapure® FPLC columns

Sepapure^® FPLC columns and resins for all common protein purification tasks: size exclusion chromatography (SEC), affinity chromatography (AC) and ion-exchange chromatography (IEX)

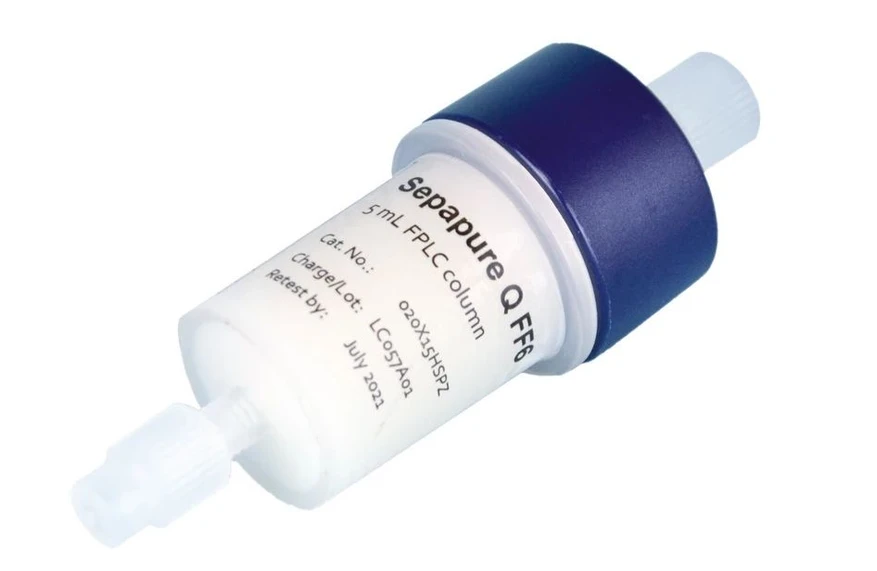

Knauer: LC Columns - SEPAPURE Q FF

KNAUER LC column brands

Eurospher I

• HPLC columns for every day
• Suited for a wide range of analytical, semi-preparative and process scale separations in normal phase and reversed phase mode.

Eurospher II:

• Advanced HPLC / UHPLC columns
• Eurospher II is introduced as the new workhorse for an even wider range of application areas, suitable for analytical, semi-preparative and process-scale separations.
• The logical choice to take on routine analyses as well as the most ambitious chromatoraphy tasks.

Eurospher II Chiral

• Enantioseparation of racemates
• The chiral stationary phases (CSPs) of KNAUER’s Eurospher® II Chiral HPLC columns were designed to tackle a wide range of chiral separation tasks.

Eurosil Bioselect

• HPLC columns for bioanalytics
• Eurosil Bioselect columns feature a wide-pore stationary phase and were specifically designed to separate large biomolecules such as proteins and peptides.

Eurokat

• HPLC columns for food analysis
• Eurokat columns are valuable for food analysis and especially developed for the separation of organic acids, carbonhydrates, alcohols and even complex mixtures of these compounds.
