Di-isobutyl side chains differentiate this C18 column. Low ligand density and an inactive surface make this column a great hydrogen bond acceptor. This phase will demonstrate improved peak shape and increased retention of acidic compounds.
Phenomenex: Kinetex XB-C18 Core Shell HPLC Column
This unique C18 phase yields increased hydrogen bonding with hydrophobic selectivity‚ resulting in improved peak shape for basic compounds and increased retention of acidic compounds.
Ultra-high performance columns like Kinetex will give you very narrow peaks, but without the right selectivities you are left with very narrow, overlapping peaks. The phases offered in the Kinetex column line are complementary to one another, so the spectrum of selectivity your separations require is covered.
Phenomenex: Kinetex C18 vs. XB-C18
Find the right phase selectivity for your application by investigating the diverse selectivity availability of the Kinetex Core Shell HPLC and UHPLC columns. Where reliable performance meets unique selectivity.
Stationary phase Kinetex XB-C18 is provided in these column types: analytical and preparative
Kinetex Core-Shell Technology delivers dramatic improvements in efficiency over conventional fully porous media, which can be leveraged to increase resolution, significantly improve productivity, reduce solvent consumption, and decrease costs. Whether you are running high-performance liquid chromatography (HPLC) or ultra-high performance liquid chromatography (UHPLC) methods, the Kinetex core-shell family can deliver shockingly improved performance over the current column you are using. Phenomenex designs, manufactures, and sells its very own silica and organo-silica core-shell particles.
Advantages of Kinetex HPLC Columns
Core-shell technology in chromatography is a revolutionary approach that enhances the efficiency of HPLC systems while minimizing costs. Core-shell particles are designed with a solid, non-porous silica core surrounded by a porous outer layer. This unique structure allows for faster analyte mass transfer between the mobile and stationary phases, as diffusion occurs only through the thin, porous shell rather than the entire particle. This minimizes band broadening, leading to higher separation efficiency and sharper peaks.
The consistency in size and shape of core-shell particles further enhances separation efficiency by reducing variability in analyte movement. As a result, core-shell HPLC columns provide high efficiency and resolution at lower backpressures, making them an ideal choice for labs looking to improve their existing HPLC systems without the need for costly UHPLC equipment.
Core-shell technology thus offers a cost-effective alternative to upgrading to UHPLC systems, enabling labs to maximize the efficiency of their current HPLC setups. The formation of these particles through advanced sol-gel processing techniques ensures uniformity and reliability, making them a valuable tool in modern chromatography. By using the Kinetex HPLC column, laboratories can achieve faster analysis times and higher productivity while maintaining excellent separation performance.
The 5 versatile particle sizes allow you to select the best fit for your instrument.
Phenomenex: Five versatile particle sizes of Kinetex Core-Shell Technology Columns
Using sol-gel processing techniques that incorporate nano-structuring technology, a durable, homogeneous porous shell is grown on a solid silica core to create a Kinetex Core-Shell particle. This particle morphology results in less band broadening for all four sources of UHPLC band broadening compared to fully porous particles and thus delivers extremely high efficiencies.
Kinetex particles are characterized by an exceptionally consistent size distribution, with particles being nearly monodispersed, meaning they are uniform in size. This precise uniformity plays a crucial role in minimizing variability within the column, leading to enhanced separation efficiency and sharper peaks.
The nearly monodispersed nature of these particles ensures that the flow of the mobile phase remains consistent, reducing the likelihood of irregularities that can impact results. As a result, Kinetex columns deliver highly reliable and reproducible performance, making them ideal for achieving consistent analytical outcomes acrLC Kinetex Core-Shell Technolooss various applications.
Phenomenex: Kinetex Polar C18 vs Fully Porous phase
The combination of a consistent, solid, high-density core along with proprietary column packing technologies in the Kinetex HPLC column ensures optimum bed structure and high column performance. This carefully designed core structure promotes uniform packing of the particles, which is essential for minimizing band-broadening effects that can arise from Eddy Diffusion.
The manufacturing process of Kinetex columns is tightly controlled, focusing on factors such as particle size distribution, surface and bonding homogeneity, and packing quality. This meticulous engineering leads to uniform packing and minimized band-broadening, resulting in superior separation efficiency.

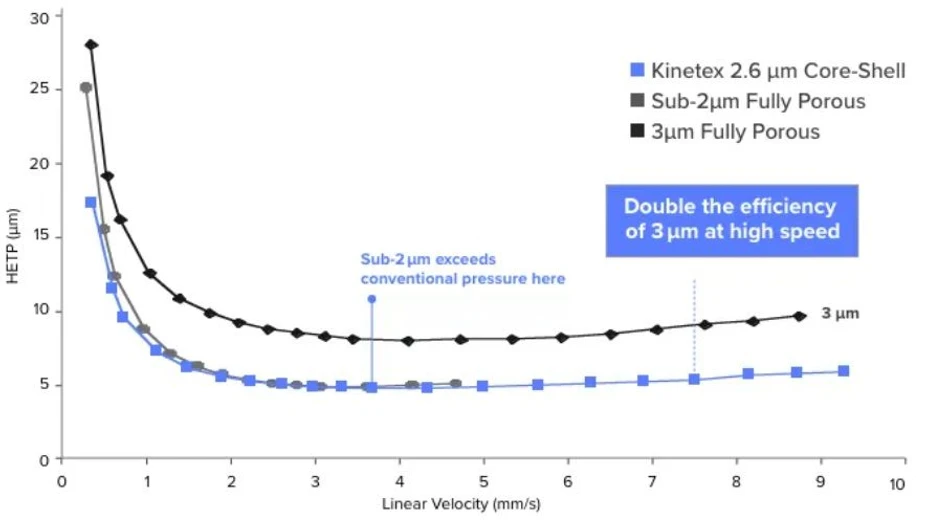

Phenomenex: Core-shell vs Fully Porous.jpg
Kinetex core-shell particle LC columns deliver exceptional performance enhancements across any LC system, offering unmatched efficiency and resolution. With a choice of 11 diverse stationary phases, these columns cater to a wide range of chromatographic applications, ensuring optimal separation for various analytes.
Additionally, the availability of five versatile particle sizes allows for precise method tailoring, enabling both high-speed and high-resolution separations. Whether you're using HPLC or UHPLC systems, Kinetex columns provide the flexibility and performance needed to achieve superior analytical results.
