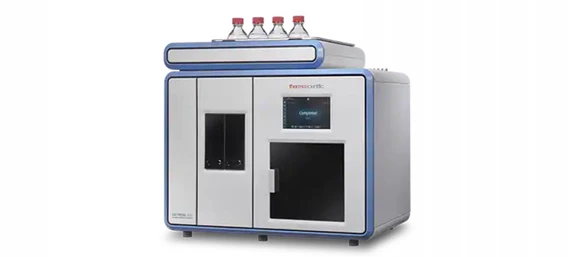

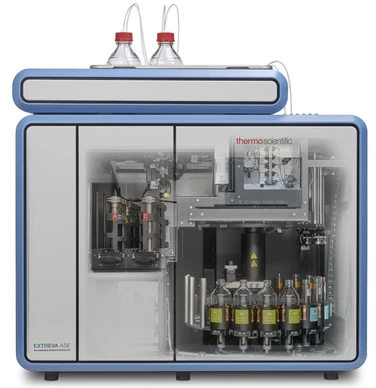

Thermo Scientific EXTREVA ASE Accelerated Solvent Extractor

Achieve true walkaway sample-to-vial sample preparation with the Thermo Scientific™ EXTREVA™ ASE™ Accelerated Solvent Extractor. Without any intervention, perform sample extraction, in-cell cleanup and evaporation—all in one seamless operation—reducing manual labor from hours to minutes and enabling you to focus on other lab priorities while using up to 50% less solvent than other sample preparation techniques.

Accelerate your journey from sample to vial

The EXTREVA ASE Accelerated Solvent Extractor offers:

• All-in-one sample preparation. The EXTREVA ASE system automatically extracts and concentrates samples, eliminating the need to manually move sample extracts to another device for solvent evaporation.
• A walk-away solution. The system minimizes hands-on sample preparation tasks, enabling staff to accomplish other tasks.
• Parallel extraction. One EXTREVA ASE system can perform four parallel sample extractions, substantially increasing throughput.
• Gas-assisted extraction. The dynamic gas-assisted extraction mode reduces solvent consumption to between 5 and 100 milliliters per sample in most cases.
• Automation. Full automation improves recoveries and reproducibility while reducing training needs. Unlike humans, automated systems are ideal for performing the same tedious task repeatedly, and they don’t make mistakes.
• Method flexibility and optimization. Up to six different solvents can be used, including wash solvents for cleaning between methods. Precise flow control optimizes methods.
• Barcode-reading. The system tracks sample information and preparation parameters using a 2-D bar code reader to facilitate tracking and integrity. Data is recorded on the instrument or Thermo Scientific™ Chromeleon™ Chromatography Data System (CDS) software.

Specifications

• Instrument Type: Automated Sample Preparation System
• Application: Simultaneous sample extraction and concentration
• Model Description: EXTREVA ASE Extraction and Evaporation System

Performance & Capabilities

• Extraction Temperature Range: 40–200 °C
• Evaporation Temperature Range: 40–100 °C
• Compatible Solvents: Wide range of organic and aqueous solvents
• Pressure Capability: Up to 200 psi
• Power Consumption: 2000 W
• Frequency: 50/60 Hz

Sample & Solvent Handling

• Extraction Cells (stainless steel): 1, 5, 10, 22, 34, 66, 100 mL
• Extraction Cell Tray: 16-position with 1 rinse
• Collection Vials:
  • 60 mL and 100 mL evaporation vials
  • 250 mL evaporation bottles
  • Direct concentrate to 2 mL sample vials with rinse capability
• Collection Vial Tray: 16-position tray insert for 60 mL vials and 250 mL bottles; includes 4 rinse positions

Utilities & Requirements

• Pneumatic Requirements:
  • Air: 130–140 psi
  • Nitrogen: 350–450 psi

Physical Specifications

• Dimensions (D × W × H): 65.2 × 100 × 88.6 cm (25.6 × 39.4 × 34.8 in.)
• Weight: 160 kg (353 lb)
• Unit Size: Each
