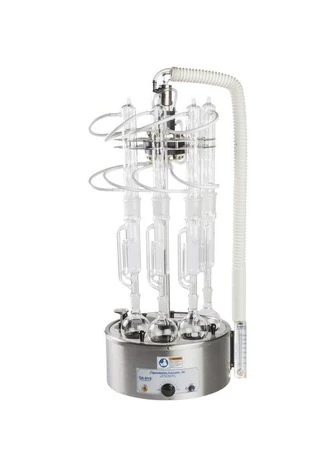

Organomation ROT-X-TRACT-S Soxhlet extractor

Unlike traditional wire or sand baths which are used to heat receiving flasks, the ROT-X-TRACT-S uses a water steam bath which provides gentle even heat to delicate samples.

Soxhlet extraction is ideal for extracting soluble analytes from a solid sample into an organic solvent. Unlike traditional wire or sand baths which are used to heat receiving flasks, the ROT-X-TRACT-S uses a water steam bath which provides gentle even heat to delicate samples.The ROT-X-TRACT-S rotary Soxhlet extractors can accommodate up to 8 or 10 Soxhlet extractors. The bath cover disc holes can accommodate round sample flasks from 125 ml-1 L. Models 13070 and 13090 can accommodate smaller 250 mL flasks, while model 13008 can accommodate larger 500 mL flasks. A wide range of sample sizes and quantities make this instrument ideal for Soxhlet extraction of samples in any lab.<h4>Standard features</h4><ul><li>Stainless steel construction</li><li>Stepped bath rim and cover disk seals steam chamber</li><li>Each condenser water line attached to centrally located water manifold</li><li>Laboratory grade materials stand up to organic solvents</li></ul><h4>OPTIONS (Add to main Cat# when purchasing)</h4><ul><li>Positive pressure type Z purged bath (Option Code -Z), Cat# 13070/13090/13008-Z</li><li>240V wiring and plug (Option Code -2), Cat# 13070/13090/13008-2</li></ul><h4>ACCESSORIES</h4><ul><li>P1332: O-rings for S-EVAP/RXT water manifold</li><li>All associated glassware</li><li>Rotary clamp manifold assembly</li><li>Bath cover disks</li></ul><h4>Specification</h4><h5>Model 13070 – 8 Position, 37 mm Extractors</h5>Ideal for labs using 250 mL round-bottom flasks, this model features a medium-size 12-inch ID water bath (Model 9125) and supports GS3137 or GS3129 glassware.<ul><li>Overall Dimensions: 18 × 16 × 34 in (46 × 41 × 86 cm)</li><li>Heating Power: 900 W</li><li>Temperature Control: Dial thermostat with ±2 °C accuracy</li></ul><h5>Model 13090 – 10 Position, 37 mm Extractors</h5>This high-throughput option also works with 250 mL flasks and uses a larger 16-inch ID bath (Model 16165) to accommodate 10 samples simultaneously.<ul><li>Overall Dimensions: 24 × 19 × 34 in (61 × 48 × 86 cm)</li><li>Heating Power: 1600 W</li><li>Temperature Control: Dial thermostat with ±2 °C accuracy</li></ul><h5>Model 13008 – 8 Position, 50 mm Extractors</h5>For larger sample volumes, Model 13008 supports 500 mL round-bottom flasks and includes a 16-inch bath with higher accuracy temperature control. It uses GS3150 glassware and larger 55/50 extractor joints for robust handling of bigger samples.<ul><li>Overall Dimensions: 24 × 19 × 37 in (61 × 48 × 94 cm)</li><li>Heating Power: 1600 W</li><li>Temperature Control: Dial thermostat with ±0.5 °C accuracy</li></ul><h5>Key Shared Features</h5><ul><li>Extractor Joint Sizes:<ul><li>13070 &amp; 13090: 45/50, 24/40</li><li>13008: 55/50, 24/40</li></ul></li><li>Condenser Options:<ul><li>Standard: Allihn</li><li>Optional: Friedrichs (for enhanced cooling performance)</li></ul></li><li>Condenser Joint Size: 55/50</li><li>Bath Temperature Range: 40–100 °C</li><li>Heating Medium: Water</li><li>Bath Inside Dimensions:<ul><li>13070: 12 × 4.5 in (30.5 × 11.4 cm)</li><li>13090 &amp; 13008: 16 × 4.5 in (40.6 × 11.4 cm)</li></ul></li></ul>

Organomation 12 Position N-EVAP Nitrogen Evaporator

The 12 position N-EVAP nitrogen evaporator is a compact unit that allows for up to 12 samples to be evaporated simultaneously.  At each individual sample position, the gas flow can be controlled via a precision needle valve.

The 12 position N-EVAP nitrogen evaporator (cat# 11155) is a compact unit that allows for up to 12 samples to be evaporated simultaneously. At each individual sample position, the gas flow can be controlled via a precision needle valve. This is ideal for the simultaneous evaporation of samples with varying evaporation end points. The sample tray has a spring tensioner which allows any test tube between 10-30 mm to be processed without any modifications to the instrument. An optional small sample holder allows samples with an outside diameter of 5-16 mm to be processed.First introduced in 1959 as The Meyer N-EVAP, the 12 position N-EVAP (cat# 11155) was the first nitrogen dryer created by Organomation. It has proven to be an extremely durable, time tested and highly affordable member of Organomation’s N-EVAP line. These economical units provide controlled concentration of sample vials through the application of nitrogen gas within a heated water bath. The N-EVAP’s circular rotating design permits each sample to be accessible from the front of the instrument for easy insertion and retrieval. The chrome plated needle valves are individually milled from solid brass, enabling precise, uniform adjustments for your nitrogen blow down. This promotes efficient and safe sample reduction with minimal nitrogen waste.<ul><li>Small Footprint: N-EVAP Model 111 requires under one square foot of bench space</li><li>Flexible: An adjustable sample holder design fits a wide variety of sample tubes and vials at once</li><li>Customizable: Options are available for use with acidic or flammable solvents, heat- or water-sensitive samples, and more</li><li>Individualized Control: Optimize evaporation of diverse samples with individual gas flow control at each vial</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Organomation_12_Position_N_EVAP_Nitrogen_Evaporator_5_339151fb9f.jpg" alt="Organomation 12 Position N-EVAP Nitrogen Evaporator ." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Organomation_12_Position_N_EVAP_Nitrogen_Evaporator_5_339151fb9f.jpg 156w," sizes="100vw" width="1400" height="1400"><h3>STANDARD FEATURES</h3><ul><li>Nitrogen filter</li><li>Adjustable flow meter, 0-10 LPM</li><li>High pressure phthalate free tubing for safety</li><li>High temperature limit switch for safety</li><li>Dual band spring hoist assembly (except in dry bath model)</li><li>Precision needle valve tube assembly</li><li>Needles, 4 inch x 19 gauge with chrome plated brass hub and stainless steel shaft</li></ul><h3>OPTIONS&nbsp;</h3><ul><li>220v wiring harness (Option Code# -2), Cat# 11155-2</li><li>Z-Purge/positive pressure purge case (Option Code# -Z), Cat# 11155-Z</li><li>Acid resistant coating on instrument and needles (Option Code# -RT), Cat# 11155-RT</li></ul><h3>SPECS</h3><h4>12p N-EVAP (Water Bath)</h4><ul><li>Bath Type: Water</li><li>Instrumental Catalog Number: 11155</li><li>Number of Sample Positions: 12</li><li>Overall Dimension (w x d x h): 13 x 11 x 31 in / 33 x 28 x 79 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 5–16 mm OD</li><li>Gas Flow Meter: 0–10 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly</li><li>Rotating, Leak Tight Gas Fitting: Standard</li><li>Standard Gas Input Range: 20–30 psig</li><li>Optional Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating (Option Code -RT): Optional</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number: 5585</li><li>Heating Medium: Water</li><li>Inside Dimensions (Diameter × Depth): 8.5 × 4.5 in / 21.6 × 11.4 cm</li><li>Outside Dimensions (w × d × h): 13 × 11 × 7 in / 33 × 28 × 18 cm</li><li>Total Wattage: 550 W</li><li>Bath Temperature Range: 30–90 °C</li><li>Temperature Controller Type: Mechanical Thermostat</li><li>Controller Accuracy: ± 2 °C</li></ul><h4>12p N-EVAP (Dry Bath)</h4><ul><li>Bath Type: Dry</li><li>Instrumental Catalog Number: 11155-DA</li><li>Number of Sample Positions: 12</li><li>Overall Dimension (w x d x h): 13 x 11 x 27.5 in / 33 x 28 x 70 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 5–16 mm OD</li><li>Gas Flow Meter: 0–10 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: None/Fixed</li><li>Rotating, Leak Tight Gas Fitting: N/A</li><li>Standard Gas Input Range: 20–30 psig</li><li>Optional Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating (Option Code -RT): Optional</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number: 5085</li><li>Heating Medium: Aluminum Beads (Glass Beads in RT Models)</li><li>Inside Dimensions (Diameter × Depth): 8.5 × 4.5 in / 21.6 × 11.4 cm</li><li>Outside Dimensions (w × d × h): 13 × 11 × 7 in / 33 × 28 × 18 cm</li><li>Total Wattage: 500 W</li><li>Bath Temperature Range: 40–130 °C</li><li>Temperature Controller Type: Mechanical Thermostat</li><li>Controller Accuracy: ± 2 °C</li></ul><h4>12p N-EVAP (No Bath)</h4><ul><li>Bath Type: None</li><li>Instrumental Catalog Number: 11155-O</li><li>Number of Sample Positions: 12</li><li>Overall Dimension (w x d x h): 12 × 8 × 31 in / 33 × 28 × 79 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 5–16 mm OD</li><li>Gas Flow Meter: 0–10 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly</li><li>Rotating, Leak Tight Gas Fitting: Standard</li><li>Standard Gas Input Range: 20–30 psig</li><li>Optional Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating (Option Code -RT): Optional</li></ul><h3>MODELS</h3><h5>Catalog Number &nbsp;/&nbsp;&nbsp;&nbsp;Bath Type</h5><ul><li>11155: Water Bath</li><li>11155-NT: No Teflon, Water Bath*</li><li>11155-DA: Dry Bath</li><li>11155-O: No Bath</li></ul>* No Teflon (-NT) units designed for PFAS analysis using EPA methods 533, 537 and 537.1. **All “-O” models come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.<h3>ACCESSORIES</h3><ul><li>Small vessel sample holder, for vial outside diameters of 5-16 mm (cat# NA1132)</li><li>Nitrogen generator (cat# NA1955)</li><li>Pasteur pipette adapters (cat# NA0636)</li><li>Pressure reducing regulator 0-160 psi (cat# NA0630)</li><li>High temperature silicone fluid (cat# NA1240)</li><li>Various needle sizes and gauges</li></ul><h3>REPLACEMENT PARTS</h3><ul><li>P0627: Valve Tube Assembly – Post 1997</li><li>P0607: Luer &amp; washer for N-EVAP valve tube</li><li>P0634: Tube Fitting nylon 3 part for N-EVAP valve tube</li></ul>

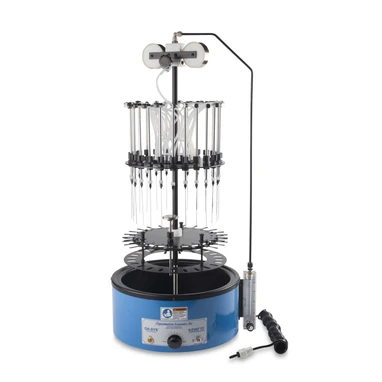

Organomation 24 Position N-EVAP Nitrogen Evaporator

The 24 position N-EVAP is our most adaptable benchtop evaporator. The basic model offers all of the standard features from our N-EVAP line. Additionally, the 24 position N-EVAP offers the most customizable options for your sample preparation needs.

The 24 position N-EVAP is our most adaptable benchtop evaporator. The basic model offers all of the standard features from our N-EVAP line. Additionally, the 24 position N-EVAP offers the most customizable options for your sample preparation needs. The standard sample holder can accommodate samples with an outside diameter of 10-30 mm. However, with the optional 8 position large sample holder, vials with an outside diameter of 30-70 mm can be processed. The 24 position N-EVAP test tube evaporator can also be upgraded to include digital controls for heat and time with the addition of the side control box (Option code -CB).These economical units provide controlled concentration of sample vials through the application of nitrogen gas within a heated water bath. The dual band spring hoist assembly provides a simple and effective means of removing samples from the heated water bath. The N-EVAP’s circular rotating design permits each sample to be accessible from the front of the instrument for easy insertion and retrieval. The chrome plated needle valves are individually milled from solid brass, enabling precise, uniform adjustments for your nitrogen blow down. This promotes efficient and safe sample reduction with minimal nitrogen waste. Time tested technology and proven construction ensure a long lasting, user-friendly experience.<ul><li>Gentle: N-EVAP nitrogen evaporators combine nitrogen blow down with a heated bath to gently concentrate delicate samples</li><li>Flexible: An adjustable sample holder design fits a wide variety of sample tubes and vials at once</li><li>Customizable: A large sample holder option can be added to accommodate vials with a larger outside diameter up to 70 mm</li><li>Individualized Control: Optimize evaporation of diverse samples with individual gas flow control at each vial</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Organomation_24_Position_N_EVAP_Nitrogen_Evaporator_2_18a854b63f.jpg" alt="Organomation 24 Position N-EVAP Nitrogen Evaporator ." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Organomation_24_Position_N_EVAP_Nitrogen_Evaporator_2_18a854b63f.jpg 156w," sizes="100vw" width="1400" height="1400"><h3>STANDARD FEATURES</h3><ul><li>Nitrogen filter</li><li>Adjustable flow meter, 0-20 LPM</li><li>High pressure phthalate free tubing for safety</li><li>High temperature limit switch for safety</li><li>Dual band spring hoist assembly (except in dry bath model)</li><li>Precision needle valve tube assembly</li><li>Needles, 4 inch x 19 gauge with chrome plated brass hub and stainless steel shaft</li></ul><h3>OPTIONS&nbsp;</h3><ul><li>220v wiring harness (Option Code# -2), Cat# 11250-2</li><li>Z-Purge/positive pressure purge case (Option Code# -Z), Cat# 11250-Z</li><li>Acid resistant coating on instrument and needles (Option Code# -RT), Cat# 11250-RT</li><li>Side control box with built-in digital controller, timer, and pressure regulator (Option Code -CB), Cat# 11250-CB</li></ul><h3>SPECS</h3><h4>24 Position N-EVAP (Water Bath)</h4><ul><li>Bath Type: Water</li><li>Instrumental Catalog Number: 11250</li><li>Number of Sample Positions: 24</li><li>Overall Dimension (w × d × h): 16 × 15 × 33 in / 41 × 38 × 84 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 30–70 mm OD</li><li>Gas Flow Meter: 0–20 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly</li><li>Rotating, Leak Tight Gas Fitting: Standard</li><li>Standard Gas Input Range: 20–30 psig</li><li>Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating: Optional</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number: 9125</li><li>Heating Medium: Water</li><li>Inside Dimensions (Diameter × Depth): 12.0 × 4.5 in / 30.5 × 11.4 cm</li><li>Outside Dimensions (w × d × h): 16 × 15 × 7 in / 41 × 38 × 18 cm</li><li>Total Wattage: 900 W</li><li>Bath Temperature Range: 30–90 °C</li><li>Temperature Controller Type: Mechanical Thermostat</li><li>Controller Accuracy: ±2 °C</li></ul><h4>24 Position N-EVAP (Dry Bath)</h4><ul><li>Bath Type: Dry</li><li>Instrumental Catalog Number: 11250-DA</li><li>Number of Sample Positions: 24</li><li>Overall Dimension (w × d × h): 16 × 15 × 27.5 in / 41 × 38 × 70 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 30–70 mm OD</li><li>Gas Flow Meter: 0–20 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: None/Fixed</li><li>Rotating, Leak Tight Gas Fitting: N/A</li><li>Standard Gas Input Range: 20–30 psig</li><li>Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating: Optional</li></ul><h5>Heating Device Specs</h5><ul><li>Model Number: 5125</li><li>Heating Medium: Aluminum Beads (Glass Beads in RT Models)</li><li>Inside Dimensions (Diameter × Depth): 12.0 × 4.5 in / 30.5 × 11.4 cm</li><li>Outside Dimensions (w × d × h): 16 × 15 × 7 in / 41 × 38 × 18 cm</li><li>Total Wattage: 540 W</li><li>Bath Temperature Range: 40–130 °C</li><li>Temperature Controller Type: Mechanical Thermostat</li><li>Controller Accuracy: ±2 °C</li></ul><h4>24 Position N-EVAP (No Bath)</h4><ul><li>Bath Type: None</li><li>Instrumental Catalog Number: 11250-O</li><li>Number of Sample Positions: 24</li><li>Overall Dimension (w × d × h): 16 × 15 × 31.75 in / 41 × 38 × 81 cm</li><li>Sample Holder Layout: Circular</li><li>Gas Manifold Layout: Single Ring</li><li>Test Tube Range (Standard Sample Holder): 10–30 mm OD</li><li>Test Tube Range (Optional Sample Holder): 30–70 mm OD</li><li>Gas Flow Meter: 0–20 L/min</li><li>Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga</li><li>Sample Tray Lift Mechanism: Dual Band Spring Hoist Assembly</li><li>Rotating, Leak Tight Gas Fitting: Standard</li><li>Standard Gas Input Range: 20–30 psig</li><li>Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig</li><li>Acid Resistant Coating: Optional</li></ul><h3>MODELS</h3><h5>Catalog Number &nbsp;/&nbsp;&nbsp;&nbsp;Bath Type</h5><ul><li>11250: Water Bath</li><li>11250-NT: No Teflon, Water Bath*</li><li>11250-DA: Dry Bath</li><li>11250-O: No Bath**</li></ul>* No Teflon (-NT) units designed for PFAS analysis using EPA methods 533, 537 and 537.1. **All “-O” models come with a base and stand assembly instead of a heated bath. These instruments are designed for evaporation procedures performed at ambient temperature.<h3>ACCESSORIES</h3><ul><li>Large vessel sample holder, 8 positions, for vial outside diameters of 30-70 mm (cat# NA1228)</li><li>Nitrogen generator (cat# NA1955)</li><li>Pasteur pipette adapters (cat# NA0636)</li><li>Pressure reducing regulator 0-160 psi (cat# NA0630)</li><li>High temperature silicone fluid (cat# NA1240)</li><li>Various needle sizes and gauges</li></ul><h3>REPLACEMENT PARTS</h3><ul><li>P0627: Valve Tube Assembly – Post 1997</li><li>P0607: Luer &amp; washer for N-EVAP valve tube</li><li>P0634: Tube Fitting nylon 3 part for N-EVAP valve tube</li></ul>
