The 24 position MICROVAP small vial evaporator is intended for concentrating small volume, small batch samples, such as concentrations of groups of samples in microcentrifuge tubes and GC vials. It offers an effective and compact solution to evaporation of samples for life sciences and pharmaceutical laboratories.
Each MICROVAP uses minimal hood space while providing optimal temperature control for high and low boiling point solvents. The 24 position MICROVAP comes standard with stainless steel luer lock hubs and 4-inch x 19-gauge stainless steel needles for easy removal.
Up to 24 samples can be accommodated at once, and the instrument comes customized for one sample size with an outside diameter of 10 -17 mm. If multiple sample sizes will be used with the instrument, additional sample blocks can be purchased for each additional sample size. .
Each of the sample blocks and inserts are customized to your samples for a precise fit and optimum heat transfer. Since these inserts and heat blocks are made-to-order, we will request that you deliver us three sample vials for each unique vial size upon placing an order for a 24 Position MICROVAP parallel evaporator. In situations where shipping sample vials to Organomation is not possible, we need precise measurements of your sample vials to be taken as illustrated in this guide.
The digital temperature controls and solid aluminum heating unit provide uniform heat from room temperature up to 130°C with temperature accuracy of +/- 2°C. The newly redesigned heating unit allows excellent heat stability for low temperature applications. A version without heat is available for evaporations that will be performed at ambient temperature.
Discover our discontinued 24 Position MICROVAP model here for a discount. Available while supplies last.
- Compact Design: The MICROVAP has the smallest footprint of all of Organomation’s nitrogen evaporators
- Ease of Use: Temperature and gas levels are easily set using the digital temperature controller and gas flow meter
- Optimal Heat Transfer: Expertly machined heat block provides efficient heat transfer to sample tubes
- Versatility: Easily concentrate 96 well microplates using a conversion kit

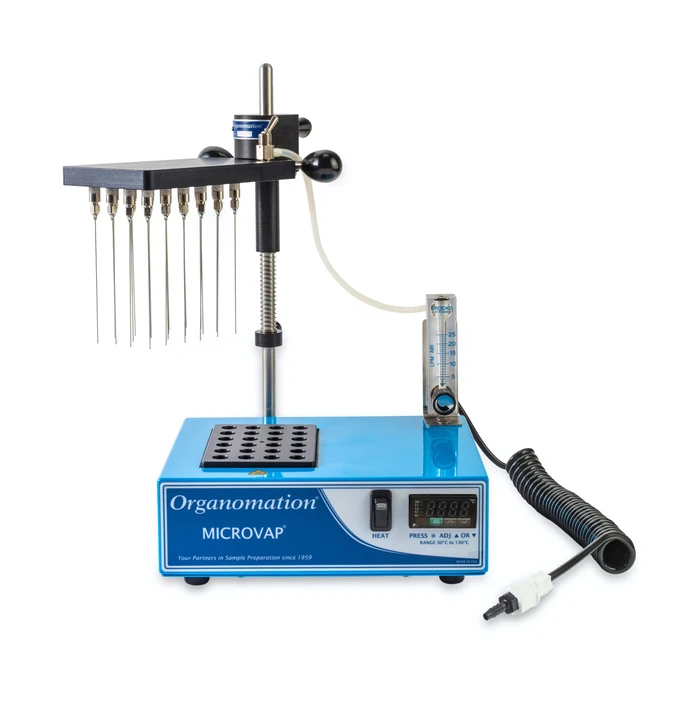

Organomation 24 Position MICROVAP Nitrogen Evaporator.
STANDARD FEATURES
- Adjustable flow meter
- Digital temperature control
- High temperature limit switch
- 4-inch x 19 gauge needles
- Nitrogen filter
- Anodized aluminum dry block
OPTIONS
- 230V wiring harness (Option Code -2), Cat# 11824-2
- Z-Purge/positive pressure purge case (Option Code -Z), Cat# 11824-Z
- Manifold and stand only: no heating platform (Option Code -O), Cat# 11824-O
- Acid resistant coating on instrument and needles (Option Code -RT), Cat# 11824-RT
SPECS
24 Position MICROVAP (Dry Block)
- Heater Type: Dry Block
- Instrument Catalog Number: 11824
- Number of Sample Positions: 24
- Overall Dimension (w × d × h): 10.0 × 13.0 × 18.0 in / 25.4 × 33.0 × 45.7 cm
- Sample Holder Layout: Rectangular
- Gas Manifold Layout: 4 × 6 Array
- Center to Center Spacing Between Positions: 0.78 in / 1.98 cm
- Test Tube Diameter: 10–17 mm OD
- Gas Flow Control: Single toggle valve
- Gas Flow Meter Range: 0–25 L/min
- Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga
- Hoist Assembly: Manual
- Standard Gas Input Range: 20–30 psig
- Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig
Heating Device Specs
- Model Number: 1813A
- Outside Dimensions (w × d × h): 10.0 × 9.75 × 3.5 in / 25.4 × 24.765 × 7.6 cm
- Total Wattage: 180 W
- Temperature Range: Room temp – 130 °C
- Temperature Controller Type: Digital Electronic with LED Display
- Controller Accuracy: ±2 °C

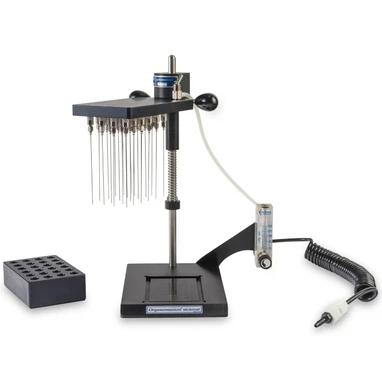

24 Position MICROVAP (No Heater)
- Heater Type: None
- Instrument Catalog Number: 11824-O
- Number of Sample Positions: 24
- Overall Dimension (w × d × h): 10.5 × 12.5 × 15.0 in / 21.6 × 33.0 × 35.6 cm
- Sample Holder Layout: Rectangular
- Gas Manifold Layout: 4 × 6 Array
- Center to Center Spacing Between Positions: 0.78 in / 1.98 cm
- Test Tube Diameter: 10–17 mm OD
- Gas Flow Control: Single toggle valve
- Gas Flow Meter Range: 0–25 L/min
- Stainless Steel Needles (Length × Gauge): 4.0 in × 19 ga / 102 mm × 19 ga
- Hoist Assembly: Manual
- Standard Gas Input Range: 20–30 psig
- Gas Input Range with Optional Pressure Reducing Regulator: 30–160 psig
ACCESSORIES
- Nitrogen generator (cat# NA1955)
- Pressure reducing regulator, 30-160 psi in, 0-30 psi out
- Pasteur pipette adapters (cat# NA0636)
- 15 position conversion kit
- 96 well plate conversion kit
- Various needles sizes and gauges
