ECOM LED20M FIX Dual UV Detector with display

The LED20M FIX Dual UV Detector with a display uses Light Emitting Diodes (LED) as the light source. It is used for flash chromatography.

<div style="display:block;" aria-labelledby="tab_item-0">The LED20M FIX Dual UV Detector with a display uses Light Emitting Diodes (LED) as the light source. It is used for flash chromatography.<h3>Why choose LED20M FIX detectors for your application</h3><ul><li>The LED detectors allow easy and convenient detection in the UV-VIS range. They are manufactured in single or dual channel models with fixed wavelength setup.</li><li>The detectors are widely used in chromatography techniques using gravity glass columns for purification and isolation of organic small molecules and other compounds of interest. Long-lasting and reliable light source is provided by LED.</li><li>The optical flow cell is easily accessible and replaceable, this feature allows flexible choice of detection sensitivity if required. Low cell heating due to low power dissipation of LEDs makes this detector ideal for applications where analytes may be susceptible to degradation due to elevated temperatures. Absorbance information is displayed in detail on the integrated OLED display in numerical and graphical formats.</li><li>The units have convenient USB-C connectivity and power. When the detector is connected to a PC, the recorded data can be stored and processed using the ECOMAC software. ECOMAC basic software license is available with the price of the product without any additional fees. All these features and capabilities allow LED20M FIX to be an affordable, cost-effective, reliable and robust choice of an UV-VIS detector.</li></ul><h4>Wavelengths</h4><ul><li>The dual UV detector version measures at two fixed wavelengths, which are adjusted in production and given by the built-in LEDs.</li><li>By default, diodes with wavelengths of 255 and 280 nm are used. Optionally, the customer can select a wavelength in the range of 255–⁠⁠⁠⁠⁠⁠600 nm in steps of 5 nm.</li></ul><h4>Control</h4><ul><li>The detector can work without any additional SW support, but it is also possible to interconnect it via USB-C cable to a PC with ECOMAC SW, to get a data set for later use or to get reports for unit diagnostics.</li><li>The unit has an innovative PCB board that powers the LEDs, controls the unit, and has many new features, including higher sampling speed.</li></ul><h4>Key features and benefits</h4><ul><li>OLED display</li><li>Numerical and graphical view mode</li><li>Long lifetime of the LED light source</li><li>Low cell heating due to low power losses of the LEDs</li><li>USB C powering and communication port</li><li>ECOMAC Basic software for free</li><li>Autozero function</li><li>Easy flow cell replacement</li><li>Small dimensions</li><li>ECOMAC SW - &nbsp;sophisticated software for data acquisition and for diagnostics</li></ul></div>

ECOM Separtrix PP03 Preparative Pump

Pulse-less triplex piston pumps designed for preparative chromatography applications, equipped with unique compact three-piston head for smooth flow and easy maintenance.

Separtrix PP03 are pulse-less triplex piston pumps designed for preparative chromatography applications - nevertheless, they can be used everywhere, where high pressure, precise flow without pulsations, and high resistance against corrosion are needed. Pumps are equipped with unique compact three-piston head for smooth flow and easy maintenance without a risk of leakage on connecting parts. Back flushed pistons are covered by a hard and chemically resistant polycrystalic carbon layer. Piston cylinders have low dead volume and samples injected through the pump appear low spreading.Pumps with different flow rate ranges differ only in head type, piston diameters, and tubing diameters. Separtrix PP03 are usually supplied with an asynchronous motor and frequency converter but are also available with a step motor which allows the use of the pump in an extremely broad range of flow rates - both for analytical and preparative applications.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/ECOM_ECOM_Separtrix_PP_03_Preparative_Pump_4_6079b99e0f.jpg" alt="ECOM: Separtrix PP03 Preparative Pump" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_ECOM_ECOM_Separtrix_PP_03_Preparative_Pump_4_6079b99e0f.jpg 245w," sizes="100vw" width="1349" height="503">Special configurations of Separtrix PP03 pumps are used for three phases low pressure gradient – in this case is extremely important that these pumps offer a nearly constant flow rate not only on the output but on the input too. Low-pressure gradient units are delivered with three solenoid valves on the plate which can be connected to the pump side. The power supply for valves is installed inside the pump box. 10 linear steps can be programmed.Separtrix PP03 pumps are delivered in configuration for high-pressure binary gradient as well. Two pumps – master and slave types – are working together. The master pump controls the flow rate and gradient composition (10 linear steps), slave pump is delivered without a control display, keyboard(s), and pressure sensor. All Separtrix PP03 pumps are equipped with keyboard(s) and graphic display. There is a possibility to set flow rate, pressure limit, and flow correction. A second keyboard is included for gradient programming in the case of low-pressure gradient pumps and high-pressure gradient master pumps.Separtrix PP 03 can be used in the mode of remote control. Pumps can cooperate with the <a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/999">Clarity data station (Dataapex)</a>. Flow rate, gradient composition, and pressure limit can be programmed. The control module for PP 03 pumps was successfully tested and agreed upon by Dataapex. PP 03 pumps can be controlled using Ecom software ECOMAC as well.<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/ECOM_ECOM_Separtrix_PP_03_Preparative_Pump_2_ce1c6f0f8f.jpg" alt="ECOM: Separtrix PP03 Preparative Pump" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_ECOM_ECOM_Separtrix_PP_03_Preparative_Pump_2_ce1c6f0f8f.jpg 245w," sizes="100vw" width="1377" height="832"><h3>Types &amp; Description with technical parameters</h3>SEPARTRIX PP03 A: Piston pulsless pump, three pistons O.D. 10 mm with a diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor vector frequencyconverter, flow rate 25 ml/min. – 800 ml/min., 260 bar (3500 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 B: Piston pulsless pump, three pistons O.D. 14 mm with diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor with vector frequency converter, flow rate 50 ml/min. – 1600 ml/min., 160 bar (2100 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 A: Piston pulsless pump, three pistons O.D. 10 mm with a diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor vector frequencyconverter, flow rate 25 ml/min. – 800 ml/min., 260 bar (3500 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 B: Piston pulsless pump, three pistons O.D. 14 mm with diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor with vector frequency converter, flow rate 50 ml/min. – 1600 ml/min., 160 bar (2100 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 C: Piston pulsless pump, three pistons O.D. 20 mm with diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor with vector frequency converter, flow rate 100 ml/min. – 3200 ml/min., 80 bar (1100 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 AG: PP03 A pump, flow rate 25 ml/min. – 800 ml/min., max. 260 bar (3500 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder + 3 x valve power supply in pump unit), second keyboard for gradient control&nbsp;SEPARTRIX PP03 BG: PP03 B pump, three phases, flow rate 50 ml/min. – 1600 ml/min., max. 150 bar (2100 PSI), low-pressure gradient included (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03 C: Piston pulsless pump, three pistons O.D. 20 mm with diamond layer in one stainless steel head, ceramic ball valves, 620 W AC motor with vector frequency converter, flow rate 100 ml/min. – 3200 ml/min., 80 bar (1100 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03 AG: PP03 A pump, flow rate 25 ml/min. – 800 ml/min., max. 260 bar (3500 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder + 3 x valve power supply in pump unit), second keyboard for gradient control&nbsp;SEPARTRIX PP03 BG: PP03 B pump, three phases, flow rate 50 ml/min. – 1600 ml/min., max. 150 bar (2100 PSI), low-pressure gradient included (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03 CG: PP03 C pump, flow rate 100 ml/min. – 3200 ml/min., 80 bar (1000 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03S A: Piston pulsless pump, three pistons O.D 10 mm with diamond layer in one stainless steel head, ceramic ball valves, step motor, flow rate 1 ml/min. – 400 ml/min., 250 bar (3500 PSI), pressure measurement and limitSEPARTRIX PP03S B: Piston pulsless pump, three pistons O.D 14 mm with diamond layer in one stainless steel head, ceramic ball valves, step motor, flow rate 1 ml/min. – 800 ml/min., 150 bar (2100 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03S C: Piston pulsless pump, three pistons O.D 20 mm with diamond layer in one stainless steel head, ceramic ball valves, step motor, flow rate 2 ml/min. – 1600 ml/min., 70 bar (800 PSI), pressure measurement and limit, membrane keyboard, graphic displaySEPARTRIX PP03S AG: PP03S A pump, flow rate 1 ml/min. – 400 ml/min., 250 bar (3500 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03S BG: PP03S B pump, flow rate 1 ml/min. – 800 ml/min., 150 bar (2100 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03S CG: PP03S C pump, flow rate 2 ml/min. – 1600 ml/min., 70 bar (800 PSI), three phases low-pressure gradient included, (3 x solenoid valves + connecting armature on own holder+3 x valve power supply in pump unit), second keyboard for gradient controlSEPARTRIX PP03SM A: PP03S A pump, flow rate 0,5 ml/min. – 400 ml/min., 250 bar (3500 PSI), master pump for binary high-pressure gradient, second keyboard for gradient programming&nbsp;SEPARTRIX PP03SM B: PP03S B pump, flow rate 1 ml/min. – 800 ml/min., 150 bar (2100 PSI), master pump for binary high-pressure gradient, second keyboard for gradient programmingSEPARTRIX PP03SM C: PP03S C pump, flow rate 2 ml/min. – 1600 ml/min., 70 bar (800 PSI), master pump for binary high-pressure gradient, second keyboard for gradient programmingSEPARTRIX PP03SS A: PP03SS A pump, flow rate 0,5 ml/min. – 400 ml/min., 250 bar (3500 PSI), slave pump for binary gradient, no display, no keyboard&nbsp;SEPARTRIX PP03SS B: PP03SS B pump, flow rate 1 ml/min. – 800 ml/min., 150 bar (2100 PSI), slave pump for binary gradient, no display, no keyboardSEPARTRIX PP03SS C: PP03SS C pump, flow rate 2 ml/min. – 1600 ml/min., 70 bar (800 PSI), slave pump for binary gradient, no display, no keyboard

ECOM LED20M FIX Single UV Detector with display

The LED20M FIX Single UV Detector with a display uses Light Emitting Diodes (LED) as the light source. It is used for flash chromatography.

<div style="display:block;" aria-labelledby="tab_item-0">The LED20M FIX Single UV Detector with a display uses Light Emitting Diodes (LED) as the light source. It is used for flash chromatography.<h3>Why choose LED20M FIX detectors for your application</h3><ul><li>The LED detectors allow easy and convenient detection in the UV-VIS range. They are manufactured in single or dual channel models with fixed wavelength setup.</li><li>The detectors are widely used in chromatography techniques using gravity glass columns for purification and isolation of organic small molecules and other compounds of interest. Long-lasting and reliable light source is provided by LED.</li><li>The optical flow cell is easily accessible and replaceable, this feature allows flexible choice of detection sensitivity if required. Low cell heating due to low power dissipation of LEDs makes this detector ideal for applications where analytes may be susceptible to degradation due to elevated temperatures. Absorbance information is displayed in detail on the integrated OLED display in numerical and graphical formats.</li><li>The units have convenient USB-C connectivity and power. When the detector is connected to a PC, the recorded data can be stored and processed using the ECOMAC software. ECOMAC basic software license is available with the price of the product without any additional fees. All these features and capabilities allow LED20M FIX to be an affordable, cost-effective, reliable and robust choice of an UV-VIS detector.</li></ul><h3>Wavelengths</h3><ul><li>The single UV detector version measures at 1 fixed wavelength, which is adjusted in production and given by the built-in LEDs.</li><li>By default, diodes with wavelengths of 255 or 280 nm are used. Optionally, customers can select a wavelength within the range of 255–⁠⁠⁠⁠⁠⁠600 nm in steps of 5 nm.</li></ul><h3>Control</h3><ul><li>The detector can work without any additional SW support, but it is also possible to interconnect it via USB-C cable to a PC with ECOMAC SW, to get a data set for later use or to get reports for unit diagnostics.</li><li>The unit has an innovative PCB board that powers the LEDs, controls the unit, and has many new features, including higher sampling speed.</li></ul><h3>Key features and benefits</h3><ul><li>Practical OLED display</li><li>Numerical and graphical view mode</li><li>Long lifetime of the LED light source</li><li>Low cell heating due to low power losses of the LEDs</li><li>USB -C powering and communication port</li><li>Autozero function</li><li>Easy flow cell replacement</li><li>Small dimensions</li><li>ECOMAC SW - &nbsp;sophisticated software for data acquisition and for diagnostics</li></ul>Note: A preparative cell PFC 200 Basic is supplied with the unit. Other flow cells are available at request.</div>

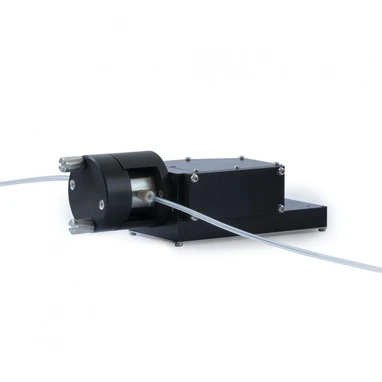

ECOM LED20G Dual UV Detector

LED20G Dual UV detector for preparative and flash chromatography. ECOM's unique patented technology radically improves the detectors´ features. LEDs are used as the source of light.

<div style="display:block;" aria-labelledby="tab_item-0">LED20G Dual UV LED detector for preparative and flash liquid chromatography. LEDs (Light Emitting Diodes) are used as the light source. A unique and patented ECOM technology radically improves the detector characteristics.&nbsp;The LEDs themselves typically have a peak wavelength with a tolerance of +/- 5 nm and a spectral half-width of 10-20 nm, which is unacceptable for some applications, as e.g. for FPLC. This ECOM solution, however, allows the spectral width to be narrowed and, thanks to our patented technology, the exact wavelength to be selected from the LED spectrum.This version of the dual UV detector measures at two fixed wavelengths given by the installed LEDs.The default wavelengths are 254 and 280 nm. Optionally, the customer can select a wavelength in the range 254-600 nm in 1 nm steps.The unit is controlled by an innovative printed circuit board that powers the LEDs, controls the unit, and has many new features including higher sampling speed.<h3>Key features and benefits</h3><ul><li>Sharp, high, and symmetrical peaks thanks to the ECOM patented technology</li><li>Excellent linearity</li><li>Excellent price-performance ratio</li><li>Compact device dimensions</li><li>Low cell heating due to LED low power supply (0.7 W) allows use for peptide analysis or FPLC</li><li>Easy flow cell replacement</li><li>Higher sampling speed</li><li>Sophisticated diagnostic software</li><li>Diodes with wavelengths of 254 and 280 nm and a PFC cell with an optical path length of 2 mm are used as standard.</li><li>Other cells and wavelengths on request.</li></ul><h3>Parameters</h3><ul><li>Number of channels (Signals): Two fix wavelength</li><li>Typical spectral half-width&nbsp;: 4</li><li>Light source: LEDs</li><li>Noise level at test cell (254 nm, TC 0.75 s): ± 10x10-6 AU</li><li>Drift at test cell (254 nm after 1 h): 1x10-3 AU/hr</li><li>Communication: Remote digital I/O</li><li>Power supply: 12-24 V DC</li><li>Power input: 2 W</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel (cell)</li><li>Communication interface: USB-C</li><li>Optical cables: no</li><li>Dimensions W x H x D: 193 x 70 x 40 mm (7.60 x 2.76 x 1.57 in)</li><li>Weight: 0.66 kg (1.46 Ibs)</li></ul></div>

ECOM TOY18DAD 600 H Four Channel UV/PDA Detector

Four Channel version of our detector measures at four wavelengths simultaneously with possibility to see current scan and with built-in lamp working hours counter.

<div style="display:block;" aria-labelledby="tab_item-0">TOY18DAD 600 H Four Channel UV Detector is a standalone UV-VIS detector suited for preparative and flash chromatography with diode array (DAD) in range 200 – 600 nm.Four&nbsp;Channel&nbsp;version measures at&nbsp;four wavelengths simultaneously&nbsp;with possibility to see&nbsp;current scan.More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.<h4>Most important features of TOY18DAD H detectors:</h4><ul><li>built-in lamp working hours counter</li><li>easy replacement of flow cell</li><li>measuring at more wavelengths simultaneously</li><li>sophisticated diagnostic software</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 4</li><li>Scan: Informative 200 – 600 nm</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm</li><li>Typical spectral half-width: 10 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU</li><li>Drift (Test cell, 254nm): 1 x 10-3 AU/hr</li><li>Time constant: Time constant (T63) 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V 50/60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel, PEEK, KEL-F</li><li>Optical cables: no</li><li>Dimensions W x H x D: 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in)</li><li>Weight: 7.5 kg (16.53 lb)</li></ul></div>

ECOM TOY20DAD 800 H Two Channel UV/PDA Detector

Two Channel version of our detector measures at two wavelengths simultaneously with possibility to see current scan and with built-in lamp working hours counter.

<div style="display:block;" aria-labelledby="tab_item-0">TOY20DAD 800 H &nbsp;Channel UV Detector is a standalone UV-VIS detector suited for preparative and flash chromatography with diode array (DAD) in range 190 – 800 nm.Two&nbsp;Channel&nbsp;version measures at&nbsp;two wavelengths simultaneously&nbsp;with possibility to see&nbsp;current scan.More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.<h4>Most important features of TOY20DAD 800H detectors:</h4><ul><li>built-in lamp working hours counter</li><li>easy replacement of flow cell</li><li>measuring at more wavelengths simultaneously</li><li>sophisticated diagnostic software</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 2</li><li>Scan: Informative 190 – 800 nm</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm/±0.5 nm</li><li>Typical spectral half-width: 10 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU</li><li>Drift (Test cell, 254nm): 1 x 10-3 AU/hr</li><li>Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V; 50 - 60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel, PEEK, KEL-F</li><li>Optical cables: no</li><li>Dimensions W x H x D: 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in)</li><li>Weight: 7.5 kg (16.53 lb)&nbsp;</li></ul></div>

ECOM TOY18DAD 800 H Scanning UV/PDA Detector

Scanning version of our detector measures at four wavelengths simultaneously or sends scan with speed 20 Hz which allows to create 3D picture.

<div style="display:block;" aria-labelledby="tab_item-0">TOY18DAD 800 H Scanning UV Detector is a standalone UV-VIS detector suited for preparative and flash chromatography with diode array (DAD) in range 200 – 800 nm.Scanning version measures at four wavelengths simultaneously or sends scan with speed 20 Hz which allows to create 3D picture.More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.<h4>Most important features of TOY20DAD 800H detectors:</h4><ul><li>built-in lamp working hours counter</li><li>easy replacement of flow cell</li><li>measuring at more wavelengths simultaneously</li><li>sophisticated diagnostic software</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 4</li><li>Scan: Informative 200 – 800 nm, 20 Hz, step 1 nm</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm/±0.5 nm</li><li>Typical spectral half-width: 10 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU</li><li>Drift (Test cell, 254nm): 1 x 10-3 AU/hr</li><li>Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V; 50 - 60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel, PEEK, KEL-F</li><li>Optical cables: no</li><li>Dimensions W x H x D: 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in)</li><li>Weight: 7.5 kg (16.53 lb)&nbsp;</li></ul></div>

ECOM TOY18DAD 400 H Scanning UV/PDA Detector

<div style="display:block;" aria-labelledby="tab_item-0">TOY18DAD 400 H Scanning Channel UV Detector is a standalone UV-VIS detector suited for preparative and flash chromatography with diode array (DAD) in range 200 – 400 nm.Scanning version measures at four wavelengths simultaneously or sends scan with speed 20 Hz which allows to create 3D picture.More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.<h4>Most important features of TOY20DAD 800H detectors:</h4><ul><li>built-in lamp working hours counter</li><li>easy replacement of flow cell</li><li>measuring at more wavelengths simultaneously</li><li>sophisticated diagnostic software</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 4</li><li>Scan: Informative 200 – 400 nm, 20 Hz, step 1 nm</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm</li><li>Typical spectral half-width: 8 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU</li><li>Drift (Test cell, 254nm): 1 x 10-3 AU/hr</li><li>Time constant: 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1 s</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V; 50 - 60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel, PEEK, KEL-F</li><li>Optical cables: no</li><li>Dimensions W x H x D: 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in)</li><li>Weight: 7.5 kg (16.53 lb)&nbsp;</li></ul></div>

ECOM TOY18DAD 800 H Four Channel UV/PDA Detector

<div style="display:block;" aria-labelledby="tab_item-0">TOY18DAD 800 H Four Channel UV Detector is a standalone UV-VIS detector suited for preparative and flash chromatography with diode array (DAD) in range 200 – 800 nm.Four&nbsp;Channel&nbsp;version measures at&nbsp;four wavelengths simultaneously&nbsp;with possibility to see&nbsp;current scan.More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths.<h4>Most important features of TOY18DAD H detectors:</h4><ul><li>built-in lamp working hours counter</li><li>easy replacement of flow cell</li><li>measuring at more wavelengths simultaneously</li><li>sophisticated diagnostic software</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 4</li><li>Scan: Informative 200 – 800 nm</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm/±0.5 nm</li><li>Typical spectral half-width: 10 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Noise (Test cell, 254nm, TC 2s, 10 Hz): ± 5 x 10-5 AU</li><li>Drift (Test cell, 254nm): 1 x 10-3 AU/hr</li><li>Time constant: Time constant (T63) 0.5 s, 0.75 s, 1.0 s, 2.0 s, 4.0 s, 8.0 s, 16.0 s, 0.2 s, 0.1</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V 50/60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Materials in contact with mobile phase: FEP; fused silica, stainless steel, PEEK, KEL-F</li><li>Optical cables: no</li><li>Dimensions W x H x D: 280 x 135 x 463 mm (11.02 x 5.32 x 18.23 in)</li><li>Weight: 7.5 kg (16.53 lb)</li></ul></div>

ECOM TOY18DAD 600 VEX Scanning UV/DAD Detector

Absorbance measuring on four wavelengths simultaneously, an online scan of the whole spectrum with a speed of up to 20 Hz, and with built-in lamp working hours counter.

<div style="display:block;" aria-labelledby="tab_item-0">TOY18DAD 600 VEX Scanning UV Detector is UV-VIS diode array detector, which allows measuring absorbance of four wavelengths simultaneously in external cell connected by optical cables, just as measuring of whole spectrum (scan). More wavelengths or scan are used in liquid chromatography to verify purity of analyzed samples or in situations when some peaks absorb on different wavelengths. It is possible to use the detector in flash and preparative applications.It is possible to control the detector manually by keyboard and display but also using RS232, USB, or LAN. At the back panel are available four analog outputs and a connector for I/O logical input and output signals.<h4>The unit’s DAD (diode array detector) design offers many advantages:</h4><ul><li>absorbance measuring on four wavelengths simultaneously.</li><li>wavelength setting in increments of 1 nm.</li><li>an online scan of the whole spectrum with a speed of up to 20 Hz which allows the creation of a 3D picture.</li><li>lamp work hours are counted using the built-in counter for both deuterium and halogen lamps.</li><li>SMA connectors at the front panel allow easy connection of the external cell.</li><li>powering by 100-240 V AC.</li><li>the unit can be controlled by RS232, USB, LAN or a keyboard.</li><li>signals are available in analog and digital form.</li><li>easy service and diagnostics using display and keyboard or by service SW.</li></ul><h4>Parameters:</h4><ul><li>Number of channels (Signals): 4</li><li>Scan: Informative 200 – 600 nm, 20 Hz, step 1 nm&nbsp;</li><li>Number of CCD elements: 256</li><li>Communication: RS232, Ethernet (LAN), USB</li><li>Accuracy of adjustment: ± 1 nm</li><li>Typical spectral half-width: 10 nm</li><li>Reproducibility: ± 0.5 nm</li><li>Communication: RS232,Ethernet (LAN),USB</li><li>Power supply: 100-240V 50/60Hz</li><li>Power input: 100 VA (120 VA for upcoming version)</li><li>Noise level at empty cell (254 nm, TC 1 s): ± 8 × 10-5 AU&nbsp;</li><li>Drift at empty cell (254 nm after 1 h): 5 × 10-3 AU/hr.&nbsp;</li><li>Dimensions W x H x D: 135 x 170 x 340 mm (5.32 x 6.69 x 13.39 in)&nbsp;</li><li>Weight: 3.8 kg (8.4 lb)</li></ul></div>

Products from category HPLC components - page 4
