KNAUER Eurospher II 100 DNPH Prep HPLC Columns (USP L1)

Silica gel based columns with C18 modification with special endcapping, designed for DNPH analysis.

DNPH columns for polar reversed phase applications with 100 % aqueous mobile phase (USP L1)C18 stationary phase for the analysis of more polar and hydrophilic compounds in reversed phase mode (USP L1). Silica gel based columns with C18 modification with special endcapping, designed for DNPH analysis. Because of their modification, DNPH phases can be operated under 100 % aqueous conditions without destroying the stationary phase, what is not recommended for classical C18 phases caused by their hydrophobicity.These phases are ideal for the analysis of:<ul><li>DNPH-derivates of aldehydes and ketones</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_DNPH_7020417932.webp" alt="KNAUER: DNPH" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_DNPH_7020417932.webp 245w," sizes="100vw" width="690" height="428"><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC columns can be offered with two different hardware types:</h5><ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II 100 Phenyl Prep HPLC Columns (USP L11)

Phenyl stationary phases (USP L11) in reversed phase mode with alternative selectivity for aromatic and moderately π-π interaction polar analytes

Phenyl columns for Reversed Phase in HPLC and UHPLC &nbsp;(USP L11)Phenyl stationary phases (USP L11) in reversed phase mode with alternative selectivity for:<ul><li>Aromatic and moderately π-π interaction polar analytes</li><li>Mixtures with varying polarity and aromaticity</li></ul>The polarity is similar to C8 modification but with different selectivity for polar aromatics, polycyclic aromatic hydrocarbons, fatty acids etc. Phenyl phases with a classical slightly hydrophobic endcapping or without endcapping.<h5>Properties</h5><ul><li>Separation mechanism: π-π interactions</li><li>Ultra pure, spherical high performance HPLC phase based on silica gel</li><li>Phenyl modification (Phenylpropyl), 12 % carbon content</li></ul><h5>Key features</h5><ul><li>Classical phenyl phase with 12 % carbon load, outstanding mechanical and chemical stability, suited for analytical as well as semi preparative and preparative applications.</li></ul><h5>Recommended application areas</h5><ul><li>Alternative selectivity for aromatic and mode rately pi-pi interaction polar analytes or mixtures with varying polarity and aromaticity.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Phenyl_df9b20c77a.webp" alt="KNAUER: Phenyl" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Phenyl_df9b20c77a.webp 90w," sizes="100vw" width="306" height="528"><blockquote>Tip: For UHPLC columns like Eurospher II 2 μm particle size, samples and eluents should be filtered through a 0.2 μm instead of a 0.45 μm membrane filter. Frits at column inand outlet have smaller pores than classical HPLC columns and block more easily.</blockquote>Stationary phase Eurospher II 100 Phenyl is provided in these column types: analytical, semi-preparative and preparative.Eurospher II 100 Phenyl Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 20, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul>Eurospher II 100 Phenyl Preparative dAX Columns with dynamic axial compression are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 25, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC columns can be offered with two different hardware types:</h5><ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II 100 HILIC Prep HPLC Columns

Based on ultra-pure Silica gel, zwitterionic HILIC phases are ideal for the analysis of polar and ionizable compounds. Stronger interaction of more polar compounds with stationary aqueous layer.

Zwitterionic and polar columns for HILIC applicationsBased on ultra-pure Silica gel, zwitterionic HILIC phases are ideal for the analysis of polar and ionizable compounds. Stronger interaction of more polar compounds with stationary aqueous layer.Faster elution of nonpolar compounds is possible due to minor hydrophobic interactions. Retention increases with the charge of the analyte.<h5>Recommended for the analysis of hydrophilic compounds like:</h5><ul><li>Polar organic acids and bases</li><li>Natural polar compounds</li><li>Nucleosides</li><li>Oligonucleotides</li><li>Amino acids</li><li>Peptides</li><li>Water soluble vitamins</li></ul><h5>Properties</h5><ul><li>Separation mechanism: Hydrophilic and weak electrostatic interactions</li><li>Ultra pure, spherical high performance HPLC phase based on silica gel</li><li>Zwitterionic modification: Ammonium – sulfonic acid</li><li>7 % carbon content</li></ul><h5>Key features</h5><ul><li>Modern HILIC phase with zwitterionic modification on the basis of ammonium- sulfonic acid. Outstanding mechanical and chemical stability.</li></ul><h5>Recommended application areas</h5><ul><li>Especially suited for the separation of hydrophilic, polar and ionic analytes which are poorly retained on reversed phase columns; behavior is the other way round on Eurospher II HILIC compared to RP which makes it an ideal tool to enhance chromatographic separations for these molecules.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_HILIC_b9c3bffc20.webp" alt="KNAUER: HILIC" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_HILIC_b9c3bffc20.webp 147w," sizes="100vw" width="439" height="465"><blockquote>Tip: HILIC applications are well-suited for coupling with MS detection. The high organic content of the applied mobile phases are qualified well for evaporation in the MS´s ionization source.</blockquote><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC column hardware</h5>Preparative HPLC columns can be offered with two different hardware types:<ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II 100 NH2 Prep HPLC Columns for NP & HILIC (USP L8)

Amino (NH2) bonded silica gel phases can be used in the normal phase (NP) and HILIC mode, but also for reversed phase (RP) mode.

Amino columns for Normal Phase and for HILIC applications (USP L8)Amino (NH2) bonded silica gel phases can be used in the normal phase (NP) and HILIC mode, but also for reversed phase (RP) mode. They show alternative normal phase selectivity to unbonded silica, especially for aromatics. Furthermore, the selectivity is influenced by hydrogen bond interactions with the analyte. Amino columns can also be used in the HILIC mode for carbohydrate analysis and for other polar compounds. Their weak anion-exchange properties can be used in the analysis of anions and organic acids.The amino group is bonded to the silica support via a propyl linker.<h5>Properties</h5><ul><li>Separation mechanism: Hydrophilic and ionic interactions</li><li>Ultra pure, spherical high performance HPLC phase based on silica gel</li><li>Amino modification (Aminopropyl)</li><li>4 % carbon content (without endcapping)</li></ul><h5>Key features</h5><ul><li>Multi mode column for RP, NP, HILIC and IC, Aminopropyl modification without endcapping, outstanding mechanical and chemical stability.</li></ul><h5>Recommended application areas</h5><ul><li>Most flexible phase in the Eurospher II family; can be used in three modes: normal phase, reversed phase and ion chromatography mode (weak anion exchanger); different selectivity to the silica packing; in reversed phase mode mainly used for analysis of carbohydrates.&nbsp;</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_NH_2_HILIC_NP_fbaa6027c0.webp" alt="KNAUER: NH2" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_NH_2_HILIC_NP_fbaa6027c0.webp 107w," sizes="100vw" width="290" height="421"><blockquote>Tip: A precolumn can help to protect your analytical column. Especially when working with highly matrix afflicted samples it is highly recommended to use precolumns.</blockquote>Stationary phase Eurospher II 100 NH2 is provided in these column types: analytical, semi-preparative and preparative.Eurospher II 100 NH2 Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 20, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul>Eurospher II 100 NH2 Preparative dAX Columns with dynamic axial compression are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 25, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC columns can be offered with two different hardware types:</h5><ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II 100 Diol Prep HPLC Columns (USP L20)

Diol packing material can be universally used in different polar modes (NP, RP and HILIC). Diol bonded phases are a versatile alternative to unbonded silica for normal phase separations.

Diol columns for Normal Phase in HPLC and UHPLC (USP L20)Diol packing material can be universally used in different polar modes (NP, RP and HILIC). Diol bonded phases are a versatile alternative to unbonded silica for normal phase separations with shorter equilibration times.The hydroxyl groups provide good selectivity without excessive retention, caused by the weaker H-bonding of the diol layer than of silanols. Some diol bonded phases have been developed specifically for applications in the HILIC mode.<h5>Properties</h5><ul><li>Separation mechanism: Hydrophilic interaction</li><li>Ultra pure, spherical high performance HPLC phase based on silica gel</li><li>Diol, no endcapping, with 5 % carbon content&nbsp;</li></ul><h5>Key features</h5><ul><li>High-class HPLC phase perfectly suited to take on routine analyses as well as the most ambitious chromatography tasks, classical Diol phase without endcapping and 5 % carbon content, outstanding mechanical and chemical stability.</li></ul><h5>Recommended application areas</h5><ul><li>Alternative to the silica packing with shorter equilibration time and comparable selectivity; due to the lower activity of these packings it can be also used for SEC-applications.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Diol_26fe64c2b9.webp" alt="KNAUER: Diol" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Diol_26fe64c2b9.webp 156w," sizes="100vw" width="426" height="425"><blockquote>Tip: The most important column parameters for evaluation are retention time, peak symmetry and theoretical plates. Retention time to prove the reproducibility of measurements. Peak symmetry to estimate how good the column bed is packed (peak symmetry value of 1.0 is optimal). Theoretical plate numbers to determine the effectiveness of the HPLC column.</blockquote>Stationary phase Eurospher II 100 Diol is provided in these column types: analytical, semi-preparative and preparative.Eurospher II 100 Diol Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 20, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul>Eurospher II 100 Diol Preparative dAX Columns with dynamic axial compression are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 25, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC columns can be offered with two different hardware types:</h5><ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II 100 CN Prep HPLC Columns for NP & RP (USP L10)

CN is one of the most versatile stationary phases that can be used in reversed phase mode as well as in normal phase mode.

Cyano or CN for Normal Phase and Reversed Phase (USP L10)CN is one of the most versatile stationary phases that can be used in reversed phase mode as well as in normal phase mode. The cyano modification supports the π-π interaction as well as polar and hydrophobic interactions with low polarity solvents. These phases are preferred for compounds with double bonds and aromatic groups. Cyano bonded phases show unique selectivity for polar compounds and are more suitable than bare silica for normal phase (NP) gradient separations. The cyano functional group is a strong dipole that can interact with other dipoles or induce dipoles on solutes. These phases also exhibit moderate hydrophobicity due to the alkyl linker.Due to the quick equilibration time of the CN bonded phase, it is the best choice for gradient elution in normal phase mode. CN phases can be used as a less polar alternative to Si phases.The material is typically preferred for:<ul><li>Compounds with double bonds</li><li>Cyclic antidepressants</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_CN_4fff7a1e28.webp" alt="KNAUER: CN" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_CN_4fff7a1e28.webp 130w," sizes="100vw" width="358" height="428"><blockquote>Stationary phase Eurospher II 100 CN is provided in these column types: analytical, semi-preparative and preparative.</blockquote>Eurospher II 100 CN Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 20, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul>Eurospher II 100 CN Preparative dAX Columns with dynamic axial compression are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 25, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC column hardware</h5>Preparative HPLC columns can be offered with two different hardware types:<ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

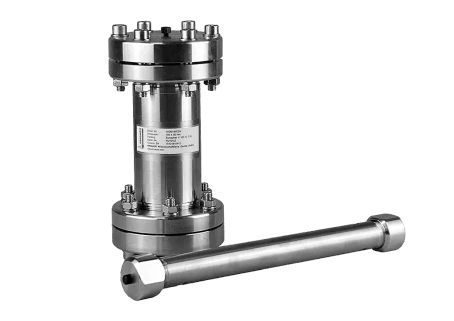

KNAUER Eurospher II 100 Si Prep HPLC Columns for NP & HILIC (USP L3)

Unmodified Silica gel materials were the first ones used for chromatography. This is the reason the mode is called "normal phase" (NP).

Si columns for Normal Phase and HILIC applications (USP L3)Unmodified Silica gel materials were the first ones used for chromatography. This is the reason the mode is called "normal phase" (NP). They are still used in HPLC, although reversed phase (RP) is by far the most often used HPLC mode today.<h5>A wide range of porous Si materials are available, characterized by:</h5><ul><li>Surface area</li><li>Pore size</li><li>Particle size</li><li>Purity</li><li>Metal content</li></ul><h5>Properties</h5><ul><li>Separation mechanism: Hydrophilic interactions</li><li>Ultra pure, spherical high performance HPLC phase based on silica gel</li><li>No modification, no endcapping, with 0 % carbon content</li></ul><h5>Key features</h5><ul><li>High-class HPLC phase perfectly suited to take on routine analyses as well as the most ambitious chromatography tasks, outstanding mechanical and chemical stability.</li></ul><h5>Recommended application areas</h5><ul><li>Wide range of different applications, i.e. SEC (size exclusion chromatography) but also for normal phase HPLC and HILIC; good choice for analytical and preparative purposes to separate polar compounds.</li></ul><blockquote>Tip: Normal phase (NP) stationary phases have been the first phases for chromatography and that is why their properties of polarity were determined as ’’normal’’. The stationary phase of a NP column has polar properties and is commonly used with nonpolar solvents as hexane or heptane. The other way round a reversed phase (RP) column has covalent charcteristics and is used with more polar eluents, like mixtures of acetonitrile and water.</blockquote>Stationary phase Eurospher II 100 Si is provided in these column types: analytical, semi-preparative and preparative.Eurospher II 100 Si Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 20, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul>Eurospher II 100 Si Preparative dAX Columns with dynamic axial compression are available with these parameters:<ul><li>Column length (mm): 50, 150, 250</li><li>Column ID (mm): 25, 30, 50</li><li>Particle size (µm): 5, 10, 15</li></ul><h3>KNAUER Preparative HPLC Columns</h3>The right choice for all dimensions from semi-prep to batch chromatography to SMB.<ul><li>Modifications: Reversed Phase, HILIC, Normale Phase</li><li>Max. Pressure: 400–600 bar</li><li>Column Inner Diameter (ID): 16–50 mm in our shop, more on request</li><li>Column Brands: Eurospher, Eurospher II</li><li>Safe Investment: Robustness and durability based on superior technology</li><li>Application: Easy upscaling, as all materials are available from ultra high performance to preparative scale HPLC. You can also use our upscaling calculator.</li><li>Customizable: Standard flanged hardware &amp; dAX hardware with static or dynamic axial compression available</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp" alt="KNAUER: KNAUER Preparative HPLC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Preparative_HPLC_Columns_31bc2477c3.webp 221w," sizes="100vw" width="1024" height="724"><h5>Preparative HPLC columns can be offered with two different hardware types:</h5><ul><li>Versatile standard flanged hardware for nearly any application task in batch chromatography</li><li>dAX Hardware with static and dynamic axial compression for an extended lifetime and multi-column chromatography like SMB processes</li></ul>

KNAUER Eurospher II Chiral AM Prep Columns for NP & RP (USP L51)

Eurospher II Chiral AM uses the chiral selector Amylose-tris-(3,5 dimethylphenylcarbamate) and is equivalent to Chiralpak AD.

Eurospher II Chiral AM uses the chiral selector Amylose-tris-(3,5 dimethylphenylcarbamate) and is equivalent to Chiralpak AD. KNAUER offers 2 different CPS versions: Eurospher II Chiral AM is designed for separations in normal phase (NP) mode and Eurospher II Chiral AM-R &nbsp;for separations in reversed phase (RP) mode.<h5>Properties</h5><ul><li>Silica gel: ultra pure, &gt; 99.99 %</li><li>Metal content: &lt; 10 ppm</li><li>Particle size: 3 μm, 5 μm, 10 μm</li><li>Particle form: spherical</li><li>Pore size of base material: 1000 Å</li><li>Chiral selector: Amylose-tris-(3,5-dimethylphenylcarbamate) for Chiral AM&nbsp;</li></ul><h5>Key features</h5><ul><li>KNAUER offers these chiral stationary phases for two different separation modes: Eurospher II Chiral AM is designed for separations in normal phase (NP) mode, Eurospher II Chiral AM-R for separations in reversed phase mode.</li></ul><h5>Recommended application areas</h5><ul><li>Eurospher II Chiral AM columns are able to separate neutral, acidic and basic racemates.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Chiral_AM_906d13b0b5.webp" alt="KNAUER: Eurospher II Chiral AM" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Chiral_AM_906d13b0b5.webp 245w," sizes="100vw" width="690" height="388"><blockquote>Stationary phase Eurospher II Chiral AM (AM-R) is provided in these column types: analytical, semi-preparative and preparative.</blockquote>Eurospher II Chiral AM and AM-R Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 150, 250</li><li>Column ID (mm): 20, 30</li><li>Particle size (µm): 5, 10</li></ul><h3>KNAUER Chiral HPLC Columns</h3>For analytical, preparative and SMB chiral separations<ul><li>Column Brand<ul><li>Eurospher II</li></ul></li><li>Reversed Phase Modifications<ul><li>Chiral NR-R</li><li>Chiral AM-R</li><li>Chiral OM-R</li></ul></li><li>Normal Phase Modifications<ul><li>Chiral NR</li><li>Chiral AM</li><li>Chiral OM</li></ul></li><li>Flexibility: Wide selection of column and particle sizes, for preparative and analytical applications</li><li>Expandable: Upscaling even for continuous SMB</li><li>Application Service: We offer a customized screening service for your analytes. You will receive an optimal column recommendation including the method parameters.</li></ul><h4>Eurospher II Chiral</h4>Based on ultra-high purity silica, the Eurospher II chiral column materials are characterized by high enantioselectivity and loadability.&nbsp;Available in a wide range of dimensions for analytical, preparative and SMB (simulated moving bed) applications, Eurospher II Chiral columns are the perfect choice for even the most challenging enantioseparation tasks&nbsp;Since chiral separations are not very well predictable, KNAUER offers a chiral screening service for your samples (Article number: AL0220).<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Eurospher_II_chiral_48c53afebe.jpg" alt="KNAUER: Eurospher II chiral" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Eurospher_II_chiral_48c53afebe.jpg 245w," sizes="100vw" width="1369" height="633"><blockquote>Tip: Some of the most popular eluents for HPLC (such as acetone, chloroform, DMF, DMSO, MEK, toluene, dioxane, ethyl acetate, methylene chloride, pyridine and THF) which may be remaining in your HPLC system, can destroy Eurospher II Chiral AM and OM phases even in small concentrations! It is highly recommended that the HPLC system is flushed with appropriate eluents before the installation of the chiral column.</blockquote>

KNAUER Eurospher II Chiral OM Prep Columns for NP & RP (USP L40, USP L93)

Eurospher II Chiral OM uses the chiral selector Cellulose-tris-(3,5-dimethylphenylcarbamate) and is equivalent to Chiralcel OD.

Eurospher II Chiral OM uses the chiral selector Cellulose-tris-(3,5-dimethylphenylcarbamate) and is equivalent to Chiralcel OD. KNAUER offers 2 different CPS versions: Eurospher II Chiral OM is designed for separations in normal phase (NP) mode and Eurospher II Chiral OM-R for separations in reversed phase (RP) mode.<h5>Properties</h5><ul><li>Silica gel: ultra pure, &gt; 99.99 %</li><li>Metal content: &lt; 10 ppm</li><li>Particle size: 3 μm, 5 μm, 10 μm</li><li>Particle form: spherical</li><li>Pore size of base material: 1000 Å</li><li>Chiral selector: Cellulose-tris-(3,5-dimethyl- phenylcarbamate) for Chiral OM</li></ul><h5>Key features</h5><ul><li>KNAUER offers these chiral stationary phases for two different separation modes: Eurospher II Chiral OM is designed for separations in normal phase (NP) mode, Eurospher II Chiral OM-R for separations in reversed phase mode.</li></ul><h5>Recommended application areas</h5><ul><li>Eurospher II Chiral OM columns are able to separate neutral, acidic and basic racemates.</li></ul><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Chiral_OM_c2a3f1a159.webp" alt="KNAUER: Eurospher II Chiral OM" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Chiral_OM_c2a3f1a159.webp 245w," sizes="100vw" width="690" height="388"><blockquote>Stationary phase Eurospher II Chiral OM (OM-R) is provided in these column types: analytical, semi-preparative and preparative.</blockquote>Eurospher II Chiral OM and OM-R Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 150, 250</li><li>Column ID (mm): 20, 30</li><li>Particle size (µm): 5, 10</li></ul><h3>KNAUER Chiral HPLC Columns</h3>For analytical, preparative and SMB chiral separations<ul><li>Column Brand<ul><li>Eurospher II</li></ul></li><li>Reversed Phase Modifications<ul><li>Chiral NR-R</li><li>Chiral AM-R</li><li>Chiral OM-R</li></ul></li><li>Normal Phase Modifications<ul><li>Chiral NR</li><li>Chiral AM</li><li>Chiral OM</li></ul></li><li>Flexibility: Wide selection of column and particle sizes, for preparative and analytical applications</li><li>Expandable: Upscaling even for continuous SMB</li><li>Application Service: We offer a customized screening service for your analytes. You will receive an optimal column recommendation including the method parameters.</li></ul><h4>Eurospher II Chiral</h4>Based on ultra-high purity silica, the Eurospher II chiral column materials are characterized by high enantioselectivity and loadability.&nbsp;Available in a wide range of dimensions for analytical, preparative and SMB (simulated moving bed) applications, Eurospher II Chiral columns are the perfect choice for even the most challenging enantioseparation tasks&nbsp;Since chiral separations are not very well predictable, KNAUER offers a chiral screening service for your samples (Article number: AL0220).<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Eurospher_II_chiral_48c53afebe.jpg" alt="KNAUER: Eurospher II chiral" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Eurospher_II_chiral_48c53afebe.jpg 245w," sizes="100vw" width="1369" height="633"><blockquote>Tip: Some of the most popular eluents for HPLC (such as acetone, chloroform, DMF, DMSO, MEK, toluene, dioxane, ethyl acetate, methylene chloride, pyridine and THF) which may be remaining in your HPLC system, can destroy Eurospher II Chiral AM and OM phases even in small concentrations! It is highly recommended that the HPLC system is flushed with appropriate eluents before the installation of the chiral column.</blockquote>

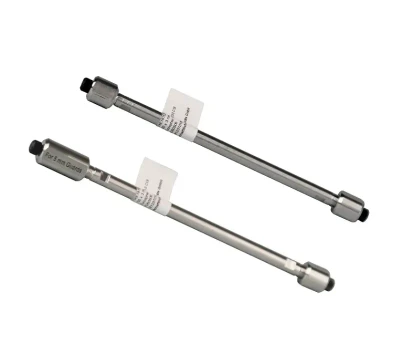

KNAUER Eurospher II Chiral NR Prep Columns for NP & RP

Eurospher II Chiral NR is an immobilized brush-type phase with very broad generality and orhogonal selectivity to Eurospher II Chiral AM and OM.

Eurospher II Chiral NR is an immobilized brush-type phase with very broad generality and orhogonal selectivity to Eurospher II Chiral AM and OM. In many cases it is much more stable compared to Eurospher II Chiral AM or OM. The Chiral-NR selector is covalently bound, so that you can use all HPLC-eluents.Due to its high loadability it is perfectly suited for preparative separations. Both phases can be used in RP and NP mode. Eurospher II Chiral-NR-R shows reversed elution order compared to Eurospher II Chiral-NR caused by the modification with the opposite enantiomeric form of the chiral selector.<h5>Properties</h5><ul><li>Silica gel: ultra pure, &gt; 99.99 %</li><li>Metal content: &lt; 10 ppm</li><li>Particle size:&nbsp;<ul><li>Eurospher II Chiral NR: 3 μm, 5 μm, 8 µm, 12 µm</li><li>Eurospher II Chiral NR-R: 8 µm, 12 µm</li></ul></li><li>Particle form: spherical</li><li>Pore size of base material: 1000 Å</li></ul><h5>Recommended application areas</h5><ul><li>Eurospher II Chiral NR columns are able to separate analytes with an oxygen at or near the chiral center and additionally an aromatic ring.</li></ul><blockquote>Stationary phase Eurospher II Chiral NR (NR-R) is provided in these column types: analytical, semi-preparative and preparative.</blockquote>Eurospher II Chiral NR and NR-R Preparative Standard Columns are available with these parameters:<ul><li>Column length (mm): 150, 250</li><li>Column ID (mm): 20, 30</li><li>Particle size (µm): 8, 12</li></ul><h3>KNAUER Chiral HPLC Columns</h3>For analytical, preparative and SMB chiral separations<ul><li>Column Brand<ul><li>Eurospher II</li></ul></li><li>Reversed Phase Modifications<ul><li>Chiral NR-R</li><li>Chiral AM-R</li><li>Chiral OM-R</li></ul></li><li>Normal Phase Modifications<ul><li>Chiral NR</li><li>Chiral AM</li><li>Chiral OM</li></ul></li><li>Flexibility: Wide selection of column and particle sizes, for preparative and analytical applications</li><li>Expandable: Upscaling even for continuous SMB</li><li>Application Service: We offer a customized screening service for your analytes. You will receive an optimal column recommendation including the method parameters.</li></ul><h4>Eurospher II Chiral</h4>Based on ultra-high purity silica, the Eurospher II chiral column materials are characterized by high enantioselectivity and loadability.&nbsp;Available in a wide range of dimensions for analytical, preparative and SMB (simulated moving bed) applications, Eurospher II Chiral columns are the perfect choice for even the most challenging enantioseparation tasks&nbsp;Since chiral separations are not very well predictable, KNAUER offers a chiral screening service for your samples (Article number: AL0220).<img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/KNAUER_Eurospher_II_chiral_48c53afebe.jpg" alt="KNAUER: Eurospher II chiral" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_KNAUER_Eurospher_II_chiral_48c53afebe.jpg 245w," sizes="100vw" width="1369" height="633"><blockquote>Tip: Some of the most popular eluents for HPLC (such as acetone, chloroform, DMF, DMSO, MEK, toluene, dioxane, ethyl acetate, methylene chloride, pyridine and THF) which may be remaining in your HPLC system, can destroy Eurospher II Chiral AM and OM phases even in small concentrations! It is highly recommended that the HPLC system is flushed with appropriate eluents before the installation of the chiral column.</blockquote>

Products focused on Consumables from KNAUER - page 1
