The new Thermo Scientific™ Dionex™ Inuvion™ ion chromatography system makes ion analysis simpler and more intuitive than ever before. And it delivers exactly what a busy analytical testing lab is looking for: consistently excellent results-every shift, every day, for every operator.
Thermo Scientific™ Dionex™ Inuvion™ ion chromatography system.

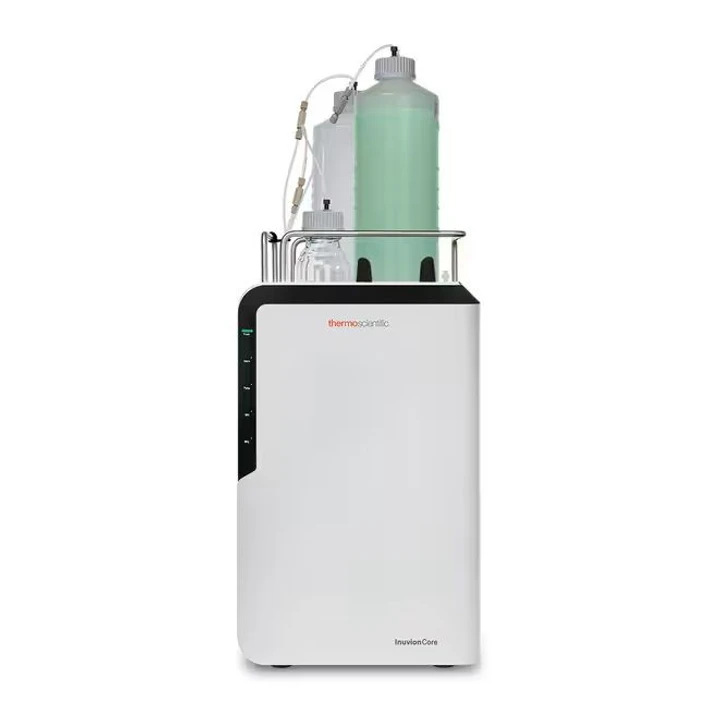

The Inuvion Core system gives you all the benefits of chemical suppression and higher-pressure operation, with manual eluent preparation. You still enjoy the same robust Dionex Inuvion platform-easily configurable and economically upgradeable to full-featured capabilities as budget allows.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system.
Thermo Scientific™ Dionex™ Inuvion™ ion chromatography system.1. Operator-friendly engineering saves time and reduces errors by allowing easy, unobstructed access to all components, connections and consumables
2. Compact design helps you make the most of valuable bench space
3. Digital gas pressure regulator increases precision of gas delivery for maximum day-to-day consistency (optional)
4. Temperature-controlled conductivity cell improves reproducibility and ensures baseline stability
5. Vacuum degassing capability enables more consistent peak identification from smoother baselines
6. Seal wash pump reduces maintenance costs when using manually prepared eluents (optional)
7. Reagent-free IC (RFIC) saves time and ensures greater day-to-day and operator-to-operator consistency, while also allowing the use of gradient separations
8. Electrolytic suppression entirely eliminates the need for manual regenerant preparation (or, opt for a continuously regenerated, always- ready-to-go chemical suppressor)
9. Thermo Scientific™ Dionex™ IC PEEK Viper™ fittings ensure confident, low dead volume connections every time—no tools required! (optional)
10. Integrated column heater minimizes the impact of fluctuations in lab temperature that can adversely affect results (optional)
11. 6- or 10-port auxiliary valve lets you automate in-line sample preparation
12. State-of-the-art high-pressure pump (up to 5000 psi) lets you increase flow rates with smaller particle columns to reduce run times or add additional separation capacity with longer column length
13. System self-diagnostics automatically detect any issues with hardware and consumables
14. Self-service capabilities and user-swappable parts help you get back up and running in a hurry Automatic eluent monitor alerts the operator to low solution levels, avoiding potential system damage or failed runs (optional)
15. Automatic eluent monitor alerts the operator to low solution levels, avoiding potential system damage or failed runs (optional)

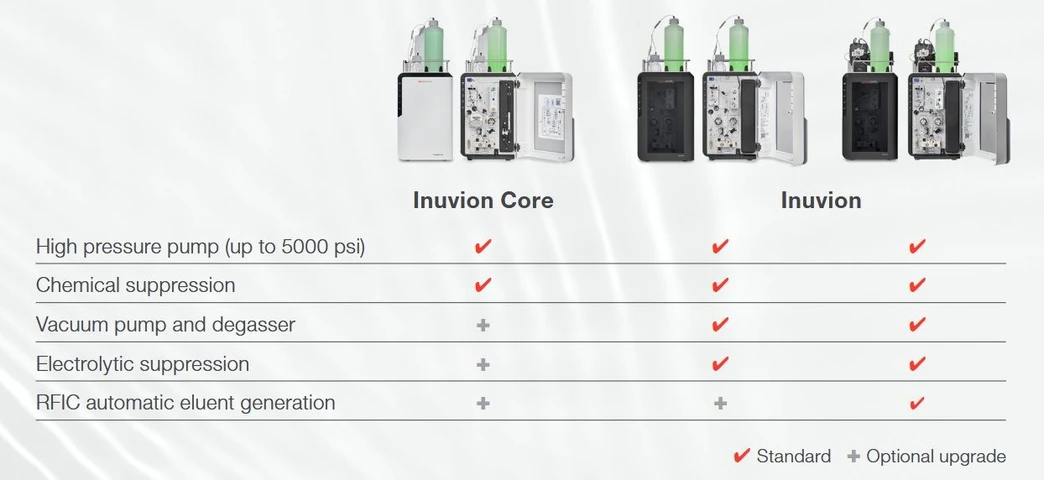

You can configure your Dionex Inuvion system to meet specific analytical and budget requirements, and easily reconfigure as needed. Multiple configurations and peripherals extend IC capabilities, letting you easily-and cost-effectively-adapt to changing sample types and workflow requirements.
Thermo Scientific™ Dionex™ Inuvion™ ion chromatography system.
The Dionex Inuvion IC system supports a full range of columns to improve the speed and quality of results, for both anions and cations. Expanded capabilities, such as Reagent-Free IC (RFIC), enhance operator-to-operator consistency, while enabling the use of eluent gradients to optimize separations.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system: Figure 1. Elution of seven common inorganic anions using carbonate eluent. Short columns and fast flow rates let you reduce run times.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system: Figure 2. Overlay of 40 replicate injections. State-of-the-art pump technology and Electronics deliver consistent, reproducible results.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system: Figure 3. Determination of inorganic anions in drinking and surface waters. KOH eluent generation and electrolytic suppression yield lower backgrounds for greater sensitivity and increased day-to-day consistency.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system: Figure 4. Comparison of isocratic and gradient runs using eluent generation. Reduce run length and sharpen later-eluting peaks with the same ease as an isocratic run with no need for two separate eluents or a proportioning pump.A trusted industry standard all over the world, ”Simply Intelligent” Thermo Scientific™ Chromeleon™ Chromatography Data System (CDS) software brings out the full power of the Dionex Inuvion IC system. Easy to learn and easy to use, it automates and optimizes daily tasks and helps even inexperienced users achieve consistent, high quality results.
Thermo Scientific™ Dionex™ Inuvion™ Core ion chromatography system.
