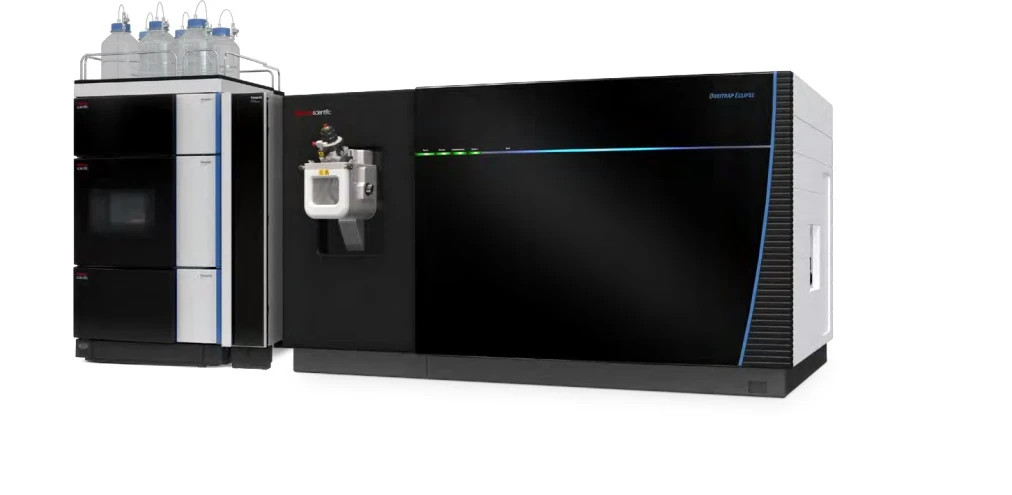

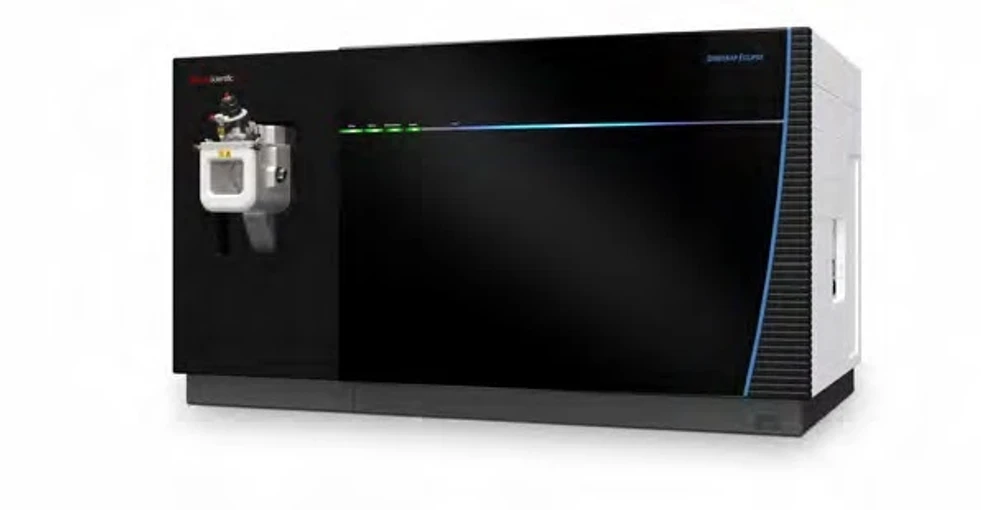

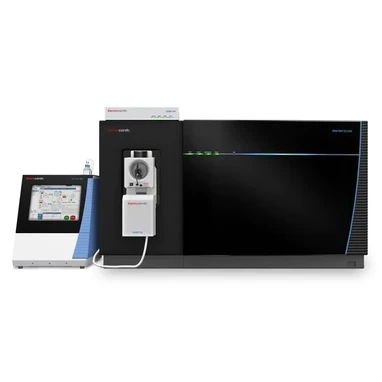

Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ Mass Spectrometer

Introducing the Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ mass spectrometer, our newest generation instrument designed with your most difficult analytical challenges in mind. With enhanced performance and usability, the Orbitrap Eclipse Tribrid mass spectrometer makes it easy to produce the high-quality data required to drive the right decisions, while expanding the breadth of your work and pushing your science beyond today’s discovery.

Obtain high confidence insights for very complex molecules with the Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ mass spectrometer. It combines industry-leading versatility and usability with the exceptional performance afforded by its built-in intelligence and revolutionary Thermo Scientific™ Tribrid™ architecture to deliver an instrument designed to address the most difficult analytical challenges.

Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ Mass Spectrometer

This newest Tribrid platform includes:

• Advanced Ion Management Technology (AIM+) with the new QR5 segmented quadrupole mass filter
• Real-Time Search
• Enhanced Vacuum Technology
• Optional Proton Transfer Charge Reduction (PTCR)
• Optional High Mass Range MSⁿ (HMRⁿ) mode

Collectively, these features make this instrument uniquely suited for:

• Accurate and high-throughput full-proteome quantitation
• Characterization of complex mixtures of protein or small molecule-based pharmaceuticals
• Deciphering higher-order protein structures

The Orbitrap Eclipse Tribrid MS makes it easy to tackle these difficult analyses and collect the high-quality data required to drive the right decisions, pushing your science beyond today's discovery.

With its built-in intelligence and versatility, the Orbitrap Eclipse Tribrid MS makes it easy to produce the high quality data required to drive the right decisions.

• Exceptional precursor selectivity and sensitivity with the next generation quadrupole mass filter
• Unmatched depth and accuracy of TMT analysis with novel Real-Time Search
• High Mass Range MSⁿ (HMRⁿ) option for comprehensive analysis of native protein complexes
• Unique Proton Transfer Charge Reduction (PTCR) option for simplifying complex top-down spectra
• Full experimental flexibility with revolutionary instrument control
• A wide range of optional functionalities for unprecedented versatility
• Common user interface with Thermo Scientific™ Orbitrap Exploris™ 480 and TSQ™ triple quadrupole mass spectrometers

Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ Mass Spectrometer

Thermo Scientific™ Orbitrap Eclipse™ Tribrid™ Mass Spectrometer Specifications

• Dimensions (D x W x H): 30 x 50 x 28 in. (77 x 127 x 70 cm)
• Dynamic Range: >5000 with a single OTMS spectrum
• Mass Accuracy:
  • Orbitrap mass accuracy:
    • <3 ppm RMS using external calibration
    • <1 ppm RMS using internal calibration
• Model: Tribrid MS
• Polarity Switching: One Full Cycle in < 1.1 sec
• Scan Rates:
  • OTMSⁿ: Up to 40 Hz
  • ITMSⁿ: Up to 45 Hz
• Weight (Metric): 180 kg (400 lb.)
• Mass Range:
  • Standard mass range: 50 to 2000 m/z
  • Mid mass range: 200 to 6000 m/z
  • Optomenal HMRⁿ mass range: 500 to 8000 m/z
• Max. Resolution: Up to 500,000 at m/z 200
• Type: Orbitrap LC-MS
• Unit Size: Each
