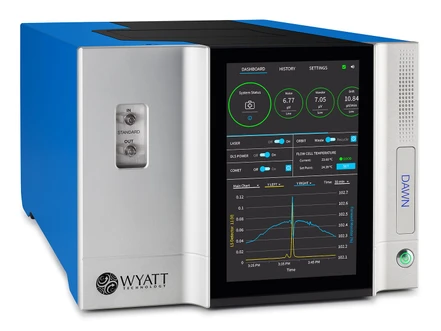

Waters/Wyatt DAWN™ Multi Angle Light Scattering (MALS) Detector

The world's most advanced light scattering instrument for absolute characterization of proteins, conjugates, macromolecules, and nanoparticles.

<h5><strong>Premier MALS</strong></h5><p>The DAWN instrument is the premier Multi-Angle static Light Scattering (MALS) detector for absolute characterization of the molar mass and size of macromolecules and nanoparticles in solution. It offers the highest sensitivity, the widest range of molecular weight, size, and concentration, and the largest selection of configurations and optional modules for enhanced capabilities.</p><h5><strong>Separation First</strong></h5><p>MALS is most often used in conjunction with a separation system such as Gel Permeation Chromatography (GPC-MALS), Size Exclusion Chromatography (SEC-MALS), or Field-Flow Fractionation (FFF-MALS) to determine distributions of mass, size, and composition, independent of column calibration by reference standards.</p><h5><strong>Supported by ASTRA ™ &nbsp;Software</strong></h5><p>ASTRA Software and its built-in analysis modules support the DAWN MALS instrument, providing the most versatile analysis available for online multi-angle and dynamic light scattering measurements.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_DAWN_MALS_HPLC_detektor_konfigurace_d5b83e46b2.jpg" alt="Waters DAWN™ Multi Angle Light Scattering (MALS) Instrument: ASTRA Software" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_DAWN_MALS_HPLC_detektor_konfigurace_d5b83e46b2.jpg 245w," sizes="100vw" width="1500" height="807"></p><h4><strong>Product description</strong></h4><p>The DAWN and its companion <strong>Optilab ™ &nbsp;dRI detector</strong> are the established benchmarks for MALS analysis, cited in thousands of peer-reviewed publications. Multi-angle light scattering detection is indispensable for use with <strong>GPC</strong> and <strong>HPLC-SEC </strong>in order to obtain reliable molecular mass distributions and information on molecular conformation, branching ratio, fragments and aggregates.</p><p><strong>SEC-MALS</strong> with a <strong>DAWN</strong> and <strong>Optilab</strong> characterizes conformation and branching of synthetic and natural <strong>polymers larger than 10 nm</strong> in rms radius R g . The addition of a <strong>ViscoStar ™&nbsp;</strong> differential viscometer creates a GPC triple-detection system that can analyze molecular conformation and size below the R g &nbsp;limit of 10 nm and determine Mark-Houwink Sakurada coefficients.</p><p>The combination of a UV/Vis absorbance detector with a DAWN instrument and Optilab refractive index detector creates a UV-MALS-RI triple-detection system, for analysis of copolymers and protein conjugates (glycoproteins, PEGylated proteins, surfactant-bound membrane proteins, etc.). With the addition of a <strong>WyattQELS ™ &nbsp;DLS module</strong> for size determination, protein conformation may be analyzed.</p><ul><li><i>M<sub>w</sub></i> &nbsp;from 200 Da to 1000 MDa</li><li><strong>Sensitivity:</strong> 10 ng/mL 100 kDa polystyrene in THF, 0.4 µg/mL BSA (66.4 kDa) in PBS</li><li><i>R<sub>g</sub></i> &nbsp;from 10 to 500 nm, up to 1000 nm with shape-specific models</li><li>Ultra-stable, high-power laser</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_DAWN_MALS_HPLC_detektor_konfigurace_1_98811a1e87.jpg" alt="Waters DAWN™ Multi Angle Light Scattering (MALS) Instrument: Accessories" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_DAWN_MALS_HPLC_detektor_konfigurace_1_98811a1e87.jpg 213w," sizes="100vw" width="1000" height="733"></p><p>The DAWN may also be used in batch (off-line) mode to characterize the weight-average molar mass, z-average size and second virial coefficient of unfractionated samples.</p><p>In conjunction with a <strong>Calypso ™ &nbsp;CG-MALS system</strong>, the DAWN characterizes macromolecular interactions, label-free and immobilization-free: affinity and absolute stoichiometry of self- and hetero-association of simple or complex molecular systems. The Calypso system also automates the determination of second virial coefficients, cross virial coefficients, average molar masses and sizes.</p><h5><strong>Ultrasonic Cleaning Included</strong></h5><p>Each DAWN instrument includes an embedded <strong>COMET ™ &nbsp;ultrasonic transducer</strong> that cleans the flow cell automatically by agitating the fluid and loosening particles from the glass surfaces.</p><h5><strong>Temperature-Controlled Models</strong></h5><ul><li>Ambient model</li><li>Ultra-High-Temperature (UHT) model, from ambient up to +210 °C</li><li>Standard Peltier heated/cooled (H/C) model, temperature control from -15 °C to +150 °C</li></ul><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities</strong></h5><ul><li><strong>Molar Mass Range:</strong> From 200 Da to 1 GDa, depending on dn/dc, sample concentration, and chromatography conditions.</li><li><strong>Molecular Size (Radius of Gyration, Rg):</strong> Approximately 10 nm to 500 nm, extendable to 1000 nm with shape-specific models.</li><li><strong>Hydrodynamic Radius (Rh):</strong><ul><li><strong>Flow mode:</strong> 0.5 nm to 300 nm (depending on configuration and flow rate).</li><li><strong>Batch mode:</strong> 0.5 nm to 1 µm (requires WyattQELS™ DLS module or DynaPro™ NanoStar™ with fiber optic connection).</li></ul></li><li><strong>Sensitivity:</strong> Detects as little as 10 ng of 100 kDa polystyrene in THF or 200 ng of BSA in PBS, using a standard 7.8 mm x 300 mm SEC column and no post-column filter.</li></ul><h5><strong>Fluidics and Compatibility</strong></h5><ul><li><strong>Mobile Phase:</strong> Compatible with both aqueous and organic solvents.</li><li><strong>Wetted Materials:</strong> 316 stainless steel, fused silica or F2 glass, and Kalrez.</li></ul><h5><strong>Optical System and Detectors</strong></h5><ul><li><strong>MALS Detectors:</strong> 18 photodiodes with high gain and wide dynamic range for multi-angle light scattering.</li><li><strong>Auxiliary Detectors:</strong><ul><li>Laser monitor for stabilization</li><li>Forward transmission monitor to improve data quality and correct for sample absorption</li></ul></li><li><strong>Dynamic Range:</strong> 3,300,000:1</li><li><strong>Optional DLS Detection:</strong><ul><li>Integrated WyattQELS™ module inside the DAWN</li><li>External fiber optic connection with DynaPro NanoStar or Mobius DLS-ELS instruments</li></ul></li></ul><h5><strong>Laser Specifications</strong></h5><ul><li><strong>Wavelength:</strong> Standard 658 nm ± 4 nm; optional 785 nm for fluorescent samples</li><li><strong>Power Control:</strong> Programmable from 10% to 100%</li></ul><h5><strong>Flow Cell Options</strong></h5><ul><li><strong>Fused Silica:</strong> Ideal for solvents with refractive index &lt; 1.50</li><li><strong>F2 Glass:</strong> Recommended for solvents with refractive index &gt; 1.50</li></ul><h5><strong>Temperature Control Options</strong></h5><ul><li><strong>Ambient operation</strong></li><li><strong>Heated/Cooled (HC):</strong> -15 °C to +150 °C</li><li><strong>Ultra-High Temperature (UHT):</strong> Ambient to +210 °C</li></ul><h5><strong>Electronics and Connectivity</strong></h5><ul><li><strong>Analog Inputs:</strong> 4 differential inputs, 24-bit resolution, range -10 V to +10 V</li><li><strong>Analog Outputs:</strong> 2 outputs from selectable measurement channels, -10 V to +10 V</li><li><strong>I/O Options:</strong> Alarm in/out, auto-inject control, and Orbit™ valve integration</li><li><strong>Computer Interface:</strong> Ethernet</li><li><strong>Display:</strong> 10.1” high-resolution capacitive touchscreen with multi-touch controls</li></ul><h5><strong>Instrument Dimensions</strong></h5><ul><li><strong>Size:</strong> 58 cm (L) x 36 cm (W) x 26 cm (H)</li></ul><h4><strong>Other MALS Instruments</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1115"><strong>miniDAWN™</strong></a> &nbsp;- Second only to the DAWN in sensitivity. Incorporates detectors at 3 angles to determine molar masses from 200 Da to 10 MDa and radii from 10 – 50 nm. Ambient only.</li><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1116"><strong>microDAWN™</strong></a><strong>&nbsp;</strong> - The first MALS detector for UHPLC, with interdetector dispersion as low as 1.5 µL. Incorporates detectors at 3 angles to determine molar masses from 200 Da to 20 MDa and radii from 10 – 50 nm. Ambient only.</li><li><strong>ultraDAWN™</strong> &nbsp;- Measures multi-angle light scattering and reports the results – weight-average molecular weight <i>M<sub>w</sub></i> &nbsp;and rms radius <i>R<sub>g</sub></i> &nbsp;– in real time.</li></ul>

Waters/Wyatt miniDAWN™ Multi Angle Light Scattering (MALS) Detector

The Best in Basic Multi-Angle Light Scattering for Absolute Macromolecular Analysis.

<h4><strong>Overview</strong></h4><h5><strong>Molar Mass</strong></h5><p>The miniDAWN determines absolute molar mass and size to characterize proteins, peptides, small polymers and nanoparticles in solution. Coupled to size exclusion chromatography (SEC or GPC), it eliminates the uncertainty and hassle of column calibration, for true confidence in macromolecular characterization.</p><h5><strong>Superb Sensitivity</strong></h5><p>The miniDAWN not only offers superb sensitivity—it further enhances productivity thanks to greatly enhanced field serviceability and easy data analysis with <strong>One-Click </strong><i><strong>M<sub>w</sub></strong></i><strong>™</strong> .</p><h5><strong>Compatible with ASTRA™&nbsp;</strong></h5><p>The miniDAWN is accompanied by <strong>ASTRA,</strong> the most versatile software package available for analysis of online multi-angle and dynamic light scattering. ASTRA and the miniDAWN incorporate advanced ease-of-use features that help guarantee excellent measurements with a single click.</p><h4><strong>Product Description</strong></h4><h5><strong>Molar mass, absolutely</strong></h5><p>Wyatt's miniDAWN is most often used in conjunction with size exclusion chromatography (SEC-MALS) or field-flow fractionation (FFF-MALS) to determine distributions of molecular weight, size and composition. No need to make assumptions about molecular conformation or ideal column interactions.</p><h5><strong>Characterize:</strong></h5><ul><li>Proteins, small peptides and oligonucleotides</li><li>Synthetic and natural polymers</li><li>Nanoparticles, virus-like particles and vesicles</li></ul><h5><strong>Measurement Range:</strong></h5><ul><li>MW from 200 Da to 10 MDa</li><li><i>r<sub>g</sub></i> &nbsp;from 10 to 50 nm, up to 150 nm with shape-specific models</li><li>sensitivity down to 25 ng of 100 kDa polystyrene in THF, injected on a standard GPC column</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Mini_DAWN_urcuje_molekulovou_hmotnost_nezavisle_na_kalibraci_kolony_Zde_MALS_ukazuje_ze_nejdrive_eluujici_molekula_nema_nejvyssi_molarni_hmotnost_509e5530ea.jpg" alt="Waters: The miniDAWN determines molecular weight independently of column calibration. Here MALS shows that the earliest-eluting molecule does not have the highest molar mass." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Mini_DAWN_urcuje_molekulovou_hmotnost_nezavisle_na_kalibraci_kolony_Zde_MALS_ukazuje_ze_nejdrive_eluujici_molekula_nema_nejvyssi_molarni_hmotnost_509e5530ea.jpg 245w," sizes="100vw" width="820" height="438"></p><p>The miniDAWN's performance is exceeded only by the <strong>DAWN™</strong> which covers a wider range of size and molecular weight, with even better sensitivity and additional optional modules.</p><h5><strong>Ultrasonic Cleaning Included</strong></h5><p>Each miniDAWN includes an embedded <strong>COMET™ ultrasonic transducer</strong> that cleans the flow cell automatically by agitating the fluid and loosening particles from the glass surfaces.</p><h5><strong>Modularity = Productivity</strong></h5><p>The miniDAWN incorporates a fully modular design. Each module can be tested independently by the software to verify that it is functioning correctly. This imparts nearly complete field serviceability, since malfunctioning modules can be replaced and validated on-site by service engineers with no further calibration or alignment.</p><p>The miniDAWN is also field-upgradeable: the embedded <strong>WyattQELS™ DLS Module </strong>for measuring hydrodynamic radii from 0.5 to 50 nm can be installed on-site as well as in new units shipped from the factory.</p><h5><strong>Not just SEC-MALS...</strong></h5><p>Wyatt's miniDAWN may be used in batch (off-line) mode or in conjunction with a <strong>Calypso™ CG-MALS system</strong> for characterization of average solution properties as well as macromolecular interaction properties including protein-protein binding affinity and complex stoichiometry.</p><h5><strong>Simplicity personified</strong></h5><p>With miniDAWN and <strong>ASTRA™</strong>, SEC-MALS became a whole lot easier. Sample-specific methods are set up in three short steps with ASTRA's Method Wizard, and new capabilities for automatic data processing mean that it takes just one click from your sample to a full report of the molecular weight and size results.</p><p>The miniDAWN's System Ready monitor will even let you know when the system is fully equilibrated with low baseline noise, ready to run.</p><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities</strong></h5><ul><li><strong>Molar Mass Range:</strong><br>200 Da to 10 MDa for proteins; up to 1 MDa for linear polymers (depending on dn/dc, sample concentration, and chromatography conditions).</li><li><strong>Molecular Size (Radius of Gyration, Rg):</strong><br>Approximately 10 nm to 50 nm, extendable up to 150 nm with shape-specific modeling.</li><li><strong>Hydrodynamic Radius (Rh):</strong><ul><li><strong>Flow mode:</strong> 0.5 nm to 50 nm (optimal at flow rates ≤ 0.3 mL/min)</li><li><strong>Batch mode:</strong> 0.5 nm to 1 µm (requires WyattQELS™ module or DynaPro™ NanoStar™ with fiber optic connection)</li></ul></li><li><strong>Sensitivity:</strong><br>Detects as little as 25 ng of 100 kDa polystyrene in THF or 500 ng of BSA in PBS using a standard 7.8 mm x 300 mm SEC column with no post-column filter.</li></ul><h5><strong>Fluidics and Compatibility</strong></h5><ul><li><strong>Mobile Phase Compatibility:</strong><br>Compatible with both aqueous and organic solvents.</li><li><strong>Wetted Materials:</strong><br>316 stainless steel, fused silica, and Kalrez.</li></ul><h5><strong>Optical System and Detectors</strong></h5><ul><li><strong>MALS Detectors:</strong><br>Three high-gain, high dynamic range photodiodes at fixed angles.</li><li><strong>Auxiliary Detectors:</strong><ul><li>Laser monitor for stability control</li><li>Forward transmission monitor for absorbing samples and data quality evaluation</li></ul></li><li><strong>Dynamic Range:</strong><br>3,300,000:1</li><li><strong>Optional DLS Detection:</strong><ul><li>Integrated WyattQELS™ module within the miniDAWN chassis</li><li>External fiber optic connection from DynaPro™ NanoStar or Mobius™ DLS-ELS instruments</li></ul></li></ul><h5><strong>Laser Specifications</strong></h5><ul><li><strong>Wavelength:</strong><br>658 nm ± 4 nm</li><li><strong>Power Control:</strong><br>Programmable from 10% to 100%</li></ul><h5><strong>Temperature Control</strong></h5><ul><li><strong>Sample Temperature:</strong> Ambient</li></ul><h5><strong>Electronics and Connectivity</strong></h5><ul><li><strong>Analog Inputs:</strong><br>2 differential inputs, 24-bit resolution, ±10 V range</li><li><strong>Analog Outputs:</strong><br>1 output from a selectable measurement channel, ±10 V range</li><li><strong>I/O Ports:</strong><br>Alarm in/out, auto-inject control, Orbit™ recycle valve support</li><li><strong>Computer Interface:</strong><br>Ethernet</li><li><strong>Data Rate:</strong><br>Up to 36.6 Hz</li></ul><h5><strong>User Interface and Display</strong></h5><ul><li><strong>Front Panel:</strong><br>7” (178 mm) high-resolution multi-touch display for real-time signal viewing, diagnostics, and settings</li></ul><h5><strong>Instrument Dimensions</strong></h5><ul><li><strong>Size:</strong> 58 cm (L) x 36 cm (W) x 18 cm (H)</li></ul><h4><strong>Other MALS Instruments</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1114"><strong>DAWN™</strong></a> - The most sensitive MALS detector available, anywhere. Incorporates detectors at 18 angles to determine molar masses from 200 Da to 1 GDa and radii from 10 – 500 nm.<ul><li>Standard option: ambient temperature</li><li>Heated/cooled option: -15 °C to +150 °C</li><li>High-temperature option: ambient to +210 °C</li><li>The DAWN offers special options to handle fluorescent samples: fluorescence-blocking filters and an infrared, 785 nm laser.</li></ul></li><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1116"><strong>microDAWN™</strong></a><strong> </strong>- The first MALS detector for UHPLC, with interdetector dispersion as low as 1.5 µL. Incorporates detectors at 3 angles to determine molar masses from 200 Da to 20 MDa and radii from 10 – 50 nm. Ambient only.</li><li><strong>ultraDAWN™</strong> - Measures multi-angle light scattering and reports the results – weight-average molecular weight <i>M<sub>w</sub></i> &nbsp;and rms radius <i>R<sub>g</sub></i> &nbsp;– in real time.</li></ul>

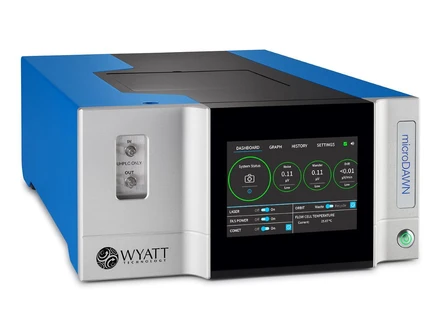

Waters/Wyatt microDAWN™ Multi Angle Light Scattering (MALS) Detector

The microDAWN can be coupled to any UHPLC-SEC system to determine absolute molecular weights and sizes of polymers, peptides, or proteins directly, without resorting to column calibration or reference standards.

<h4><strong>Overview</strong></h4><h5><strong>UHPLC-SEC System</strong></h5><p>The microDAWN can be coupled to any UHPLC-SEC system to determine absolute molecular weights and sizes of polymers, peptides, or proteins directly, without resorting to column calibration or reference standards. The microDAWN produces minimal band broadening in order to maintain the narrow peaks typical of UHPLC, while meeting or exceeding the sensitivity of the <strong>miniDAWN™</strong>.</p><h4><strong>Product Description</strong></h4><p>The <strong>microDAWN MALS detector</strong> performs absolute characterization of macromolecules eluting from UHPLC, determining molar mass and size <i>independently </i>of retention time and molecular reference standards. This instrument offers superb sensitivity over a wide range of molar mass, size and concentrations. In most respects the microDAWN is similar to the well-established <strong>miniDAWN™</strong>, a workhorse MALS instrument used in hundreds of labs around the world for characterizing proteins and other molecules smaller than 50 nm in radius.</p><p>Distinctly from the miniDAWN, the <strong>microDAWN</strong> is uniquely <strong>suitable for use in conjunction with UHPLC Size Exclusion Chromatography (SEC-MALS)</strong> thanks to its small interdetector dispersion. In some cases it may be used with ion-exchange or other types of chromatography. Regardless of the specifics, the microDAWN produces minimal band broadening in order to maintain the narrow peaks typical of UHPLC.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_micro_DAWN_MALS_HPLC_detektor_konfigurace_1_4e888650cf.jpg" alt="Waters microDAWN™ Multi Angle Light Scattering (MALS) Instrument: Experimental setup" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_micro_DAWN_MALS_HPLC_detektor_konfigurace_1_4e888650cf.jpg 229w," sizes="100vw" width="894" height="609"></p><ul><li><i>M<sub>w</sub>&nbsp;</i> from 200 Da to 10 MDa</li><li><strong>Sensitivity:</strong> 1.0 µg/mL BSA (66.4 kDa) in PBS; 50 ng/mL 100 kDa polystyrene in THF.</li><li><i>R<sub>g</sub></i> &nbsp;from 10 to 50 nm</li><li>Ultra-stable laser</li></ul><p>The microDAWN and its companion<strong> microOptilab™ Refractive Index Detector</strong> interface to most standard UHPLC systems. As these detectors are based on the advanced technology of Wyatt's miniDAWN and <strong>Optilab™</strong>, respectively, users may be confident in the underlying capabilities cited in <strong>thousands of peer-reviewed publications</strong>.</p><h5><strong>Ultrasonic Cleaning Included</strong></h5><p>Each microDAWN includes a <strong>COMET™ ultrasonic transducer</strong> that cleans MALS flow cells automatically by agitating the fluid and loosening particles from the glass surfaces.</p><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities</strong></h5><ul><li><strong>Molar Mass Range:</strong><br>From 200 Da to 10 MDa for proteins; up to 1 MDa for linear polymers<br><i>(Typical, depending on dn/dc, sample concentration, and chromatography conditions)</i></li><li><strong>Molecular or Particle Size (Radius of Gyration, Rg):</strong><br>10 nm to 50 nm, extendable up to 150 nm with shape-specific modeling</li><li><strong>Hydrodynamic Radius (Rh):</strong><ul><li><strong>Flow mode:</strong> 0.5 nm to 30 nm</li><li><strong>Batch mode:</strong> 0.5 nm to 1 µm<br><i>(Requires WyattQELS™ DLS module or DynaPro™ NanoStar™ with fiber optic connection)</i></li></ul></li><li><strong>Sensitivity:</strong><br>Detects as little as 3.5 ng of 100 kDa polystyrene in THF or 70 ng of BSA in PBS, assuming use of a 15 cm UHPLC-SEC column with no post-column filter</li></ul><h5><strong>Optical System and Detectors</strong></h5><ul><li><strong>MALS Detectors:</strong><br>Three high-gain photodiodes with broad dynamic range for multi-angle light scattering</li><li><strong>Dynamic Range:</strong><br>3,300,000:1</li><li><strong>Auxiliary Detectors:</strong><ul><li>Laser monitor for stabilization feedback</li><li>Forward transmission monitor for absorbing samples and data quality assessment</li></ul></li><li><strong>Optional DLS Detection:</strong><ul><li>Integrated WyattQELS™ module within the microDAWN chassis</li><li>External DLS connection via fiber optic from DynaPro™ NanoStar or Mobius™ DLS-ELS instruments</li></ul></li></ul><h5><strong>Laser Specifications</strong></h5><ul><li><strong>Wavelength:</strong><br>658 nm ± 4 nm</li><li><strong>Power Control:</strong><br>Programmable from 10% to 100%</li></ul><h5><strong>Sample Temperature and Flow Characteristics</strong></h5><ul><li><strong>Sample Temperature:</strong> Ambient</li><li><strong>Interdetector Band Broadening:</strong><ul><li>Upstream detector to microDAWN: &lt; 1.5 µL</li><li>Upstream to downstream detector: &lt; 1.6 µL</li></ul></li></ul><h5><strong>Material Compatibility</strong></h5><ul><li><strong>Wetted Materials:</strong><br>316 stainless steel, fused silica, PEEK, PTFE, and MP35N (iron-free alloy)</li></ul><h5><strong>Electronics and Connectivity</strong></h5><ul><li><strong>Analog Inputs:</strong><br>2 differential inputs, 24-bit resolution, ±10 V input range</li><li><strong>Analog Outputs:</strong><br>1 output from a user-selectable measurement channel, ±10 V range</li><li><strong>I/O Ports:</strong><br>Alarm in/out, auto-inject control, Orbit™ valve integration</li><li><strong>Computer Interface:</strong><br>Ethernet</li><li><strong>Data Transmission Rate:</strong><br>Up to 73 Hz</li></ul><h5><strong>User Interface</strong></h5><ul><li><strong>Display:</strong><br>7” (178 mm) high-resolution multi-touch screen for signal monitoring, instrument settings, and diagnostics</li></ul><h5><strong>Instrument Dimensions</strong></h5><ul><li><strong>Size:</strong> 58 cm (L) x 36 cm (W) x 18 cm (H)</li></ul><h4><strong>Other MALS Instruments</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1114"><strong>DAWN™</strong></a> - The most sensitive MALS detector available, anywhere. Incorporates detectors at 18 angles to determine molar masses from 200 Da to 1 GDa and radii from 10 – 500 nm.<ul><li>Standard option: ambient temperature</li><li>Heated/cooled option: -15 °C to +150 °C</li><li>High-temperature option: ambient to +210 °C</li><li>The DAWN offers special options to handle fluorescent samples: fluorescence-blocking filters and an infrared, 785 nm laser.</li></ul></li><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1115"><strong>miniDAWN™</strong></a><strong> -</strong> Second only to the DAWN in sensitivity. Incorporates detectors at 3 angles to determine molar masses from 200 Da to 10 MDa and radii from 10 – 50 nm. Ambient only.</li><li><strong>ultraDAWN™</strong> - Measures multi-angle light scattering and reports the results – weight-average molecular weight <i>M<sub>w</sub></i> &nbsp;and rms radius <i>R<sub>g</sub></i> &nbsp;– in real time.</li></ul>

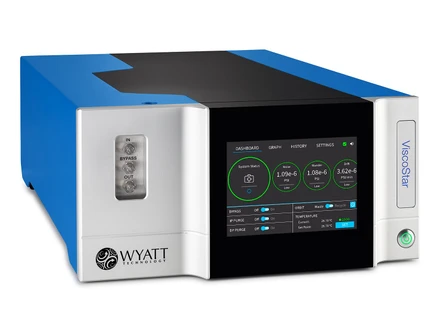

Waters/Wyatt ViscoStar HPLC viscometer

Waters ViscoStar is a highly sensitive, on-line differential viscometer used in conjunction with SEC-MALS-IV to determine the size and conformation of all types of biopolymers, synthetic polymers and even proteins and peptides.

<h4><strong>Highly Sensitive</strong></h4><p>A highly sensitive, on-line differential viscometer used in conjunction with <strong>SEC-MALS-IV</strong> to determine the size and conformation of all types of biopolymers, synthetic polymers and even proteins and peptides.</p><h4><strong>Multiple Novel Technologies</strong></h4><p>The ViscoStar incorporates multiple novel technologies to provide the highest sensitivity, stability and solvent compatibility of any available viscometer for GPC. Its ease-of-use and serviceability make it the perfect companion for Wyatt's <strong>DAWN™ light scattering</strong> and <strong>Optilab™ refractive index detectors</strong>.</p><h4><strong>Another path to polymer and protein characterization: SEC-MALS-IV</strong></h4><p>When coupled with size-exclusion chromatography and a concentration detector such as the Optilab™ , the ViscoStar derives the intrinsic viscosity (IV) of polymers. An inherently valuable physico-chemical property in itself, IV is best utilized together with molar mass information from multi-angle light scattering (SEC-MALS-IV) to derive the <i>hydrodynamic radius</i>, <i>conformation</i>, and <i>branching ratio</i> of a macromolecule in solution.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Visco_Star_pump_pulse_suppression_with_inset_e8c2fbfc18.jpg" alt="Waters ViscoStar: Patented pulse compensation technology in the ViscoStar eliminates pump fluctuations. At the hardware level, the bridge is impedance matched for dynamic balance, greatly reducing the effect of pump pulses. An additional layer of software filtering eliminates residual pump pulses." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Visco_Star_pump_pulse_suppression_with_inset_e8c2fbfc18.jpg 233w," sizes="100vw" width="348" height="233"></p><h5><strong>Key benefits of the ViscoStar</strong></h5><ul><li><strong>High sensitivity</strong>, equivalent to 100 ng of 100 kDa polystyrene in THF at 1.0 mL/min injected onto a standard GPC column</li><li><strong>High dynamic range</strong> of over 135,000:1. The full measurement range corresponds to over 13 mg/mL of 100 kDa polystyrene in THF</li><li><strong>Extended solvent compatibility</strong> with all-316 stainless steel transducers</li><li><strong>Temperature range </strong>from 4 °C to 70 °C for polymers or proteins that require a range of temperatures</li><li><strong>Minimal band broadening</strong> thanks to fast pressure transducers</li><li><strong>Pump pulse suppression</strong> to below 4 Pa (hardware alone) or 1 Pa (hardware + software) without loss of chromatographic resolution</li><li><strong>Automated capillary bridge tuning</strong> with no moving parts, to guarantee a perfectly balanced bridge, every run</li><li><strong>Enhanced thermal stability</strong> with drift of &lt;2.5 Pa/hour</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Visco_Star_cmc_plga_intrinsic_viscosity_graphs_be99c5d115.jpg" alt="Waters ViscoStar: The ViscoStar provides the highest available dynamic range and sensitivity in online viscometry. This graph shows the intrinsic viscosities of 1) poly(lactic co-glycolic acid), or PLGA, in THF and 2) carboxymethyl cellulose, or CMC, in aqueous mobile phase, both measured with a ViscoStar and Optilab, spanning a range from tens to thousands of mL/g. The same instruments readily measure intrinsic viscosity values in the low single digits with excellent signal-to-noise, even at very low concentrations." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Visco_Star_cmc_plga_intrinsic_viscosity_graphs_be99c5d115.jpg 236w," sizes="100vw" width="406" height="268"></p><h5><strong>SEC-IV without MALS?</strong></h5><p>Yes, as much as we love MALS for optimal polymer analysis, it's true that there are occasions when it just won't fit the bill.</p><p><i><strong>Universal calibration</strong></i> is a parallel technique to SEC-MALS for determining molecular weight, commonly used to characterize linear polymers. While universal calibration overcomes some of the problematic issues associated with column calibration by reference molecules, it does not account for non-ideal column behavior caused by chemical solute-column interactions or hyperbranching.</p><p><strong>Universal calibration is particularly-well suited to replace MALS for:</strong></p><ul><li><strong>Strongly fluorescent polymers</strong>, in particular those not adequately addressed by a <strong>DAWN™</strong> with long-wavelength (785 nm) laser or a standard DAWN (685 nm) with fluorescence-blocking filters.</li><li><strong>Weakly-scattering</strong> polymer/solvent systems with very low <i>dn</i>/<i>dc</i> values</li></ul><p><i><strong>The Mark-Houwink-Sakurada relationship</strong></i> makes use of empirical relationships between intrinsic viscosity and molar mass, specific to each polymer and solvent, to estimate molar mass from SEC-IV measurements. Of course, the best way to determine MHS coefficients is to measure them using <strong>SEC-MALS-IV and ASTRA™</strong>!</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Visco_Star_v3_protein_rh_measurements_0951d3769a.jpg" alt="Waters ViscoStar: Three IgG proteins with similar MWs eluted at different elution volumes. To understand their different elution properties, online DLS is typically used to measure the hydrodynamic radius, R h , of a protein. However, online DLS did not provide reliable insights, in this case due to the relatively high experimental uncertainty of the DLS. The precise Rh values obtained with a MALS detector and the ViscoStar III, on the other hand, clearly revealed the causes. IgG B eluted later than IgG A due to its more compact structure; IgG C had a slight interaction with the SEC column." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Visco_Star_v3_protein_rh_measurements_0951d3769a.jpg 237w," sizes="100vw" width="401" height="264"></p><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities – Differential Viscosity</strong></h5><ul><li><strong>Sensitivity:</strong><br>Detects as little as 0.1 µg of 100 kDa polystyrene in THF at 1 mL/min under typical GPC conditions.</li><li><strong>Differential Pressure Performance:</strong><ul><li><strong>Noise:</strong> &lt; 0.05 Pa</li><li><strong>Range:</strong> 6.9 kPa, with built-in overpressure protection</li><li><strong>Drift:</strong> &lt; 2.5 Pa/hr</li><li><strong>Linearity:</strong> Within 0.5% of full scale</li><li><strong>Dynamic Range:</strong> 135,000:1</li></ul></li><li><strong>Capillary Bridge Autobalance:</strong><br>Thermally regulated, leak-free mechanism ensures stable baseline and precision.</li><li><strong>Sample Shear Rate:</strong><br>Up to 5000 Hz with water at 1 mL/min</li></ul><h5><strong>Fluidics and Flow Compatibility</strong></h5><ul><li><strong>Maximum Flow Rate:</strong><ul><li>Aqueous: 1.5 mL/min</li><li>THF: 3 mL/min</li></ul></li><li><strong>Delay Volume Options:</strong><br>Configurable at 16.2, 10.8, or 5.4 mL; optional factory-installed upgrade to 32.4 mL<br><i>(Note: actual column fluid volume is approx. half the listed value)</i></li><li><strong>Maximum Inlet-to-Outlet Pressure:</strong><br>690 kPa</li><li><strong>Wetted Materials:</strong><br>316 stainless steel, PTFE, zirconium silicate, Kalrez, Inconel, and 26-1 stainless steel – all selected for chemical resistance and long-term durability</li></ul><h5><strong>Temperature Control</strong></h5><ul><li><strong>Operating Range:</strong><br>4 °C to 70 °C</li><li><strong>Stability:</strong><br>Maintains temperature within &lt; 0.005 °C for precise measurements</li><li><strong>Ambient Conditions:</strong><br>0 °C to 40 °C; relative humidity 20% to 70%</li></ul><h5><strong>Electronics and Connectivity</strong></h5><ul><li><strong>Digital Output:</strong><br>20-bit resolution at 10 Hz for high-fidelity data</li><li><strong>Auxiliary I/O:</strong><ul><li><strong>Inputs:</strong> Autoinject contact closure, Alarm In, and 2 analog inputs (18-bit, ±10 V)</li><li><strong>Outputs:</strong> Autoinject retransmit, Alarm Out, Recycle Out</li></ul></li><li><strong>Communication Interface:</strong><br>Ethernet for seamless integration into lab networks and data systems</li></ul><h5><strong>User Interface</strong></h5><ul><li><strong>Front Panel Display:</strong><br>7” (178 mm) high-resolution capacitive touchscreen for monitoring signals, diagnostics, and adjusting settings with ease</li></ul><h5><strong>Instrument Dimensions</strong></h5><ul><li><strong>Size:</strong> 58 cm (L) × 36 cm (W) × 18 cm (H)</li></ul><h4><strong>Other Viscometers</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1267"><strong>microViscoStar™</strong> </a>- Similar to the ViscoStar but designed specifically for use with UHPLC/APC.</li></ul>

Waters/Wyatt microViscoStar viscometer

The Waters microViscoStar incorporates multiple novel technologies to provide the highest sensitivity, stability and solvent compatibility of any available viscometer for UHPLC.

<h4><strong>Highly Sensitive</strong></h4><p>A highly sensitive, on-line differential viscometer used with <strong>SEC-MALS-IV</strong> to determine the size and conformation of polymers, proteins and peptides separated by UHPLC.</p><h4><strong>Multiple Novel Technologies</strong></h4><p>The <strong>microViscoStar™</strong> incorporates multiple novel technologies to provide the highest sensitivity, stability and solvent compatibility of any available viscometer for UHPLC. Its ease-of-use and serviceability make it the perfect companion for Wyatt's <strong>microDAWN™</strong> <strong>light scattering</strong> and <strong>microOptilab™ refractive index detectors for UHPLC</strong>.</p><h4><strong>Another path to polymer and protein characterization: SEC-MALS-IV</strong></h4><p>When coupled with size-exclusion chromatography and a concentration detector such as the Optilab™ , the microViscoStar derives the intrinsic viscosity (IV) of polymers. An inherently valuable physico-chemical property in itself, IV is best utilized together with molar mass information from multi-angle light scattering (SEC-MALS-IV) to derive the <i>hydrodynamic radius</i>, <i>conformation</i>, and <i>branching ratio</i> of a macromolecule in solution.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Visco_Star_pump_pulse_suppression_with_inset_e8c2fbfc18.jpg" alt="Waters microViscoStar: Patented pulse compensation technology in the microViscoStar eliminates pump fluctuations. At the hardware level, the bridge is impedance-matched for dynamic balance, greatly reducing the effect of pump pulses. An additional layer of software filtering eliminates residual pump pulses." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Visco_Star_pump_pulse_suppression_with_inset_e8c2fbfc18.jpg 233w," sizes="100vw" width="348" height="233"></p><h5><strong>Key benefits of the ViscoStar</strong></h5><ul><li><strong>High sensitivity</strong>, equivalent to 5 ng of 100 kDa polystyrene in THF at 1.0 mL/min injected onto a standard GPC column</li><li><strong>High dynamic range </strong>of over 135,000:1. The full measurement range corresponds to over 13 mg/mL of 100 kDa polystyrene in THF</li><li><strong>Extended solvent compatibility</strong> with all-316 stainless steel transducers</li><li><strong>Temperature range</strong> from 4 °C to 70 °C for polymers or proteins that require a range of temperatures</li><li><strong>Minimal band broadening</strong> thanks to fast pressure transducers</li><li><strong>Pump pulse suppression</strong> to below 4 Pa (hardware alone) or 1 Pa (hardware + software) without loss of chromatographic resolution</li><li><strong>Automated capillary bridge tuning</strong> with no moving parts, to guarantee a perfectly balanced bridge, every run</li><li><strong>Enhanced thermal stability</strong> with drift of &lt;1.25 Pa/hour</li></ul><h4><strong>SEC-IV without MALS?</strong></h4><p>Yes, as much as we love MALS for optimal polymer analysis, it's true that there are occasions when it just won't fit the bill.</p><p><i><strong>Universal calibration</strong></i> is a parallel technique to SEC-MALS for determining molecular weight, commonly used to characterize linear polymers. While universal calibration overcomes some of the problematic issues associated with column calibration by reference molecules, it does not account for non-ideal column behavior caused by chemical solute-column interactions or hyperbranching.</p><p><strong>Universal calibration is particularly-well suited to replace MALS for:</strong></p><ul><li><strong>Strongly fluorescent polymers</strong></li><li><strong>Weakly-scattering</strong> polymer/solvent systems with very low <i>dn</i>/<i>dc</i> values</li></ul><p><i><strong>The Mark-Houwink-Sakurada relationship</strong></i> makes use of empirical relationships between intrinsic viscosity and molar mass, specific to each polymer and solvent, to estimate molar mass from SEC-IV measurements. Of course, the best way to determine MHS coefficients is to measure them using <strong>SEC-MALS-IV and ASTRA™</strong></p><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities – Differential Viscosity</strong></h5><ul><li><strong>Sensitivity:</strong><br>Detects as little as 5 ng of 100 kDa polystyrene in THF at 1 mL/min under typical UHPLC-SEC conditions.</li><li><strong>Differential Pressure Performance:</strong><ul><li><strong>Noise:</strong> &lt; 0.05 Pa</li><li><strong>Range:</strong> Up to 6.9 kPa, with overpressure protection</li><li><strong>Drift:</strong> &lt; 1.25 Pa/hr</li><li><strong>Linearity:</strong> Within 0.5% of full scale</li><li><strong>Dynamic Range:</strong> 135,000:1</li></ul></li><li><strong>Capillary Bridge Autobalance:</strong><br>Thermal, leak-free mechanism ensures stable baseline performance.</li><li><strong>Sample Shear Rate:</strong><br>Up to 15,000 Hz with water at 1 mL/min for high-resolution viscosity profiling.</li></ul><h5><strong>Fluidics and Compatibility</strong></h5><ul><li><strong>Maximum Flow Rate:</strong><br>Aqueous and THF: up to 1 mL/min<br><i>(Note: Using an inline UV detector may reduce allowable flow rate.)</i></li><li><strong>Delay Volume:</strong><br>5.4 mL</li><li><strong>Maximum Inlet-to-Outlet Pressure:</strong><br>3000 kPa (435 psi)</li><li><strong>Wetted Materials:</strong><br>316 stainless steel, PTFE, zirconium silicate, Kalrez®, Inconel, 26-1 stainless steel, and nickel</li></ul><blockquote><p><i>Note: Due to the location of wetted components, this instrument is primarily recommended for use with organic solvents. High-ionic-strength buffers may cause corrosion.</i></p></blockquote><h5><strong>Temperature Control</strong></h5><ul><li><strong>Operating Range:</strong><br>4 °C to 70 °C</li><li><strong>Stability:</strong><br>Maintains temperature within &lt; 0.005 °C</li><li><strong>Ambient Conditions:</strong><br>0 °C to 40 °C; 20% to 70% relative humidity</li></ul><h5><strong>Electronics and Connectivity</strong></h5><ul><li><strong>Digital Output:</strong><br>20-bit resolution at 10 Hz</li><li><strong>Auxiliary I/O:</strong><ul><li><strong>Inputs:</strong> Autoinject contact closure, Alarm In, and 2 analog inputs (16-bit, ±10 V)</li><li><strong>Outputs:</strong> Autoinject retransmit, Alarm Out, Recycle Out</li></ul></li><li><strong>Communication Interface:</strong><br>Ethernet</li></ul><h5><strong>User Interface</strong></h5><ul><li><strong>Front Panel Display:</strong><br>7” (178 mm) high-resolution, capacitive multi-touch screen for real-time monitoring, configuration, and diagnostics</li></ul><h5><strong>Instrument Dimensions</strong></h5><ul><li><strong>Size:</strong> 60 cm (L) × 36 cm (W) × 17 cm (H)</li></ul><h4><strong>Other Viscometers</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1117"><strong>ViscoStar™</strong></a> - A highly sensitive, on-line differential viscometer used in conjunction with SEC-MALS to determine the size and conformation of all types of biopolymers, synthetic polymers and even proteins and peptides.</li><li>The ViscoStar incorporates multiple novel technologies to provide the highest sensitivity, stability and solvent compatibility of any available viscometer for GPC. Its ease-of-use and serviceability make it the perfect companion for Wyatt's DAWN® light scattering and Optilab® refractive index detectors. Temperature-controlled from 4 °C to 70 °C .</li></ul>

Waters/Wyatt Optilab On-line Differential Refractometer

The Waters Optilab is a unique dRI detector for standard HPLC/GPC with 256 times the detection power and 50 times the dynamic range of every other RI detector for chromatography in existence today, making it a valuable addition to any MALS setup.

<h4><strong>Independent of Chromaphores</strong></h4><p>Independent of chromaphores or fluorophores, differential Refractive Index (dRI) detectors serve as accurate and versatile concentration detectors in all types of solvents. dRI is part of standard instrumentation for a variety of macromolecular characterization techniques including standard chromatography, <strong>SEC-MALS, FFF-MALS and CG-MALS.</strong></p><h4><strong>Unique dRI Detector</strong></h4><p>The <strong>Optilab</strong> is a unique <strong>dRI detector</strong> for standard <strong>HPLC/GPC</strong> with 256 times the detection power and 50 times the dynamic range of every other RI detector for chromatography in existence today, making it a valuable addition to any MALS setup.</p><h4><strong>Product Description</strong></h4><p>Using a combination of cutting-edge semiconductor photodiode technology and proprietary computer algorithms, the Optilab achieves an unprecedented combination of sensitivity and range. These features mean that it addresses both standard chromatographic applications and some challenges unique to light scattering measurements such as high concentrations, determination of sample refractive increments (dn/dc) and solvent refractive index.</p><h5><strong>Key Benefits</strong></h5><ul><li><strong>Extraordinary dRI measurement range</strong>, -0.0047 to +0.0047 RIU (comparable to 25 mg/mL protein in PBS)</li><li><strong>Highly sensitive</strong>, ±7.5 x 10 -10 &nbsp;RIU across the entire measurement range</li><li><strong>Measures solvent absolute refractive index</strong>, required for MALS calculations</li><li><strong>Measures at the same wavelength as the MALS detector</strong>, for maximum accuracy in MALS calculations</li><li><strong>Band broadening</strong> &lt; 20 µL preserves SEC resolution</li><li><strong>Temperature range</strong> 4 °C to 65 °C for proteins and polymers that require a range of temperatures</li><li><strong>High-resolution</strong>, touch-screen front panel displays data graphs and diagnostics, even with the host computer turned off</li></ul><h5><strong>Unparalleled Features</strong></h5><p>Even though the Optilab offers a dRI measurement range orders of magnitude beyond that of other dRI detectors, unlike other detectors there are no range or gain settings in the Optilab. The full range of instrument detection is <strong>always</strong> present, and the full sensitivity exists over the entire range.</p><p>The <strong>Optilab</strong> can also do something no other on-line refractive index detector can: it <strong>can measure the absolute refractive index of a solution</strong>. In addition, it can <strong>measure the </strong><i><strong>dn</strong></i><strong>/</strong><i><strong>dc </strong></i><strong>of a solvent</strong> at the same wavelength of light as the light scattering instrument. And just to make sure it can't be matched, you can replace the light source in the Optilab for <strong>other wavelengths (e.g., 690, 633, 488, etc.)</strong> in just minutes!</p><p>The Optilab can go below ambient temperatures as easily as above ambient. No hassle temperature control can be programmed from 4 °C to 65 °C. Compatible with all HPLC systems.</p><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities – Differential Refractive Index</strong></h5><p><strong>Standard Optilab Configuration</strong></p><ul><li><strong>Measurement Range:</strong> –0.0047 to +0.0047 RIU</li><li><strong>Peak-to-Peak Noise:</strong> ±7.5 × 10⁻¹⁰ RIU<br><i>(Measured per ASTM-E1303-95 at 25 °C)</i></li></ul><p><strong>High Concentration (HC) Option</strong></p><ul><li><strong>Measurement Range:</strong> –0.0026 to +0.034 RIU</li><li><strong>Peak-to-Peak Noise:</strong> ±1.5 × 10⁻⁹ RIU<br><i>(Optimized for higher concentration samples)</i></li><li><strong>Response Time:</strong> User-selectable from 0.1 to 5 seconds</li><li><strong>Absolute Refractive Index Measurement Range:</strong> 1.2 to 1.8 RIU</li><li><strong>Absolute RI Sensitivity:</strong> ±0.002 RIU</li></ul><p><strong>Fluidics and Flow Properties</strong></p><ul><li><strong>Band Broadening:</strong> &lt;12 µL</li><li><strong>Fill Volume (Inlet Tubing + Flow Cell):</strong> 51.4 µL</li><li><strong>Outlet Tubing Volume (0.030" ID):</strong> 370 µL</li></ul><p><strong>Pressure Ratings</strong></p><ul><li><strong>Inlet Back Pressure (0.5 mL/min H₂O @ 20 °C):</strong> &lt;22 psi (1.5 bar)</li><li><strong>Max Outlet Back Pressure:</strong> 30 psi (2 bar)</li></ul><p><strong>Temperature Control</strong></p><ul><li><strong>Sample Temperature Control Range:</strong> 4 °C to 65 °C</li><li><strong>Regulation Stability:</strong> ±0.005 °C</li></ul><p><strong>Light Source Options</strong></p><ul><li><strong>Standard:</strong> 660 nm</li><li><strong>HC Model (Optional):</strong> 488 nm, 785 nm, or 940 nm</li></ul><p><strong>Safety Features</strong></p><ul><li>Built-in <strong>vapor and liquid leak sensors</strong> for enhanced lab safety</li></ul><p><strong>Electronics and Connectivity</strong></p><ul><li><strong>Digital Output:</strong> 22+ bit resolution @ 10 Hz</li><li><strong>Analog Output:</strong> ±10 V or ±1 V, 18-bit resolution</li><li><strong>Computer Interface:</strong> Ethernet</li></ul><p><strong>Auxiliary I/O Ports</strong></p><ul><li><strong>Inputs:</strong><ul><li>Analog In (16-bit, ±10 V A/D)</li><li>Zero dRI</li><li>Purge</li><li>Recycle In</li><li>Autoinject In</li><li>Alarm In</li></ul></li><li><strong>Outputs:</strong><ul><li>Autoinject Retransmit</li><li>Alarm Out</li><li>Recycle Out (controls Orbit™ valve switching)</li></ul></li></ul><p><strong>User Interface</strong></p><ul><li><strong>Front Panel Display:</strong><br>7” (178 mm) high-resolution multi-touch screen for viewing signals, diagnostics, and adjusting instrument settings</li></ul><p><strong>Instrument Dimensions</strong></p><ul><li><strong>Size:</strong> 58 cm (L) × 36 cm (W) × 18 cm (H)</li></ul><h4><strong>Other Refractive Index Detectors</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1269"><strong>microOptilab™</strong></a> - The first RI detector specifically designed for use with all UHPLC systems.</li></ul>

Waters/Wyatt microOptilab On-line Differential Refractometer

The Waters microOptilab brings the universal detection capabilities, unsurpassed concentration range, and superb sensitivity and linearity

<h4><strong>Independent of Chromaphores</strong></h4><p>Independent of chromaphores or fluorophores, differential Refractive Index (dRI) detectors measure concentrations of all types of samples in almost all solvents. The microOptilab brings the universal detection capabilities, unsurpassed concentration range, and superb sensitivity and linearity – familiar from the <strong>Optilab™</strong> – to the domain of UHPLC.</p><h4><strong>SEC-MALS with UHPLC</strong></h4><p>Like standard SEC, UHPLC-SEC analysis relying on column calibration with molecular standards is unreliable when the standards do not accurately reflect your samples in terms of conformation, non-ideal (e.g., hydrophobic) column interactions or reversible association. <strong>SEC-MALS</strong> employs a <strong>microDAWN™ MALS detector</strong> downstream of the SEC column and UV detector, to determine molar mass / molecular weight distributions of macromolecules independently of column calibration.</p><p><strong>Refractive index detection </strong>is an important component of any SEC-MALS system, and necessary for analyzing conjugated proteins or polymers devoid of chromaphores. The microOptilab connects with the microDAWN MALS detector for a complete UHP-SEC-MALS setup that transfers the many benefits of SEC-MALS analysis to the realm of UHPLC.</p><h5><strong>Key benefits</strong></h5><ul><li><strong>Very low band broadening</strong>, &lt; 4 µL, to maintain the resolution of very narrow UHPLC peaks</li><li><strong>Extraordinary dRI measurement range</strong>, -4.7 x 10 -3 &nbsp;to +4.7 x 10 -3 &nbsp;RIU (comparable to 25 mg/mL protein in PBS)</li><li><strong>Highly sensitive</strong>, ± 1.5 x 10 -9 &nbsp;RIU across the entire measurement range</li><li><strong>Measures solvent refractive index</strong>, require for MALS calculations</li><li><strong>Measures at the same wavelength as the MALS detector</strong>, for maximum accuracy in MALS calculations</li><li><strong>Temperature range </strong>4 °C to 65 °C for proteins and polymers that require a range of temperatures</li><li><strong>High-resolution</strong>, touch-screen front panel displays data graphs and instrument diagnostics, even with the host computer turned off</li></ul><h5><strong>Unparalleled features</strong></h5><ul><li>Considering the extremely small peak volumes of UHPLC, <strong>band broadening</strong> in the <strong>microOptilab</strong> is <strong>kept to the absolute minimum</strong>, at less than 4 µL, as compared to 20 - 40 µL or more for standard RI detectors. As a result, the superior resolution from UHPLC columns and instruments will not be compromised with the microOptilab RI detector.</li><li>Even though the microOptilab offers a <strong>dRI measurement range</strong> orders of magnitude beyond that of other UHPLC dRI detectors, unlike other detectors there are <strong>no range or gain settings in the microOptilab</strong>. The full range of instrument detection is always present, and the full sensitivity exists over the entire range. The small flow cell and proprietary temperature regulation enable stable RI baselines and signals which further enhance the detector's sensitivity.</li><li>Unlike all other dRI detectors, the <strong>microOptilab</strong> also <strong>measures absolute refractive index</strong> in order to determine solvent RI, necessary in light scattering calculations and useful in assessing the accuracy of mixing of solvent gradients.</li><li>The <strong>microOptilab</strong> can be <strong>operated below ambient temperatures </strong>as easily as above ambient. No hassle temperature control can be programmed down to 4 °C or as high as 65 °C.</li><li>The microOptilab is c<strong>ompatible with all UHPLC systems.</strong></li></ul><h4><strong>Specifications</strong></h4><h5><strong>Measurement Capabilities – Differential Refractive Index</strong></h5><ul><li><strong>Differential RI Measurement Range:</strong><br>–0.0047 to +0.0047 RIU</li><li><strong>Peak-to-Peak Noise:</strong><br>±1.5 × 10⁻⁹ RIU<br><i>(Measured per ASTM-E1303-95 at 25 °C with a 0.5 sec collection interval)</i></li><li><strong>Response Time:</strong><br>User-selectable from 0.04 to 5 seconds</li><li><strong>Absolute Refractive Index Range:</strong><br>1.2 to 1.8 RIU</li><li><strong>Absolute RI Sensitivity:</strong><br>±0.002 RIU</li></ul><p><strong>Fluidics and Flow Properties</strong></p><ul><li><strong>Band Broadening:</strong><br>&lt;4 µL <i>(at 0.3 mL/min)</i></li><li><strong>Fill Volume (Inlet Tubing + Flow Cell):</strong><br>13.7 µL</li><li><strong>Outlet Tubing Volume (0.030” ID):</strong><br>228 µL</li></ul><p><strong>Pressure Ratings</strong></p><ul><li><strong>Inlet Back Pressure (0.5 mL/min H₂O @ 20 °C):</strong><br>&lt;320 psi (22 bar)</li><li><strong>Maximum Permissible Outlet Pressure:</strong><br>30 psi (2 bar)</li></ul><p><strong>Temperature Control</strong></p><ul><li><strong>Control Range:</strong><br>4 °C to 65 °C</li><li><strong>Stability:</strong><br>±0.005 °C for precise thermal regulation</li></ul><p><strong>Optical Source and Safety</strong></p><ul><li><strong>Light Source:</strong><br>660 nm wavelength</li><li><strong>Safety Sensors:</strong><br>Integrated vapor and liquid leak detection</li></ul><p><strong>Electronics and Connectivity</strong></p><ul><li><strong>Digital Output Rate:</strong><br>25 Hz</li><li><strong>Analog Output:</strong><br>±10 V or ±1 V, 18-bit resolution</li><li><strong>Computer Interface:</strong><br>Ethernet for seamless data connectivity</li></ul><p><strong>Auxiliary I/O Ports</strong></p><ul><li><strong>Inputs:</strong><ul><li>Analog In (16-bit, ±10 V A/D)</li><li>Zero dRI</li><li>Purge</li><li>Recycle In</li><li>Autoinject In</li><li>Alarm In</li></ul></li><li><strong>Outputs:</strong><ul><li>Autoinject Retransmit</li><li>Alarm Out</li><li>Recycle Out (Orbit™ valve switching)</li></ul></li></ul><p><strong>User Interface</strong></p><ul><li><strong>Display:</strong><br>7” (178 mm) high-resolution multi-touch screen for viewing live signals, diagnostics, and configuring instrument settings</li></ul><p><strong>Instrument Dimensions</strong></p><ul><li><strong>Size:</strong> 58 cm (L) × 36 cm (W) × 18 cm (H)</li></ul><h4><strong>Other Refractive Index Detectors</strong></h4><ul><li><a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1268"><strong>Optilab™</strong></a> - A unique on-line differential refractometer for measuring concentration of any macromolecule, regardless of chromophores. Temperature controlled from 4 °C to 65 °C. The high-concentration option accommodates protein concentration up to 180 mg/mL.</li></ul>

Waters ACQUITY Advanced Polymer Chromatography (APC) System

The ACQUITY APC System Increase sample throughput and laboratory operations by obtaining accurate and repeatable sample separation up to 20 time faster than before.

<div><div><h4><strong>The highest performance for polymers and oligomers</strong></h4></div></div><div><div><p><strong>Today’s polymer scientists operate within an increasingly dynamic market space, one with a growing demand for high-performing materials, bio-material innovations, and intense competition. But the long run times of traditional chromatography polymer characterization has made keeping up with this demand a challenge for many labs.</strong></p><p>Not anymore. With the <strong>next era in polymer separation</strong>, the <strong>ACQUITY Advanced Polymer Chromatography (APC) System</strong>, you can achieve the <strong>highest resolution size-based separations</strong> for <strong>chromatographic polymer and oligomer characterization</strong>, all <strong>faster than ever</strong>. With the <strong>ACQUITY APC System</strong>, you can <strong>improve data consistency and quality</strong> with <strong>fast, daily calibration</strong>, and <strong>automate your method development</strong> with <strong>advanced system technologies</strong> – so you can <strong>innovate faster</strong> while <strong>improving lab operations.</strong></p><div><div><div><div><h3><strong>Features and Benefits</strong></h3><ul><li><strong>Accelerate your insights</strong> - Reduce laboratory turnaround times for polymer samples by getting answers to your development labs, your manufacturing operations teams, and your customers 5 to 20 times faster than traditional SEC/GPC with the ultra-low system dispersion of the ACQUITY APC System paired with <a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1950"><strong>ACQUITY APC Columns</strong></a>.</li><li><strong>Get the accurate data you need for informed decisions</strong> - Gain more insight into your polymer samples through compatibility with a wide range of specific detection techniques (refractive index, UV/Vis, PDA, ELS) and third-party advanced detectors like multi-angle light scattering and viscometry. Get accurate molecular weight (MW) data every day with the precise flow delivery of the isocratic solvent manager.</li><li><strong>Optimize method development, even in harsh conditions</strong> - Optimize method development via rapid and automated solvent switching and aggressive solvent compatibility, which supports the harsh separation conditions associated with polymer analyses.</li><li><strong>Improve lab efficiency with one system</strong> - Increase analytical scope and laboratory efficiency by leveraging one system to perform multiple applications, including basic liquid chromatography (LC), gradient, isocratic, reverse-phase, and gel permeation chromatography (GPC).</li><li><strong>Simplify your column management</strong> - Simplify and optimize column bank calibration through standards that are matched to column bank MW ranges. Versatile column management allows you to automatically select up to two banks of <strong>ACQUITY APC</strong> columns and up to two banks of traditional GPC columns - all housed in a stable, temperature-controlled environment.</li></ul></div></div><div><div><h4><strong>Recommended Use</strong></h4><p>Highest-resolution, size-based separations for chromatographic polymer and oligomer characterization.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_APC_System_nakonfigurovany_pro_automaticke_prepinani_jak_APC_tak_GPC_kolon_e198c774f4/Waters-ACQUITY-APC-System-nakonfigurovany-pro-automaticke-prepinani-jak-APC-tak-GPC-kolon.jpg" alt="Waters ACQUITY Advanced Polymer Chromatography (APC) System." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_APC_System_nakonfigurovany_pro_automaticke_prepinani_jak_APC_tak_GPC_kolon_e198c774f4/thumbnail_Waters-ACQUITY-APC-System-nakonfigurovany-pro-automaticke-prepinani-jak-APC-tak-GPC-kolon.jpg 213w," sizes="100vw" width="969" height="710"></p><div><div><h3><strong>Accelerate innovation with enhanced insight</strong></h3><p>Harnessing the benefits of advanced polymer chromatography with the ACQUITY APC System means obtaining accurate and repeatable polymer and oligomer molecular weight information anywhere between<strong> 5 to 20 times faster than was possible</strong> with traditional<strong> GPC/SEC technology</strong> - so you can innovate faster while improving laboratory operations.</p><p><strong>With the ACQUITY APC System, you can:</strong></p><ul><li><strong>Reduce laboratory turnaround times for polymer samples&nbsp;</strong>by getting answers to your development labs, your manufacturing operations teams, and your customers - faster.</li><li><strong>Drive innovation</strong>&nbsp;with faster results and more information so that your entire operation can respond more rapidly by decreasing development cycle times and accelerating time to market.</li><li><strong>Streamline process monitoring</strong>&nbsp;and achieve better batch control with the agility to make timely decisions “on-the-fly” about process and synthesis optimization<strong>.</strong></li><li><strong>Significantly reduce the analysis cost per sample</strong>&nbsp;by reducing solvent consumption and waste disposal volumes.</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_ca5154865a.jpg" alt="Waters ACQUITY Advanced Polymer Chromatography (APC) System: Accelerate your innovation with enhanced insight into polymer chemical structure with the ACQUITY APC System." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_ca5154865a.jpg 245w," sizes="100vw" width="1024" height="600"></p><div><div><h3><strong>Optimize method development with solvent switching and compatibility</strong></h3><p>Using the ACQUITY APC System with <strong>Polymer Quaternary Solvent Manager</strong> (p-QSM) <strong>technology </strong>provides chemists and polymer scientists with the ultimate flexibility to analyze the most complex polymer blends and additives using standard polymer chromatography, gradient polymer elution chromatography (GPEC), and reverse-phase LC with a single system.</p><p>Additional system features allow automated solvent selection of up to six different solvents. Automated column bank switching capabilities can also be paired with the rigid and solvent-resilient particles of the <a target="_blank" rel="noopener noreferrer" href="https://lcms.labrulez.com/products/1950"><strong>ACQUITY APC Columns</strong></a> to achieve the world’s first truly automated solution for method development of size-based polymer separations. This supports separation of polymers in hours, instead of days.</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_2_b95f96f0a2.jpg" alt="Waters ACQUITY Advanced Polymer Chromatography (APC) System: Repeatable analysis of poly (methyl methacrylate co ethylacrylate) using the same two running ACQUITY APC 4.6 x 150 mm Columns (450 Å and 125 Å) in series after automated switching of the solvents from THF to toluene to DMF and back to THF." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_2_b95f96f0a2.jpg 245w," sizes="100vw" width="1024" height="609"></p></div></div><div><div><h3><strong>Use advanced detection for even more insights</strong></h3><p>Get the valuable decision-making information you need from a single analysis by equipping the ACQUITY APC System with advanced detectors. Combining the ACQUITY APC System with advanced detection solutions significantly increases information attainable from <strong>size-exclusion chromatography</strong> (SEC) analysis through addition of <strong>refractive index</strong> (RI), <strong>ultraviolet </strong>(UV),<strong> photodiode array </strong>(PDA), <strong>light scattering</strong> (LS), and <strong>differential viscometry</strong> (IV). Advanced detection options from <strong>Wyatt Technology</strong> are seamlessly integrated with ACQUITY APC System, enabling you to fully characterize samples to better inform the structure-property relationship of novel complex polymers.</p></div></div><div><div><h3><strong>Keep pace with your research with dedicated consumables</strong></h3><p>The ACQUITY APC System is even more powerful with <a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/global/products/columns/acquity-apc-columns.html"><strong>ACQUITY APC Columns</strong></a> and <a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/global/products/standards-and-reagents/acquity-advanced-polymer-chromatography-calibration-standards-ki.html"><strong>ACQUITY APC Calibration Standards Kits</strong></a>. The Ethylene Bridged Hybrid (BEH) Technology in ACQUITY APC Columns creates particles that ensure extreme column performance and long column lifetime under harsh operating conditions – ideal for general purpose, reversed-phase chromatography, and for method development due to extreme pH stability and applicability to the broadest range of compound classes.</p><p>With run times of less than 10 minutes, a bank of ACQUITY APC Columns can be <strong>calibrated in less than 30 minutes</strong> using ACQUITY APC Calibration Standards Kits.&nbsp;These standard kits have been matched to the MW range of ACQUITY APC Columns, generating a 10-point calibration for any bank combination in a simple dilute-and-shoot format. With daily column bank calibration, you can greatly improve data consistency to increase confidence in batch-to-batch measurements. Select the best column and calibration standards for a given application with our convenient <a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/promotionDetail.htm?id=134823417">selector tool</a>.&nbsp;</p><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_4_056bb6d284.jpg" alt="Waters ACQUITY Advanced Polymer Chromatography (APC) System: Ethylene Bridged Hybrid (BEH) Technology helps you keep up with the pace of your research with state-of-the-art reversed-phase and HILIC HPLC columns." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_4_056bb6d284.jpg 245w," sizes="100vw" width="1024" height="620"><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_5_7a814e249b.jpg" alt="Waters ACQUITY Advanced Polymer Chromatography (APC) System: Improve data and consistency with ACQUITY APC Calibration Standards." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_Advanced_Polymer_Chromatography_APC_System_5_7a814e249b.jpg 245w," sizes="100vw" width="1024" height="591"></p></div></div></div></div></div></div></div></div></div></div>

Waters/Wyatt omniDAWN™ MALS detector

Waters omniDAWN is an advanced MALS detector for UPLC/UHPLC, delivering absolute molecular weight and particle size measurements from 200 Da to 1 GDa.

<p><strong>The omniDAWN™ MALS Detector is a next-generation multi-angle light scattering system specifically designed for UPLC™ and UHPLC workflows. It delivers absolute molecular weight and particle size measurements without relying on column calibration or molecular standards, allowing researchers to obtain highly accurate characterization data at true high-performance chromatography speeds.</strong></p><p>Equipped with 18 optimally positioned scattering angles and a flow cell engineered to minimize stray light, omniDAWN measures molar masses from 200 Da to 1 GDa and particle radii from 10 nm to 1 µm. The system is ideally suited for characterization of proteins, antibody-drug conjugates (ADCs), lipid nanoparticles (LNPs), viral vectors, polymers, and other complex macromolecular systems.</p><p>Combined with ASTRA™ software, omniDAWN provides comprehensive characterization of molecular size, molar mass, composition, and stoichiometry. Integrated health monitoring and the COMET™ ultrasonic cleaning module ensure reliable operation, minimal maintenance, and consistent analytical performance.</p><h3><strong>Key Features</strong></h3><ul><li>Purpose-built for UPLC™ and UHPLC systems</li><li>Absolute molecular weight determination without calibration standards</li><li>Absolute particle size characterization</li><li>18 optimized light scattering angles</li><li>Molecular weight range from 200 Da to 1 GDa</li><li>Particle radius range from 10 nm to 1 µm</li><li>High sensitivity with minimal stray light interference</li><li>Up to 4× faster LC-MALS analysis using UPLC</li><li>Reduced sample consumption</li><li>Improved chromatographic resolution</li><li>Advanced workflows for ADCs, LNPs, viral vectors, and polymers</li><li>ASTRA™ software for advanced data analysis</li><li>Integrated System Ready Monitor</li><li>COMET™ ultrasonic in situ cleaning</li><li>Real-time health diagnostics</li><li>Automated system performance monitoring</li></ul><h3><strong>Technical Specifications</strong></h3><h4><strong>Technology</strong></h4><ul><li>Multi-Angle Light Scattering (MALS)</li><li>18 light scattering detectors</li><li>Low stray-light flow cell design</li></ul><h4><strong>Measurement Range</strong></h4><ul><li><strong>Molecular weight:</strong> 200 Da to 1 GDa</li><li><strong>Particle radius: </strong>10 nm to 1 µm</li></ul><h4><strong>Performance</strong></h4><ul><li>UPLC™ and UHPLC compatible</li><li>Up to 4× faster than conventional HPLC-MALS</li><li>Improved chromatographic resolution</li><li>Reduced sample requirements</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Wyatt_omni_DAWN_MALS_photometer_2_61d44b5eca.jpg" alt="Waters/Wyatt: A) Achieve up to 4× faster LC-MALS runs with UPLC. B) Achieve superior separation, revealing fragment peaks not discernible by HPLC." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Wyatt_omni_DAWN_MALS_photometer_2_61d44b5eca.jpg 106w," sizes="100vw" width="400" height="588"></p><h4><strong>Software</strong></h4><ul><li>ASTRA™ Software</li><li>Molecular weight analysis</li><li>Particle size determination</li><li>Conjugate stoichiometry analysis</li><li>ADC characterization</li><li>LNP characterization</li><li>Viral vector characterization</li><li>Polymer branching analysis</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Wyatt_omni_DAWN_MALS_photometer_3_635f3c2555.jpg" alt="Waters/Wyatt: ASTRA software goes beyond measuring overall molecular weight by: A) uniquely resolving individual components to quantify protein and conjugated species and determine stoichiometry, and B) reporting the total protein fraction." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Wyatt_omni_DAWN_MALS_photometer_3_635f3c2555.jpg 244w," sizes="100vw" width="511" height="327"></p><h4><strong>Monitoring and Maintenance</strong></h4><ul><li>System Ready Monitor</li><li>Real-Time Health Monitoring</li><li>COMET™ ultrasonic cleaning</li><li>Automated diagnostics</li><li>Continuous system performance verification</li></ul><h4><strong>Typical Applications</strong></h4><ul><li>Monoclonal antibodies</li><li>Antibody-drug conjugates (ADCs)</li><li>Lipid nanoparticles (LNPs)</li><li>Viral vectors</li><li>Proteins and peptides</li><li>Polymer materials</li><li>Conjugated polymers</li><li>Biotherapeutics</li><li>Nanotechnology research</li></ul>

Waters SEC Columns

Get unmatched batch-to-batch reproducibility with the wide range of Waters Size-Exclusion Chromatography (SEC) Columns and standards for protein and peptide characterization.

<h4><strong>Size-based separations of peptides, proteins, nucleic acids, LNPs, and viral vectors</strong></h4><p>Get unmatched batch-to-batch reproducibility with the wide range of <strong>Waters Size-Exclusion Chromatography (SEC) Columns</strong> and standards for protein and peptide characterization.</p><p><strong>SEC</strong> is a powerful technique for aggregate and fragment analysis in the <strong>research, development</strong>, and <strong>manufacturing of biotherapeutic proteins</strong>, such as <strong>insulin</strong> and <strong>monoclonal antibodies</strong> (mAb). With SEC, also known as gel filtration, you can separate proteins based on their size (hydrodynamic radii versus absolute molecular weight) in solution, with larger sized species eluting before smaller proteins.</p><p>The <strong>pore size and volume</strong> of the SEC particles used in the packed column drives this <strong>isocratic based technique</strong>, so the column you choose matters. As the molecular weight of the proteins of interest increases, SEC columns with comparatively larger pore size particles are selected.</p><h4><strong>Overview</strong></h4><ul><li>Gain efficiency with this “platform based” method for <strong>proteins ranging from 10,000 to 650,000 Daltons</strong>, leveraging <strong>MaxPeak Premier Technology</strong> coupled with <strong>BEH-PEO Particle Technology&nbsp;</strong> &nbsp;&nbsp;</li><li><strong>Minimize non-desired secondary interactions </strong>for improved separation reproducibility and results with Ethylene Bridged Hybrid (BEH) SEC particles</li><li>Ensure reliable <strong>column-to-column and batch-to-batch performance</strong> with columns quality control tested with relevant peptide, protein, and mAb samples &nbsp;</li><li>Achieve reliable <strong>high throughput analysis on UPLC</strong> systems with our <strong>1.7 µm particle size</strong> offering and reproducible separations on any <strong>HPLC, UHPLC, or UPLC system</strong> to address different application needs with <strong>2.5 µm&nbsp;</strong></li><li><strong>Extend analytical column life</strong> and<strong> lower cost per analyses </strong>with SEC Guards&nbsp;</li><li>Confirm on-site SEC column and LC system performance with available BEH125, BEH200, BEH450, and mAb Size Variant Standards &nbsp;&nbsp;</li><li><strong>Manufactured in a cGMP, ISO 9001</strong> certified plant using stringent manufacturing protocols and ultra-pure reagents</li></ul><p><strong>Recommended Use: </strong>For size-based peptide, protein, and viral vector analyses.</p><h4><strong>System Dispersion Specifications for Column Recommendations</strong></h4><h5><strong>LC System Dispersions &lt;20 µL (UPLC)</strong></h5><ul><li>ACQUITY Premier Protein SEC 250 Å Guards and Columns</li><li>ACQUITY UPLC Protein BEH SEC 125 Å, 200 Å, and 450 Å Guards and Columns</li><li>1.7 µm guards and columns for low dispersion UPLC systems</li></ul><h5><strong>LC System Dispersions &gt;20 µL – ≤35 µL (UHPLC)</strong></h5><ul><li>XBridge Premier Protein SEC 250 Å Guards and Columns</li><li>XBridge Protein BEH SEC 125 Å, 200 Å, and 450 Å Guards and Columns</li><li>BioResolve mAb SEC Guards and Columns</li><li>2.5 µm guards and columns for UHPLC systems</li></ul><h5><strong>LC System Dispersions &gt;35 µL (HPLC)</strong></h5><ul><li>XBridge Protein BEH SEC 125 Å, 200 Å, and 450 Å Guards and Columns</li><li>XBridge Premier Protein SEC 250 Å Guards and Columns</li><li>BioResolve mAb SEC Guards and Columns</li><li>BioSuite SEC Guards and Columns</li><li>3.5 µm guards and columns for HPLC systems</li></ul><h4><strong>GTxResolve SEC Columns</strong></h4><h5><strong>GTxResolve Premier BEH SEC 450 Å Columns</strong></h5><ul><li>2.5 µm particle size columns for UHPLC and UPLC separations</li><li>Lower secondary interactions and lower noise suitable for platform methods</li><li>Low adsorption hardware necessary for analysis of biologics samples</li><li>450 Å pore size with up to 50% higher resolving power reducing need for sample consumption, resulting in faster analyses<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/us/en/products/columns/GTxResolve-sec-columns.html"><strong>Explore GTxResolve SEC Columns</strong></a></li></ul></li></ul><h5><strong>GTxResolve Premier SEC 1000 Å Columns</strong></h5><ul><li>3 µm columns for UHPLC and UPLC separations</li><li>1000 Å columns with high efficiency for aggregate analysis of GTx drugs with diameter of 80-200 nm</li><li>Low secondary interaction &amp; improved compatibility with universally applied detector, such as MALS</li><li>Low adsorption hardware necessary for analysis of biologics samples<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/us/en/products/columns/GTxResolve-sec-columns.html"><strong>Explore GTxResolve SEC Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_G_Tx_Resolve_SEC_Columns_1b8741a62b.jpg" alt="Waters: GTxResolve SEC Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_G_Tx_Resolve_SEC_Columns_1b8741a62b.jpg 234w," sizes="100vw" width="1024" height="682"></p><h4><strong>Protein SEC Columns</strong></h4><h5><strong>ACQUITY Premier Protein SEC 250 Å Guards and Columns</strong></h5><ul><li>Sub-2-μm particle columns for UPLC separations</li><li>250 Å pore size</li><li>High throughput &amp; resolution SEC separations of biomolecules ranging from 10,000 to 650,000 Daltons on low dispersion UPLC Systems</li><li>Available SEC Guard Columns to extend analytical SEC Column life</li><li>Significantly reduce non-desired ionic and hydrophobic secondary interaction for desired SEC platform methods with MaxPeak Premier Technology and BEH-PEO SEC particle technology<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/us/en/products/columns/acquity-premier-columns.html"><strong>Explore ACQUITY Premier Protein BEH SEC Guards and Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_ACQUITY_Premier_Columns_featuring_Max_Peak_HPS_Technology_11a541350e.jpg" alt="Waters: ACQUITY Premier Columns featuring MaxPeak HPS Technology" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_ACQUITY_Premier_Columns_featuring_Max_Peak_HPS_Technology_11a541350e.jpg 234w," sizes="100vw" width="1024" height="682"></p><h5><strong>XBridge Premier Protein SEC 250 Å Guards and Columns</strong></h5><ul><li>2.5 μm particle columns for HPLC and UHPLC separations</li><li>250 Å pore size</li><li>High resolution SEC separations of biomolecules ranging from 10,000 to 650,000 Daltons on any LC system</li><li>Available SEC Guard Columns to extend analytical SEC Column life</li><li>Significantly reduce non-desired ionic and hydrophobic secondary interaction for desired SEC platform methods with MaxPeak Premier Technology and BEH-PEO SEC particle technology</li><li>Specifically designed and QC tested with NIST-based, mAb Size Variant Standard to help ensure batch-to-batch consistency<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/global/Waters-XBridge-Premier-Columns/nav.htm"><strong>Explore XBridge Premier Protein BEH SEC Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_X_Bridge_Premier_Columns_0230c90278.jpg" alt="Waters: XBridge Premier Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_X_Bridge_Premier_Columns_0230c90278.jpg 193w," sizes="100vw" width="950" height="768"></p><h5><strong>BioResolve mAb SEC Guards and Columns</strong></h5><ul><li>2.5 μm particle columns for UPLC, UHPLC, and HPLC separations</li><li>200 Å pore size</li><li>Obtain reproducible, accurate quantitation of monoclonal antibodies (mAbs), associated high molecular weight aggregates (&gt;300,000 Da), and lower molecular weight fragments (e.g., &lt;100,000 Da)</li><li>Each packed column is tested with NIST-based, mAb size variant standard to help ensure batch-to-batch and column-to-column performance consistency<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/global/BioResolve-SEC-mAb-Consumables-%7C-SEC-Guards/nav.htm"><strong>Explore BioResolve mAb SEC Guards and Columns</strong></a></li></ul></li></ul><h5><strong>ACQUITY UPLC Protein BEH SEC Guards and Columns</strong></h5><ul><li>Sub-2-μm particle columns for UPLC separations (2.5 μm for 450 Å)</li><li>Pore size options include: 125 Å, 200 Å, and 450 Å</li><li>Available SEC Guard Columns to extend analytical SEC Column life</li><li>Specifically designed and QC tested with BEH125, BEH200, or BEH450 protein standards to help ensure batch-to-batch consistency</li><li>10x faster than traditional HPLC-based SEC<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/nextgen/us/en/products/columns/acquity-uplc-columns.html"><strong>Explore ACQUITY UPLC Protein BEH SEC Guards and Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Acquity_UPLC_kolony_1dc5c25d3e/Waters-Acquity-UPLC-kolony.jpg" alt="Waters: Acquity UPLC columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Acquity_UPLC_kolony_1dc5c25d3e/thumbnail_Waters-Acquity-UPLC-kolony.jpg 245w," sizes="100vw" width="807" height="407"></p><h5><strong>XBridge Protein BEH SEC Columns</strong></h5><ul><li>2.5 μm particle columns for use on any UPLC, UHPLC, or HPLC system</li><li>Pore size options include: 125 Å, 200 Å, and 450 Å</li><li>Available SEC Guard Columns to extend analytical SEC Column life</li><li>Specifically designed and QC tested with BEH125, BEH200, or BEH450 protein standards to help ensure batch-to-batch consistency<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/global/XBridge-BEH-Columns-for-High-pH-Chromatography/nav.htm"><strong>Explore XBridge Protein BEH SEC Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_X_Bridge_Columns_b0b55de501/Waters-XBridge-Columns.jpg" alt="Waters: XBridge Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_X_Bridge_Columns_b0b55de501/thumbnail_Waters-XBridge-Columns.jpg 203w," sizes="100vw" width="900" height="691"></p><h4><strong>Peptide SEC Columns</strong></h4><h5><strong>BioSuite SEC Columns</strong></h5><ul><li>Silica-based diol SEC columns</li><li>Molecular weight exclusion limits are determined primarily by the selected pore size</li><li>Available in analytical and semi-preparative column sizes<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/global/BioSuite-Columns/nav.htm"><strong>Explore BioSuite SEC Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Bio_Suite_Columns_bf2bb8249f.jpg" alt="Waters: BioSuite Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Bio_Suite_Columns_bf2bb8249f.jpg 184w," sizes="100vw" width="307" height="260"></p><h5><strong>Protein-Pak SEC Columns</strong></h5><ul><li>Based on a 10 μm diol-bonded silica</li><li>Resolve proteins that differ in molecular weight by a factor of two</li><li>Distinguish proteins differing by as little as 15% in molecular weight<ul><li><a target="_blank" rel="noopener noreferrer" href="https://www.waters.com/waters/global/Protein-Pak-HPLC-and-UPLC-Columns/nav.htm"><strong>Explore Protein-Pak SEC Columns</strong></a></li></ul></li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Protein_Pak_Columns_be6a669326.jpg" alt="Waters: Protein-Pak Columns" srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Protein_Pak_Columns_be6a669326.jpg 245w," sizes="100vw" width="500" height="315"></p><h4><strong>Choose the right SEC Column for your lab</strong></h4><p>SEC is ideal for aggregate and fragment analysis in the research, development, and manufacturing of biotherapeutic peptides, proteins, and viral vectors, but choosing the right column for your analysis is important. Use the following criteria to choose a column that provides reliable, high quality SEC analyses of various biomolecules, including insulin, monoclonal antibodies, and adeno associated viruses (AAVs).</p><h5><strong>What to consider when choosing an SEC Column:</strong></h5><ul><li>What is the molecular weight of your sample?</li><li>What is the dispersion of your LC system?</li><li>Are you separating components &lt;2 fold difference in molecular weight (MW)?</li><li>Are you separating components &gt;2 fold difference in MW?</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Choose_the_right_Size_exclusion_chromatography_SEC_column_for_your_analysis_with_Waters_SEC_columns_selection_guide_b81f674f65.jpg" alt="Waters: Choose the right Size-exclusion chromatography (SEC) column for your analysis with Waters SEC columns selection guide." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Choose_the_right_Size_exclusion_chromatography_SEC_column_for_your_analysis_with_Waters_SEC_columns_selection_guide_b81f674f65.jpg 158w," sizes="100vw" width="1024" height="1013"></p><h4><strong>Addressing the complexity of SEC Separations</strong></h4><p>Experience the advancements in SEC-based technologies to address non-desired specific ionic and hydrophobic interactions for more reliable results with ACQUITY Premier Protein SEC and XBridge Premier Protein SEC Columns and Guards.</p><h5><strong>With MaxPeak Premier SEC Columns, you can:</strong></h5><ul><li>Reproducibly resolve injected sample components that are less than 2x different in size for challenging applications</li><li>Use a ‘platform SEC method’ to reduce method development time and cost</li><li>Ensure batch-to-batch and column-to-column performance</li></ul><p><img src="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/Waters_Classes_of_therapeutic_proteins_separated_on_an_ACQUITY_Premier_Protein_SEC_Column_d3f74a8ea4.jpg" alt="Waters: Classes of therapeutic proteins separated on an ACQUITY Premier Protein SEC Column." srcset="https://storage.googleapis.com/labrulez-bucket-strapi-h3hsga3/thumbnail_Waters_Classes_of_therapeutic_proteins_separated_on_an_ACQUITY_Premier_Protein_SEC_Column_d3f74a8ea4.jpg 234w," sizes="100vw" width="1024" height="682"></p>

Products focused on GPC/SEC from Waters - page 1
