High-end solution for most challenging tasks. Ideally suited for quality control tasks with high sample throughput. This solution is recommended whenever lowest detection limits, highest analysis speed and resolution or most accurate flow delivery is needed.
Choose this system whenever highest performance and speed is needed!
If your applications do not require such a high back pressure and resolution, then you should take a look at the KNAUER AZURA HPLC systems. These can be operated at up to 862 bar.
An AZURA UHPLC system adapts to your application requirements. The highly modular system design allows you to choose the best suited components for your specific task.
The new AZURA® P 8.1L UHPLC pump is specially designed for ultra-fast and high-resolution applications. It features a 2-channel internal degassing unit, a 2x2 channel solvent selection valve, and a low dwell-volume eluent mixer.
The adaptive pulsation compensation of the pump is independent of flow rate, backpressure, and eluent type through real-time eluent compressibility monitoring and variable piston stroke. Together with the ultra-precise piston movement thanks to KNAUER’s proprietary advanced piston drive technology, this results in outstanding flow reproducibility at any working conditions.
Knauer: KNAUER AZURA 1240 bar UHPLC System - Binary high-pressure gradient (HPG) pump system
The autosampler AZURA AS 6.1L 1240 bar can inject from up to 768 positions when equipped with microtiter plates or from up to 108 standard 2 ml sample vials. It is equipped with an ILDTM valve, consisting of a rotor-stator combination with a central port for depressurizing the sample loop before receiving the sample. This way, the sample is not diluted with solvent. A Cooling/heating option (4–40 °C) is optionally available.
Knauer: KNAUER AZURA 1240 bar UHPLC System - autosampler AZURA AS 6.1L 1240 bar
The Liquid handler LH 8.1 offers automatic sample preparation to speed up your workflow. No sample loss and high precision injection of small and large sample volumes are provided. High-throughput with up to 4 robotic coolers with max. of 24 racks for up to 390 HPLC vials or well plates. Washing station with two different wash solvents minimizes carry-over. Flexibility of modules and functions according to your needs.
The forced air column thermostat AZURA CT 2.1 is capable of heating or cooling from 5 to 85 °C. The powerful fan and robust peltier element keep the column at a very stable temperature, thus allowing reproducible analysis results. Optional eluent preheating cartridges can be installed.
Knauer: KNAUER AZURA Educational HPLC System - Column selection and thermostat
KNAUER valves V 4.1 and the KNAUER valve drive VU 4.1 are designed for a wide range of chromatographic applications. Flexibility is provided by choice of different materials and sizes as well as drivers for various software packages.
The AZURA Diode array detectors (DAD) are high-end diode array detectors with a wavelength range from 190–1000 nm for the AZURA DAD 6.1L and 190–700 nm for the AZURA DAD 2.1L. The intelligent temperature management of both devices enables fast operational readiness after startup. It also minimizes baseline drift. Due to the frontally accessible deuterium and halogen lamp, the device is easy to service.
Knauer: KNAUER AZURA 1240 bar UHPLC System - AZURA DAD 6.1L Diode array detectors (DAD or PDA)
The SCIEX Triple Quad™ 4500 MS/MS system offers superior quantitative performance with high sensitivity combined with excellent robustness and long-term stability. Designed for food, environmental, forensic and clinical research, this MS/MS system enables test development for even the most demanding applications.
The AZURA MWD 2.1L is an 8 channel, sensitive multiwavelength detector combining high performance with easy handling at an affordable price. The newly developed optical unit and intelligent temperature management ensure for maximum sensitivity combined with minimal baseline drift.
The UV/VIS Detector AZURA UVD 2.1L is a competitively priced HPLC spectrophotometer for routine HPLC applications including fast LC methods. It comes with an installed deuterium lamp which covers a wavelength range from 190 to 750 nm. Due to a smart design the flow cell is easily accessible and can be changed very quickly.

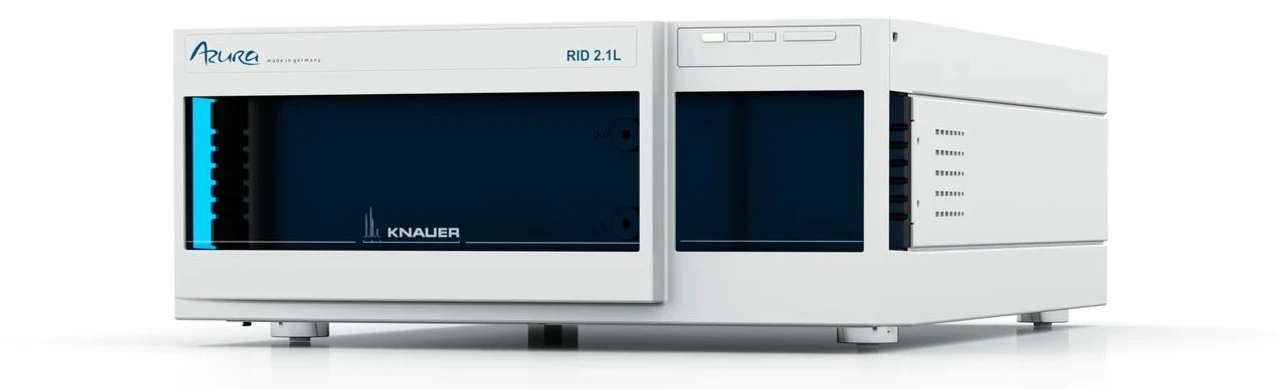

The AZURA RID 2.1L is a sensitive and competitively priced differential refractometer. It is suitable for detecting compounds with little or no UV activity such as alcohols, sugars, lipids or polymers. The intelligently designed optical unit with advanced temperature control ensures high sensitivity, fast baseline stabilization, and excellent reproducibility. The wide linear dynamic range, its low internal volume of 43 µl from the inlet to the flow cell and 10 ml/min maximum flow rate make the AZURA RID 2.1L the perfect choice for most laboratory tasks.
Knauer: KNAUER AZURA 1240 bar UHPLC System - AZURA RID 2.1L Refractive index detection (RI)
The fluorescence detectors RF-20A and RF-20Axs provide world-class sensitivity, excellent maintainability and diverse validation / support functions. They support a wide range of applications in the wavelength range of 200 to 750 nm for the RF-20Axs and 200 to 650 nm for the RF-20A from conventional analysis to high-performance analysis.
As an universal detector, an ELSD offers numerous possibilities for detecting substances that have few or no chromophores. Since the eluents are evaporated, the use of non-UV-compatible solvents poses no problems and the ELSD is gradient compatible. KNAUER offers different models for different application tasks.

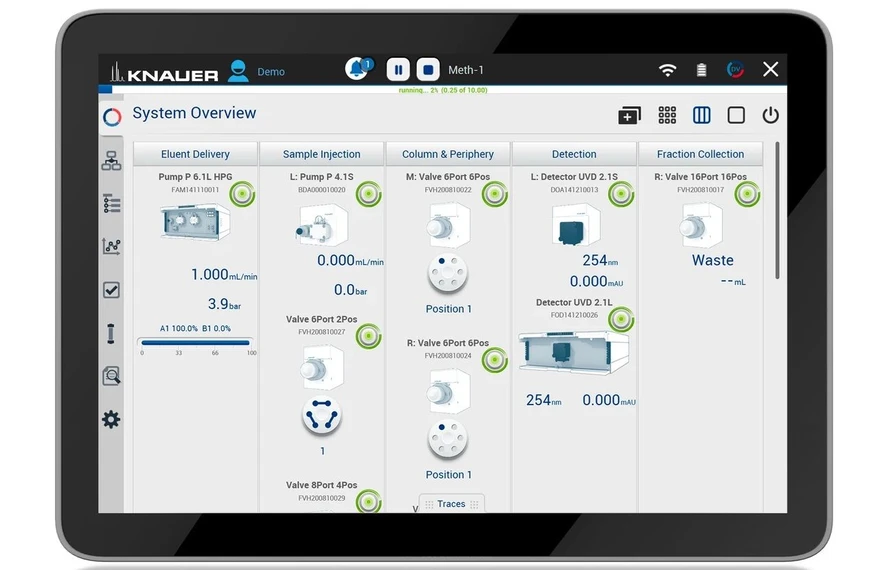

The Mobile Control is an intuitive and cost-effective software solution for controlling and monitoring your AZURA devices and systems. The clear system overview provides instant information on key parameters and system status. Adjust and operate single devices or even whole systems with a few fingertips. The well-structured block programming assists you to clearly and quickly automate device control. A smart user management makes the Mobile Control safe. Device parameters can only be changed by authorized operators.
Knauer: KNAUER AZURA Educational HPLC System - Mobile Control software
ClarityChrom is an easy-to-use chromatography data system for workstations. The optional control extensions for GC, PDA and GPC allow to use the software for a wide range of applications.
Basic Workstation license, includes System Suitability, Fraction Collector Control and Software Maintenance Agreement
Thermo Scientific™ Dionex™ Chromeleon™ is one of the most wide-spread chromatography data systems. Its intuitive handling benefits laboratory workflow and the highly developed algorithms simplify data processing. It offers a broad range of third-party drivers and can be easily used with existing HPLC systems. KNAUER offers drivers for a lot of its devices.
