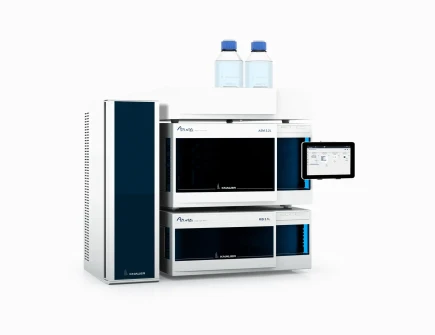

KNAUER AZURA® SEC Compact System

Compact, versatile system for SEC and GPC applications

The AZURA SEC Compact systems offer an outstanding price-to-performance ratio and are the perfect solution for every laboratory entering the analytical world of GPC/SEC, for process control applications, or for limited-budget and educational laboratories.

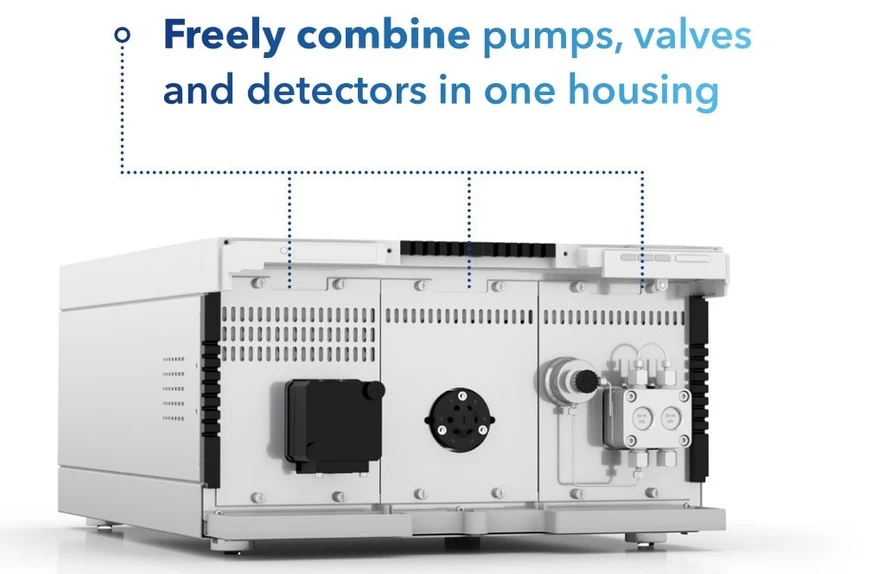

The heart of the systems is the Assistant ASM 2.2L is a docking station for three compact devices. Valves, pumps and UV detectors can be combined in one housing. Routine maintenance work e.g. replacing the lamp of a detector is easily performed by the user.

Thanks to its modular concept the systems can be extended with additional components at any time later.

KNAUER: AZURA® SEC Compact System.

Key Features

• Flow rate: 0.001–10 ml/min
• Pressure: Up to 400 bar
• Intuitive operation with maximum precision
• Injection via valve drive for minimal pressure spikes
• Supports a wide range of SEC and GPC columns
• Dedicated SEC/GPC ClarityChrom^® add-on for in-depth data evaluation
• Expandable, space-saving design
• Suitable for organic and aqueous eluents

System Components & Configurations

• Isocratic pump
• UV and RI detectors
• Column thermostat
• Automatic injection (optional)
• ClarityChrom® add-on for in-depth data evaluation
• Choose a hardware version for aqueous SEC of biomolecules or organic GPC of polymers

Detection Options

• RI, UV, ELSD, PDA, FLD, MS

Upgrade Options

• Automatic solvent recycle valve (cost-saving feature)
• Degasser
• Autosampler
• Additional detectors (RI, UV, ELSD, PDA, FLD, ECD)
