33 1 3048 7200Today’s scientists and lab managers need to confidently produce the most accurate, reliable, and reproducible data. The Arc Premier System produces correct, robust results from the very first injection, reliably and easily.
The Arc Premier System features the new, innovative solution of MaxPeak High Performance Surfaces (HPS) Technology, which effectively reduces non-specific adsorption due to metal interaction — without complicated mobile phases or laborious methods. The Arc Premier System sharpens chromatographic peaks for metal-sensitive compounds by eliminating secondary interactions from metals, resulting in:

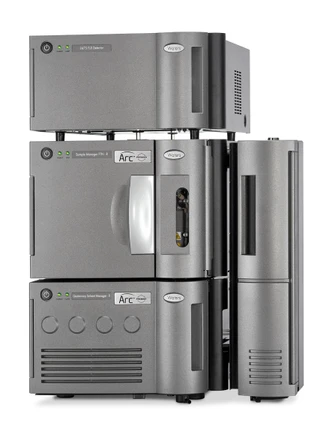

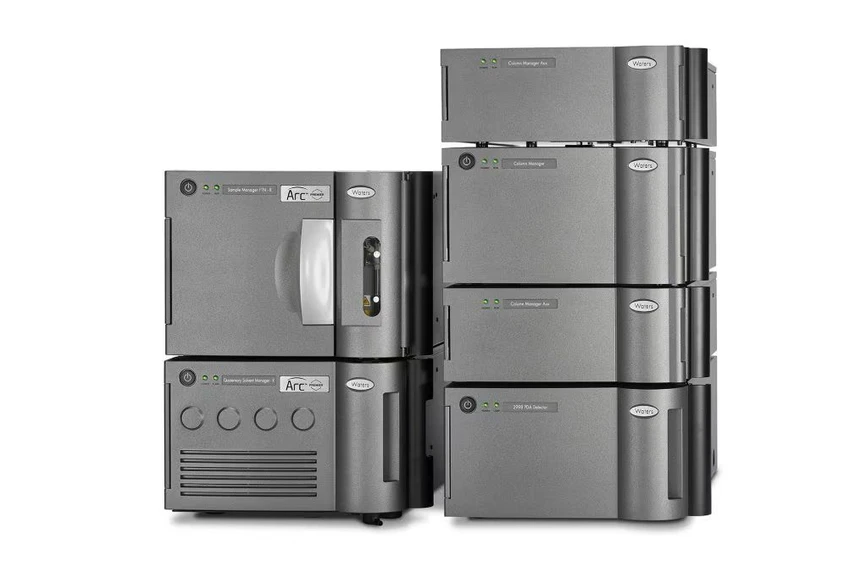

Waters Arc Premier LC System
With the Arc Premier System, we continue to deliver on the product quality you expect, combined with recent innovations in MaxPeak HPS Technology, to always deliver the best possible results.
Whether you are working to ensure the safety of a new and innovative product, maintain the consistency and supply of a current one, or test your food safety and quality, the Arc Premier System gives you greater data quality, flexibility, reproducibility, and faster data integration with right first-time results right out of the box, without the need for complicated mobile phases and laborious methods to prepare your system.

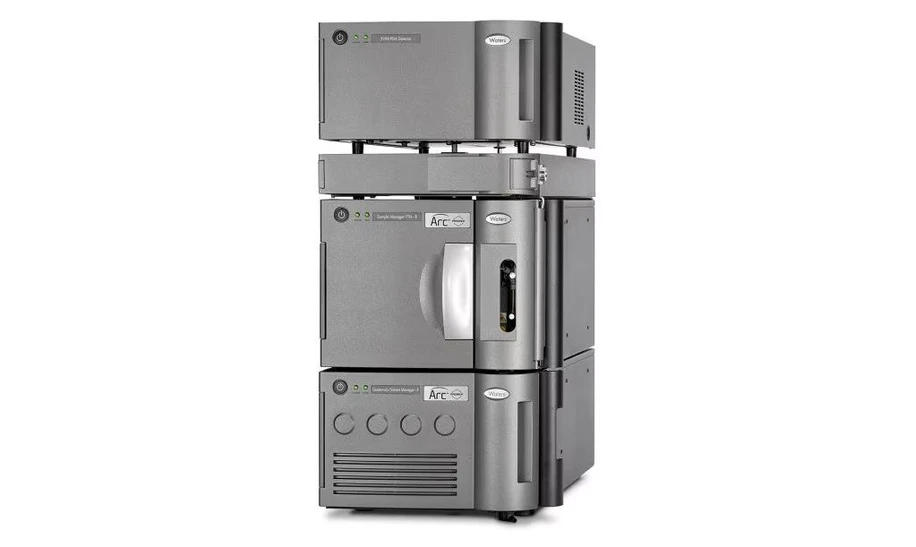

Waters Arc Premier LC System
Versatile column management: Support for analytical LC column dimensions up to 300* mm with capacity to automatically select between as many as six analytical columns. Equipped with independently controlled temperature zone, active pre-heating, and eCord™ Intelligent Chip Technology for Waters columns.
* MaxPeak Premier Columns are recommended for use with the Arc Premier System and are currently only available in lengths up to 150 mm.

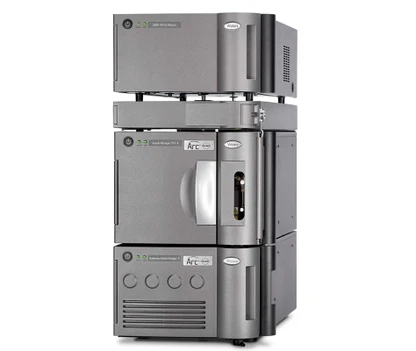

Waters Arc Premier LC System
Non-specific adsorption of metal-sensitive compounds is an unpredictable challenge, resulting in chromatography with large relative standard deviations (RSDs) and broad, overlapping peaks, which can be challenging to integrate quickly and be accurate consistently.
Designed with MaxPeak HPS Technology and paired with MaxPeak Premier 2.5 μm Columns, the Arc Premier System improves data quality for challenging compounds, including metal-sensitive compounds tested with LC methods – so you can see clearly and consistently, with confidence.

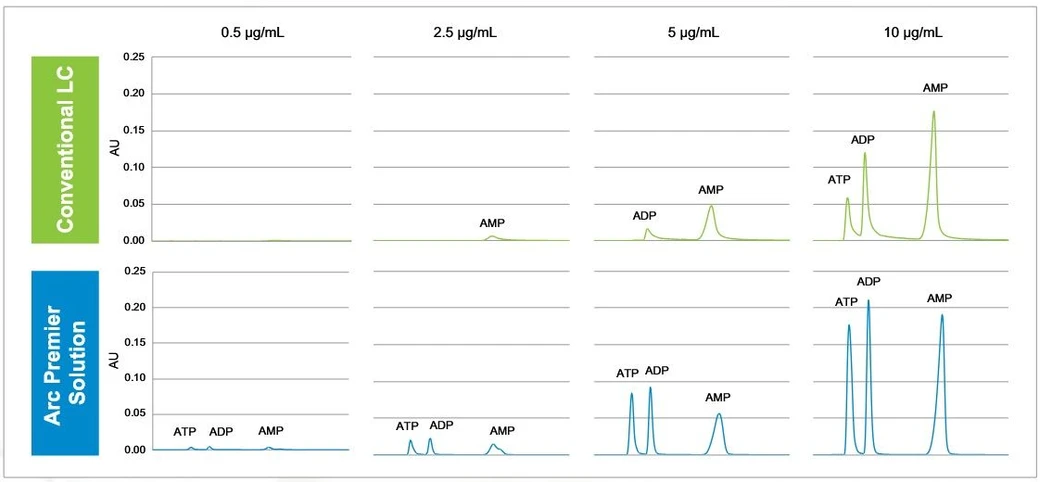

Waters Arc Premier LC System: Figure 1. Analysis of adenosine monophosphate, adenosine diphosphate, and adenosine triphosphate. Significant improvements to sensitivity and recovery are observed with the Arc Premier Solution compared to a conventional LC system.
Future-proof your lab for the next generation of challenging compounds with MaxPeak HPS Technology, which sharpenspeaks for metal-sensitive compounds, resulting in higher data quality and improved sensitivity with chromatographic reproducibility and precision.
Data quality and performance are critical for your lab, but those can’t come at the sacrifice of ruggedness and ease of use.
With MaxPeak HPS Technology and flexible LC performance, your lab gets the typical benefits of an LC system optimized for 2.x μm column chemistry with the MaxPeak HPS Technology’s ability to shorten run times and achieve sharp peaks - no lengthy and complex conditioning and conditioning methodologies for metal-sensitive compounds required.

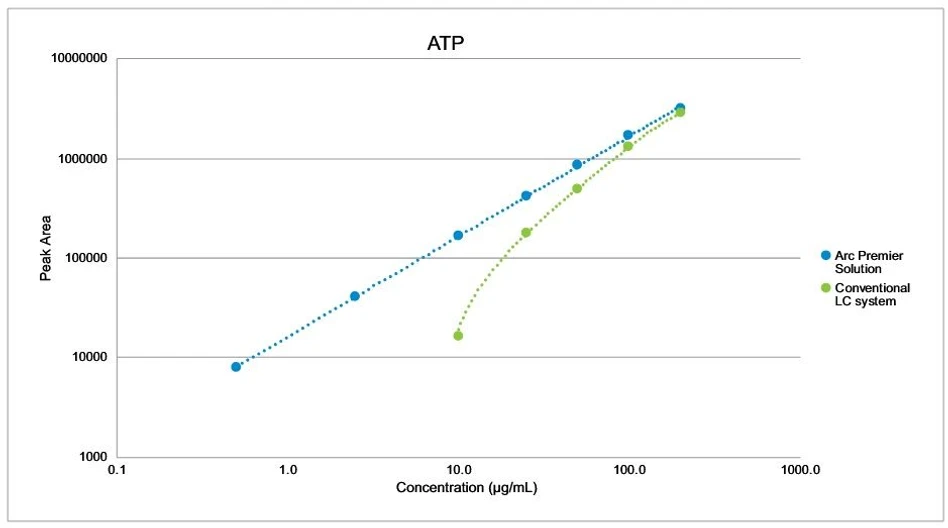

Waters Arc Premier LC System: Figure 2. Analysis of adenosine triphosphate. Lower limits of detection and increased calibration curve linearity are demonstrated with the Arc Premier Solution compared to a conventional LC system.
Seeing your results more clearly than ever is critical, but those results must be consistent and error-free and your methods easily reproducible, so you can spend less time on analysis and ensure compliance.
By significantly sharpening peak shapes for metal-sensitive analytes, scientists report an improvement in %RSD when integrating data from metal-sensitive compounds on the Arc Premier System. Along with the improvement in data consistency users also report a decrease of time needed to integrate peaks by approximately 30%.

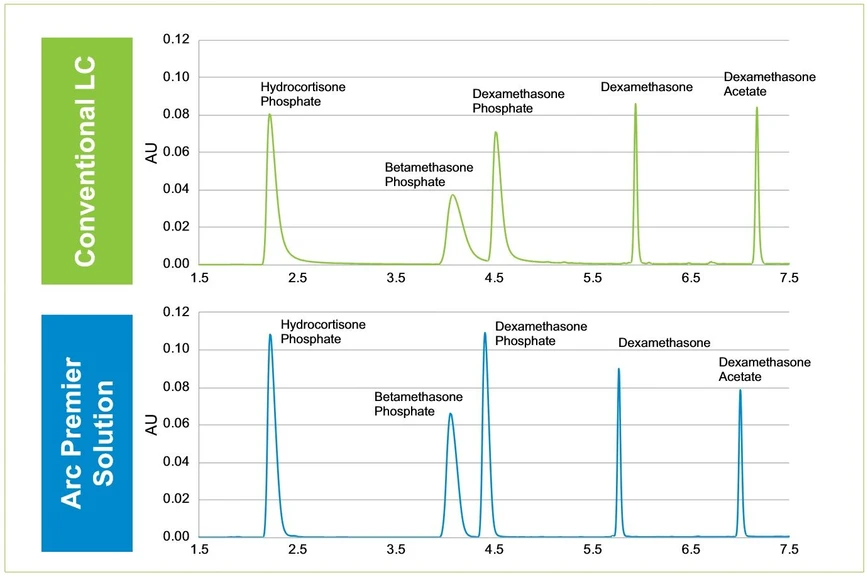

Waters Arc Premier LC System: Figure 3. Analysis of hydrocortisone phosphate, betamethasone phosphate, dexamethasone, and dexamethasone acetate. Peak heights increased and peak shapes are more symmetrical for metal- sensitive compounds on the Arc Premier Solution compared to a conventional LC system.
The Arc Premier System eliminates the need for variability-prone conditioning and complex mobile phases – so you can minimize user errors, improve compliance, and reduce expensive audits from red flag-inducing conditioning injections.
Your organization needs to reliably migrate higher-quality methods between your systems for maximum reproducibility. With MaxPeak HPS Technology and flexible pump configurations, your lab can easily, reliably migrate methods between MaxPeak HPS-based systems quickly, saving you time and money from unnecessary rework. You can also migrate methods from non-MaxPeak HPS-enabled systems safely, as method performance of non-metal-sensitive compounds have been shown to not be adversely affected.
Combining higher data quality with ease of use for your analysts and seamless method transfer, enables results that can be generated consistently between runs and with various analysts.

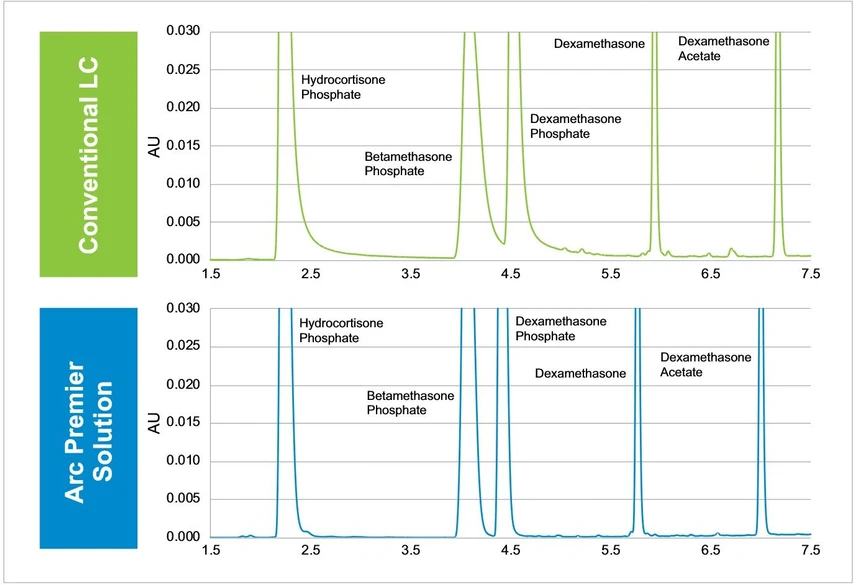

Waters Arc Premier LC System: Figure 4. Analysis of hydrocortisone phosphate, betamethasone phosphate, dexamethasone, and dexamethasone acetate. A zoom in on the baseline shows improved peak shapes and resolution for metal-sensitive compounds on the Arc Premier Solution compared to a conventional LC system, improving baseline resolution.
Reducing analytical uncertainty and achieving peace of mind are important for your organization. With MaxPeak HPS Technology, metal-sensitive analytes become visible that were previously undetectable. This allows you to quickly and confidently know that you’ve seen everything in your sample, giving you the confidence to stand behind your data-driven decisions.
The combination of MaxPeak HPS Technology, flexible pump and column management options, and precise optical and MS detection give you the method development and verification capabilities to know that no matter the sample - you can deliver a robust method you can stand behind.

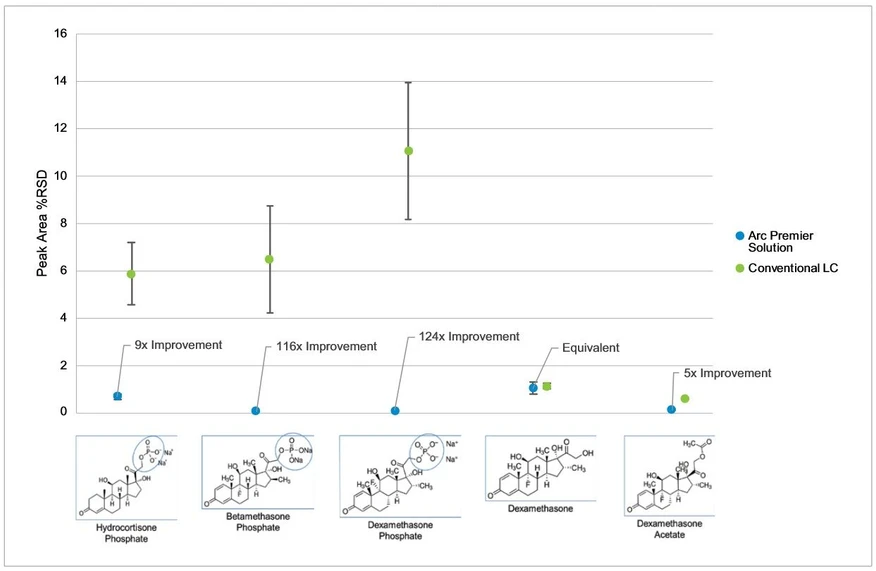

Waters Arc Premier LC System: Figure 5. Analysis of data of hydrocortisone phosphate, betamethasone phosphate, dexamethasone, and dexamethasone acetate from an Arc Premier System and a conventional LC system by six users. Peak area reproducibility improved 9 – 124x when integrating the same data from metal-sensitive compounds across six users.

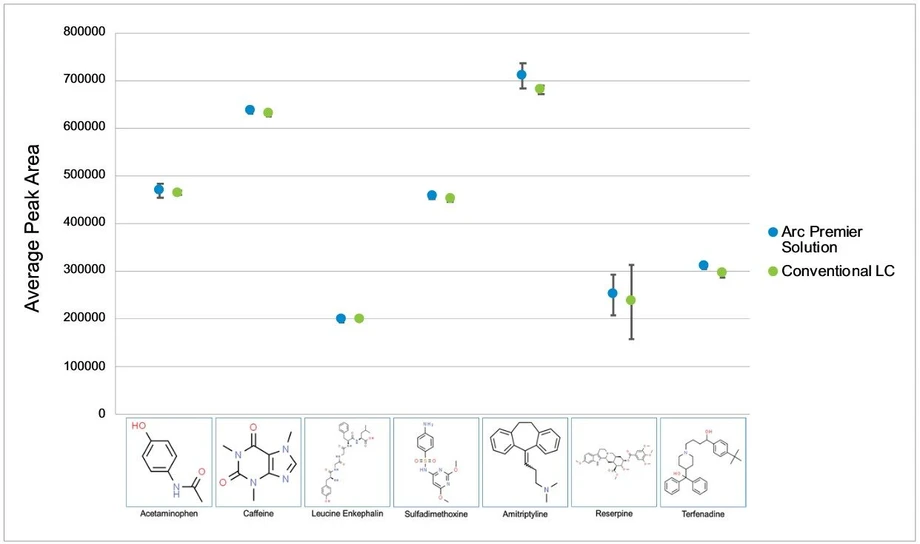

Waters Arc Premier LC System: Figure 6. Analysis of acetaminophen, caffeine, leucine enkephalin, sulfadimethoxine, amitriptyline, reserpine, and terfenadine shows that non-metal-sensitive compounds demonstrate comparable performance between the Arc Premier Solution and conventional LC systems.

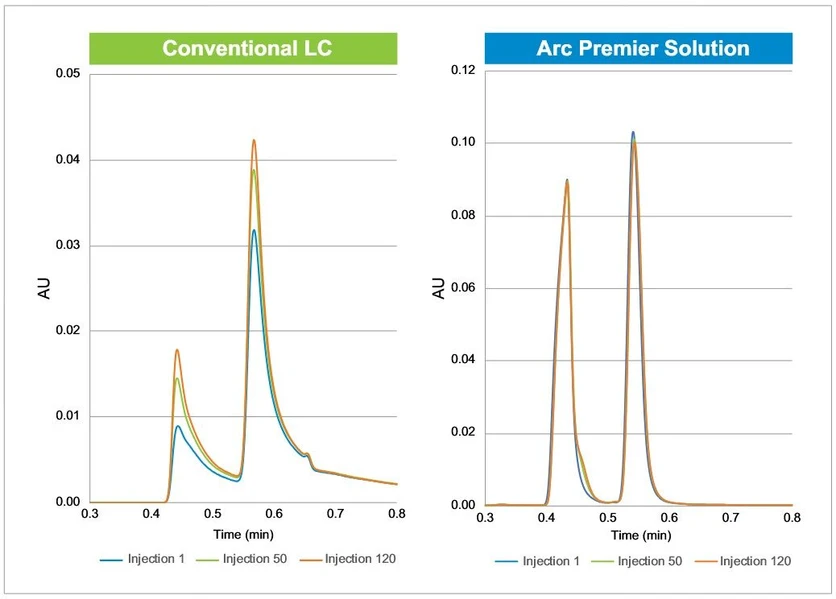

Waters Arc Premier LC System: Figure 7. Comparison of adenosine triphosphate and adenosine diphosphate peaks using a conventional LC system and the Arc Premier Solution over 120 injections. The peak areas of metal-sensitive compounds remain constant from the first to the 120th injection using the Arc Premier Solution. Peak areas of metal-sensitive compounds on a conventional LC system continuously increase over time and do not stabilize even after 120 injections.

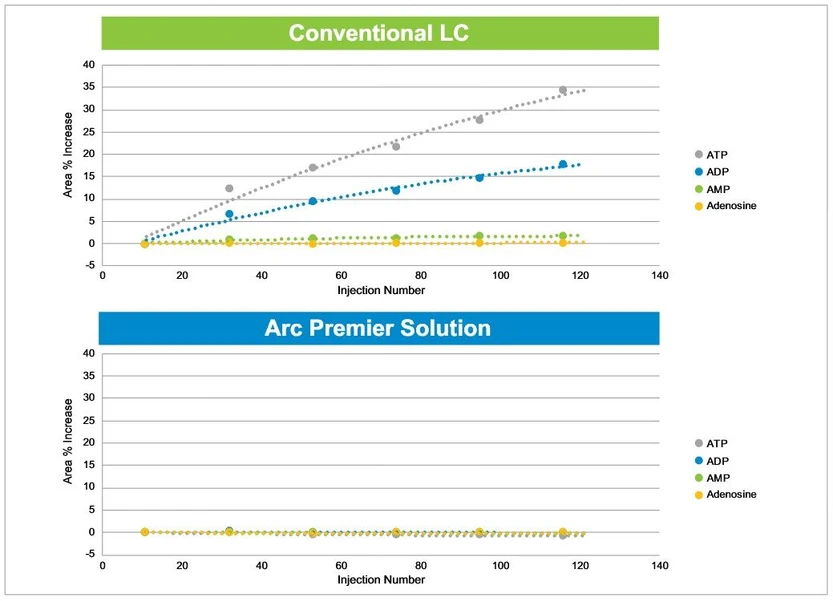

Waters Arc Premier LC System: Figure 8. Comparison of adenosine triphosphate and adenosine diphosphate peaks using a conventional LC system and the Arc Premier Solution over 120 injections. The peak areas of metal-sensitive compounds remain constant from the first to the 120th injection using the Arc Premier Solution showing less than a 1% change in peak area for all compounds. Peak areas of metal-sensitive compounds on a conventional LC system show an increase of 2–35% when compared to the first injection and show no signs of stabilization.

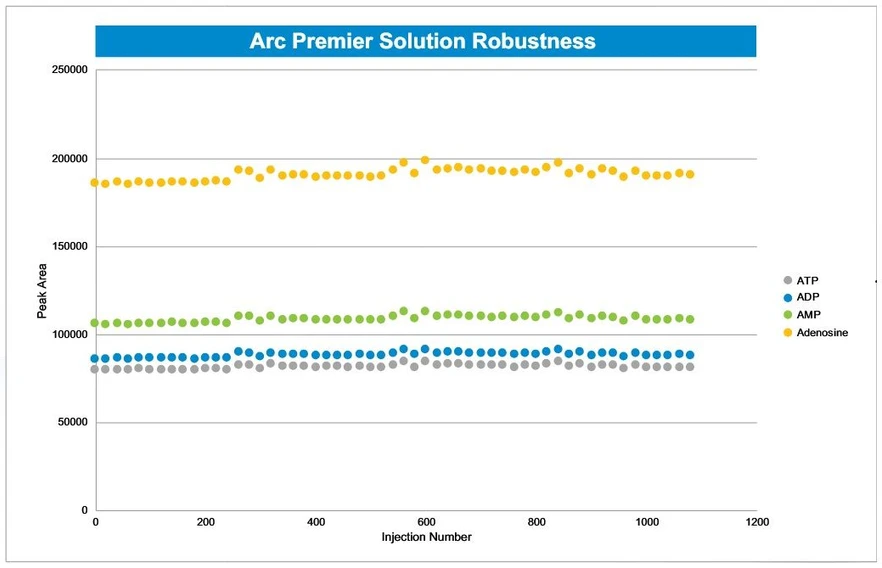

Waters Arc Premier LC System: Figure 9. Adenosine triphosphate, adenosine diphosphate, adenosine monophosphate, and adenosine stability using the Arc Premier Solution over 1000 injections. The peak areas of metal-sensitive compounds remain consistent over 1000 injection using the Arc Premier Solution demonstrating the robustness of the system.
